Macpower & Tytech R2-3500 Manuel utilisateur

R2-3500

Digital Media Player/Recorder

User Manual

May 26, 2009 - v1.0

Firmware: 20090512

The diagrams and images contained in this document may not fully

represent the actual product and are there for illustration purposes only.

R2-3500 Media Player/Recorder Table of Contents

Table of Contents

1Getting Started........................................................................................................................ 1

1.1 About this Device .............................................................................................................. 1

1.2 Detailed View .................................................................................................................... 2

1.3 Before Use ........................................................................................................................ 6

2Basic Operation....................................................................................................................... 9

2.1 Turning on the Power........................................................................................................ 9

2.2 About the Main Screen...................................................................................................... 9

2.3 Recording (Video In) ......................................................................................................... 9

2.4 Transferring Files (File Copy).......................................................................................... 10

2.5 Playing back Media Files (Browser)................................................................................ 10

2.6 Setup Menu (Setup)........................................................................................................ 11

2.7 Scheduled Recording (Timer REC)................................................................................. 11

3Examples ............................................................................................................................... 12

3.1 Video In........................................................................................................................... 12

3.2 File Copy......................................................................................................................... 14

3.3 Browser........................................................................................................................... 16

3.4 Timer REC.......................................................................................................................22

4Setup Menu............................................................................................................................ 25

4.1 Audio............................................................................................................................... 25

4.2 Video............................................................................................................................... 25

4.3 REC................................................................................................................................. 26

4.4 Network........................................................................................................................... 27

4.5 System ............................................................................................................................ 28

4.6 Photo............................................................................................................................... 29

5Appendix................................................................................................................................ 30

5.1 Specifications..................................................................................................................30

5.2 Precautions .....................................................................................................................31

5.3 Trademarks..................................................................................................................... 32

5.4 Important Notices............................................................................................................ 32

5.5 FAQ................................................................................................................................. 32

R2-3500 Media Player/Recorder Getting Started

1 Getting Started

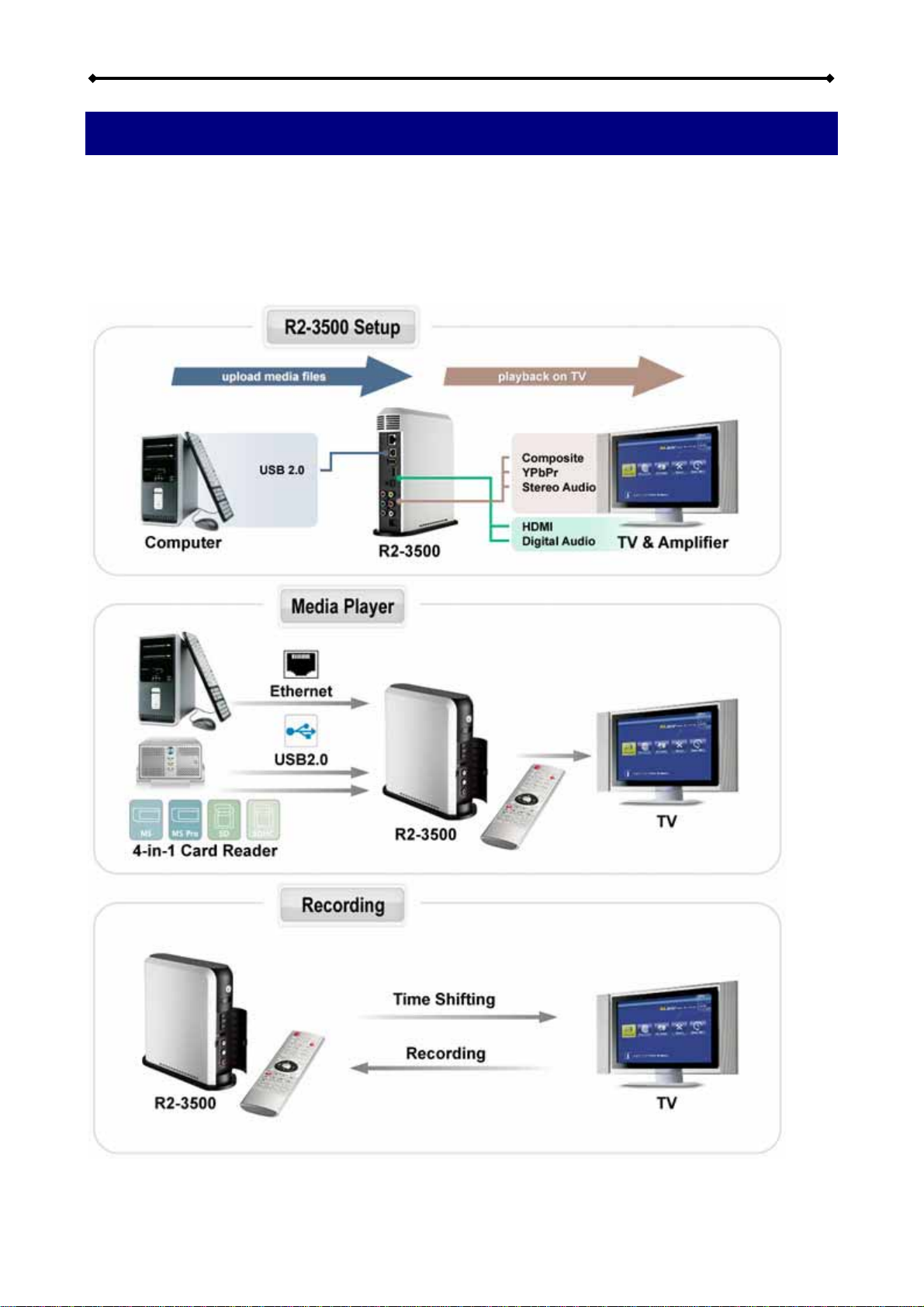

1.1 About this Device

The R2-3500 is a digital media player that can be connected to the TV and playback media files

from USB drives, its internal hard drive, media cards and network folders, as well as record videos

directly to its internal SATA hard drive. It supports high definition video playback, offers digital

HDMI output and features both scheduled recording and time shifting.

Page 1

R2-3500 Media Player/Recorder Getting Started

1.2 Detailed View

1.2.1 Front

Standby button

LED indication & infrared receiver

Card reader slot

(SD/SDHC/MS/MSPro)

USB#1 host port

Composite analogue

audio & video input

LED Indication

Power LED; lights up blue when the power is ON, turns purple during video recording and turns

off when system is in standby mode.

Standby LED; lights up orange when the system is in standby mode.

LAN LED; lights up yellow during network activity.

Card Reader LED; normally green but turns off when a card is inserted into the card reader.

1.2.2 Rear

Ethernet port

USB device port

USB#2 host port

HDMI digital audio/video output

SPDIF digital audio output

Composite analogue

audio/video output

YPbPr component video output

Power receptacle

Page 2

R2-3500 Media Player/Recorder Getting Started

1.2.3 Top

Pause/Step TV System

Mute

Card Copy

Home (main screen)

Record

Stop

Arrow keys for navigation

Play/Enter

Page 3

R2-3500 Media Player/Recorder Getting Started

1.2.4 Remote Control

For a detailed description of the functions for each button, please refer to the table on the next

page.

Standby

Rec List (context menu) Browser (file browser)

N/A Setup Menu

Timer (scheduled recording) Audio (audio track selection)

TV System (video output) Copy Menu

Numeric key pad

Mute

GoTo (jump to chapter/time)

Zoom In (photos/videos) Return to previous screen

Enter

Arrow keys for navigation

No function No function

Pause/Step Play

Recording Stop

Fast Forward Previous File/Page

Fast Reverse Next File/Page

Instant replay of previous 10sec CM Skip (skips 30 seconds)

Slow Motion (¾, ½, ¼, 1/8, 1/16) Volume Up

Set A-B repeat points

Music

Repeat (chapter, title, off) Volume Down

Subtitles (video subtitles) Guide Menu

Display file/status information Time Shift

Note

Insert two triple A batteries (AAA) before using the remote control the first time.

Page 4

R2-3500 Media Player/Recorder Getting Started

Button Function

Power Turns system ON or puts it into stand-by mode.

Source N/A (only one source available, Video1 = Composite audio/video)

Rec List Opens context menu to rename or delete the selected folder/file in the

browser menu. Opens context menu to add, remove and delete

shortcuts under My_Shortcuts for shared folders.

Browser Jumps to browser menu.

Setup Opens setup menu.

TV System Changes TV output (press multiple times for different outputs).

Timer Jumps to recording schedule (Timer REC).

Audio Changes audio track.

Copy Jumps to file copy menu.

Mute Mutes audio sound.

Go To Opens search window to jump to a specific title, chapter or time during

video playback.

Zoom In Zooms in during photo display (2x/4x/8x/16x) or video playback

(2x/3x/4x/8x).

Zoom Out N/A

Return Returns to previous screen and moves up by one directory.

Delete N/A

Rec Starts or stops recording.

Pause/Step Pauses playback and plays frames step by step.

Play Starts or continues playback.

Stop Stops playback.

FR/FF Fast reverse or fast forward video playback.

Prev/Next Previous or next file/page.

Slow Slow motion playback for videos.

Ins Replay Jumps 10 seconds back to replay previous scene.

CM Skip Jumps 30 seconds forward to skip commercial.

1/All Sets repeat mode to Chapter, Title or Off.

A-B Sets A-B points for repeat mode.

Music N/A

Volume Increases or decreases volume.

Display Displays time and other information during playback, time shifting and

recording.

Subtitle Turns external subtitle (SRT) ON or OFF.

Guide Displays main screen.

Time Shift Activates time shift function and starts recording. Press Play to start

playback and pause to temporarily pause playback. Time shift

recording continues until the Stop button is pressed.

Page 5

R2-3500 Media Player/Recorder Getting Started

1.3 Before Use

1.3.1 Hard Drive Assembly

The internal SATA hard drive is not required for the basic functions of the R2-3500 media player

but it is recommended to install a drive in order to make use of all the functions this device offers

and also have a convenient storage place to store your media files.

1. Remove the two screws from the bottom, push the side cover from the front to slide it off

the back and lift it off the case. Remove the screws for the metal shielding and take it off.

2. Remove the screws for the HDD bracket and lift it out of the casing. Install the hard drive,

mount it to the HDD bracket, connect the cables and then replace the assembled drive in

the casing.

3. Replace the metal shielding and fasten the screws. Align the side cover with the casing,

slide it into place and fasten the screws to finish the assembly.

Page 6

R2-3500 Media Player/Recorder Getting Started

1.3.2 Formatting the Hard Drive

Formatting the internal drive is necessary in order

for the R2-3500 media player to access the drive

and record videos or stores files on it.

Note

Formatting the hard drive will erase all data on it! If

you have some files on it already, make sure to back

them up to a different drive first, before you start the

formatting process.

1. When a new hard drive has been installed, a warning message that the drive is about to be

formatted will pop-up automatically after the system is turned on. If the drive has already

been formatted but you would like to change the partitions, go to the System category in the

Setup menu and select HDD Format. Confirm the warning message by pressing OK.

2. Use the up and down keys to adjust the size of the partitions. Select a large enough FAT32

partition to store all your future recordings. The NTFS partition will be read only for the

media player but more suitable for file exchange when connected to a computer via USB.

When done, press the Next key to continue.

Page 7

R2-3500 Media Player/Recorder Getting Started

Page 8

3. Confirm the next dialog and start formatting by pressing Format. During the process, do not

turn off the power or interrupt the device in any other way.

4. Once the formatting has completed, a new Congratulation dialog will appear. Press OK to

close it and exit the disk utility. The device will restart automatically.

Note

The R2-3500 media player will be able to write to the first FAT32 partition only. NTFS partitions

can only be used to read and play files.

1.3.3 Supported Devices

Hard Drive: 3.5" SATA-I or SATA-II HDD (1.5Gb/s or 3.0Gb/s), 20GB - 1TB

Media Cards: SD, SDHC, MS, MS Pro

USB Devices (mass storage class): USB hard drive, USB flash drive, USB card reader
