M2 Antenna Systems 222-10EZ Manuel utilisateur

M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722

Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com

Rev.01

Model .........................................222-10EZ

Frequency Range.......................222 To 226 MHz

*Gain ..........................................14.1 dBi

Front to back ..............................23 dB Typical

Beamwidth ...............................E=34° H=39°

Feed type ...................................“T” Match

Feed Impedance. .......................50 Ohms Unbalanced

Maximum VSWR........................1.2:1

Input Connector..........................“N” Female

Power Handling ..........................1.5 kW

Boom Length / Dia......................9’ 9” / 1”

Maximum Element Length..........26-3/8”

Turning Radius: ..........................5’ 6”

Stacking Distance.......................78” High & 80” Wide

Mast Size....................................1-1/2” to 2” Nom.

Wind area / Survival ...................0.075 Sq. Ft. / 100MPH

Weight / Ship Wt.........................4 Lbs. / 5 Lbs.

M2 Antenna Systems, Inc.

Model No: 222-10EZ

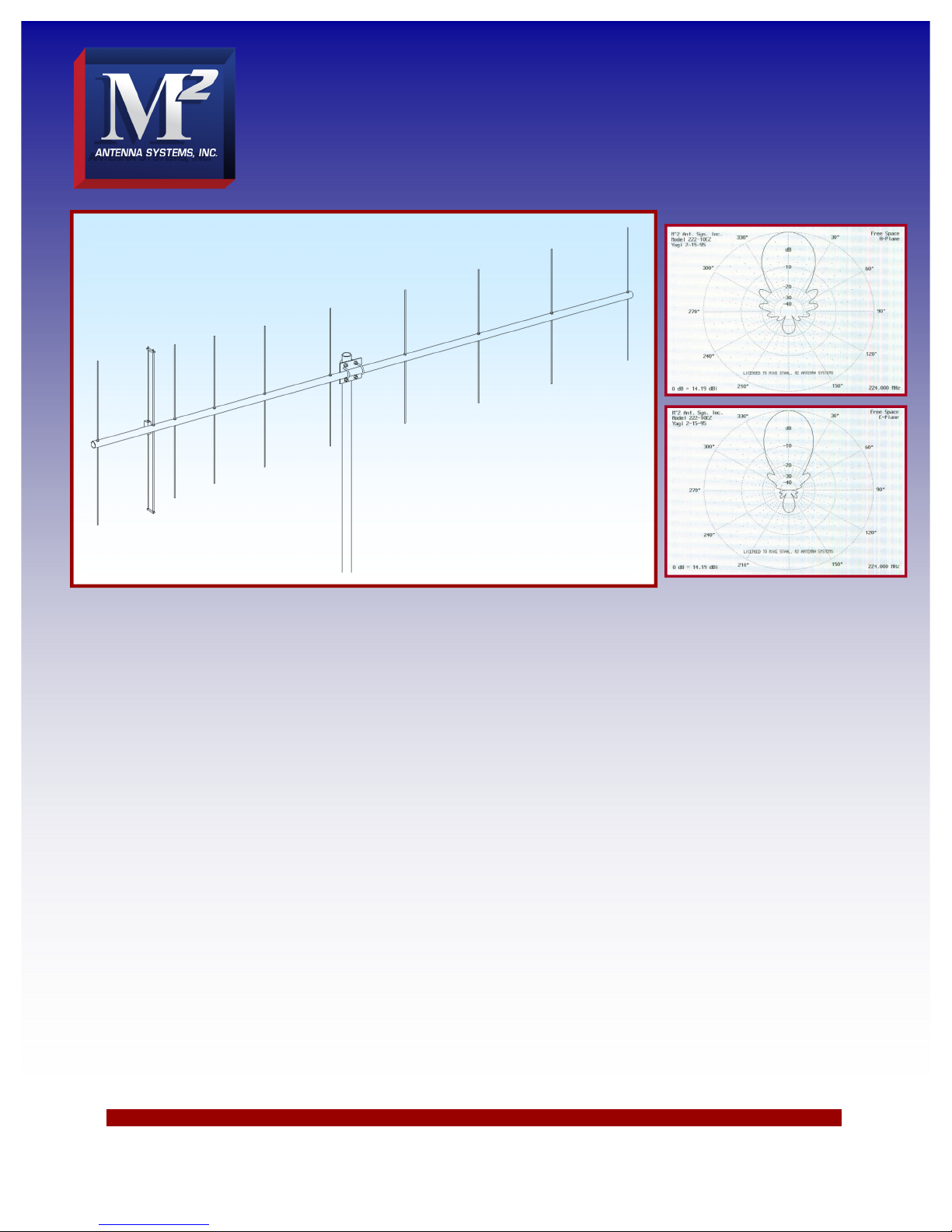

FEATURES:

The 222-10EZ is an easily assembled, medium sized, computer designed Yagi that covers 222 to 226 MHz with

flat gain and VSWR. Strong, yet lightweight and streamlined, it compliments any VHF system. The heart of the 222-10EZ

is a unique Driven Element Module with superior weather resistance and power handling abilities. All connectors are O-

ring sealed to the CNC machined block and internal connections are sealed in a space-age silicone gel with a dielectric

strength nearly 4 times greater than air. The Balun coax connectors are triple sealed.

Other key mechanical and electrical parts are CNC machined from 6061-T6 aluminum and all hardware except U-

bolts is stainless steel. It features our silicone-gel sealed, weatherproof driven element assembly and a unique internal

balun. Want higher power capability or some other change? Please contact the factory for details.

SPECIFICATIONS:

*Subtract 2.14 from dBi for dBd

Tools required: screwdriver, 11/32”, 7/16”, and 1/2” end wrenches and / or sockets, measuring tape.

1. Assemble the two 1” boom sections using 8-32 x 1-1/4" screws and locknuts.

2. Lay out the 3/16” elements by length and position as shown the DIMENSION sheet. Start with the

REFLECTOR element. Balance across finger to find center and push on a black button insulator to

about 1/2” from center. Push the element through the holes 1/2" from the rear of the boom and

install the second button, snugging it up into boom. DO NOT BOTHER WITH ACCURATELY

CENTERING the element at this time and DO NOT INSTALL the shaft retainers yet. This is easier

to do after all the elements are installed in the boom.

3. Install the DRIVEN ELEMENT as you did the reflector. Then continue with the installation of the

DIRECTORS. Note that the Director Elements do not consistently diminish in length from rear to

front, so pay close attention to length and position.

4. Now begin centering the elements. Use a tape measure to EQUALIZE the amount the element

sticking out on each side of the boom. Once you have all the elements centered, sight down the

element tips from the rear comparing each side. Look for any obvious discrepancies and correct if

found.

5. Install the stainless steel SHAFT RETAINERS onto the element rods. NOTE: The shaft retainers

should always be used for permanent and long term antenna installations. For portable or

temporary use, or whenever it is anticipated that the antenna will be disassembled within a short

time, the retainers may be left off. The button insulators, alone, hold the elements quite securely.

To install, use thumb and index finger to hold a retainer over end of the 3/8 x 3” push tube

(retainer dished into tube). Hold the element firmly and start the retainer onto the rod by applying

pressure with the push tube. Push the retainer until up tight against the button insulator. Locking

pliers, lightly clamped to rod and up against opposite button insulator will help maintain center

reference. If the retainer is pushed too far, remove the element from the boom, push the retainer

off, and start over. Install opposing retainer. Repeat for all elements.

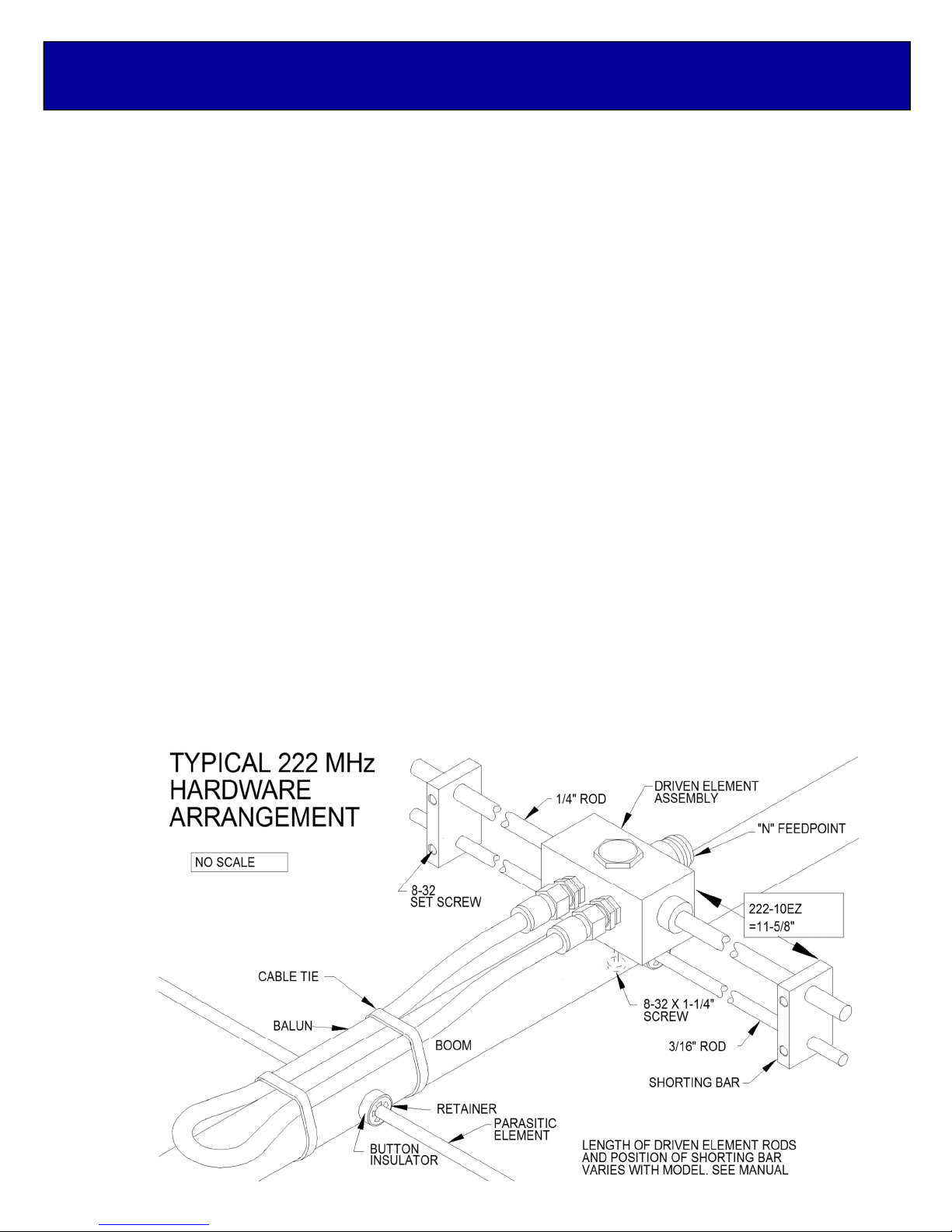

222-10EZ ASSEMBLY MANUAL

6. Mount the DRIVEN ELEMENT BLOCK ASSEMBLY to the top of the boom using a single 8-32 X 1-

1/4" screw. Orient the block with feed connector facing to the FRONT.

7. Attach balun, routing coax along boom in a single loop. Tighten the connectors gently using a

7/16" end wrench. Form the balun close to the boom and secure with a nylon cable tie. Tie should

be snug but not crushing or kinking the coax.

8. Install the 8-32 x 1/4” set screws (internal Allen head - tool supplied) into the SHORTING BARS.

Slide the bars onto the 3/16” rod driven element tips and then onto the 1/4" Driven Element Block

Rods. Position the Shorting Bars according to the Dimension Sheet or drawing on previous page:

the dimension is between the outer face of the driven element block and the inner face of the

shorting bar. Align the bars and rods with each other and tighten the setscrews.

10. The boom to mast plate is normally mounted at the balance point. Since the feed line represents

significant weight it is best to have it, or a temporary equivalent, attached and fastened along the

boom with cable ties before final mounting the plate. Use two 1" U-bolts and the stainless locknuts

provided. DO NOT OVER TIGHTEN. 2” U-bolts are provided for mounting the antenna to your

mast.

THIS COMPLETES THE ANTENNA ASSEMBLY.

INSTALLATION AND STACKING INFORMATION

A. Never mount the antenna with a metallic mast, crossboom or feedline in the element plane:

pattern and performance will deteriorate. Use a fiberglass or equivalent mast or crossboom instead.

Route feedline at right angles to elements when exiting boom.

HORIZONTALLY POLARIZED, the antenna may be mounted to a metallic vertical mast or a horizontal NON

-METALLIC crossboom. If mounted to a horizontal crossboom, route the feedline forward to the boom-to-

mast plate, loop down at right angles to the elements, and bring back to crossboom at least 6” beyond

element tips.

VERTICALLY POLARIZATED, the antenna may be mounted to a NON METALLIC VERTICAL MAST or a

horizontal metallic crossboom. If mounted to a vertical mast, route the feed line forward to the boom-to-

mast plate, loop out at a right angle to the boom, and bring down to the mast at least 6 inches below the

element tips.

B. To optimize the performance of this high quality antenna, always use high quality coax and connectors.

Old, corroded, or poor quality materials are common sources of serious performance losses and VSWR

problems.

C. If possible, test the antenna, connectors and feedline BEFORE installing to your mast or tower. At

6 feet or more the antenna will exhibit performance similarto higher mounting heights. Set antenna on a

ladder or temporary mast. Check for continuity and that match is close to “specs” across the the rated

bandwidth.

D.STACKING REMINDERS:

1. All driven element blocks MUST be oriented to the same side of boom.

2.All boom-to-mast plates MUST be mounted at the same point on the boom.

3.Feed / phasing lines MUST be of equal electrical length or multiples of 1 wavelength in order to maintain

equal phasing in the array. Improper phasing can severely deteriorate performance.

If you are unsure about stacking multiple antennas, please call M2and let us help you DO IT RIGHT

222-10EZ ASSEMBLY MANUAL

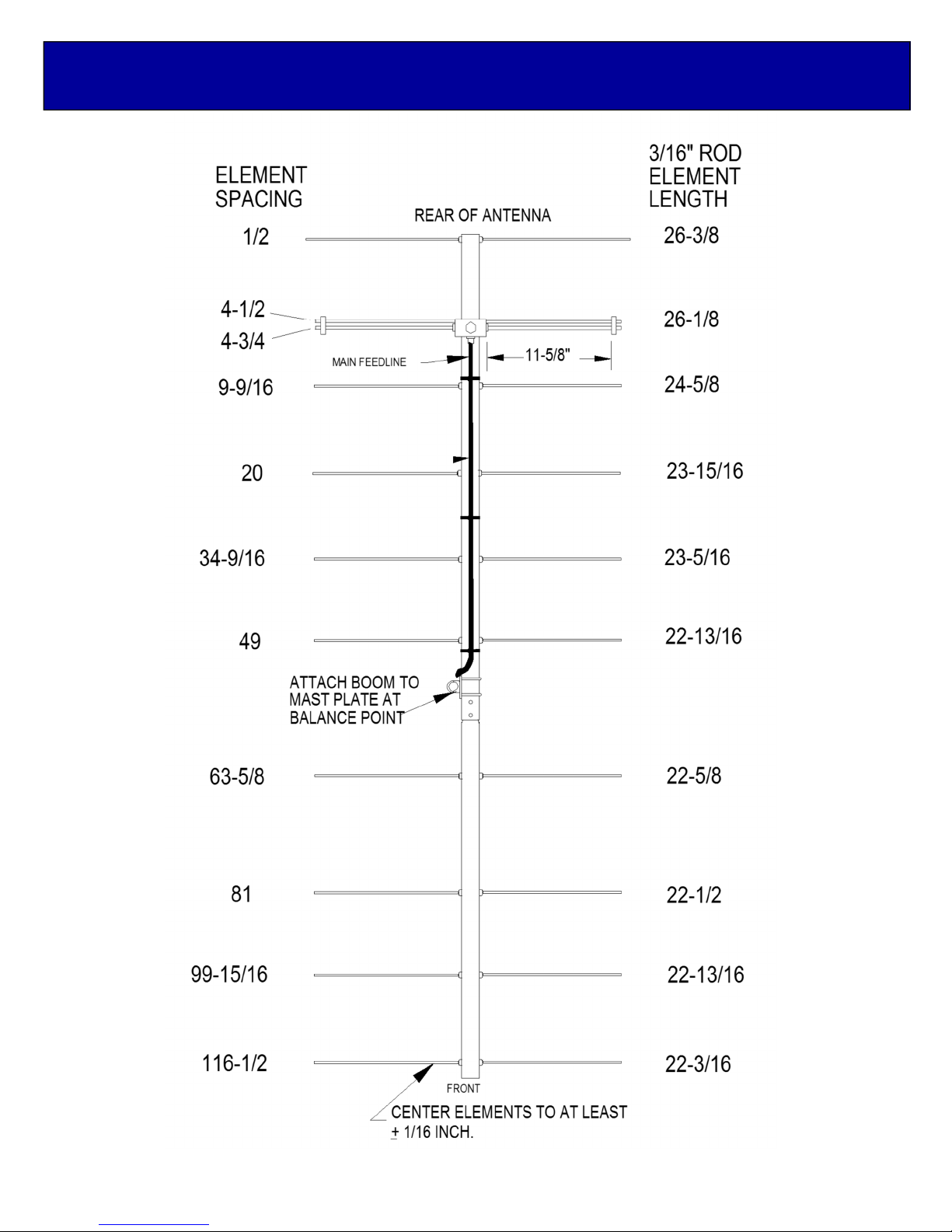

222-10EZ DIMENSION SHEET

DESCRIPTION QTY

BOOM SECTION, 1 X .058 X 60” SOE .............1

BOOM SECTION, 1 X .058 X 60” STR..............1

ELEMENTS, 3/16 ROD x Dimension Sheet ......10

DRIVEN ELEMENT BLOCK ASSEMBLY..........1

BALUN, RG-6 1/2 WAVE...................................1

BOOM-TO-MAST PLATE, .188 X 3 X 4” ...........1

U-BOLT AND CRADLE, 2’.................................2

U-BOLT , 1” .......................................................2

ASSEMBLY MANUAL .......................................1

IN HARDWARE BAG:

SHORTING BAR ...............................................2

BUTTON INSULATORS ....................................20

SHAFT RETAINER, SS .....................................20

NUT, 5/16-18 SS ...............................................4

LOCKWASHER, 5/16 SS ..................................4

LOCKNUT, 1/4-20 SS........................................4

SCREW, 8-32 X 1-1/4, SS.................................3

SETSCREW, 8-32 X 1/4 SS ..............................4

LOCKNUT, 8-32 SS...........................................2

CABLE TIE, NYLON .........................................3

ALLEN HEAD WRENCH, 5/64” .........................1

PUSH TUBE, 3/8 X 3”........................................1

M2ANTENNA SYSTEMS, INC.

4402 N. Selland Ave.

Fresno, CA 93722

(559) 432-8873 Fax: 432-3059

www.m2inc.com Email: [email protected]

222-10EZ PARTS & HARDWARE
