M-Elec Valo ML-2819SDIM Manuel utilisateur

The single colour controller offers smooth and consistent remote dimming via RF (Radio

Frequency) to control any LED product connected to the receiver (purchased separately). The ML-

2819SDIM also features 4 zone control and 3 memory functions that can memorise your perfect

settings.

ML-2819SDIM

Product information

Colour control DIMMING

Operation voltage 4.5 VDC

Operation Frequency 434MHz

Dimensions 55x120x17MM

Remarks 

Warranty 

TECHNICAL INFORMATION 

T. 1300 222 445 | www.melec.com.au melec.com.au/legal/warranties

PART No. 

Colour control , DIMMING

Input voltage 12-24VDC

Output current 

Output Power 5x48-96W

Output type 12-24V constant voltage output

Operating temperature °°C

Dimensions 145x46.5x16mm

Warranty 7 years

Receiver (purchased separately)

T. 1300 222 445 | www.melec.com.au melec.com.au/legal/warrantiesT. 1300 222 445 | www.melec.com.au melec.com.au/legal/warranties

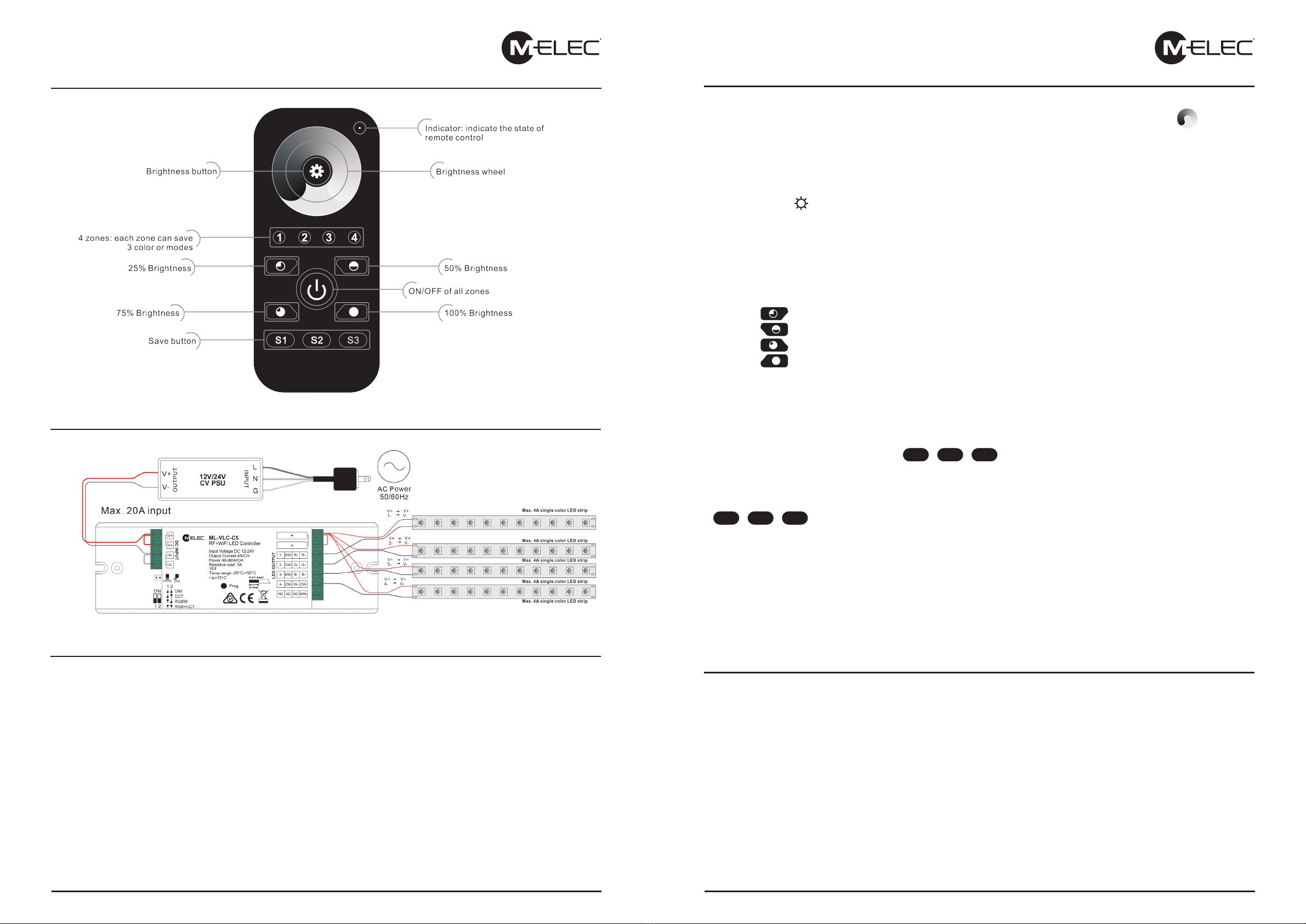

BUTTON GUIDE

WIRING DIAGRAM (ML-VLC-C5)

WIRING DIAGRAM

OPERATION

1. Learning (matching)

















2. DIM Wheel

❶ ❷ ❸ ❹❶ ❸

-



3. Brightness Up and Down button







4. Brightness level button

 ❶ ❷ ❸ ❹



 

 

 

 

5. Save and Recall button

A: Save color temperature

❶ ❷ ❸ ❹





B: Recall

❶ ❷ ❸ ❹



Deleting pairing to RF remotes:





SS11

SS22

SS33

SS11

SS22

SS33

PLEASE NOTE



• Read instructions carefully before attempting to install the fitting. Retain this guide for future reference

• Disconnect power before installing or servicing

• This fitting is for indoor use and should not be used in areas with limited ventilation or high ambient temperatures

• 

• 

• 000)

• Correct electrical polarity must be observed as the wrong polarity may destroy the product and is not covered under warranty

• Damage by corrosion will not be honoured as a material defect claim. It is the user’s responsibility to provide suitable protection against

corrosive agents such as moisture, condensation and other harmful elements


