Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Oxygen 8 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Oxygen 8 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

What’s in the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Guide to Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

USB Driver Installation forWindows . . . . . . . . . . . . . . . . . . . . . . .4

USB Driver Installation for Macintosh . . . . . . . . . . . . . . . . . . . . .10

FirstTime OMS Configuration Instructions . . . . . . . . . . . . . . . . .12

Setting UpYour MIDI Studio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Using the Oxygen 8 in yourApplication Software . . . . . . . . . . . . . . .14

Oxygen 8 MIDI Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

MIDI Functions In Standalone Mode . . . . . . . . . . . . . . . . . . . . . . . . . .14

Default Settings ofThe Oxygen 8 . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Oxygen 8 Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Top Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Utilizing the Key ProgrammingAssignment Keys . . . . . . . . . . . . .16

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Technical Support & Contact Information . . . . . . . . . . . . . . . . . . . . . .21

AppendixA-Midi Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Oxygen 8Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Oxygen 8

version: Oxy8_050503

Introduction

Congratulations on your purchase of the Oxygen 8,part of the USB Keystation

series of MIDI controllers brought to you by M-Audio.You may use your Oxygen

8 in conjunction with a USB equipped PC or Macintosh computer and

appropriate music software to enter a full range of MIDInote and controller

information.You will be able to discover the wonderful world of Computer

Music with a set of complete musical instruments from your sound card,sound

modules, or workstation. The Oxygen 8 gives you full control over MIDI

parameters,while utilizing proven M-Audio USB MIDI interface technology.The

Oxygen 8 will also serve your needs as a standalone MIDI controller.

This manual will help you become familiar with the powerful features of the

Oxygen 8.After reading the manual carefully,you will have a clear understanding

of how to transmit different MIDI messages to other instruments and

equipment. For ease of use of MIDI implementation, we strongly recommend

that you have the manual at hand when you are using the keyboard,especially if

you are new to the world of MIDI.

Oxygen 8 Features

•The Oxygen 8 MIDI controller keyboard provides 25 dynamic keys,pitch and

mod wheels,a data slider,and 8 assignable rotary controllers.

•Connects easily to your computer’s USB port.No tools,and no disassembly

is required.When used with USB,the Oxygen 8 may be parasitically powered

by your computer’s USB port.

•The Oxygen 8 may also be used as a completely portable standalone

controller when powered by 6AA-size batteries.

•The Oxygen 8 provides two MIDI OUT jacks for connecting to MIDI devices

from either your computer, or as a standalone MIDI controller.

•There is also a socket for an optional sustain-footswitch.

•Although the Oxygen 8 has no built-in sound capabilities, it offers a great

variety of useful MIDI functions.

Oxygen 8 Overview

The Oxygen 8 is a fully functional MIDI controller. Its 25 keys can be set to play

any octave or transposed pitch,while the Oxygen 8’s pitch wheel,mod wheel and

data slider with the addition of eight programmable rotary knobs make it the most

versatile MIDI controller of its class.Its compact size and ability to run on battery

power make it the ultimate in portable keyboard controllers.Virtually any type of

MIDI controller information can be sent from the Oxygen 8 to your computer,

using the power and convenience of the Mac or PC computer’s USB port.

Additionally, the Oxygen 8 can operate as a “standalone” MIDI controller,

independent of the computer.The rear panel MIDI port marked “keyboard” is

used for this purpose.

Contained within the Oxygen 8 is a USB MIDI interface.Simply plug the Oxygen

8 into your computer’s USB port, install the included drivers and enable the

MIDI interface within your music software. This combination of a versatile

keyboard controller and a USB MIDI interface allows you record and control

MIDI information within your music application,plus adds a MIDI output port to

which you can connect a MIDI sound module or drum machine.The rear panel

MIDI port marked“USB” is used for this purpose.

The Oxygen 8 may be powered by one of three sources:external power supply,

internal batteries, or “parasitically” from the voltage it receives from the USB

port.For the most consistent perfomance,we recommend using a power supply

or batteries,even when using the Oxygen 8 with your computer’s USB port.To

power from the USB port only, plug the Oxygen 8 directly into the computer’s

USB port,or into a powered USB hub.When using the Oxygen 8 in standalone

mode, a power supply or batteries must be used. Six AA-size batteries are

required when using battery power. When using an external power supply

(optional), it is important to use only a supply with the proper 9vDC, 500ma

rating.These may be purchased locally or through MIDIMAN.

On a PC: You must be running Windows 98 or higher to properly use the

Oxygen 8.Also,your motherboard must support USB or you will need to install

a PCI to USB host adapter to provide the USB ports. It is possible for a

motherboard to support USB and yet not have the physical port connectors

installed. A simple USB back panel extender can be purchased at a computer

supply store and can be installed easily to provide USB port connectors.

On an Apple Computer: Your Apple must support USB with the built-in native

ports present. Standard iMac’s or G3/G4’s with USB ports will work just fine. A Mac

OS that supports USB will also be required.We recommend OS 9.2.2 or higher.We

cannot guarantee performance of device when using non-Apple USB ports.

IMPORTANT: For MacOS 9, an OMS MIDI driver is provided. You MUST have

a sequencer program that supports OMS, and have OMS properly installed

in order to use the Oxygen 8.

What’s in the Box

Included in your Oxygen 8,you should find:

1. Oxygen 8 USB Keystation MIDI Controller

2. One (1) standard USB cable

3. PC and Mac driver disk

4. Owner’s manual and warranty card

Guide to Getting Started

Here’s an outline of steps to begin using your Oxygen 8 on either Mac or PC:

1. Attach the Oxygen 8 to your computer (see“Hardware Installation”).

2. Install the Driver (see“Software Installation”).

3. Hook your sound module to the Oxygen 8 (see“Setting UpYour MIDI Studio”).

4. Configure the Oxygen 8 in your application software (see “Using the

Oxygen 8 in yourApplication Software”).

Hardware Installation

Installing your Oxygen 8 means simply attaching it to your USB port using the

standard USB cable that is included. We recommend that you power down (turn

off) your computer for a first time installation. If you are using the Oxygen 8 in

USB mode,a power supply is not required—the computer’s USB port provides

the power to run the Oxygen 8. The “wall-wart” or battery supply is only

necessary for use in the standalone mode.However,when the Oxygen 8 receives

its power from the USB port, we recommend either plugging directly into the

computer’s USB port (not into the keyboard’s port or a powered USB hub.)

Find a good spot around your computer station to place the Oxygen 8. The USB

port on your computer is a small (1/8” x 3/8”), rectangular connector (A) and

is usually found in a group of two. The other end (B) of your USB cable is‘more

square’ (1/4” x 1/4”) in shape, and should fit easily into the USB connector on

your Oxygen 8. Take the (A) end of the USB cable and plug it into the USB port

on the back of your computer. Take the (B) end of the USB cable and plug it in

to the USB port on the back panel of the Oxygen 8.

Next,powerupyourcomputerand proceedto the nextsection,“SoftwareInstallation.”

Software Installation

MIDI application software communicates with devices such as the MIDI interface

contained within the Oxygen 8 via software known as “drivers.” This software

driver is a special,dedicated program that makes a MIDI interface accessible to an

application. On the included driver disk,M-Audio supplies the drivers that enable

you to use Oxygen 8 with either Windows, Mac OS9 or Mac OSX. Oxygen 8

drivers are supplied on the included dual format CD.

USB Driver Installation for Windows

This driver for the Oxygen 8 USB interface requires Windows 98 or higher.

Please make sure that Windows 98SE, ME, 2000 or XP is installed on your

system, and that your USB port is enabled. Check your computer manual for

more information.

To verify your Windows installation after you have carefully followed these

instructions, you may check your system’s “Device Manager,” located in the

Control Panel under “System.” If you look in the Device Manager, you will find

2 parts for the Oxygen 8 KEYSTATION driver;one under the“Universal Serial

Bus” controller group and the other under the “Sound, video, & game

controllers” group.

Windows XP:

1Insert the 'Oxygen 8' CD-ROM into your CD-ROM drive.

2. Open 'My Computer' or 'Windows Explorer' to locate your CD-ROM drive.

Double-click the CD-ROM drive that contains the Oxygen 8 CD-ROM.

Double-click the 'Oxygen 8' folder.

3. Double-click the driver icon to launch the installation procedure.

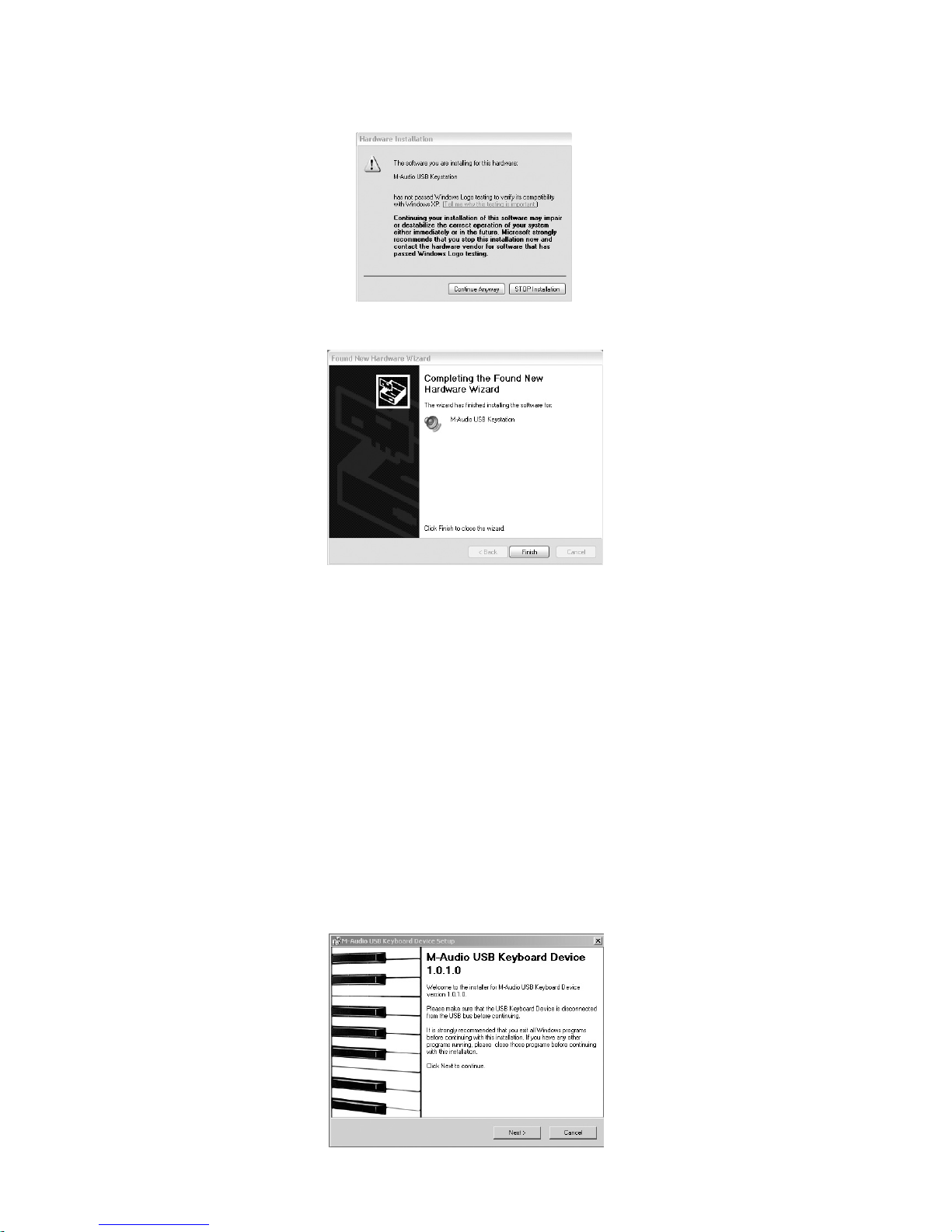

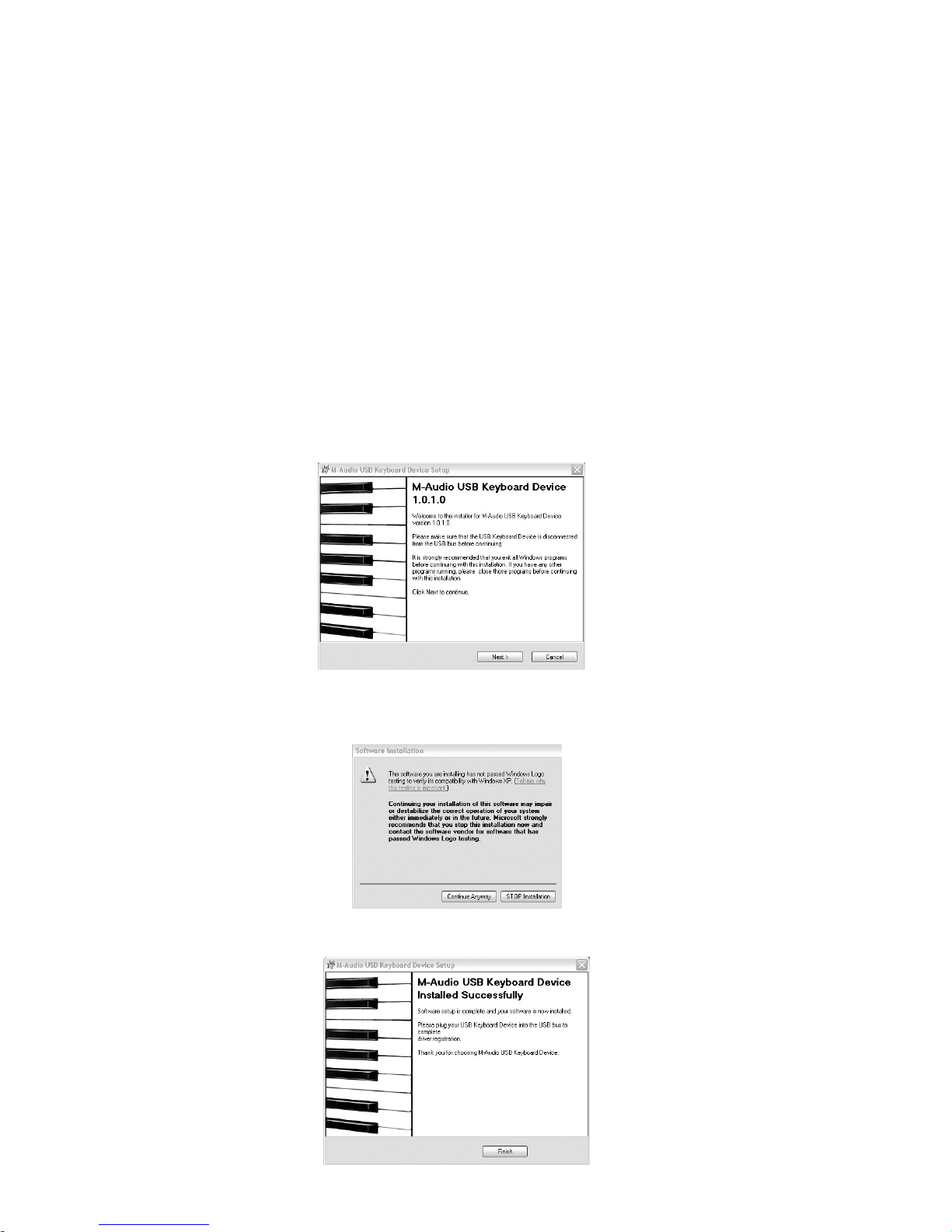

4. You will see an installer window advising you to have your Oxygen 8

DISCONNECTED from the USB bus before continuing.After you verify that

your device is disconnected,click 'Next' to continue.

5. You will see a warning that this device has not passedWindows logo testing.

Click "Continue anyway".

6. When the installer has completed installation,click“Finish”.Plug in your Oxygen 8.

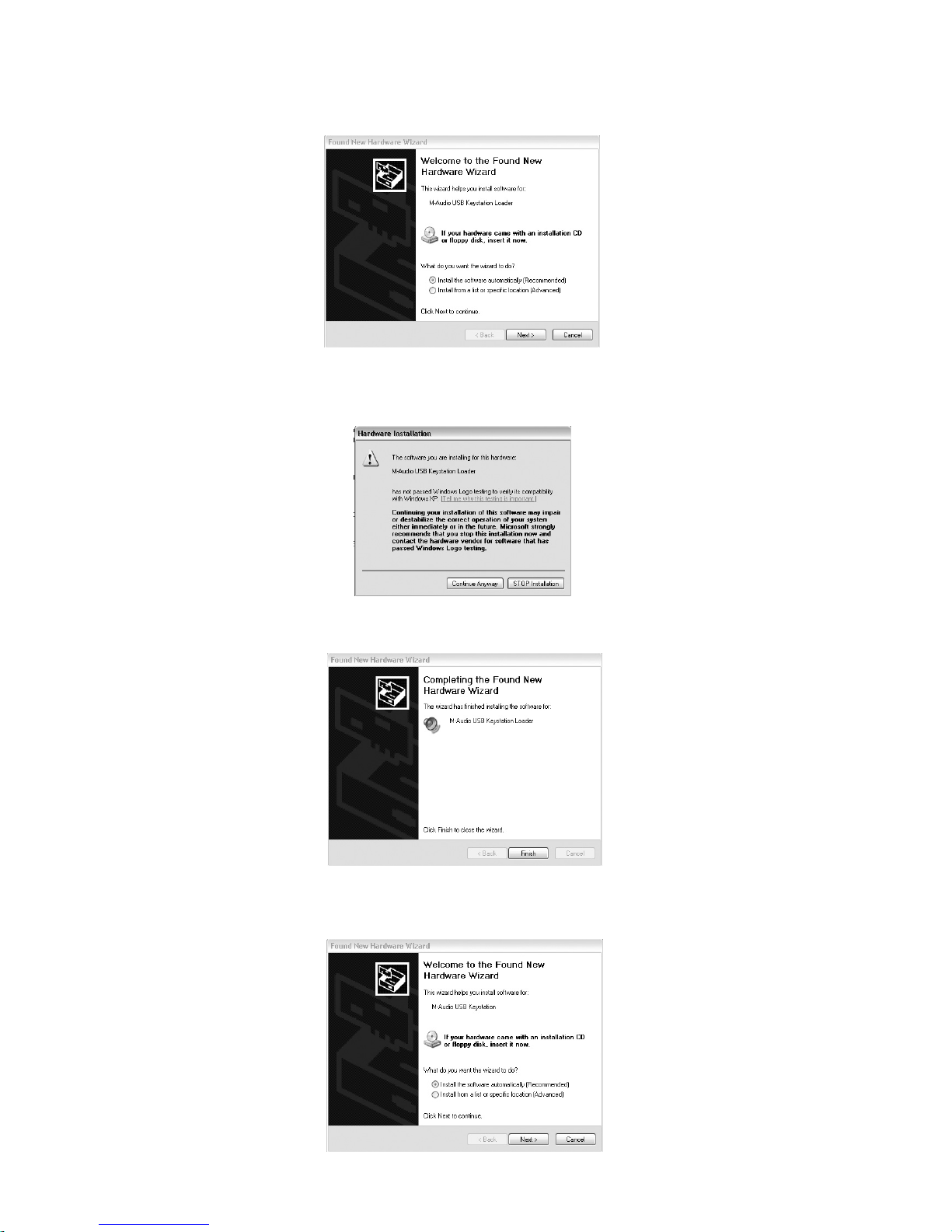

7. You will see a“New Hardware found” dialog.(If you don’t see this dialog at

first,unplug your Oxygen 8 and try again.) Click Next.

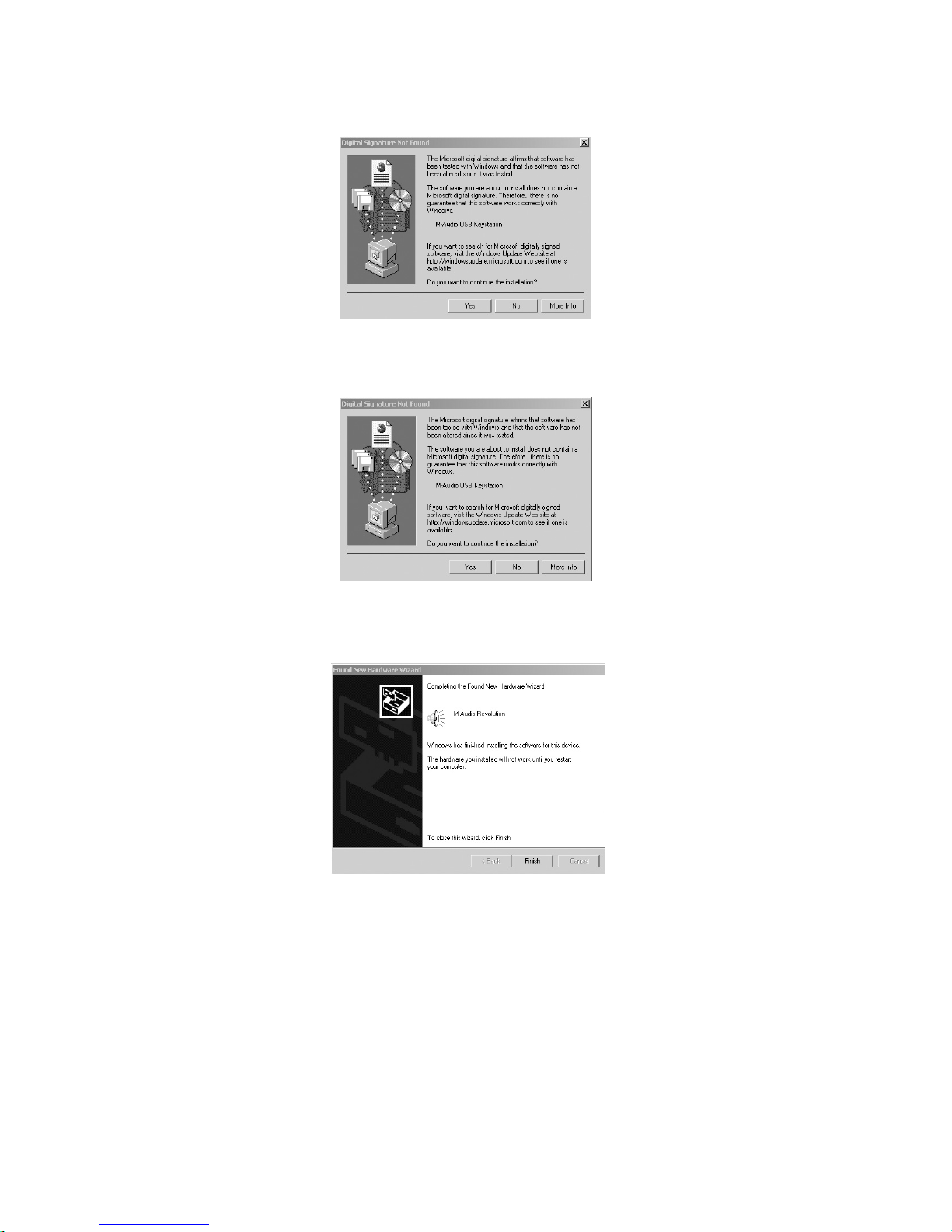

8. You will see another warning that the product has not passedWindows logo

testing.Click "Continue anyway".

9. The installer will finish. Click“Finish” to continue.

10. You will see another window telling you that New Hardware has been found.

Click“Next”.

11. Again,the computer reminds you that the product has not passedWindows

Logo testing.Click "Continue anyway".

12. The driver has been installed.

Windows XP Installation is now complete.

Windows 2000

1. Service Pack 2 or higher is required for proper operation of the Oxygen 8

driver. This service pack is available from Microsoft Downloads at

www.microsoft.com/downloads.

2. Insert the M-Audio Driver CD into your CD-ROM drive. Open 'My

Computer' or 'Windows Explorer' to locate your CD-ROM drive. Double-

click the CD-ROM drive that contains the Oxygen 8 CD-ROM.

3. Double-click the Oxygen 8 Folder to open it.

4. Double-click on the Oxygen 8 Installer icon

5. A dialog box will appear,reminding you to exit all currently running programs

and to disconnect the Oxygen 8 from the USB port.Do this,and click“Next”

to continue.

The installer will scan your hard drive (this can take some time) and will then

install the necessary files and perform setup actions on your system.A series of

progress bars will show you how the process is going.

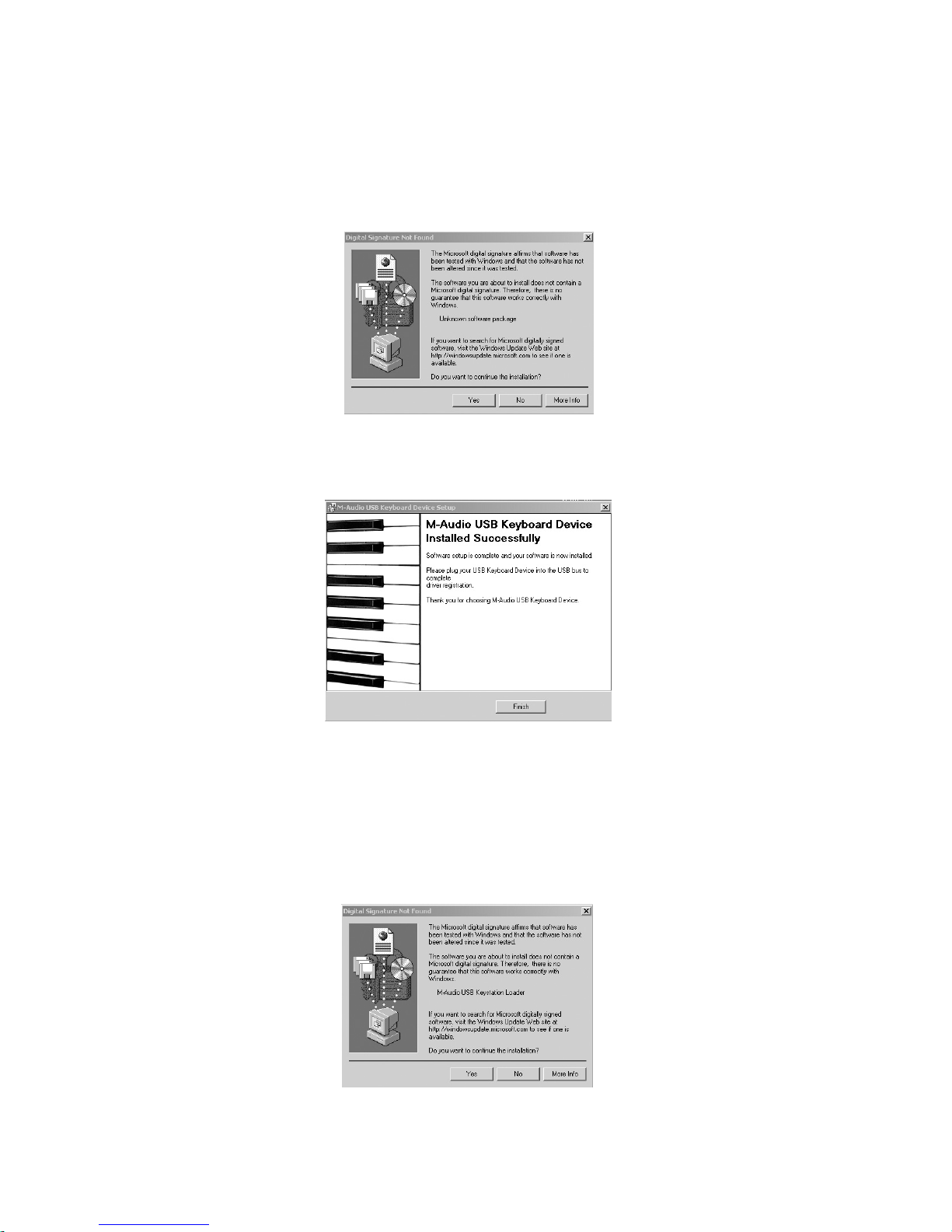

6. At the next prompt, the installer will warn you that this product does not

have aWindows Digital Signature.Click“Yes” to continue.

7. A dialog box will appear, stating that the installation has succeeded. Click

“Finish” to complete the driver installation.

8. Plug the Oxygen 8 into your computer’s USB port.Be sure to either have the

power supply connected and power switch set to 9V, or if not using power

supply, be sure to set the power switch to USB Power. Upon doing so, the

computer will find and install the necessary drivers.

9. The installer will warn you that this product does not have aWindows Digital

Signature.Click“Yes” to continue.

10. The installer will warn you again, a second time, that this product does not

have aWindows Digital Signature - again,click“Yes.”

11. The next screen informs you that the installer has completed.Click “Finish”

to continue.

12. Windows 2000 will prompt you to restart the computer, in order to

complete the installation.Click “Yes” to restart with new settings.

Windows 2000 Installation is now complete.

Windows Me and Windows 98 Second Edition

1. Insert the M-Audio Driver CD into your CD-ROM drive. Open 'My

Computer' or 'Windows Explorer' to locate your CD-ROM drive. Double-

click the CD-ROM drive that contains the Oxygen 8 CD-ROM.

2. Double-click the Oxygen 8 Folder to open it.

3. Double-click on the Oxygen 8 Installer icon.

4. A dialog box will appear,reminding you to exit all currently running programs

and to disconnect the Oxygen 8 from the USB port. Do these things and

click“Next” to continue.

The installer will scan your hard drive (this can take some time) and will then

install the necessary files and perform setup actions on your system.A series of

progress bars will show you how the process is going.

5. A dialog box will appear, stating that the installation has succeeded. Click

“Finish” to complete the driver installation.

6. Plug the Oxygen 8 MIDI interface into your USB port.Be sure to either have

the power supply connected and power switch set to 9V, or if not using

power supply, be sure to set the power switch to USB Power. Upon doing

so,the computer will find and install the necessary drivers.

Windows Me or 98SE Installation is now complete.

USB Driver Installation for Macintosh

If you are using OS 9,you must first install Opcode’s OMS. This is available on

the MIDISPORT drivers page of our website,or can be installed from the driver

CD by opening the OMS folder and then double clicking the OMS install icon

that asks for the driver signature.

This release version of the Oxygen 8 driver requires Macintosh operating

Table des matières

Autres manuels M-Audio Équipement d'enregistrement

M-Audio

M-Audio Delta Audiophile 2496 Manuel utilisateur

M-Audio

M-Audio KEYSTATION 61 MK3 Manuel utilisateur

M-Audio

M-Audio Keystation 88es Manuel utilisateur

M-Audio

M-Audio Audiosport Quattro Mac Manuel utilisateur

M-Audio

M-Audio Delta 66 Manuel utilisateur

M-Audio

M-Audio M-Track Hub Manuel utilisateur

M-Audio

M-Audio ProSessions 24 Bunker 8 Manuel utilisateur

M-Audio

M-Audio KS49-051501 Manuel utilisateur

M-Audio

M-Audio Keystation Mini 32 Manuel utilisateur

M-Audio

M-Audio 24Bit/96kHz Recording System Delta 66 Guide de démarrage rapide

M-Audio

M-Audio tirgger finger pro Manuel utilisateur

M-Audio

M-Audio MICROTRACK 24 Manuel utilisateur

M-Audio

M-Audio FireWire Solo Manuel utilisateur

M-Audio

M-Audio Axiom 25 Manuel utilisateur

M-Audio

M-Audio FireWire 410 Manuel utilisateur

M-Audio

M-Audio Podcast Factory Manuel utilisateur

M-Audio

M-Audio TRIGGERFINGER Manuel utilisateur

M-Audio

M-Audio code25 Manuel utilisateur

M-Audio

M-Audio KEYSTATION 49 MK3 Manuel utilisateur

M-Audio

M-Audio MidAir 25 Manuel utilisateur

M-Audio

M-Audio AXIOM 25-49-61 Manuel utilisateur

M-Audio

M-Audio Fast Track Ultra Manuel utilisateur

M-Audio

M-Audio Fast Track Pro 4 x 4 Mobile USB Audio/MIDI Interface with... Manuel utilisateur

M-Audio

M-Audio FireWire 1814 Manuel utilisateur

Manuels Équipement d'enregistrement populaires d'autres marques

KV2 Audio

KV2 Audio 500 Series Manuel utilisateur

Robotics Technologies

Robotics Technologies microBus-Cam II Manuel utilisateur

Seca

Seca 460 Manuel utilisateur

Cognex

Cognex MVS-8000 Series Manuel utilisateur

Mect

Mect MPNC006 Series Manuel utilisateur

Bad Caf

Bad Caf THE LEASH Manuel utilisateur

Strymon

Strymon NIGHTSKY Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuel utilisateur

Tews Technologies

Tews Technologies TPMC465 Manuel utilisateur

Honeywell

Honeywell Excel 50 Manuel utilisateur

SeaLevel

SeaLevel COMM+8.LPCI Manuel utilisateur

Arturia

Arturia AUDIOFUSE STUDIO Manuel utilisateur

Rukra

Rukra RK-1240 Manuel utilisateur

Samson

Samson SCOM Manuel utilisateur

Dynacord

Dynacord DPS260 Manuel utilisateur

Nice

Nice Core Manuel utilisateur

Pyle Pro

Pyle Pro PSS8 Manuel utilisateur

RF-System

RF-System TinyGate Manuel d'utilisation et d'entretien
