INTRODUCTION
This manual describes the recommended installation procedure for the constant curvature line source
CXA-12 in combination with the subwoofer CXA-18S.
The CXA is intended as a exible solution for both xed installations and touring where wide coverage is
required from as few line array elements as possible.
Designed to be own either horizontally or vertically, this line source system can be used as a single element
or a combination of a maximum of 4 cabinets in array conguration delivering a 72º coverage in the vertical
plane. Our custom HF Multidriver Waveguide system delivers 100H x 18V precise coverage for a multitude
of installations. Thanks to its careful construction it can also be installed for symmetrical HF dispersion.
The CXA Array models are self-powered (Class D) with switching power supply and 1400W of amplication
each. They are also controlled by the latest generation of Digital Signal Processing with a DSP integrated in
to each cabinet, optimizing all the system components and electronics, providing maximum system efciency
and total protection.
CONTENTS
• SAFETY PRECAUTIONS 4
• SYSTEM OVERVIEW
CXA-12 5
CXA-18S 6
BACK PANEL 7
CONNECTORS AND CONNECTIONS 8
• CONFIGURING THE DIGITAL SIGNAL PROCESSOR
CONFIGURING THE DSP OPTIONS 12
CONFIGURATION PANEL 12
SELECT AND RUN PRESET 12
• ONLINE CONTROL SYSTEM 13
• RAINBOW 3D ACOUSTIC SIMULATION SOFTWARE 14
• HARDWARE AND ACCESSORIES 15
• APPLICATION EXAMPLES 16
• HOW TO USE THE FLYING FRAME ON CXA-12 18
• ASSEMBLY OF SV-CXA 20
• FITTING THE CXA-12 CABINETS TO THE FLYING FRAME 22
• FITTING THE CXA-18S CABINETS TO THE FLYING FRAME 23
• FITTING THE CXA-12 WITH CXA-18S CABINETS 24
• THE CEILING BRACKET 25
• CERTIFICATIONS AND GUARANTEE 26
CXA Series User Manual
Lynx Pro Audio S.L 4www.lynxproaudio.com
Before starting to use this device, please read this instruction manual carefully.
Keep these instructions in the place where the equipment will be used and with easy access to them.
• Electrical appliance
The exclamation mark within a triangle identies the presence of electricity. Use the system carefully without
wet hands or feet. Avoid installing the speaker in wet or excesivelly humid places. Do not place material that
contains liquid on or near the unit. Avoid dripping or splashing water or any liquid over the unit. Regularly check
the condition of the cables and make sure these are not being walked on or pinched. Connect the speaker to
bipolar, earthed mains. The mains plug must be connected to the appropriate protection (fuse or breaker).
Connection to any other type of mains could result in an electrical shock and violate local electrical codes.
CAUTION: DO NOT CONNECT OR DISCONNECT THE AC POWER CONNECTORS UNDER LOAD.
•Heavy equipment
Apply back protection when using the system. Avoid loading and unloading at heights.
•Electrical shock risk
The diagonal mark within a triangle identies the presence of dangerous voltage.
Do not open or handle the interior of the box. These parts are not to be adjusted by the user. For maintenance
and/or repair please go to an authorized service centre.In order to reduce the risk of electric shock, disconnect
from AC before plug in or unplugging Audio signal cables. Reconnect to AC only if all signal connections are
made and secured. Never manipulate the ground type plug provided.
The AC mains plugs should always remain accessible for operation.
Unplug the loudspeaker during storms or when it’s being used for a long time.
•Hearing damage risk
These systems can reproduce large quantities of sound pressure which can damage hearing. Take precautions
if you are going to be near them for extended amounts of time and do not get too close.
•Hanging / Flying
Do not hang the cabinets from the handles or from any other part other than the designated hanging point.
When ying this system please observe the technical and “Rainbow” software data carefully. Never exceed
the maximum safe working loads or ignore the instructions included within this manual. Use Only ying
accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals.
•Delicate Material
Please ensure no foreign object or water enters the speaker. Only clean the unit with dry cloths. Do not use solvents.
•Overheating / Fire risk
To reduce the risk of the speaker over heating, avoid direct contact with sunlight. Avoid placing the unit close
to heat inducing objects such as radiators. Do not cover the equipment in use and do not block any ventilation
openings. Do not put naked ame, such as lighted candles, close or on top of the unit.
•Electromagnetic and interferente emissions
Avoid placing objects which through electromagnetic waves can damage the unit, such as mobile phones, lap
tops, magnetic strip cards etc.
This system complies with normatives EN 55103-1 (1)
EN 55103-2 (2)
(1) This device may not cause harmful interferences.
(2) This device may receive interference including interferences that may cause undesired working.
•IMPORTANT NOTE
This Equipment must be used in accordance with these instructions and by trained professional personnel
only. This equipment should not be used in places with extreme tropical climates. Don’t expose this apparatus
to extreme humidity and or temperature values.
CXA Series User Manual
Lynx Pro Audio S.L 5www.lynxproaudio.com
SYSTEM OVERVIEW
• Technical Data:
Components:
• LF: 12”, 2.5” voice coil, Malt Cross Cooling System
• MF/HF: custom Multidriver system with wave guide, 1.4” aluminium voice coil with
titanium diaphragm
Frequency range: 60 Hz – 20 KHz (-10dB)
Frequency response: 70 Hz – 18 KHz (± 3dB)
Max SPL / Peak: 128 dB
Coverage angle: 100º H x 18 º V
Power amplier: 1400W Class D with switching power supply & PFC
LF amplier:1 x 1400W
Processing: 48 KHz / 56 bit double precision DSP
Control: User control interface with LCD
Control connections: Ethernet (OCS) optional / USB (DSP programming)
AC Power: 90 – 264V. 50/60 Hz with PFC
AC Connectors: 16A Neutrik powerCon TRUE1 with looping output
Finish: Polyurea coating, high grade resistant paint
Material: 18 mm Premium birch plywood
Dimensions: 556 x 632 x 696 mm (H x W x D)
Weight: 45 kg (99 lbs)
•CXA-12
The CXA-12 enclosure is a constant curvature line array element designed for multiple congurations,
with a maximum of 4 enclosures. High Output, self powered (class D switch mode power supply with
PFC), constant curvature line array element.
• CXA-12 measurements
632
484
357
632
484
357
632
484
357
CXA Series User Manual
Lynx Pro Audio S.L 6www.lynxproaudio.com
• CXA-18S
High output, self powered (class D switch mode power supply with PFC), omni-directional subwoofer
cabinet. Consists of a 18” (4” ventilated voice coil) neodymium transducer. DSP controlled with 1400W
amplication, 132dB SPL.
• Technical Data:
Components:
• LF: 18”, 4” voice coil, Neodymiun magnet assembly
Frequency range: 30 Hz – 140 Hz (-10dB)
Frequency response: 35 Hz – 125 Hz (± 3dB)
Max SPL / Peak: 132 dB
Coverage angle: Omnidirectional
Power amplier: 1400W Class D with switching power supply & PFC
LF amplier:1 x 800W
MF/ HF amplier:1 x 600W
Processing: 48 KHz / 56 bit double precision DSP with FIR lters
Control: User control interface with LCD
Control connections: Ethernet (OCS) optional / USB (DSP programming)
AC Power: 90 – 264V. 50/60 Hz with PFC
AC Connectors: 16A Neutrik powerCon TRUE1 with looping output
Finish: Polyurea coating, high grade resistant paint
Material: 15 mm Premium birch plywood
Dimensions: 357 x 632 x 484 mm (H x W x D)
Weight: 31 kg (68 lbs)
• CXA-18S measurements
632
556
696
632
556
696
CXA Series User Manual
Lynx Pro Audio S.L 7www.lynxproaudio.com

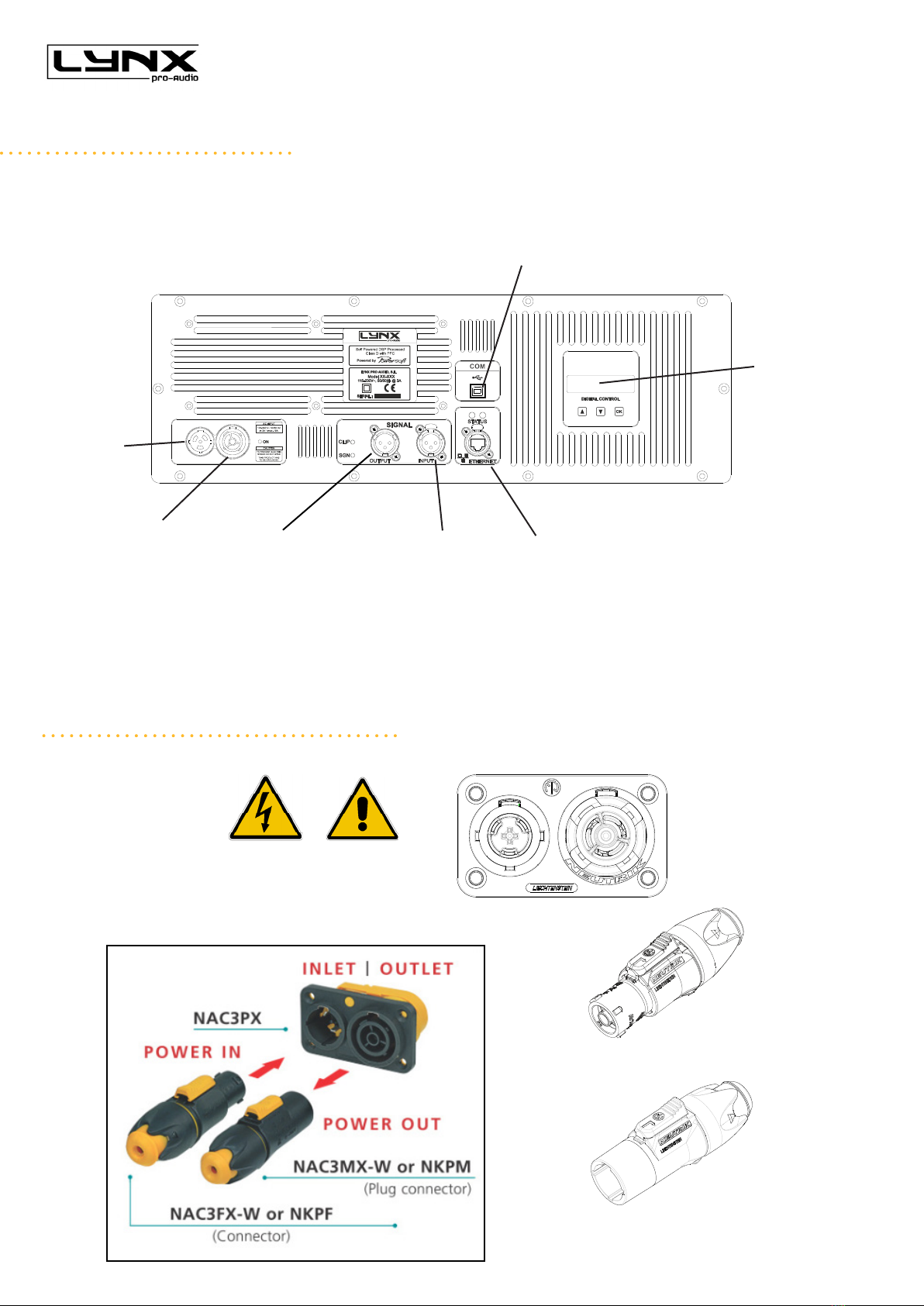

CXA BACK PANEL panel
LCD display &
digital control
*Ethernet
optional
Both cabinets CXA-12 and CXA-18S have the same rear pannel, including the connectors and digital
control display.
USB connection
signal
INPUT
signal
OUTPUT
Main Link
Main
input
* Available when the user has requested
the cabinets to be supplied with the
Ethernet Module kit.
CONNECTORS AND CONNECTIONS
SOCKET POWERCON TRUE1
CAUTION: Do not connect
or disconnect the AC Power
connectors under load.
NAC3FX-W
NAC3MX-W
CXA Series User Manual
Lynx Pro Audio S.L 8www.lynxproaudio.com
CONNECTORS AND CONNECTIONS
XLR AEREAL CONNECTORS
OUTPUTS
1.- EARTH
2.- LIVE (+)
3.- LIVE (-)
INPUTS
1.- EARTH
2.- LIVE (+)
3.- LIVE (-)
XLR SOCKET CONNECTORS
CXA Series User Manual
Lynx Pro Audio S.L 9www.lynxproaudio.com
• CONNECTION EXAMPLE (mono channel): four tops CXA-12 + two sub CXA-18S
This is the maximal CXA conguration, delivering a 72º coverage in the vertical plane.
Total coverage 100ºH x 72ºV.
AC main
input
AC main
input
Link
IN
OUT
CONNECTORS AND CONNECTIONS
Link
IN
IN
Link
IN
Link
IN
IN
IN
IN
IN
OUT
OUT
OUT
OUT
CXA Series User Manual
Lynx Pro Audio S.L 10www.lynxproaudio.com
• STACKED CONNECTION EXAMPLE (mono channel): three tops CXA-12 + one sub CXA-18S
AC main
input
AC main
input
Link
IN
CONNECTORS AND CONNECTIONS
STACKED
Signal
input
Link
IN
OUT
IN
OUT
IN
OUT
IN
