Lynx Side Burner Accessory Manuel technique

care & use/installation

MaKe tHe Most oF Your

siDe Burner accessorY

WARNING

READ THIS MANUAL CAREFULLY and completely before using your grill accessory to reduce the

risk of:

1) Fire

2) Burn hazard, personal injury or property damage

3) Ruined steaks or other unpleasant cooking experiences

4) Unapproved installation or servicing

THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. Improper installation, adjustment,

alteration, service or maintenance can cause property damage, injury or death.

Read this manual thoroughly before installation, use, or servicing of this product.

DANGER

IF YOU SMELL GAS:

1) Shut off all gas supply lines to the grill

accessory.

2) Extinguish any open ames.

3) Carefully open lid. Remember, it may be

extremely hot!

4) If odor continues, keep everyone away

from the grill accessory and immediately

call your gas supplier or your re depart-

ment.

WARNING

►DO NOT store or use gasoline or other

ammable vapors and liquids in the

vicinity of this or any other appliance.

►An LP cylinder not connected for use shall

not be stored in the vicinity of this or any

other appliance.

DANGER

S’IL Y A UNE ODEUR DE GAZ:

1) Coupez l’admission de gaz de l’appariel.

2) Éteindre toute amme nue.

3) Ouvrir le couvercle.

4) Si l’odeur persiste, éloignez-vous de

l’appareil et appelez immédiatement

le fournisseur de gaz ou le service

d’incendie.

AVERTISSMENT

►Ne pas entreposer ni utiliser de l’essence

ni d’autres vapeurs ou liquides inam-

mables dans le voisinage de l’appareil, ni

de tout autre appareil.

►Une bouteille de propane qui n’est pas

raccordée en vue de son utilisation,

ne doit pas être entreposée dans le

voisinage de cet appareil ou de tout autre

appareil.

WARNING! CALIFORNIA PROPOSITION 65

►The burning of gas cooking fuel generates some by-products which are on the list of sub-

stances which are known by the State of California to cause cancer or reproductive harm.

►California law requires businesses to warn customers of potential exposure to such substanc-

es. To minimize exposure to the substances, always operate this unit according to the use

and care instructions found in this manual. Be certain to provide adequate ventilation when

cooking.

►California Proposition 65 lists “Silica, crystalline” which is used in one of the components of

the IR burner, as an agent known to the state of California to cause cancer.

will change squares to triangles

how to light Your grill accessorY

1) Before each use, complete the checklist below.

2) Make sure all burner control knobs are in the “OFF” position.

3) Push and hold the control knob for 2-5 seconds, allowing the igniter to heat up

4) Turn the knob to the “LITE” position

5) After ignition set the knob to the desired setting

►Do you smell gas? If yes, shut off everything and call the gas company or a qualied

plumber to check for leaks, if Not please continue

►Are you prepared to stay with the side burner during the entire cooking process?

If not, gather what you need before starting the lighting process. If yes, please

continue.

►Is your cooking area free and clear of any combustibles, besides your food, that

might ignite? If no, clear the area before starting the lighting process, If yes, please

continue

►Do all control knobs turn freely? If not, call for service; if yes, please continue.

►If you are using a portable propane cylinder, is it connected and leak tested? If not,

check the connection before continuing. If yes please continue.

►Do you know where your side burner’s main gas supply shut-off valve is located? If

not, locate it before continuing. If yes, please continue.

►Are all burners properly seated in the side burner? If not, seat the burners properly

before continuing. If yes please continue.

►Is the wind blowing just lightly and not blowing on the side burner? If not, wait until

the wind subsides or turn your free-standing grill so the wind goes into the front of

the grill. If yes, please continue with the lighting process.

checklist before each use (for Your safetY)

33487 03/2011

will change squares to triangles

This product complies with ANSI standard Z21.58/CSA 1.6 latest edition and has been tested and

approved by Intertek.

To obtain replacement parts or service contact:

Lynx Professional Grills

5895 Rickenbacker

Commerce, CA 90040

888-289-5969

WARNING

►Never use dented, rusty or damaged propane cylinders. NEVER store additional or empty

propane cylinders in the cabinet or in the vicinity of this or any other appliance. Do not store

propane cylinders indoors or on their sides.

►Children should NEVER BE LEFT ALONE or unattended in an area where an accessory is

located. Place your accessory well away from areas where children play. Do not store items

that may interest children in or around the area of your accessory, in your accessory cart, or in

the masonry enclosure.

►NEVER move the accessory when hot. When in use, portions of the accessory are hot enough

to cause severe burns.

►Always maintain the required clearances from combustibles as detailed. Accessories are

designed for outdoor use only. NEVER use in a garage, building, shed, breezeway, or other

enclosed area. Do not use this equipment under any overhead combustible construction.

►Grill accessories are not designed or certied for and are not to be installed in or on recre-

ational vehicles, portable trailers, boats or any other moving installation.

►ALWAYS have an ABC Fire Extinguisher accessible — never attempt to extinguish a grease re

with water or other liquids.

►STORING YOUR ACCESSORY: Store your accessory in a well-ventilated area. If stored

indoors, detach and leave LP cylinder outdoors in a well-ventilated area away from heat and

away from where children may tamper with it.

►Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. Elec-

trical cords should be placed away from walkways to avoid tripping hazard.

►Do not repair or replace any part of the accessory unless specically recommended in this

manual. Other service should be performed by a qualied technician.

►If the accessory is installed by a professional installer or technician, be sure that he/she shows

you where your gas supply shut-off is located. All gas lines must have a shut-off that is readily

and easily accessible. If you smell gas, check for gas leaks immediately. Check only with a

soap and water solution. (See INDEX: “Leak Testing” for further details.) Never check for gas leaks

with an open ame.

►Inspect the LP gas supply hose prior to each use of the accessory. If there is evidence of

excessive abrasion or wear, or the hose is cut, it must be replaced before using the accessory.

►Never remove the grounding prong from the plug or use this product with an ungrounded,

2-prong adapter.

►THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE.

You’ve just joined the world of Lynx cooks … a

discriminating collection of amateur and pro-

fessional chefs that take outdoor cooking to a

new level.

Lynx manufactures many accessory cooking

appliances to compliment your Lynx grill and

your desire for truly superior cooking results.

Your appliance has been designed and built

with meticulous attention to detail and it offers

some unique and powerful features. You can

achieve maximum performance and enjoyment of these

features only by carefully reading this manual ... before

your rst cook-out.

This manual includes important safety tips and great

hints for better grilling. You should keep it handy for easy

reference.

Also, at Lynx, we enjoy hearing from our customers. We

like to hear about your successes but also about any

difculties you are having. Please feel free to contact us

with any questions or problems, or just to share a new

recipe. Please include the model number of your

appliance in your correspondence.

With the proper use and care this product will provide

years of trouble-free service.

Should your Lynx appliance change

ownership, please make sure that the new

owner receives this manual.

Thanks again for your purchase. Enjoy!

a Message to our custoMers…

STATE OF MASSACHUSETTS:

1) Massachusetts requires all gas be installed using a plumber or gas tter carrying the appro-

priate Massachusetts license.

2) All permanently-installed natural gas or propane installations require a “T” handle type

manual gas valve be installed in the gas supply line to this appliance.

3) This does not apply to portable propane installations using a 20 pound cylinder.

WARNING

1) The outdoor cooking gas appliance and its individual shutoff valve must be disconnected

from the gas supply piping system during any pressure testing of that system at test pres-

sures in excess of 0.5 psi (3.5 kPa).

2) The outdoor cooking gas appliance must be isolated from the gas supply piping system by

closing its individual manual shutoff valve during any pressure testing of the gas supply pip-

ing system at test pressures equal to or less than 1/2 psi (3.5 kPa).

WARNING - ELECTRICAL GROUNDING

►Product installation must meet local electric codes or, in the absence of local codes, the latest

edition of the National Electrical Code ANSI/NFPA No. 70 or the Canadian Electrical Code

CGA 1.6b2005.

►Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas ap-

pliance.

►This accessory is equipped with a three prong (grounding) electric plug for your protection

against shock hazard and must be plugged directly into a properly grounded three prong

outlet. NEVER cut or remove the grounding prong from this plug.

►Use only extension cords with a 3 prong grounding plug, rated for the power of the equip-

ment, and approved for outdoor use with a “W-A” marking.

►To protect against electric shock, do not immerse any part of the power cord, an extension

cord or any plugs in water or other liquid.

►Unplug the product from the outlet when not in use and before cleaning. Allow it to cool

before putting on or taking off parts.

►Do not let the cord hang over the edge of a table or touch hot surfaces.

►Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the

appliance malfunctions or has been damaged in any manner. Contact the manufacturer for

repair.

PLEASE REVIEW THESE IMPORTANT SAFETY PRECAUTIONS

BEFORE YOU USE YOUR GRILL ACCESSORY.

1) NEVER LEAVE THE GRILL ACCESSORY UNATTENDED WHILE COOKING.

2) Ensure all tie-down wires have been removed from the burners.

3) Always use caution when operating the grill accessory in a windy area. (See INDEX: “Grilling in

Windy Conditions” for further details.)

4) Avoid wearing loose-tting garments or long sleeves while grilling. They could ignite.

5) Never touch the grill accessory racks or immediate surrounding metal surfaces with your bare

hands while grilling.

6) Use an insulated glove or mitt when opening and operating the grill accessory.

7) The grill accessory covers must be fully removed or opened while lighting the grill accessory.

Releasing fuel into a closed grill accessory before lighting will not make it light sooner or more

efciently. It will only risk explosion and personal injury or death. Never lean over hot grill ac-

cessory surface or look directly into the grill accessory when attempting to light.

8) Do not heat unopened food containers as pressure build-up will cause the container to ex-

plode.

9) Do not use aluminum foil to line grill accessory racks or drip pans. This will alter the airow or

trap excessive heat in the control area and can melt knobs and ignition modules. Such damage

is specically excluded from your warranty.

10) Never use charcoal or any other solid fuel in the grill accessory.

11) Cooking excessively fatty meats and oils will cause are ups. Internal res or damage caused by

them or by the grill accessory being left unattended while cooking are not covered under the

terms and conditions of our warranty.

12) Never grill without a drip pan in place if your accessory utilizes a built-in drip pan. Always en-

sure the drip pan is pushed all the way to the back of the grill accessory. When not correctly in

place, hot grease can leak downward and produce a re or explosion.

13) Grease is extremely ammable. Let hot grease cool down before attempting to handle or dis-

pose of it. The drip tray should be cleaned of grease on a regular basis.

14) Do not use the grill accessory unless a leak check has been performed on all gas connections.

(See INDEX: “Leak Testing” for further details.)

15) Never operate the grill accessory while under the inuence of alcohol or drugs.

16) Do not lean on side shelves and never place a load weighing more than 25 pounds on a side

shelf.

17) If any burner does not light or goes out during operation, turn off all gas control knobs and wait

ve (5) minutes before attempting to re-light.

iMportant safetY precautions

table of contents

a Message to our custoMers… ......................................................................5

iMportant safetY precautions .....................................................................7

using Your lYnX accessorY ..............................................................................9

Accessories Covered in this Manual...............................................................................9

Using The LYNX Power Burner (LPB) ...........................................................................10

Smell of Gas While Cooking .....................................................................................10

Yellow Flames ............................................................................................................10

Lighting Instructions for All Accessories......................................................................11

Safety Practices and Precautions ...............................................................................11

At Each New Season .................................................................................................11

Purging the Gas Lines ...............................................................................................11

Match Lighting ..........................................................................................................11

Low Heat Flame Adjustment .....................................................................................12

How To Obtain Service From Lynx ...............................................................................13

installing Your lYnX accessorY ...............................................................14

before You start....................................................................................................15

If Shipment Arrives Damaged .....................................................................................15

Important Notes ............................................................................................................15

Where’s the Wind?.....................................................................................................15

How Long is Your Run? ..............................................................................................15

Are You “On-the-Level”? ..........................................................................................15

Built-in Installations ...................................................................................................16

Clearance to Combustible Materials .........................................................................16

gas & electric connections..........................................................................17

gas Plumbing ................................................................................................................17

Natural Gas ...............................................................................................................17

LP Gas .......................................................................................................................18

Converting for Fuel Type ...........................................................................................18

LP Connections .........................................................................................................18

Propane Hook Up ..........................................................................................................19

Natural Gas Hook Up ....................................................................................................19

Maximum Runs for all appliances on supply line ......................................................19

Electrical Connections ...................................................................................................20

Optional Electrical Kits ..............................................................................................20

Connecting the Wiring ..............................................................................................20

Testing the Installation ..................................................................................................21

Leak Testing ..............................................................................................................21

Fixing a Gas Leak ......................................................................................................21

Schematics .....................................................................................................................22

Cut-out Dimensions for Built-in Grills & Accessories ..................................................23

lYnX liMited warrantY.......................................................................................24

lYnX residential plus warrantY.................................................................25

Side Burner Exploded Parts View ...............................................................................26

Index ..............................................................................................................................27

will update page #s

The Lynx Power

Burner (LPB) is a

dual-ring com-

mercial style

burner with a

range of 3,000

to 47,000 BTU’s.

This manual covers several Lynx accessory appliances and optional

accessories for those appliances.

Except where noted, the assembly, installation and use of these Lynx

accessories is identical.

using Your accessorY

The LSBPC-1

Prep Center

Features two

15,000 BTU

burners and

an integral

bamboo

cutting board

for food prep.

Accessories covered in this MAnuAl

The LCB1-2 & LCB2-2, LSB1-2 & LSB2-2 (Lynx

Side Burner 1 & 2) features either one or two

15,000 BTU burners for cooking smaller food

items. The LCB1-2 & LCB2-2 can be mounted

directly to most Lynx grills. For the 27” and

36” Lynx grills with smaller depths, a LCB-BKT

adapter is available. The LSB1-2 and LSB2-2

are designed for installation in a non-combus-

tible, built-in enclosure.

will update page #s

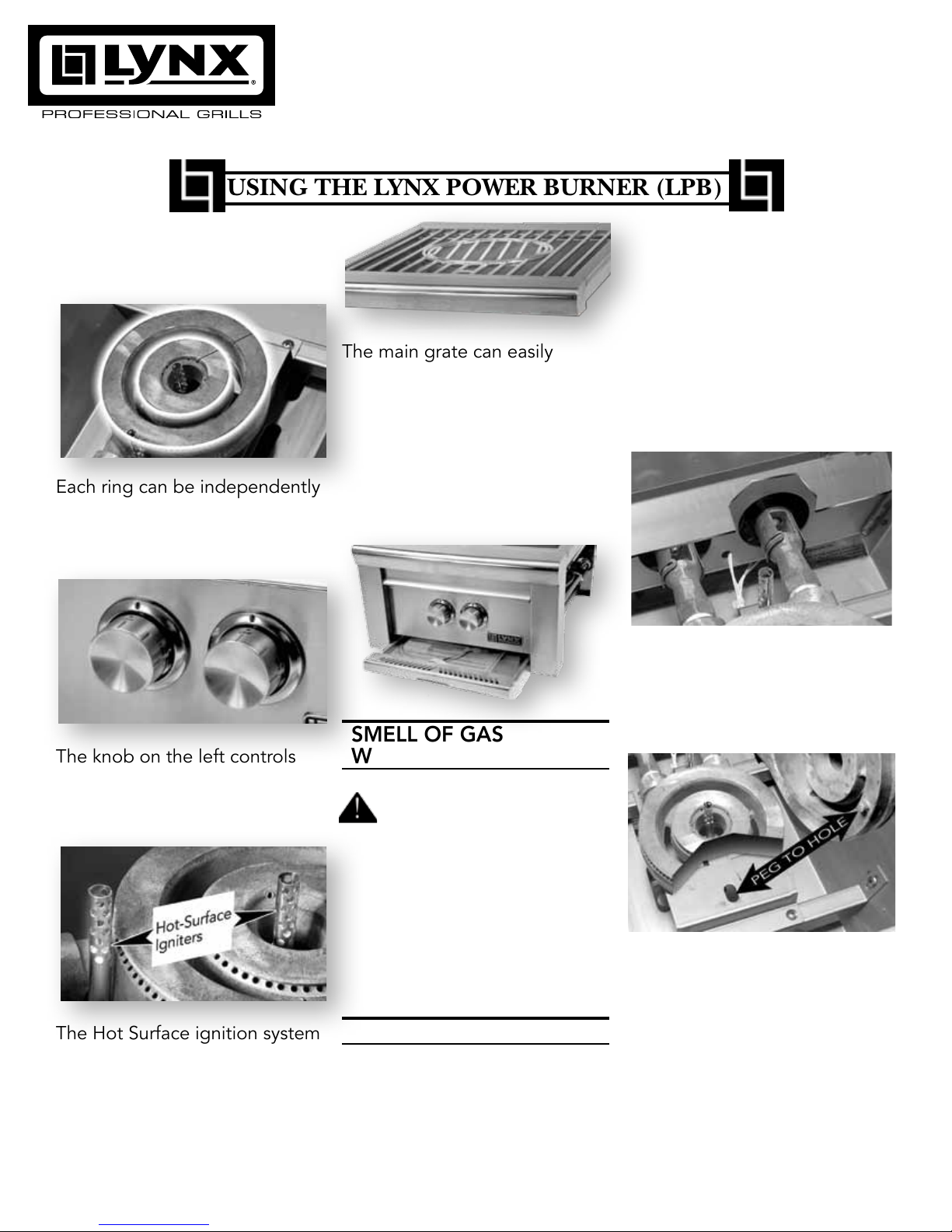

The Lynx Power Burner incorpo-

rates a cast brass, dual-ring,

burner.

Each ring can be independently

operated for maximum heat

control. Used together they can

generate up to 47,000 BTU’s.

The knob on the left controls

the outer burner ring and the

knob on the right controls the

inner burner ring.

The Hot Surface ignition system

provides reliable ignition.

The main grate can easily

handle oversized stock pots and

removing the center grate ac-

commodates a commercial style

round-bottom wok base. (12

inch minimum)

The Lynx Power Burner also

features a fully extendable

stainless steel drip pan.

SMELL OF GAS

WHILE COOKING

IF YOU SMELL GAS WHILE

THE GRILL ACCESSORY

IS OPERATING, IMMEDIATELY

TURN OFF ALL BURNERS AND

SHUT OFF THE MAIN FUEL

SUPPLY.

• PERFORM A LEAK TEST

(See INDEX: “Leak Testing” for

further details.)

• CHECK FOR BLOCKAGES

YELLOW FLAMES

A yellow ame on the main

burners indicates a lack of air.

But, if the air around the grill

is dusty or if heavy grease is

present, some orange tips on

the burner ame are normal.

►ADJUST THE AIR SHUTTER

ONLY DO THIS WHEN THE

ACCESSORY HAS COOLED

DOWN COMPLETELY!

1. Remove the cooking

grates.

2. Reach under the drip

guard and rotate the air

shutters to adjust.

3. Ensure that the burner is

seated correctly on the

frame, with the brass peg

seated inside the

positioning hole.

4. Re-light and check the

ame.

Using The LYnX Power BUrner (LPB)

will change square to triangle

Table des matières

Autres manuels Lynx Accessoires pour appareils de cuisine

Lynx

Lynx LBP Manuel utilisateur

Manuels Accessoires pour appareils de cuisine populaires d'autres marques

JUNO

JUNO SCC2635BR Manuel d'utilisation et d'entretien

Bosch

Bosch ErgoMixx MSM6 IN Series Manuel utilisateur

Viking

Viking VGC530 Manuel utilisateur

KitchenAid

KitchenAid KSMFGA Manuel utilisateur

KitchenAid

KitchenAid KSMFGA Manuel utilisateur

Maytag

Maytag AG202MG - Gas Burner Module Manuel utilisateur

Orava

Orava BN-30 Manuel utilisateur

TurboChef

TurboChef ENCORE Mode d’emploi

TurboChef

TurboChef CON-3002 Manuel de la liste des pièces

Kenwood

Kenwood KAT91.000CL Manuel utilisateur

Bosch

Bosch VeggieLove Manuel utilisateur

Miele

Miele DUU 1000-2 Manuel utilisateur

Bosch

Bosch MUZ8MX2 Manuel utilisateur

Tramontina

Tramontina 80202/005DS Guide de référence rapide

Dualit

Dualit Tamper Manuel utilisateur

Kenmore

Kenmore 22009 Manuel utilisateur

Bosch

Bosch MSMS CN Series Manuel utilisateur

Maytag

Maytag 4396395T Manuel utilisateur
