Lynx SX Series Manuel utilisateur

Valencia, Spain - www.lynxproaudio.com

USER MANUAL

V.11.08

Manufacturer

CE CERTIFICACTION, EUROPEAN PRODUCT

SX series

LYNX Pro Audio S.L.

Calle 7 - Pol. Ind. Picassent

E-46220 Picassent (Valencia)

This user manual is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited.

RoHS Directive 2002/95/EC

1.-INTRODUCTION

1.1 Overview .....................................................................................................5

1.2 Main Specifications.....................................................................................5

2.- HARDWARE CONTROLS.

2.1 Front Panel ........................................................................................ 7

2.2 Rear Panel ........................................................................................ 8

3.-INSTALLATIONAND OPERATION

3.1 Connections...........................................................................................9

3.2 Configuration..........................................................................................10

3.3 Protection systems....................................................................................11

3.4 Troubleshooting.....................................................................................12

4.-DECLARATION OF CONFORMITY

4SX

INDEX

- Electrical appliance.

The exclamation mark within a triangle identifies the presence of electricity. Use the system carefully

without wet hands or feet. Avoid installing the speaker in wet or excesivelly humid places. Regularly

check the condition of the cables and make sure these are not being walked on or pinched. Connect

the speaker to bipolar, earthed mains. The mains plug must be connected to the appropriate protection

(fuse or breaker). Connection to any other type of mains could result in an electrical shock and violate

local electrical codes. DO NOT CONNECT OR DISCONNECTTHEAC POWER CONNECTORS UNDER

LOAD.

- Electrical shock risk.

The diagonal mark within a triangle identifies the presence of dangerous voltage. Do not open or handle

the interior of the amplifier. These parts are not to be adjusted by the user. For maintenance and/or

repair please go to an authorized service centre. In order to reduce the risk of electric shock, disconnect

from AC before plug in or unpluggingAudio signal cables. Reconnect toAC only if all signal connections

are made and secured. Never manipulate the ground type plug provided. The AC mains plugs should

always remain accessible for operation. Unplug the amplifier during storms or when it’s being used for

a long time.

- Delicate Material.

Please ensure no foreign object or water enters the amplifier. Do not place material that contains liquid

on or near the unit. Only clean the unit with dry cloths. Do not use solvents.

1.- Introduction

1.1 Overview

The SX Series Power Amps is our response to clients’ needs for a series of powerful, compact, versatile and

rugged amplifiers characterised by no-compromises electronic and mechanical specifications.

The SX Series offers optional add-on modules that extend its operational capability to match any of today’s

market requirements. They incorporate unique absolute protections as the PMS. or SSP. systems.

1.2 Main Specifications

Instantaneous High Flow QuantaPulse EVO Power Supply.

• Ultra-compact and lightweight 2-U high.

• Laser cut aluminum front panels with integrated carrying handles.

• Neutrik® XLR input connectors, input and signal link in 2 channel models.

• Input Link switch: allow daisy-chaining of the one channel input signal to another adjacent channel.

• Neutrik® Speakon® output connectors.

• Detented sealed potentiometers for easy recall of volume settings.

• ICL, PMS, Hi-temp, Signal indicators per channel.

• Highly versatile with multiple configuration possibilites and additional module options.

• Switchable ICL clip-limiters per channel.

• Switchable and selectable (30 or 50 Hz) sub-sonic highpass filter per channel.

• Three-position gain selector (26, 32 or 38 dB).

• Dual or Bridge mode operation.

• Twin continuously variable, temperature controlled, back to front cooling fans.

• Oversized power components (high SOA reserve specification).

1 - INTRODUCTION

Before starting to use the DSX amplifier, please read this instruction manual carefully.

Keep these instructions in the place where the equipment will be used and with easy access to

them.

6SX

Technical Specifications

1 - INTRODUCTION

RMS power (8):

RMS power(4):

RMS power (2):

Bridge (8):

Bridge (4):

Pink noise Crest factor

@ 4 ohm

@ 2 ohm

THD:

Sensitivity (8 

Signal-to-noise-ratio:

Gain:

Frecuency response (-0’5dB):

Phase Response @1w:

Damping factor:

Crosstalk:

Required mains :

Dimensions W x H x T (mm):

Weight :

SX-1004

4 x 690 W

4 x 975 W

- -

2 x 1950 W

- -

4 x 1230 W

- -

0´05 %

3.7/1.9/0.9 V

116 dB

26-32-38 dB

20/20K Hz

15dB

>500/20-500Hz

>75 dB

230V / 50Hz

483 x 89 x 310

8.5 Kg

SX-2200

2 x 630 W

2 x 1100 W

2 x 1570 W

2200 W

3140 W

2 x 1240 W

2 x 2060 W

0´05 %

3.6/1.8/0.9 V

115 dB

26-32-38 dB

20/20K Hz

15dB

>500/20-500Hz

>75 dB

230V / 50Hz

483 x 89 x 310

8.5 Kg

SX-2800

2 x 810 W

2 x 1380 W

2 x 1950 W

2760 W

3900 W

2 x 1600 W

2 x 2460 W

0´05 %

4.0/2.0/1.0 V

116 dB

26-32-38 dB

20/20K Hz

15dB

>500/20-500Hz

>75 dB

230V / 50Hz

483 x 89 x 310

8.5 Kg

SX-4002

4 x 430 W

4 x 670 W

4 x 980 W

2 x 1340 W

2 x 1960 W

4 x 820 W

4 x 1170 W

0´05 %

3.0/1.5/0.8 V

113 dB

26-32-38 dB

20/20K Hz

15dB

>500/20-500Hz

>75 dB

230V / 50Hz

483 x 89 x 310

8.5 Kg

+ + ++

RMS power (8):

RMS power(4):

RMS power (2):

Bridge (8):

Bridge (4):

Pink noise Crest factor

@ 4 ohm

@ 2 ohm

THD:

Sensitivity (8 

Signal-to-noise-ratio:

Gain:

Frecuency response (-0’5dB):

Phase Response @1w:

Damping factor:

Crosstalk:

Required mains :

Dimensions W x H x T (mm):

Weight :

SX-1200

2 x 325 W

2 x 575 W

2 x 880 W

1150 W

1760 W

2 x 610 W

2 x 975 W

0´05 %

2.6/1.3/0.6 V

112 dB

26-32-38 dB

20/20K Hz

15dB

>500/20-500Hz

>75 dB

230V / 50Hz

483 x 89 x 310

8 Kg

SX-1600

2 x 460 W

2 x 790 W

2 x 1190 W

1580 W

2380 W

2 x 880 W

2 x 1360 W

0´05 %

3.0/1.5/0.8 V

113 dB

26-32-38 dB

20/20K Hz

15dB

>500/20-500Hz

>75 dB

230V / 50Hz

483 x 89 x 310

8 Kg

SX-1504

4 x 1015 W

4 x 1480 W

- -

2 x 2960 W

- -

4 x 2110 W

- -

0´05 %

5.0/2.5/1.3 V

118 dB

26-32-38 dB

20/20K Hz

15dB

>500/20-500Hz

>75 dB

230V / 50Hz

483 x 89 x 310

8.6 Kg

SX-6002

4 x 620 W

4 x 1000 W

4 x 1440 W

2 x 2000 W

2 x 2880 W

4 x 1280 W

4 x 2080 W

0´05 %

3.5/1.8/0.9 V

116 dB

26-32-38 dB

20/20K Hz

15dB

>500/20-500Hz

>75 dB

230V / 50Hz

483 x 89 x 310

8.6 Kg

2.- Hardware Controls

2.1 Front Panel

See Figure A

1.- Signal attenuation level control knobs: Permit independent control of each channel.s attenuation (21steps).

2.- SIGNAL: This LED indicates presence of signal at the inputs.

TEMP: This LED shows temperature protection is active.

PMS: LED indicating PMS in operation.

ICL: LED indicating Intelligent Clip Limiter in operation.

3.- Main Power Switch: Position I: Connects the amplifier’s current feed. (Blue LED on). Position O disconnects the

Power. Position II (optional): Stand-by Mode. The Amp’s Power is activated remotely via Ethernet. (Amber LED).

4.- Display

5.- Encoder with push button

STBY

Fig. A

1 2 2 2 21 1 1 3

2 - HARDWARE CONTROLS

8SX

2.2 Rear Panel

See Figure B

1.- Signal Input: Female Neutrik® XLR Connectors for the amplifier.s signal input.

Signal Link: (2 channels models only) Male Neutrik® XLR Connectors for daisy chaining input signal to other

amplifiers (parallel connected to female input connectors).

2.- Link / Dual Switch: in Link mode you can Link an Input to another adjacent input to use the same input signal.

In Dual mode each channel has an independent Input.

3.- Gain Selection Switch: Gain Selection Switch: Three position for 26, 32 or 38dB Gain, (Default setting 32dB).

4.- Configuration Switch: Sub sonic filter, ICL and Bridge.

5.- Speaker connectors: Neutrik® Speakon to connect the speakers.

Fig. B

4 4 33

1 1 1 12

2 2

2 - HARDWARE CONTROLS

3. Installation and Operation

3.1 Connections

The Power switch must always be on the .Off. position before plugging the amp to a properly earthed mains socket (220-

240V AC / 110V-120V AC).

The input signal fed to the amplifier can be either balanced or un-balanced. The drawing below describes both ways to

wire an XLR connector for the purpose.

Balanced Signal: Connect pin 1 to Ground, pin 2 to Signal + (hot) and pin 3 to Signal - (cold).

Unbalanced Signal: Connect Pin 1 to Ground, pin 2 to Signal and pin 3 to Ground.

Important!:

If a connection is done with a un-balanced line and pin 3 on the XLR is not connected to ground, a 6 dB loss occurs in the

line and only a quarter of the amplifier power is produced.

The two channel amplifier models provides, for each channel, a female XLR Connector (Signal Input) parallelled to a male

XLR to daisy chain several amplifiers with the same signal line (LINK).

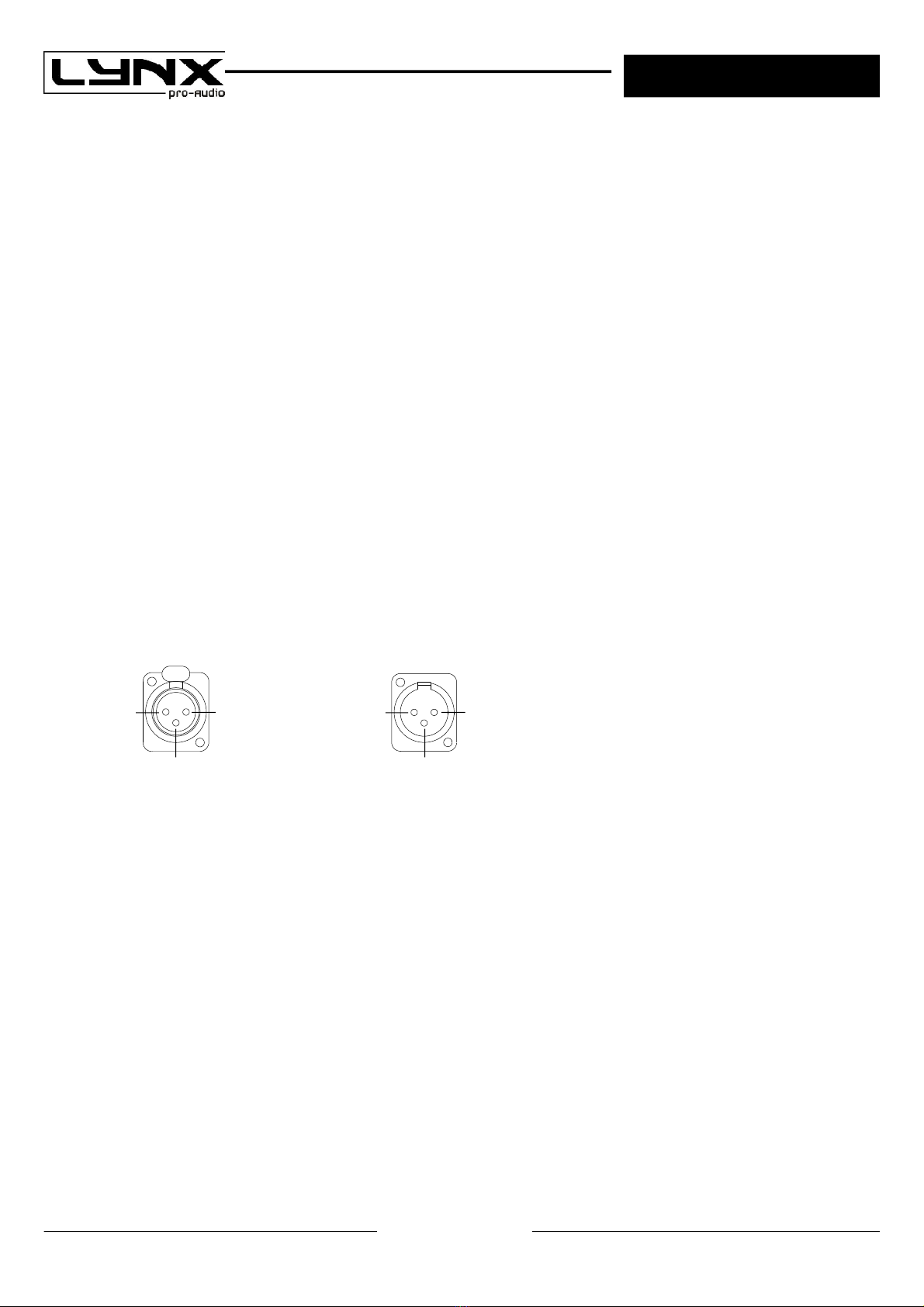

Unbalanced

wiring

1.- Gnd

2.- Signal

3.- Gnd

Balanced

wiring

1.- Gnd

2.- Signal +

3.- Signal -

1 2

3 - INSTALLATION

10 SX

3.2 Configuration

The amplifier has an ensemble of minidips on the back panel, which allow for the following configurations: the

highpass subsonic filter, the ICL deactivation and the bridge mode. All these configurations can be cross-set in any

way, independently from the others. The basic configuration possibilities are as follows:

Standard Configuration: the amplifier works without high pass subsonic filter, Clip Limiter ICL enabled and no

Bridge mode.

Sub-sonic Filter Enabled: the amplifier works with high pass subsonic filter (30Hz in this case), Clip Limiter ICL

enabled and no Bridge mode.

Bridge Mode: the amplifier works without high pass subsonic filter, Clip Limiter ICL enabled and Bridge mode.

ICL Clip Limiter Disabled: the amplifier works without high pass subsonic filter, Clip Limiter ICL disabled and no

Bridge mode.

3 - INSTALLATION
