Luxli Taiko Manuel utilisateur

USER MANUAL

Conduct an orchestra of lights.

Precautions

The Luxli Orchestra series can produce a dazzling symphony of light.Synchronize LED light units of

all sizes,choose from millions of possible colors, apply lighting effect from four selectable modes,

and control them instantly with the powerful Composer mobile app.

The Taiko is a true 2 × 1 multicolor LED light that features a highly accurate and versatile RGBAW

LED panel.It offers CCT,Filter, RGB,and Special Effects operating modes that provide remarkable

control over each variable with an easy-to-use interface.The light is equipped with Bluetooth

4.2 LE that pairs with your tablet or smartphone the moment you open Luxli’s Composer mobile

app. DMX 512 support features master/slave mode that allow you to attach up to 512 Taikos

and other compatible Orchestra-series lights,and control all the operation modes from a single

unit.Whether controlled via the app, the intuitive interface on the unit itself, or DMX, the Taiko will

illuminate your creative vision with endless possibilities.

For the latest version of the Composer mobile app,rmware updates,as well as videos and ideas

for creative uses for the Taiko, visit luxlilight.com.

• Keep this product away from water and ammable gases or liquids.

• Use only the correct, recommended voltage.

• Do not attempt to disassemble or repair this product.

• Clean this product with only a soft, dry cloth.

•

To avoid damage to this product, be careful not to overtighten or improperly thread any of

the threaded ttings.

• All images are for illustrative purposes only.

Troubleshooting

• If you encounter any problems, rst try turning the device off and then on.

• If the problem persists, remove the batteries or power supply for 15 seconds, and then restart.

•

Go to luxlilight.com to make sure you have the most recent rmware update. If a new rmware

version is available, follow the instructions on how to download it to your light.

Overview

Back:

1. V-Mount battery plate

2. Tilt control screw

3. Power input

Micro-USB port for firmware updates

(visit luxlilight.com for details)

5. 5/8 in. receiver

Also included:

• ORC-TAIKO-D90 Diffusion panel

• Power supply with power cord

6. Locking handle

7. Outer mounting screw

8. Center mounting screw

9. 5-pin DMX in/out

10.Tilt lock handle

11.Adjust height hex screws

• Photometric calibration results data sheet

• QuickStart guide

3 5 6 7 84

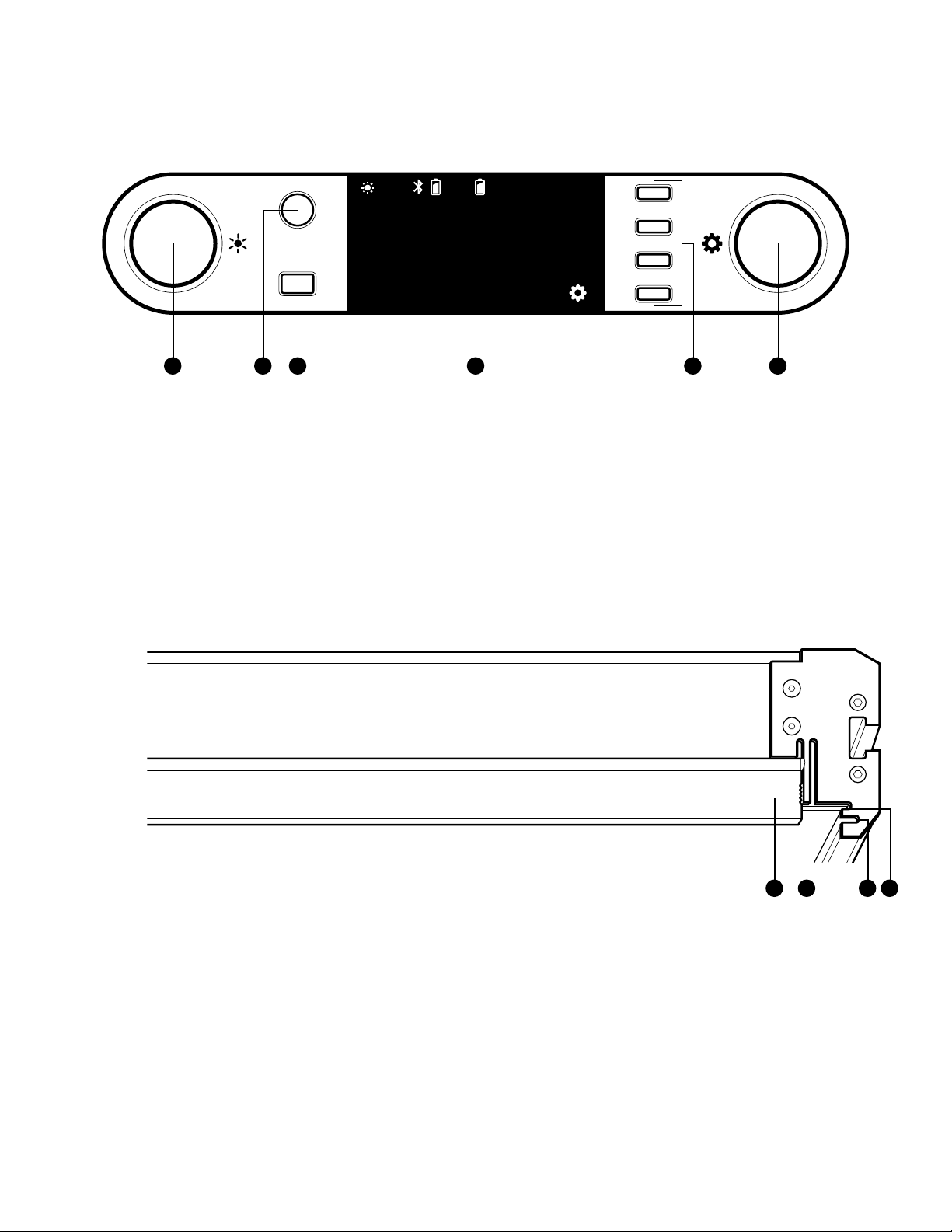

Control Panel:

12.Brightness dial

13.Power button

14.Mode selector

Top:

18.Diffuser ap

19.Thumb tab

15.LCD screen

16.Function buttons

17.Adjustment dial

20.Barndoor slot

21.Diffuser slot

MODE

32%

3900K

+/- GREEN

CCT

32% 14.4V 14.4V

32%

3900K

CCT

32% 14.4V 14.4V

+/- GREEN

12 13 14 15 1716

1918 2120

Setting up the Taiko

Attaching the Tilt Lock Handle

The tilt lock handle can be attached to either side of the Taiko.To attach the handle, follow these

steps:

1. Place the Taiko and yoke down on a at surface.

Use the included hex key to remove one of

the tilt control screws, and replace it with the

tilt lock handle. Screw in the handle so the

threads are engaged, but don’t tighten it.

3. Use the hex key to tighten the control screw

on the other side of the yoke. Tighten it

enough until there is some resistance while

tilting the Taiko in the yoke.

Tighten the handle until the yoke is locked

and secure.

Note: If the yoke seems too lose when the tilt lock handle is disengaged,use the hex key to slightly

tighten the control screw opposite the handle.

Mounting the Taiko to a Light Stand

Loosen the mounting lock and place the receiver over the light stand’s 5/8” pin.Tighten the

handle until secure.

Note: If you’re unable to turn the tilt lock handle 360°, pull the handle out, reposition it, and push

it back in until it reengages.

Reversing the Receiver’s Locking Handle

For mounting and handling convenience, you can change the side the locking handle is on:

Remove the Taiko from the light stand and

place it down on a at surface.

Use a hex key to unscrew the center and

outer mounting screws.

Turn the receiver so the handle is on the

opposite side.

Replace the center and outer mounting

screws. Make sure the mounting screw is in

the center of the receiver, and the stabilizer

screw is on the side.Tighten until rm.

Install/Remove the Diffuser

The Taiko includes a medium-density diffuser. Light- and heavy-density diffusers are also available

separately.

1. Press the thumb tabs,and lift up the diffuser

ap.

2. Slide the diffuser in or out of the diffuser slot.

Close the diffuser ap so it’s held in place by

the thumb tabs.

User Interface

Power Button

Press to power on or off.

The Taiko powers on to the last screen that was used.

The Taiko recalls the last settings in CCT, RGB, Filter, and Special Effects mode.

To use the factory presets, see Main Menu/Presets Menu below.

Mode Selector

Press the mode selector to cycle through the four operating modes: CCT, RGB,Filter,and Special

Effects.

Brightness Dial

In all operation modes,the Brightness dial adjusts the brightness from 100% to 0% in 1% increments.

In all operation modes, press the Brightness dial to toggle between the set brightness and 0%.

Function Buttons

The function buttons implement the action or access the menu indicated on the LCD screen

next to the button.

In each mode, the Adjustment and Brightness dials can change settings.

Adjustment Dial

In all operation modes, the Adjustment dial changes the value of the highlighted function.

For example, in CCT mode, press the Adjustment dial to toggle between 3200 and 5600 K color

temperatures.

Voltage Display

Batteries with SMBUS data communication

The Taiko displays a battery indicator at the top of the screen.

Batteries without SMBUS data communication

The Taiko displays the actual voltage of the power source.This allows you to gauge the remaining

battery power.

CCT Mode

Corrolated color temperature (CCT) mode allows you to adjust the color temperature from 2800

to 10,000 K and set the green/magenta tint level.

CCT Screen

Use the Adjustment dial to adjust the color

temperature between 2800 and 10,000 K in

50 K increments.

Press the Adjustment dial to toggle between

3200 and 5600 K color temperatures.

Tint (+/− Green) Screen

The +/− Green function lets you match the

Taiko’s color to an existing light source by

adjusting the green/magenta saturation

level.This is a particularly useful feature when

shooting under uorescent lights.

Tap the Function button next to“+/− Green” to

access the Tint adjustment screen.

Use the Adjustment dial to set the green/

magenta color shift between +100% (full

plus green) to −100% (full minus green) in 1%

increments.

Press the CCT button to exit the +/− Green

submenu and return to CCT adjustment

screen.

32%

3900K

CCT

32% 14.4V 14.4V

+/- GREEN

17%

CCT

+/- GREEN

3900K

32% 14.4V 14.4V

RGB Mode

RGB mode lets you dial in any color by scrolling through the entire color wheel.This mode controls

hue and saturation levels and has an adjustable base white point for complete control over

color selection.

Hue Adjustment

Use the Adjustment dial to set the hue from 0°

to 360° on the color wheel.The crosshair icon

moves horizontally to represent the location of

the hue on the color wheel.

The icon conveniently loops from 360° to 0°

when scrolling through the color wheel.

Saturation Adjustment

Tap the function button next to“SAT” to adjust

saturation levels.

Use the Adjustment dial to set the saturation

of the hue from 100% to 0% in 1% increments.

The crosshair icon moves vertically to represent

the level of saturation.

Press the Hue button to return to the hue

adjustment screen.

Note:The dimmer function remains active,and you can independently adjust the Taiko’s brightness

while in Saturation mode.

HUE

100

SAT

6000K

WHITE P.

169

32% 14.4V 14.4V

HUE

100

SAT

6000K

WHITE P.

169

32% 14.4V 14.4V
