Luxibel B Blind4 Manuel utilisateur

DMX-CONTROLLED STAGE BLINDER

B BLIND4

V. 04 –28/07/2021 2 ©AED Distribution nv

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

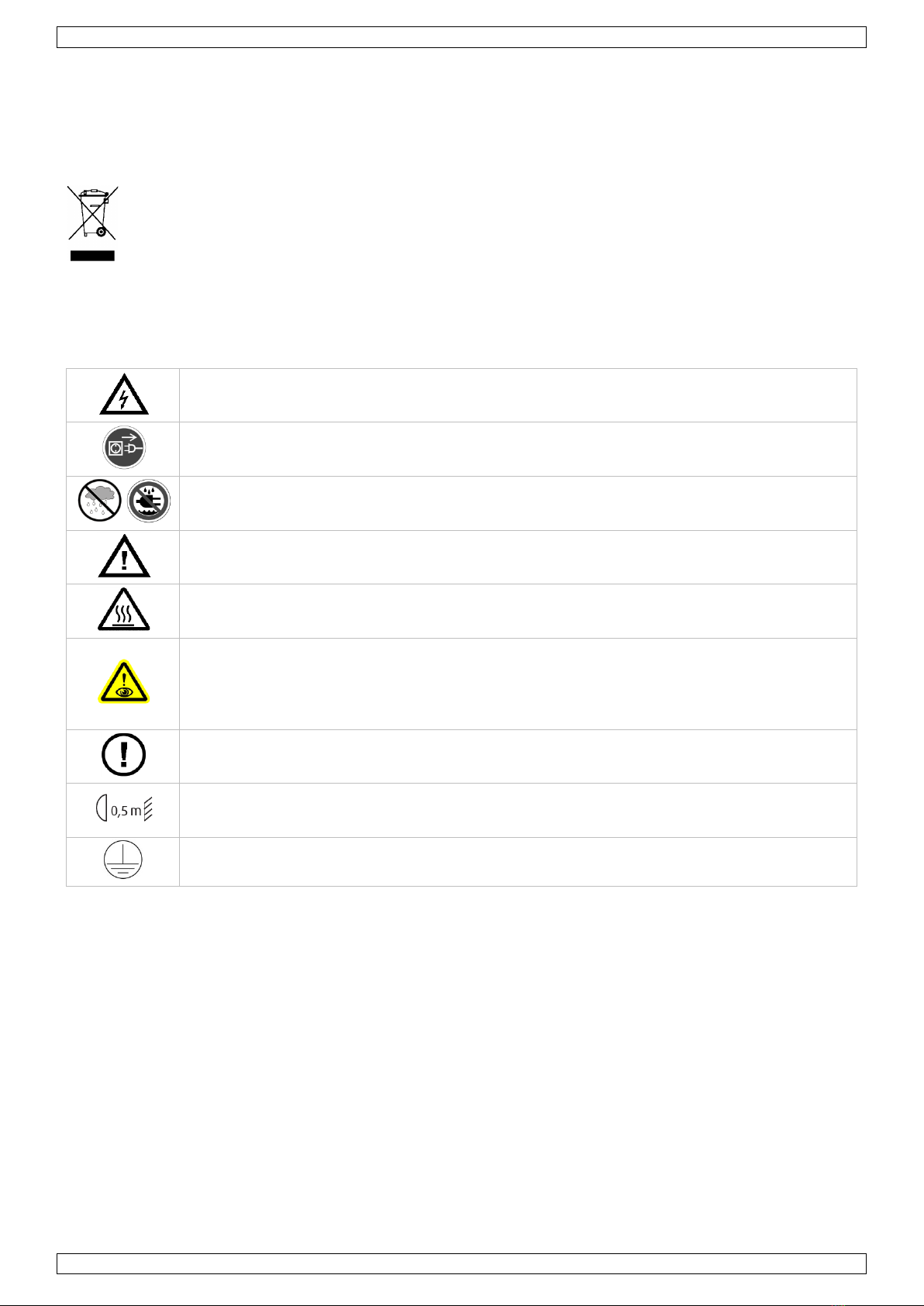

This symbol on the device or the package indicates that disposal of the device after its lifecycle could

harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should

be taken to a specialized company for recycling. This device should be returned to your distributor or to

a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Luxibel™! Please read the manual thoroughly before bringing this device into service. If

the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Be very careful during the installation: touching live wires can cause life-threatening

electroshocks.

Always disconnect mains power when device not in use or when servicing or maintenance

activities are performed. Handle the power cord by the plug only.

Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids.

Never put objects filled with liquids on top of or close to the device.

Keep this device away from children and unauthorized users.

Caution: device heats up during use.

Do not stare directly at the light source, as this may cause

epileptic seizure in sensitive people

temporarily loss of sight (flash blindness)

permanent (irreversible) eye damage.

There are no user-serviceable parts inside the device. Refer to an authorized dealer for service

and/or spare parts.

Respect a minimum distance of 0.5 m between the device’s light output and any illuminated

surface.

This device falls under protection class I. It is therefore essential that the device be earthed.

Have a qualified person carry out the electric connection.

Connect the device to a power line equipped with a 16 A automatic fuse.

Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.

Do not crimp the power cord and protect it against damage. If the external flexible power cable or cord of

this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a

similar qualified person in order to avoid hazard.

Shields shall be changed if they have become visibly damaged to such extent that their effectiveness is

impaired, e.g. by cracks or deep scratches.

Use an appropriate safety cable to fix the device (e.g. VDLSC7N or VDLSC8N).

The maximum ambient temperature is 45 °C. Do not operate the device at higher temperatures.

B BLIND4

V. 04 –28/07/2021 3 ©AED Distribution nv

3. General Guidelines

Refer to the Aed Distribution® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures. Make sure the ventilation

openings are clear at all times.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

Familiarise yourself with the functions of the device before actually using it. Do not allow operation by

unqualified people. Any damage that may occur will most probably be due to unprofessional use of the

device.

All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to

the device is not covered by the warranty.

Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks,

lamp explosion, crash, etc. Using the device in an unauthorised way will void the warranty.

Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the

dealer will not accept responsibility for any ensuing defects or problems.

A qualified technician should install and service this device.

Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the

device against damage by leaving it switched off until it has reached room temperature.

This device is designed for professional use on stage, in discos, theatres, etc. The device should only be

used indoors with an alternating current of 230 VAC, 50 Hz.

This lighting effect is a blinder and is designed to operate briefly at full power. Do not use this device at full

power for longer than 10 seconds.

Use the original packaging if the device is to be transported.

Keep this manual for future reference.

4. Features

professional DMX-controlled stage blinder for stage, clubs and studios

each set of 2 lamps is separately adjustable to choose the requested angle

for 4 x PAR36 DWE 650 W / 120 V lamps.

5. Installation

Lamps

Only fit or replace a lamp when the device is unplugged from the mains.

Let a lamp cool down before replacing it as the temperature of a lamp can

reach 700 °C during operation.

Do not install lamps with a higher wattage than that for which this device was

designed.

Replace any deformed or damaged lamp with a lamp of the same type (see

“Technical Specifications”):

1. Unscrew the screw at the top holding the vented lid and gently remove the

lid.

2. Remove the old lamp and insert the new one.

3. Carefully reposition the lid and fasten the screw.

Warning: Do not operate the device when the cover is open.

Mounting the Device

Have the device installed by a qualified person, respecting EN 60598-2-17 and all other applicable norms.

The carrying construction must be able to support 10 times the weight of the device for 1 hour without

deforming.

The installation must always be secured with a secondary attachment e.g. a safety cable.

B BLIND4

V. 04 –28/07/2021 4 ©AED Distribution nv

Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified

technician check the device once a year and once before you bring it into service.

Install the device in a location with few passers-by that is inaccessible to unauthorised persons.

Overhead mounting requires extensive experience: calculating workload limits, determining the installation

material to be used… Have the material and the device itself checked regularly. Do not attempt to install

the device yourself if you lack these qualifications as improper installation may result in injuries.

Adjust the desired inclination angle via the mounting bracket and tighten the bracket screws.

Make sure there is no flammable material within a 0.5 m radius of the device.

Have a qualified electrician carry out the electric connection.

Connect the device to the mains with the power plug. All devices must be powered directly off a grounded

switched circuit and cannot be run off a rheostat or dimmer circuit, even if the rheostat or dimmer channel

is used solely for 0 % to 100 % switching.

The installation has to be approved by an expert before the device is taken into service.

6. Use

Plug the power socket into the power supply (230 VAC, 50 Hz). This blinder is DMX-controlled via one channel.

DMX-512 Connection

When applicable, connect an XLR cable to the female XLR output of a controller (not incl.) and the other

side to the male XLR input of the device. Multiple devices can be linked through serial linking. The linking

cable should be a dual core, screened cable with XLR input and output connectors.

Maximum recommended serial data link distance is 500 meters (1640 ft). Maximum recommended number

of devices on a serial data link is 32 devices.

DMX chain with terminator:

A DMX terminator is recommended for installations where the DMX cable has

to run a long distance or used in an electrically noisy environment (e.g.

discos). The terminator prevents corruption of the digital control signal by

electrical noise. The DMX terminator is simply an XLR plug with a 120 Ω

resistor between pins 2 and 3, which is then plugged into the XLR output

socket of the last device in the chain.

DMX Start Address Selection

All DMX-controlled devices need a digital start address so that the correct device responds to the signals.

This digital start address is the channel number from which the device starts to “listen” to the DMX

controller. The same starting address can be used for a whole group of devices or an individual address can

be set for every device.

When all devices have the same address, all the units will “listen” to the control signal on one particular

channel. In other words: changing the settings of one channel will affect all devices simultaneously. If you

set individual addresses, each device will “listen” to a separate channel number. Changing the settings of

one channel will only affect the device in question.

In case of the 1-channel mode, you will have to set the start address of the first unit to 1 (CH1), the second

to 2 (CH2), the third to 3 (CH3), and so on. The highest start address is 512.

Menu control

Four buttons: MENU, UP, DOWN, ENTER

Four digits display, auto switch of after 1 minute.

Menu up, down as for the selection: Addr, oL--, FLAS.

Use ENTER for the confirmation of your selection. Continue with the detailed setup of your selection.

Addr: setup of the DMX start address.

Axxx is shown

Use the UP & DOWN buttons to adjust the start address (001 to 512)

ENTER to confirm

oL: manual setup of the brightness

oLxx is shown

Use the UP & DOWN buttons to adjust the brightness from 0 to max (000 to 255)

B BLIND4

V. 04 –28/07/2021 5 ©AED Distribution nv

ENTER to confirm

FLAS: manual setup of the strobe speed

Fxxx is shown

Use the UP & DOWN buttons to adjust the strobe speed from 0 to max (000 to 255)

7. Cleaning and Maintenance

All screws should be tightened and free of corrosion.

The housing, the lenses, the mounting supports and the installation location (e.g. ceiling, suspension,

trussing) should not be deformed, modified or tampered with; e.g. do not drill extra holes in mounting

supports, do not change the location of the connections…

Mechanically moving parts must not show any signs of wear and tear.

The electric power supply cables must not show any damage. Have a qualified technician maintain the

device.

Disconnect the device from the mains prior to maintenance activities. Let the device cool down.

Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.

Do not immerse the device in any liquid.

There are no user-serviceable parts, apart from the lamp (see “Installation”).

Contact your dealer for spare parts if necessary.

8. Technical Specifications

PHYSICAL

Dimensions (WxHxD): 375 x 375 x 155 mm

Packaging dimensions (WxHxD): 440 x 400 x 210 mm

Outer carton dimensions (2 pc): 460 x 420 x 450 mm

Nett weight: 5,8 kg

Gross weight (1 piece): 6,5 kg

Gross weight (2 pieces): 13,8 kg

MOUNTING OPTIONS

Hanging: 1 bracket with 3x M10 mounting holes

2nd suspension / safety wire: eyebolt on the housing to pass a safety wire or carabiner

CONTROL

Menu Control: Via TFT 4 digit display with 4 buttons

DMX mode: 1/2 channel

In/Link: XLR 5 pin

OPTICAL

4x GE Par36G53 screw MFL 120V 650W

Light output/lamp: 24.000 cd

Rated life: 100 hours

Lamp position: Vertical and horizontal bulb positioning

Colour temperature: 3200°K

ELECTRICAL

Fixture rated power: 2300W 13A

B BLIND4

V. 04 –28/07/2021 6 ©AED Distribution nv

Input power: 220 - 240V ~ 50/60 Hz

Mains connector: PowerCon TRUE 1

Lamp 2x DWE650: 650W 110V wired in series per 2

ENVIRONMENTAL

Max. housing temperature: 130°C

IP rating: IP20

Use this device with original accessories only. Aed Distribution nv cannot be held responsible in the

event of damage or injury resulting from (incorrect) use of this device. For more info concerning

this product and the latest version of this manual, please visit our website www.Luxibel.be. The

information in this manual is subject to change without prior notice.

The copyright to this manual is owned by Aed Distribution nv. All worldwide rights reserved. No part

of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without

the prior written consent of the copyright holder.

B BLIND4

V. 04 –28/07/2021 7 ©AED Distribution nv

Table des matières

Autres manuels Luxibel Équipement d'éclairage

Luxibel

Luxibel LX103 Manuel utilisateur

Luxibel

Luxibel LX112 Manuel utilisateur

Luxibel

Luxibel B 25 Manuel utilisateur

Luxibel

Luxibel LX152 Manuel utilisateur

Luxibel

Luxibel LX131 Manuel utilisateur

Luxibel

Luxibel LX113 Manuel utilisateur

Luxibel

Luxibel B Panel240CW Manuel utilisateur

Luxibel

Luxibel PANEL360TW Manuel utilisateur

Luxibel

Luxibel B Blind2 Manuel utilisateur

Luxibel

Luxibel B PANEL240WW Manuel utilisateur

Luxibel

Luxibel LX108 Manuel utilisateur

Luxibel

Luxibel LXMH10002 Manuel utilisateur

Luxibel

Luxibel LXMH10003 Manuel utilisateur

Luxibel

Luxibel LX109 Manuel utilisateur

Luxibel

Luxibel LX110 Manuel utilisateur

Luxibel

Luxibel PANEL180TW Manuel utilisateur

Luxibel

Luxibel B-Expo350M Manuel utilisateur

Luxibel

Luxibel LX120 Manuel utilisateur

Luxibel

Luxibel LXLP10106 Manuel utilisateur

Luxibel

Luxibel B Panel120WW Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
