Lutron Electronics Homeworks qs Guide de configuration rapide

Lutron®Homeworks®QS

Luxor® Controllers with ZD Technology® and ZDC Technology®

Lighting Accessories by Hunter Industries

Integration Guide

LUXOR

2

Table of Contents

3 System Requirements

4 Getting Started

5 Adding Devices

8 Link Assignments

9 Edit Integration IDs

10 Telnet Logins

11 Program Keypads

12 Transfer Project

13 Luxor Controller Conguration

14 Enable Lutron

15 Troubleshooting

LUXOR

3

Getting Started

Creating a Project

1. Name the project.

2. Click on the Activate tab.

3. Select "processors" in drop-down box.

4. Uncheck the "4HHuunntteerr" box.

5. Record the processor IP address.

System Requirements

Lutron Homeworks QS Requirements

Soware: Homeworks QS

4

Getting Started

6. In the Design tab, select Controls from the drop-down box.

7. Press "+" next to Exterior to add the location.

Note: The location name should correspond to the Luxor location (e.g., front yard, backyard, etc.).

5

Adding Devices

Adding Devices

1. In the Controls section, select the Dimmer/QSG tab.

2. Click "+" to add the HQR-3LD 300W Lamp Dimmer.

6

Adding Devices

3. Enter "Luxor All Groups" in the Device Location eld.

4. Enter "Luxor Zone All" in the Name eld.

5. Click "Done."

7

Adding Devices

6. For the device named Luxor All Groups, click "+."

7. Add HQR-3LD 300W Dimmer to the Luxor All

Groups device.

8. Enter "Luxor1" in the Device Location eld.

9. Enter "Luxor Zone 01" in the Name eld.

10. Click "Done."

Repeat steps 6–10 until a device has been added for

all available Luxor Groups.

8

Link Assignments

Link Assignments

1. Conrm all Luxor groups have been added as a device.

2. In the Design tab, select "link assignment" from the drop-down box.

3. Assign the link to Luxor Group devices.

9

Edit Integration IDs

Edit Integration IDs

1. In menu bar, select "Tools" and click "Congure

Integration."

2. Select "Zones" in the "Assign integration IDs to:"

drop-down box.

3. Double-click the ID eld for the "Luxor Zone All"

group and enter 500.

4. Double-click the ID eld for the "Luxor Zone 01"

group and enter 501.

5. Edit ID numbers for the remaining Luxor Groups.

6. Click "Done."

10

Telnet Logins

Telnet Logins

1. From the menu bar, select "Tools" and click

"Congure Integration."

2. In the Conguration Integration menu, select

Telnet Logins.

3. At the bottom of the screen, click

"+ Add Telnet Login."

4. Enter "hunter" in the Username eld.

5. Enter "4HHuunntteerr" in the Password eld.

6. Uncheck the "Allow Homeowner Editing" box.

Note: The "Bad Login" error message will be

displayed if the Username and Password are

not named "hunter" and "4HHuunntteerr."

Autres manuels pour homeworks qs

2

Table des matières

Autres manuels Lutron Electronics Accessoires

Lutron Electronics

Lutron Electronics GRC-CES Series Manuel

Lutron Electronics

Lutron Electronics C-L Manuel utilisateur

Lutron Electronics

Lutron Electronics LOS-CDT Series Manuel utilisateur

Lutron Electronics

Lutron Electronics Maestro MS-B102 Series Manuel utilisateur

Lutron Electronics

Lutron Electronics CAR-15 Manuel utilisateur

Lutron Electronics

Lutron Electronics LRF2-OCR2B-P-WH Manuel utilisateur

Lutron Electronics

Lutron Electronics LOS-WIR Manuel utilisateur

Lutron Electronics

Lutron Electronics LOS-C Series Manuel utilisateur

Lutron Electronics

Lutron Electronics Limelight LL-EXTMOUNT-H Manuel utilisateur

Lutron Electronics

Lutron Electronics Caseta Manuel du propriétaire

Lutron Electronics

Lutron Electronics Maestro MS-OPS6M2U-DV Series Manuel utilisateur

Lutron Electronics

Lutron Electronics Radio Powr Savr LRF5-OCR2B-P Guide de démarrage rapide

Lutron Electronics

Lutron Electronics LOS-CDT Series Manuel utilisateur

Lutron Electronics

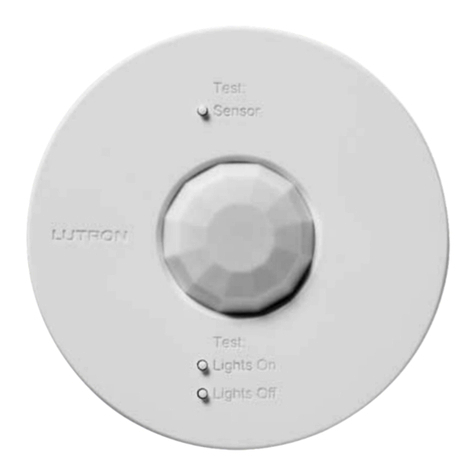

Lutron Electronics LRF2-OCRB-P- Manuel utilisateur
