I DE Einbauanleitung

Dezentrales Lüftungssystem

mit Wärmerückgewinnung

Typen e², e²kurz und e²neo

- Bitte an den Nutzer weiterleiten -

II EN Installation Manual

Decentralised Ventilation System

with Heat Recovery

Type e², e²short and e²neo

- Please pass on to user -

Contents Page:

About this manual, Safety instructions, Technical specifications, Disposal 12

Dimension diagrams, Installation position 13

Operating range, Shipping units 14

Assembly: Assembly pipe and Outer grille 15

Assembly: Electric installation and Electric connection 16

Assembly: Heat recovery unit and Inner screen 17

Assembly: Sound insulation set 18

Replacement of ALD-R 160 by e², Note on LUNOS Outer covers 18

Filter replacement, Cleaning, Additional parts and Replacement parts 19

About this manual

 Read this manual carefully and completely before assembly. Always observe the general safety

instructions and the safety symbols with information in the text.

 Hand out this manual to the user (tenants, proprietors, property management etc.) after comple-

ting assembly.

Symbols in this manual

This symbol warns you against risks of injury

This symbol warns you against risks of injury from electricity

Safety instructions

Caution! Any assembly work to the ventilation device may only be carried out after dis-

connecting all poles of the supply voltage. The ventilation device is fitted with protective insula-

tion according to Protection Class II, a protective conductor connection is not required.

Attention! The electric connection may only be made by authorised qualified personnel

and according to the applicable version of VDE 0100.

Attention! This device must not be operated by children and persons (filter replacement/

cleaning) who are not able to operate the device safely due to their physical, sensory or mental

abilities or their inexperience or lack of knowledge. Children should be supervised to ensure

that they do not play with the device.

Technical specifications

Device voltage 12 V DC SELV

Type of protection IP 22

Volume flow 18 m³/h to 38 m³/h possible

Enveloping surface sound pressure level 16.5 dB at 18 m³/h; 19.5 dB at 31 m³/h

Disposal

The packaging must be sorted before disposal. If you wish to dispose of the ventilation device,

observe the current regulations. The competent municipal authority will provide information.

Installation Manual EN

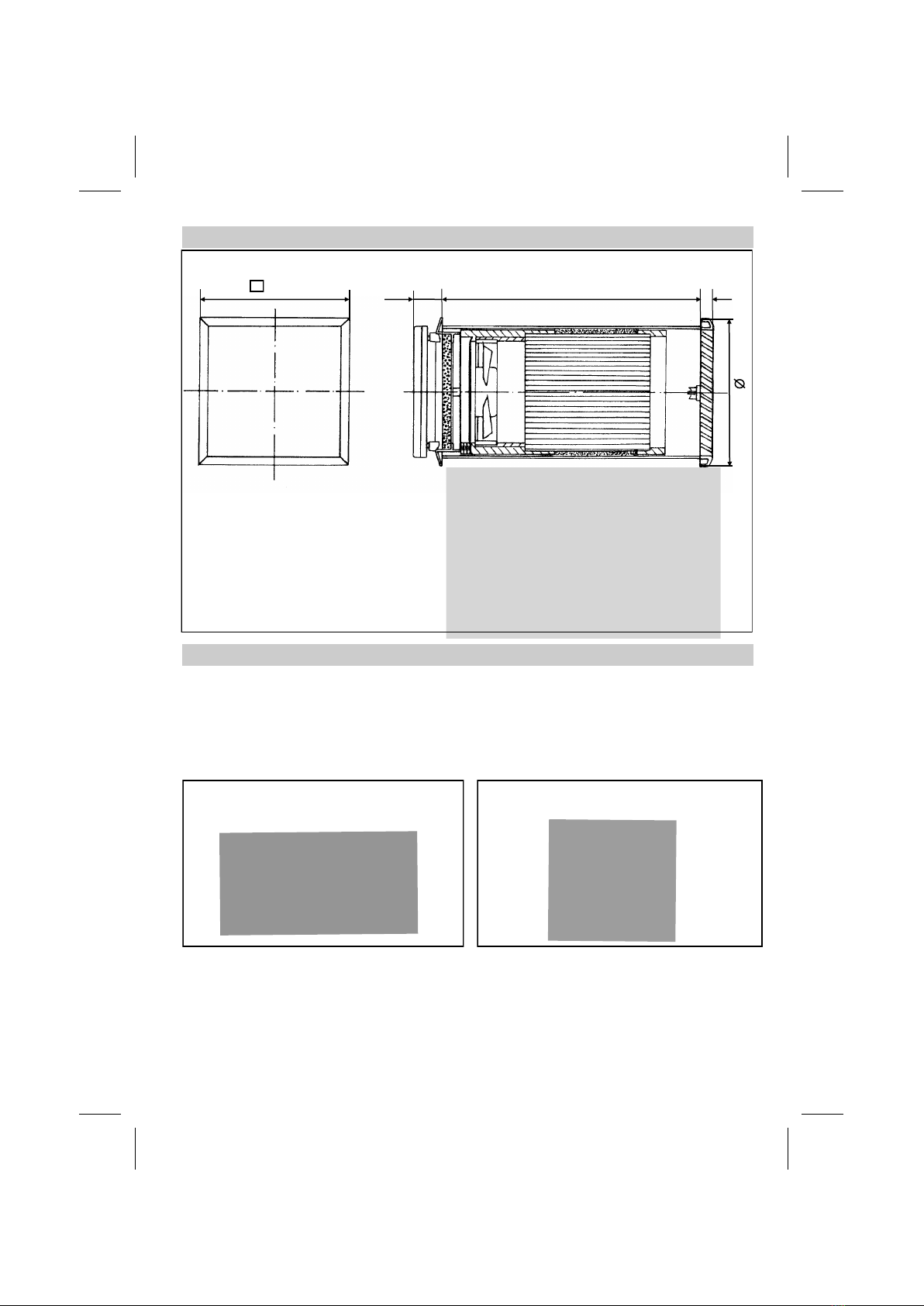

Dimension diagrams (all dimensions in mm) EN

Installation position

Decentralised ventilation devices with heat recovery of the type e² only function in pairs in bidirectional

operation. One device operates 70 s (50s for e² short) in supply air operation, the other 70 s (50 s for

e²short) in exhaust air operation at the corresponding airflow level as set. Then the air direction is

changed. It is thus ensured that the total of the airflow volume supplied is equal to the total exhaust

airflow volume. If a device pair operating in push-pull operation is installed and operated in two diffe-

rent rooms of the flat, a sufficiently dimensioned interconnection between the air movement must be

provided by excess flow air vents.

Recommended minimum spacing when

installing a pair of devices in a wall: Recommended minimum spacing when

installing a pair of devices across a corner:

1 m

1,4m

35 300 - 700 17180

180

Dimensions in mm 200* –300

e²short :

Do not place the devices above sensitive pieces of furniture, surfaces or pictures. The wall underneath

the devices should be left “free“.

Do not place the devices above or near room thermostats.

DA 160

Heat exchanger

Heat

exchanger EPP

ring

*Shorten EPP ring if necessary

Type 1/WE 180 white Order No.: 39 852

Type 1/GE 180 light grey Order No.: 39 853

Type 1/RE 180 red-brown Order No.: 39 854

Alternative external closures see pricelist or on request

Shipping units

Check the supplies for completeness and mint condition!

Assembly pipe Outer grille

Insert e² Inner screen

Pipe DA 160 mm

Plaster protection cap

The outer grille 1/W 180 is supplied together with the facade protection ring 1/FSR 180. A correspon-

ding installation manual is enclosed.

Operating range EN

Filter (included in the supply unit built-in device e²)

Alternative inner screens see pricelist or on request

Temperature range: -15°C to +40°C

Usable with relative humidity levels of up to 65% in the interior area. During heating periods low levels

of condensate formation may occur. When usage limits are exceeded, switch off the device and close

the inner screen. Ensure fresh air supply by window ventilation.

Further outer grilles available on request

Assembly: Assembly pipe and outer grille EN

Make the wall openings for the as-

sembly pipes (e.g. by coring, core bit

Ø 162 mm).

If necessary shorten the pipe to the

required installation length (e²: min.

300 mm; e²short: min. 200 mm).

Take care that the pipe overlaps on

both sides to cope with the plaster

thicknesses (after plastering the pipe

must close flush with the plaster).

Insert the pipe and seal it all around.

(Assembly glue Order No. 038 733).

Apply plaster indoors and outdoors. If

outer closure is plastered, first replace

the plaster protection cap outdoors by

an outdoor closure piece.

Remove the plaster protection cap

outdoors. Assemble the outer grille

using the integrated claw fasteners

(tighten screws).

①

②

➂

Indoors

Indoors Outdoors

Outdoors

Plaster protection cap

Tighten claw fasteners with screws

3 mm

Assembly: Electric installation and Electric connection EN

Safety instructions:

Caution! Any assembly work to the ventilation device may only be carried out when all poles of the supply

voltage have been disconnected.

Make sure that the supply voltage of all connection lines is voltage-free (dead). (Separation from the power

supply with a minimum contact opening of 3 mm, e.g. electric fuse disconnecting all poles).

Each electric circuit of this ventilation system must be fitted with a residual current protection (e.g. FI switch/

RCCB).

Electric connection only by a specialist. Additional installations and electrical components in this ventilation

system are not allowed.

The system can be controlled via

several controls of LUNOS.

Follow the relevant installation

instructions.

Select the position of the switch.

Slit the cable ducts (power cable +

cable to the device pairs) and the

pipes (2 cm deep). Lay the power

cable (e.g. 3 x 1.5 mm²) and the

cables to the pairs of devices (e.g.

3 x 0.75 mm²). Place the cables to

the device pairs ready in the pipes.

Circuit and switch are connected

as shown in the diagram below.

➃

Power cable

Switch

Device 1

Supply/Exhaust Device 2

Exhaust/Supply

horizontal

vertical

also slit pipes

for cable

Only slit the pipes

in these four areas

Connector box

Assembly: Heat recovery unit and Inner screen EN

Remove plaster protection cap

inside, insert heat exchanger unit

into the assembly pipe, ensure

there is a 22 mm spacing. Motor is

on the inside. Using the loop on the

inside of the heat exchanger unit

the said unit may be pulled out for

correction purposes.

Connect cables to plugs, insert pin

and socket connectors into the

recess of the heat exchanger

casing.

⑦

Motor

22 mm

Cable Motor cable

red

blue

purple

Pin-and-socket

connector

⑥

Insert inner closure with filter

casing, snap the indoor screen

into place in open position.

Ready.

open

closed

⑧

Replacement of ALD-R 160 by e²

L min

1 2

When carrying out a replacement

the following parts of ALD-R 160

are not required any more:

1. wind pressure relief

2. noise absorber elements +

noise absorber end fitting

The minimum length L min of the

assembly pipe should be 300 mm.

When keeping the outer closure

with clamp spring (types 1/R…

180) L min is 320 mm.

The assembly of the e² is then

carried out as described in this

manual from page 5 onward.

Assembly: Sound insulation set EN

Can be used as from a pipe

length of 300 mm for e². Position

sound insulation ring and sound

insulation layer as depicted. The

sound insulation layer can be

shortened if necessary.

sound insulation ring sound insulation layer

Note on LUNOS outer covers

The full-plastic outer covers supplied by LUNOS provide high resistance to driving rain and meet the

reqirements of Stress Group III according to DIN 4108-3 (2014-11). Metallic or metal-coated covers

can be used in Stress Group I in accordance with DIN 4108-3 (2014-11).

For buildings in wind-exposed locations or if there is a risk of strong winds and rain on the outer

covers, additional weather protection measures must be taken, if necessary.

Filter replacement date Expected filter replacement Type of filter used

Please note below information on the filter changes you have carried out:

Filter replacement EN

LED iIluminates beneath the switch

The filter replacement indicator signali-

ses that a filter is contaminated. In

connection with the universal control a

permanent red light of the LED illumina-

tes beneath the switch.

Remove front cover, take filter out,

insert new or cleaned filter (filters can be

cleaned e.g. in a dishwasher), put front

cover on.

The ventilation openings must not be

blocked or covered.

Reset the filter change indicator by

pressing the rocker switch W1 once.

When using a push-button press the

rocker switch W1 for 3 seconds.

For the functionality of the filter change

indicator in connection with the TAC or

the LUNOS-KNX Control please see the

corresponding instructions.

Cleaning

If necessary wipe the indoor screen and covering frame with a dry soft cloth.

Filter replacement and cleaning must not be carried out by children or by persons who are not

able to operate the device safely due to their physical, sensory or mental abilities or their inexperi-

ence or lack of knowledge.

Additional parts and replacement parts

Filter

Indoor screen compl. 9/IBE Order No.: 39 851

Replacement filter G3, 9/FIB3R, three-pack Order No.: 37 214

Sound insulation set 9/SW Order No.: 39 850

Wind pressure relief 9/WDSE (for assembly pipes from 370 mm length) Order No.: 39 860

Sound protection screen 9/IBS Order No.: 39 947

E124 06.16

Assembly – electric installation and electric connection EN

Safety instructions:

Beware! Any assembly work to the ventilation device may only be carried out when all phases

of supply voltage have been disconnected!

Make sure that the supply voltage of all connection lines is dead! (separation from the power

supply with a free space between contacts of at least 3 mm, e.g. all-phase disconnecting electr.

protection).

Each electric circuit of this ventilation system must be fitted with a residual current protection

(e.g. RCD)!

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR

INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a.) Installation work and electrical wiring must be done by qualified person(s)

in accordance with all applicable codes and standards, including fire-rated

construction.

b.) Sufficient air is needed for proper combustion and exhausting of gases

through the flue (chimney) of fuel burning equipment to prevent back

drafting. Follow the heating equipment manufacturer’s guideline and safety

standards such as those published by the National Fire Protection Association

(NFPA), and the American Society for Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE), and the local code authorities.

c.) When cutting or drilling into wall or ceiling, do not damage electrical

wiring and other hidden utilities.

d.) Ducted fans must always be vented to the outdoors.

e.) If this unit is to be installed over a tub or shower, it must be marked as

appropriate for the application and be connected to a GFCI (Ground Fault

Circuit Interrupter) – protected branch circuit.

The product’s installation shall not conflict with any requirement in the National Electrical Code,

ANSI/NFPA 70-1999.

Additional installations and electrical components in this ventilation system are prohibited!

LUNOS Germany

LUNOS Lüftungstechnik GmbH Phone +49 30 362 001-0

für Raumluftsysteme Fax +49 30 362 001-89

Wilhelmstr. 31 [email protected]

13593 Berlin ∙ Germany www.lunos.de

Autres manuels pour e2 mini

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Lunos Ventilateur

Lunos

Lunos Silvento Manuel utilisateur

Lunos

Lunos e2 60 Manuel utilisateur

Lunos

Lunos 9/WDS ABL Manuel utilisateur

Lunos

Lunos e2 mini Manuel utilisateur

Lunos

Lunos Silvento EC Manuel utilisateur

Lunos

Lunos EAU 100 Manuel utilisateur

Lunos

Lunos AB 30/60 Manuel utilisateur

Lunos

Lunos Silvento EC Manuel utilisateur

Lunos

Lunos Ne t Series Manuel utilisateur

Lunos

Lunos fgo Manuel utilisateur

Lunos

Lunos e2 Series Manuel utilisateur

Lunos

Lunos e2 neo Manuel utilisateur

Lunos

Lunos eGO Manuel utilisateur

Lunos

Lunos ALD Manuel

Lunos

Lunos Skalar Series Manuel

Lunos

Lunos 3/UP-BR Manuel

Lunos

Lunos 3/UP-AS Manuel

Lunos

Lunos e2 mini Manuel utilisateur

Lunos

Lunos RA 15-60 Manuel utilisateur

Lunos

Lunos Silvento EC Manuel utilisateur

Lunos

Lunos Silvento EC Manuel utilisateur

Lunos

Lunos eGO Manuel utilisateur

Lunos

Lunos 9/WDS ABL Manuel utilisateur

Lunos

Lunos Silvento V AC Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
