LumiRing AIR-R Manuel utilisateur

AIR-R

Multi-reader RFID+Bluetooth

Manual

AIR-R

0.102

2022

1.01

CONTENTS

PURPOSE AND GENERAL INFORMATION ___________________3

Specifications _______________________________________3

Description of connection methods _____________________4

INSTALLATION RECOMMENDATIONS ______________________5

Wiegand connection _________________________________5

RS485 connection ____________________________________5

TYPICAL USAGE CASES __________________________________6

One door. One direction. Third-party controller. ___________6

One door. Two directions. AIR-CR controller. _____________6

Bluetooth credentials (AIRKEY)_____________________________7

Third-party access control system.______________________7

MACS Lite App ______________________________________8

Access control in two directions.________________________9

WEB-BASED INTERFACE _________________________________9

Device system information ____________________________9

Main Network settings _______________________________ 10

Local Wi-Fi AP settings ______________________________ 10

Cloud connection settings ____________________________ 11

RS485 Settings______________________________________ 11

Wiegand Settings ___________________________________ 11

Built-in Reader settings ______________________________ 12

Copy protection settings _____________________________ 12

Bluetooth Settings___________________________________ 12

Maintain ___________________________________________ 13

Security____________________________________________ 13

HARDWARE RESET _____________________________________ 13

AIR-R

0.102

2022

1.01

PURPOSE AND GENERAL INFORMATION

The AIR-R Reader is designed to work with any controller of the access control system.

The reader supports work with RFID identifiers at 125Khz and 13.56Mhz frequencies. Device

support works with two kinds of mobile credentials: Bluetooth type AIRKEY; Cloud type VIKEY.

AIRKEY is possible to use offline and with 3dparty access control system. Vikey can work only

online with the MACS lite app. When using a third-party access system, keys are issued through

the web resource http://lmacs.tech. The initial setup of the reader takes place through the web-

based interface, which not only allows the User to change the settings but also to update the

firmware. The optical laser proximity sensor is used for the opening mode via Bluetooth AIRKEY

keys.

The Wiegand interface of the device supports information output in various Wiegand

modes:

•Wiegand 8

•Wiegand 26

•Wiegand 34

Distance between two devices connected by the Wiegand interface should be up to 100

m. AIR is equipped with an RS485 interface which allows it to be used with controllers equipped

with the corresponding interface. The distance between devices, in this case, can reach 1000

meters.

In one system, it is recommended to connect readers through the same interface, which

will help to avoid variations with reading card codes on different interfaces same time.

Specifications

Parameter

Value

Electrical

Supply voltage

9-24 V

Average rated current consumption (at voltage 12V):

- No-load output, not more

0,11А

Maximum current consumption (at voltage 12V):

- No-load output, not more

0,5А

Protection types:

- Overload

- Overheating

- Short circuit

- Polarity change

YES

Functional

Wireless interfaces

Wi-Fi 2,4Ghz

Bluetooth 4.1

AIR-R

0.102

2022

1.01

Wired interfaces

Wiegand

RS485

Built-in reader

Support for 125Khz identifiers

• EM Marine

Support for 13.56Mhz identifiers

• MIFARE DESFire;

• MIFARE Plus;

• MIFARE Ultralight;

• MIFARE Classic 1K, 4K;

• MIFARE Classic EV1 1K, 4K;

• NFC;

YES

Supports copy protection for standard tags

MIFARE Classic 1K, 4K.

YES

Maximum distance of wired interface:

-RS485

-Wiegand

1000 м / 3280ft

100 м / 328 ft

Operational

Overall dimensions

(D)60x(H)15 mm

(D)2.36x(H)0.59 inch

Working temperature range

-30 ~ + 70 С

-22 ~ 158 F

IP Protection Level

IP65

Enclosure material

ABS Fire Retardant

Description of connection methods

A wired interface is used to connect the AIR to any peripheral or executive equipment.

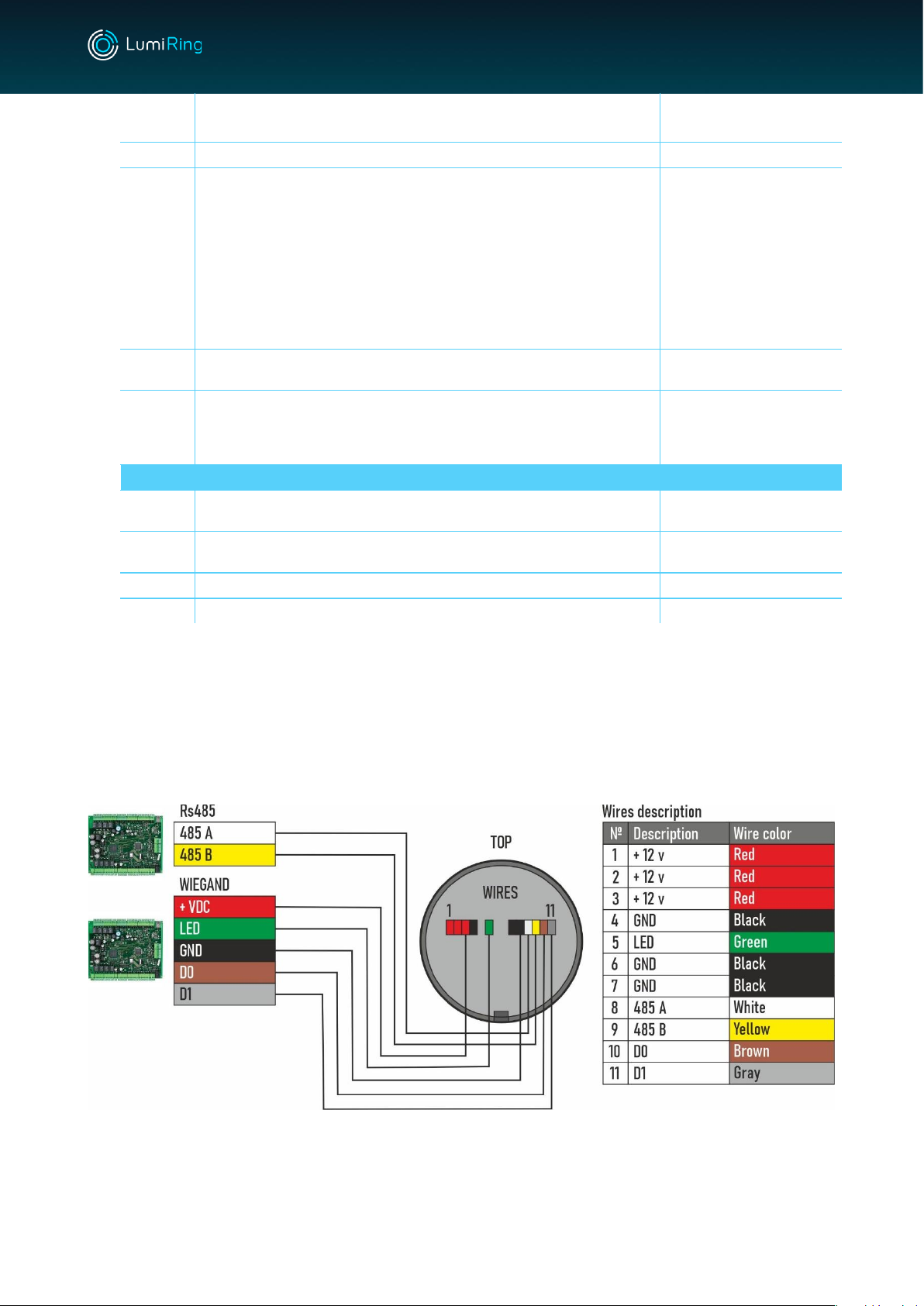

Figure 1 - Color designation of interface wires

AIR-R

0.102

2022

1.01

INSTALLATION RECOMMENDATIONS

It is highly recommended to avoid mounting devices directly on metal surfaces. In case

this is a desirable mounting option, please use an enhanced mounting plastic base supplied with

the device.

Wiegand connection

The length of the communication line via the Wiegand interface should be no more than

100 m (328ft). This interface is not resistant to external sources of interference - we do not

recommend laying it parallel to power cables and next to other sources of interference

(fluorescent lights, etc.). We recommend laying the Wiegand communication line at a distance of

less than 0.5m(1.64ft) from the power cables. If your communication line exceeds 5 m(16,4 ft), we

recommend using a UTP 5E cable.

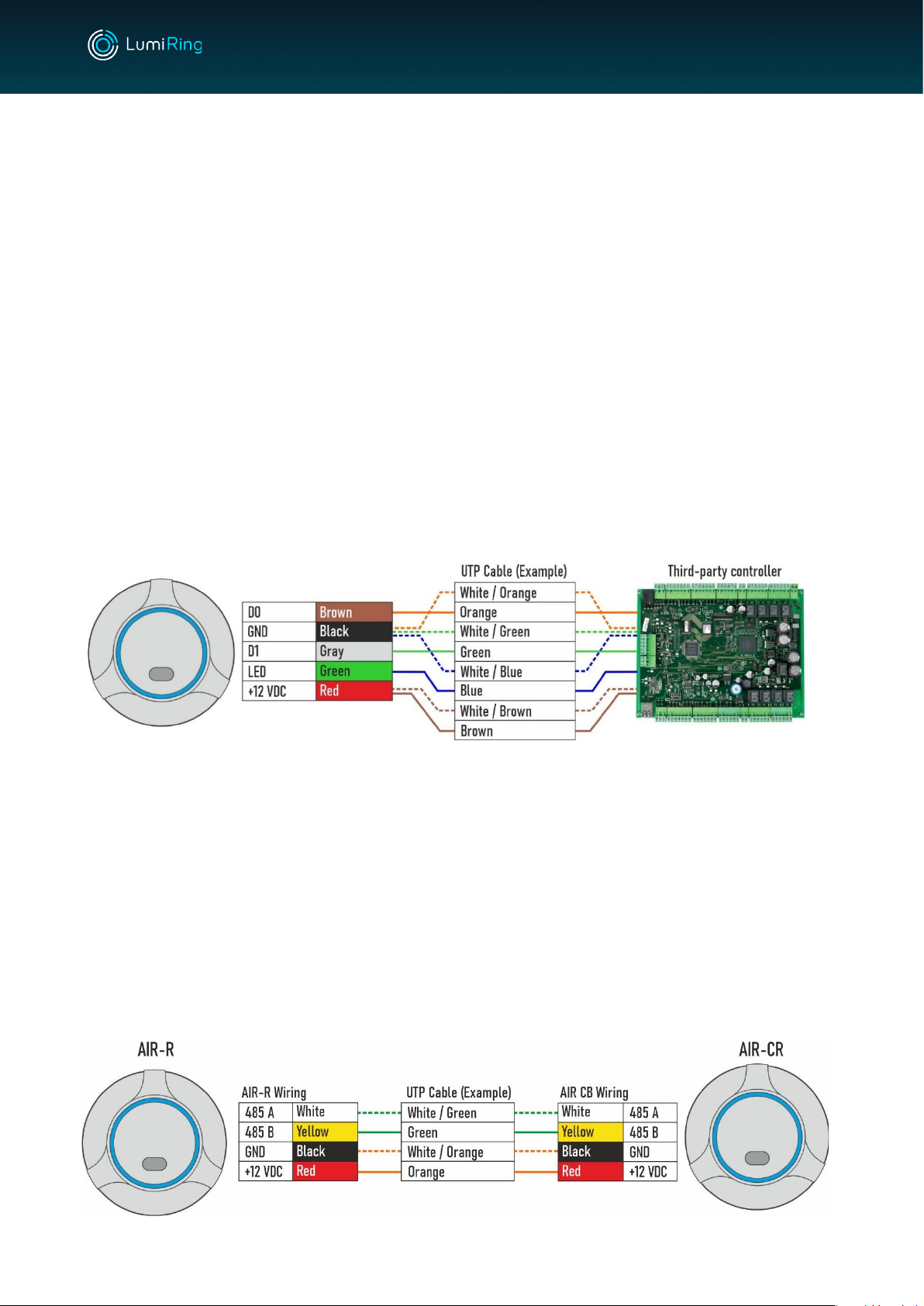

Figure 2. Recommended Wiegand connection diagram if the distance

is more than 100 m(328 ft).

RS485 connection

The length of the RS-485 communication line is not critical to the distance - this standard

was specially developed for communication with remote objects and had good noise immunity.

It is necessary to lay the RS-485 communication line at the maximum distance from power cables

and daylight lamps. As an RS-485 communication line, it is necessary to use a twisted pair cable

- UTP 5E or FTP 5 (If possible, ground the shield at one end). For reliable operation of the system,

it is recommended to separate the power supply for controllers and actuators. The controller

supply line wires should be kept as short as possible to avoid significant voltage drops across

them. After laying the cables, make sure that the supply voltage of the controller with the locks

turned on is not lower than 12 V.

Figure 3. Recommended RS485 connection diagram

AIR-R

0.102

2022

1.01

TYPICAL USAGE CASES

One door. One direction. Third-party controller.

Figure 4

One door. Two directions. AIR-CR controller.

Figure 5

AIR-R

0.102

2022

1.01

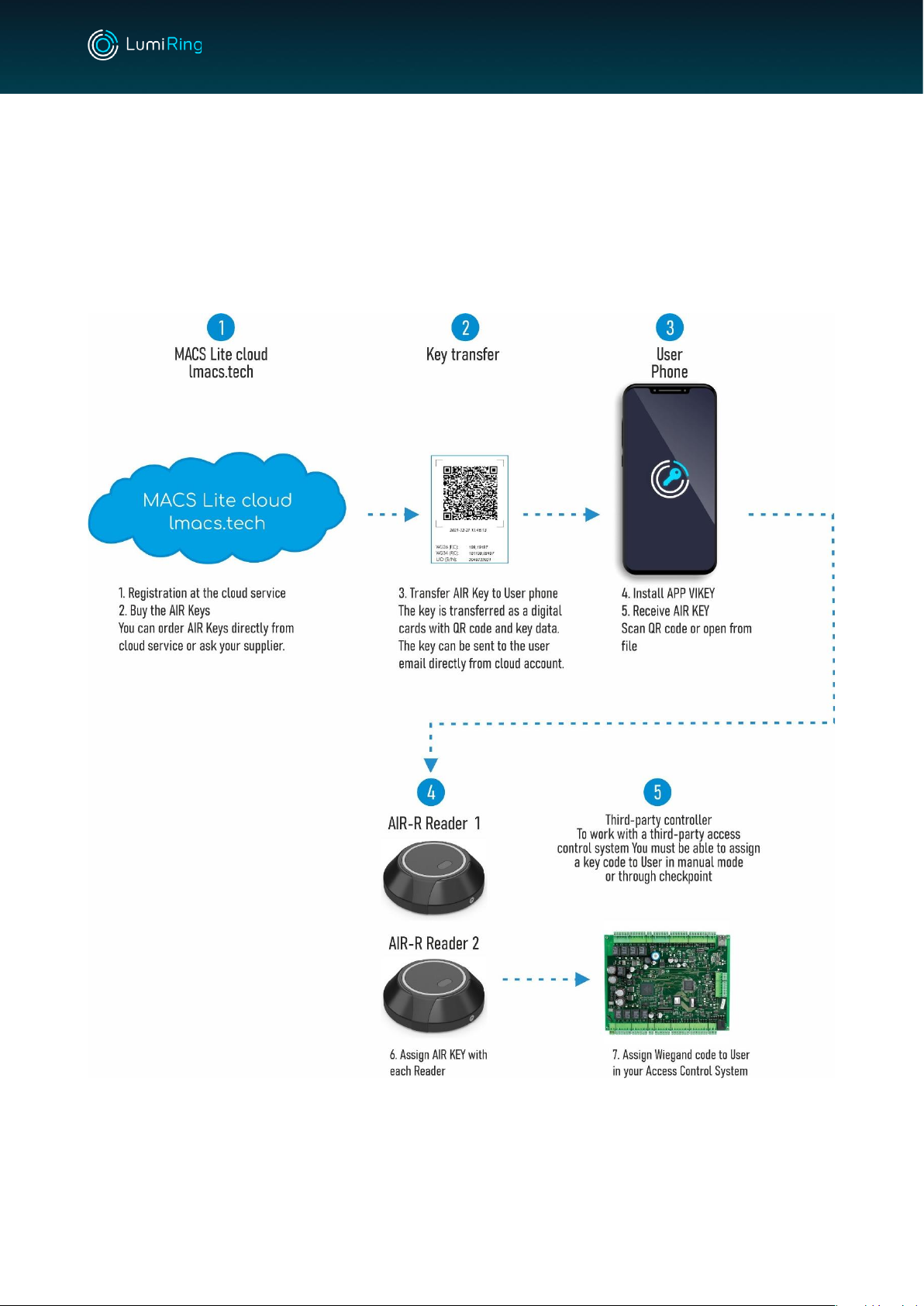

Bluetooth credentials (AIRKEY)

Third-party access control system.

Figure 6

AIR-R

0.102

2022

1.01

MACS Lite App

Figure 7

AIR-R

0.102

2022

1.01

Access control in two directions.

To control the passage in two directions by AIRKEY, the User must associate their own phone

with each reader.

Figure 8

WEB-BASED INTERFACE

Please do the Initial configuration of AIR-R Reader through the built-in web interface. To

connect to this interface, the User must join the device's Wi-Fi access point, which has the "AIR"

prefix and does not have a password. After connecting to the device, the User must enter the

factory IP address of the controller - 192.168.4.1 in the browser line. Login and Password for the

first login are not necessary. We strongly recommend adding the access password and setting a

password on the Wi-Fi point of the device.

Device system information

This page provides the User with quick access to information about basic settings, network

connection statuses, and diagnostic data.

AIR-R

0.102

2022

1.01

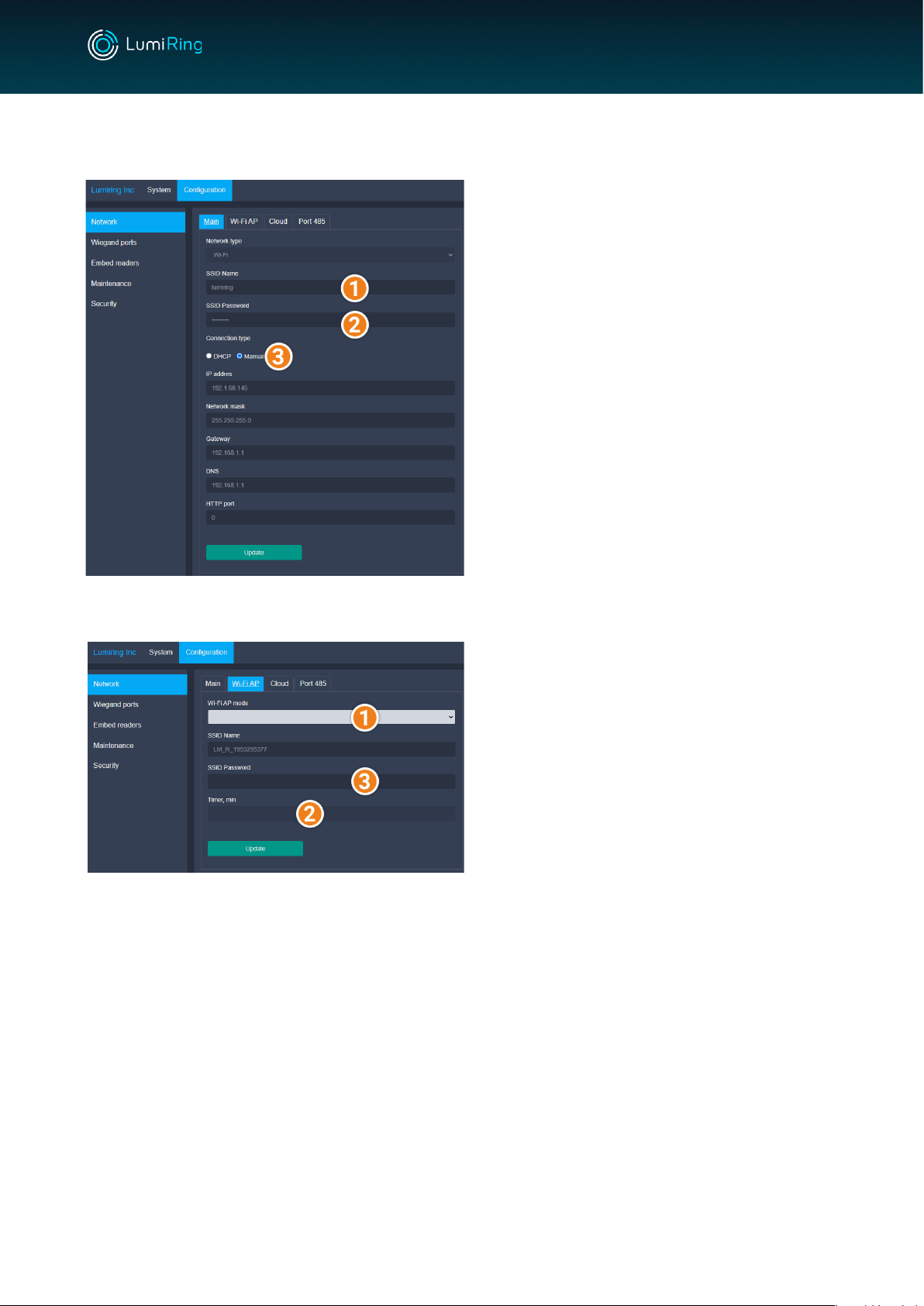

Main Network settings

Connecting the reader to the local network is only necessary if you need to update the

reader firmware. To connect to a local

network, you must provide the name of your

Wi-Fi network (1) and access password (2). It

is sufficient to use the DHCP connection type.

The reader will automatically connect to the

cloud resource. The update is described in

more detail in the "Maintenance".

Local Wi-Fi AP settings

The local Wi-Fi access point can

operate in three modes. The choice of the

mode is made by the selector (1)

- Always-ON / Always on

The device's local hotspot is always on and is

displayed when other devices are scanning

the network.

- Always-ON + Hidden / Always on and hidden

The device's local hotspot is always enabled

but does not show up when scanning the network with other devices. Connection is possible if

the SSID is known.

- Timed ON / Enabled by the timer (default)

The local point of the device is activated for the time specified in the Timer field (2). The

countdown starts from the power supply of the device. After the timer expires, the Wi-Fi point

will be turned off.

By default, the local hotspot is not password protected. We strongly recommend that you set a

password (3) during the initial setup.
