Luminar Outdoor 56423 Instructions de montage
Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 19e
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2019 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly an d se rv ic e may n ot b e in cl uded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 56423
Specifications
Electrical Rating 120VAC / 60Hz / Max 1.92A
Fuse Rating 125V 5A
Length (one Rope Light) 18 ft
Max Length 16 Segments (288 ft)
IMPORTANT SAFETY INFORMATION
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
1. Do not cover this product as the covering may cause
the flexible light to overheat and melt or ignite.
2. Do not operate with the flexible light tightly coiled.
3. Do not puncture, cut, shorten, or
splice the flexible lighting.
4. Do not route the cord or flexible lighting
through walls, doors, windows or any
like part of the building structure.
5. Do not use if there is any damage to the light
or cord insulation. Inspect periodically.
6. Do not submerge flexible light in liquids,
or use the product in the vicinity of
standing water or other liquids.
7. Secure this flexible light using only the
hangers or clips provided. Do not secure this
product or its cord with staples, nails, or like
means that may damage the insulation or
permanently attach to the building structure.
8. Do not subject flexible lighting to continuous flexing.
9. Do not exceed the length in feet
permitted by the marking.
10. This product has a polarized plug (one blade is
wider than the other) as a feature to reduce the risk
of electric shock. This plug will fit in a polarized
outlet only one way. If the plug does not fit fully
in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician. Do not use
with an extension cord unless the plug can be
fully inserted. Do not alter or replace the plug.
11. WARNING! When using outdoor-use
portable lighting products, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock and
personal injury, including the following:
a. Ground Fault Interrupter (GFCI) protection
should be provided on the circuits or outlet to be
used for outdoor use flexible lighting product.
Receptacles are available having built-in
GFCI protection for this measure of safety.
b. Use only outdoor extension cords, such as
type SW, SOW, STW, STOW, SJW, SJOW,
SJTW, or SJTOW. This designation is
marked on the wire of the extension cord.
12. Verify that installation surface has no hidden
utility lines before drilling, driving screws.
13. Place/mount the LED Rope to prevent
tripping or choking. Keep out of reach
of young children and babies.
14. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
15. Install only according to these instructions.
Improper installation can create hazards.
16. Wear ANSI-approved safety
goggles during installation.
17. This product is not a toy. Do not allow
children to play with or near this item.
18. Use as intended only.
19. Maintain product labels and nameplates.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
SAVE THESE INSTRUCTIONS.
Page 3For technical questions, please call 1-888-866-5797.Item 56423
Installation and Operation Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document
including all text under subheadings therein before set up or use of this product.
To prevent serious injury: Disconnect power before adding segments. Only use 56423 segments. Make sure
that all connections and the end cap on the last segment are tightly secured to preclude the entry of water.
Rope Light Assembly
1. The Rope Light can be left loose, wall mounted or
wrapped around an object such as a fence rail.
Notice: Place/mount the Rope Light to
prevent tripping or choking. Keep out of
reach of young children and babies.
2. Carefully unpack and uncoil the Rope Light.
Do not cut or nick the Rope Light.
3. If using only one Rope Light, keep Power
Cord and End Cap connected. Make
sure the End Cap is secure.
4. If attaching additional segments, remove End
Caps and Power Cords as needed. Connect
segments together by screwing the Locking
Ring at the end of one segment onto the
threads of another segment until tight.
End
Cap
Locking
Ring
5. After all segments are connected, connect Power
Cord and End Cap, tightening both securely.
Wall Mounting
1. WARNING! Select a location without
hidden cables or utility lines. Turn off all
power in the wall for added safety.
2. Carefully measure the mounting path and ensure
the Power Cord’s plug or extension cord reaches
the outlet without straining the cord or lights.
3. Mark and drill holes for the Clips one
foot apart from each other.
4. Position the Clips over the holes and
secure in place with the Wall Screws.
5. Push Rope Light into Clip opening until it snaps in
place. Continue for the full length of Rope Light(s).
Clip Wall
Screw
Wall
Wall
Rope Light
Clip
Wrapping Around an Object
1. Carefully measure the mounting path and ensure
the Power Cord’s plug or extension cord reaches
the outlet without straining the cord or lights.
2. Wrap the Rope Light(s) around the object using the
included Mounting Ties to secure the lights to the
object. Space the Mounting Ties one foot apart.
Operation
To turn the Rope Light on, plug into 120VAC, GFCI protected outlet.
Fuse Replacement
1. Grasp plug and remove from the receptacle or other
outlet device. Do not unplug by pulling on the cord.
2. Open fuse cover. Slide open fuse access cover
on top of attachment plug towards blades.
3. Remove fuse by carefully pulling one side
out of the clasp and then the other side.
4. Risk of fire. Replace fuse only with 5 amp,
125 Volt fuse (provided with product).
5. Close fuse cover. Slide closed the fuse
access cover on top of attachment plug.
6. Risk of fire. Do not replace attachment
plug. Contains a safety device (fuse) that
should not be removed. Discard product
if the attachment plug is damaged.
Spare
Fuse
Live
Fuse
26541 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If
our inspection verifies the defect, we will either repair or replace the product at our election or we may elect
to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return
repaired products at our expense, but if we determine there is no defect, or that the defect resulted from
causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Record Serial Number Here:
Note: If product has no serial number, record
month and year of purchase instead.
Note: Some parts are listed and shown for
illustration purposes only, and are not available
individually as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

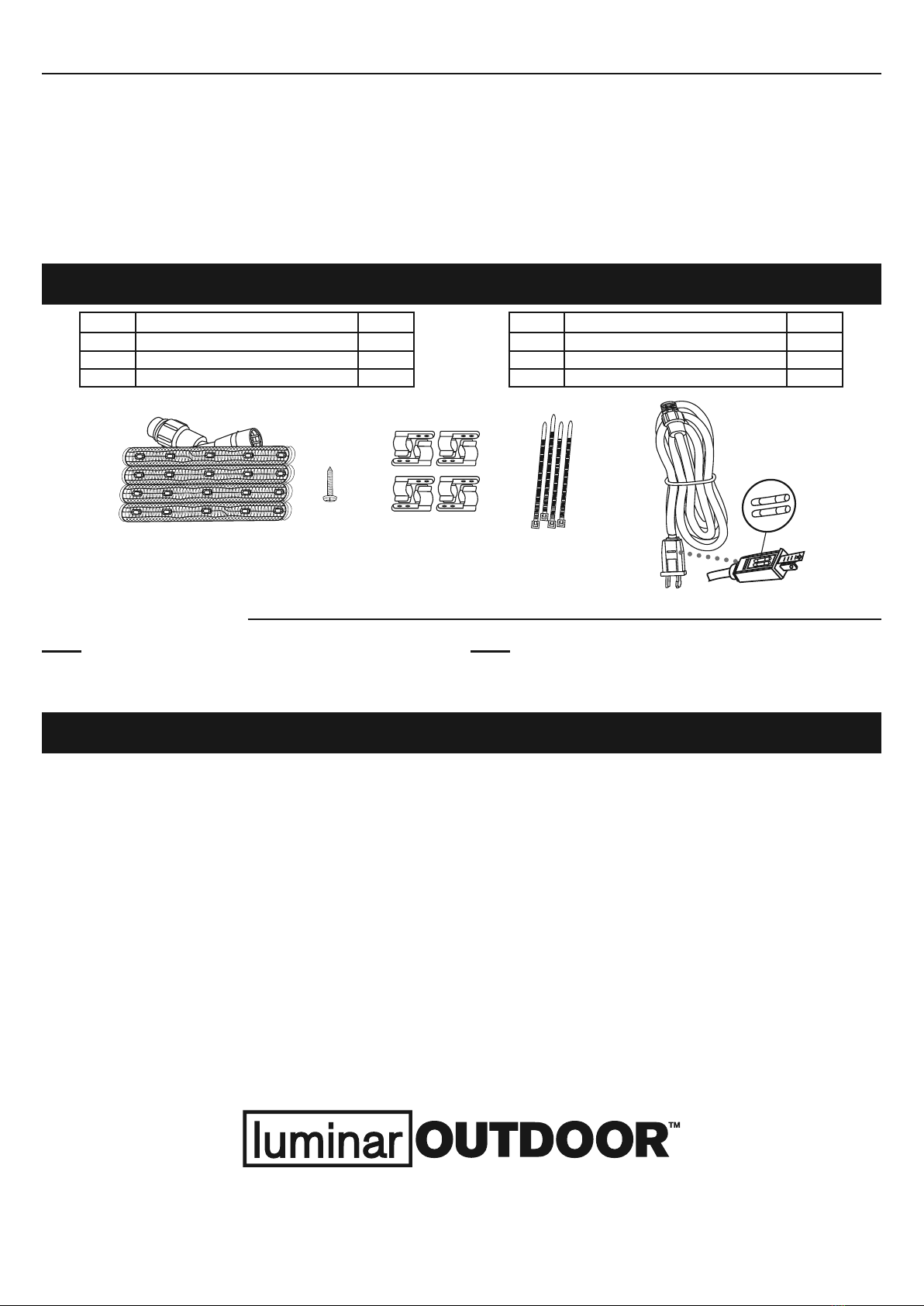

Parts List and Diagram
Part Description Qty
1 Rope Light 1
2 Mounting Tie 18
3 Power Cord 1
Part Description Qty
4 Fuse, 125V 5A 2
5 Clip 18
6 Wall Screw, 3 x 16mm 36
12
3
4
5
6
