VC-A70H Firmware(FW) Upgrade 1
VC-A70H Firmware(FW) Upgrade
Please contact Lumens FAE Department through e-mail to get the proper FW and AP before
upgrading.
1. Device and Tool Preparation
1.1 Please prepare following devices and tools before FW upgrade.
VC Model
PC with a RS232 port or Laptop
or
RS232 cable
RS232-USB cable
(if connect with a laptop)
(9Pin D-Sub Female to 8Pin Mini Din Male)
Monitor
Power adapter and power cord
VC-A70H Firmware(FW) Upgrade 2
2. Connections for FW upgrade
**Note: OS Support: Windows Vista, Windows XP, Windows 7, Windows 8
The VC FW cannot be upgraded through MAC OS.

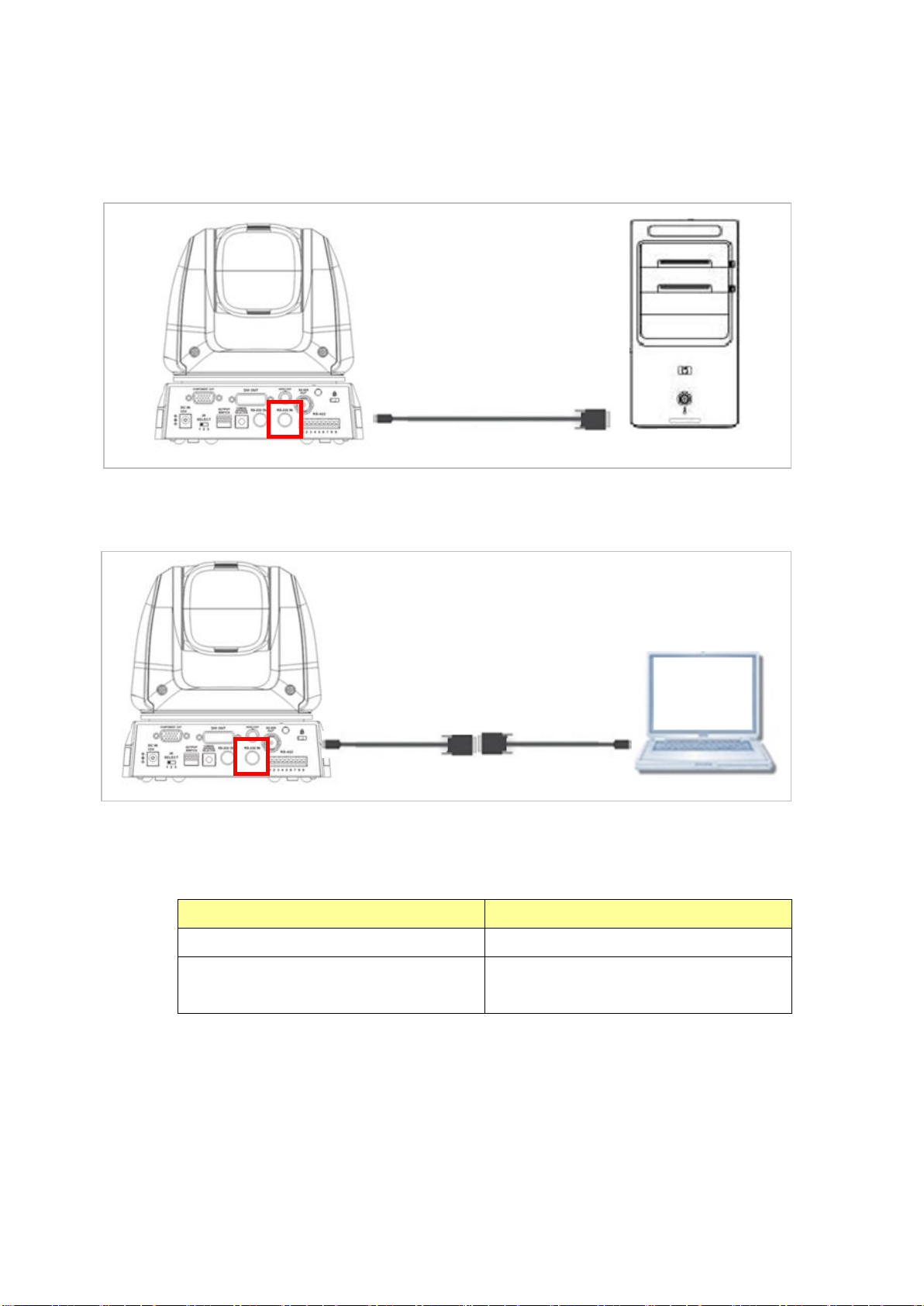

2.1 Connect the VC camera(RS232 In) with a PC
2.2 Connect the VC camera(RS232 In) with a laptop
Need 2 cables: RS232 cable and RS232-USB cable
3. FW Upgrade AP
3.1 Please contact Lumens FAE Department through e-mail to get the AP before
upgrading.
Download Tool AP
FW Version
VC Download Tool
VFAxxx
VC DSP FW download
Motor_Pan_VFBxxx
Motor_TIlt_ VFBxxx
4. Download Mode
4.1 Different FW has different download modes.
For the detailed information and the download procedure, please check related
chapters below.
RS232 线材
RS232-USB 线材
RS232 cable
PC
VC-A70H Firmware(FW) Upgrade 3
5. VC-A70H FW Type
Please refer to following chapter for W upgrade.
5.1 MCU FW
5.2 PAN/TILT Motor Control FW
5.2.1 PAN and TILT have different FW which need to be upgraded separately.
PAN: Motor_Pan_VFBxxx
TILT: Motor_TIlt_VFBxxx
6. Other Settings
6.1 “System DIP Switch” on the bottom, DIP 1 set at OFF which is for RS232 control.
6.2 “Camera Address Selector” set at 0position
VC-A70H Firmware(FW) Upgrade 5
7.4 Browse and select proper FW file.
-Uncheck the box in the front of “DSP *.bin File” and “CM *.bin File”
-Check the box in the front of “Motor *.bin File”
-Click [Browse] and select the FW file
7.5 Select proper [Com Port] and set the [Baud Rate] as [9600], and then press
[DownLoad AP] to start.
VC-A70H Firmware(FW) Upgrade 6
7.6 FW start updating. (around 1 min taken)
The Percentage will be increased when it’s running.
7.7 FW upgrade finished.
The button will reverse from grey to black and the camera do the self-check
automatically.
7.8 When firmware upgrade finished, please unplug and reconnect the power cord to
restart the camera.
7.9 Go to the menu, [System]-->[Factory Reset] to reset the camera.
7.10 Go 9. Check the FW version on OSD to confirm if the FW version is correct.
VC-A70H Firmware(FW) Upgrade 7
8. PAN/Tilt Motor Control FW
8.1 Please refer to 4.2 Connections for FW upgrade
8.2 Please return the DIP switch to the default position (all off), and then plug in the
power cord.
8.3 After connecting, set the DIP Switch 1,2,4 ON for the PAN motor.
**Note:
-PAN and TILT have different FW and download mode.
-Please upgrade PAN motor first. When FW upgrade for PAN finished, please change
the DIP switch and then upgrade the TILT motor.
8.4 Launch the AP [VC DSP FW download]
• A: Select the [Comport] and set the [Baud Rate] to [9600]
• B: Press [Disconnect] for connection.
The button will turn to green [Connect] when it is connected.
A
B
( PAN Motor Control Download Setting)
VC-A70H Firmware(FW) Upgrade 8

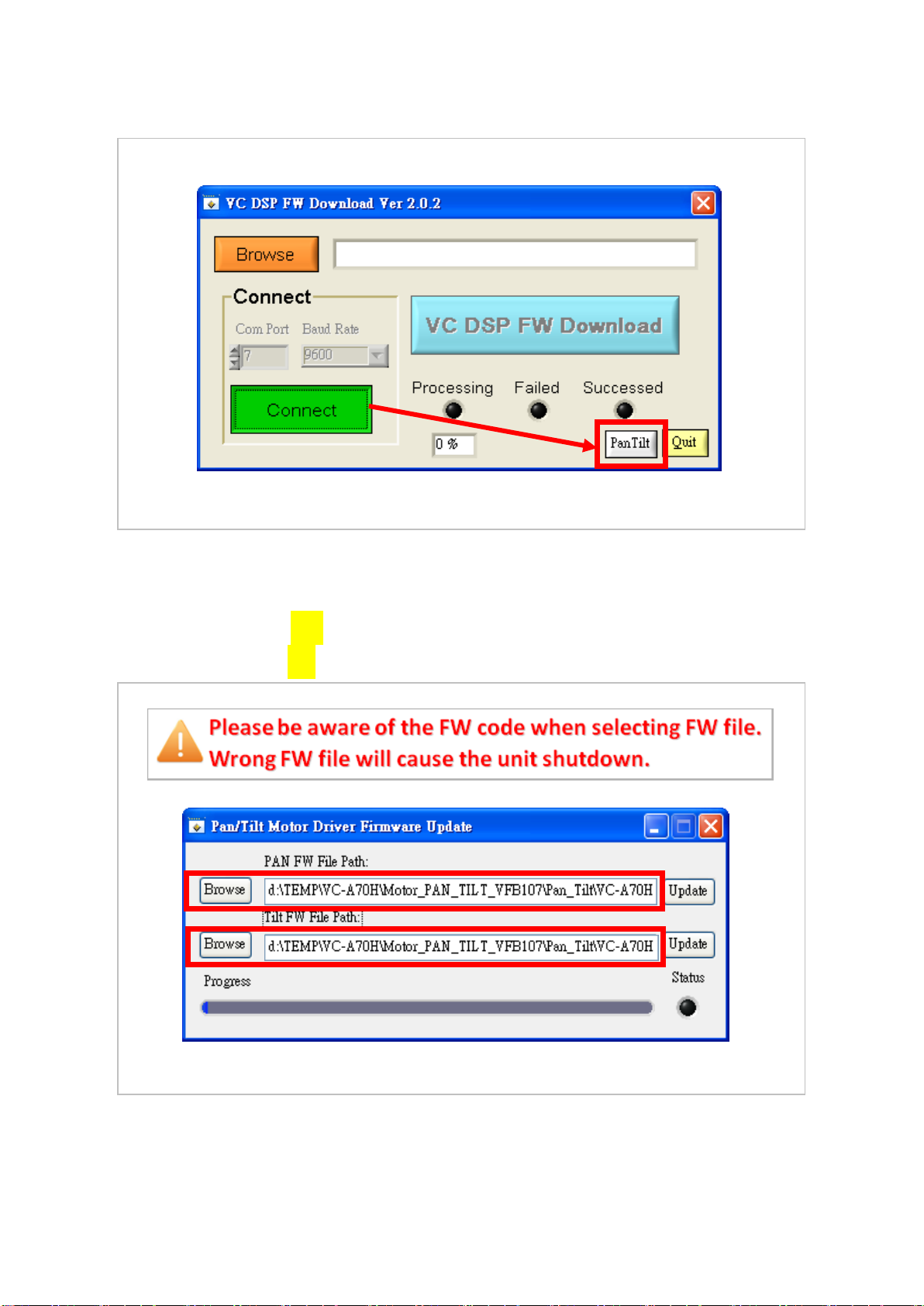

8.5 When the [Connect] button turned to green, the [Pan Tilt] button will be enabled.
8.6 Please press the [Pan Tilt] button for Pan/Tilt Motor Driver FW Update.
8.7 Browse the FW for Pan and Tilt Motor.
PAN and TILT have different FW which need to be upgraded separately.
- PAN: Motor_Pan_VFBxxx
- TILT: Motor_TIlt_VFBxxx
VC-A70H Firmware(FW) Upgrade 9
8.8 Update the FW for Pan Motor first. Please click the [Update] button.
8.9 FW upgrading.(around 1mins taken)
8.10 FW upgrade for Pan Motor is finished.
The status button: Gray(Processing)/ Red(Failed)/ Green(Success)
VC-A70H Firmware(FW) Upgrade 10
8.11 Please change the DIP Switch for TILT motor with DIP 2,4 On
8.12 Please click the [Update] button of Tilt FW.
8.13 FW upgrading. (around 1mins taken)
(TILT Motor Control Download Setting)
