AIRFUSION TYPE A

DC CEILING FAN

 INSTALLATION

 OPERATION

 MAINTENANCE

 WARRANTY INFORMATION

CAUTION

READ INSTRUCTIONS CAREFULLY FOR SAFE

INSTALLATION AND FAN OPERATION.

Airfusion Type A Installation Instructions

1 | P a g e

CONTENTS

Installation Instruction Manual .......................................................................................... 2

Installationsanleitung ........................................................................................................11

Guide d’installation............................................................................................................20

Manual de instrucciones de instalación.............................................................................29

Manuale delle istruzioni di installazione............................................................................38

Installatiehandleiding.........................................................................................................48

Airfusion Type A Installation Instructions

2 | P a g e

THANKYOU FOR YOUR PURCHASE

Thankyou for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which

gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent

operation.

Energy saving - The DC motor is the latest technology in fan design. Its highly efficient motor saves up to 65% more

energy than ceiling fans with traditional AC motors.

Silent operation – This DC fan motor is programmed with a stabilized current which efficiently reduces motor noise.

Low operating temperature – The DC power is managed effectively which brings down the motor operating

temperature to less than 50degs. This results in a much cooler motor than a standard AC fan and increases the

longevity of the motor.

12 speed remote control. Regular AC ceiling fans usually come with only 3 speeds, this DC fan comes complete with

a 12 speed remote, which gives greater choice of comfort levels.

SAFETY PRECAUTIONS

1) Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and

maintenance shall not be undertaken by children without supervision.

2) Australia: This appliance is not intended for use by young children or infirm persons unless they have been

adequately supervised by a responsible person to ensure that they can use the appliance safely.

3) Children should be supervised to ensure that they do not play with the appliance.

4) An all-pole disconnection switch must be incorporated in the fixed wiring in accordance with the wiring rules.

IN AUSTRALIA:

WARNING: FOR SAFE USE OF THIS FAN - AN ALL-POLE DISCONNECTION MUST BE INCORPORATED

INTO THE FIXED WIRING IN ACCORDANCE WITH THE WIRING RULES.

As outline in clause 7.12.2 of AS/NZS 60335-1 for meeting the minimum electrical safety of this standard.

Please note warranty will be void if installation is without a means for an all-pole disconnection

incorporated in the fixed wiring in accordance with the wiring rules.

Example: If a fan is connected to a circuit that can be isolated via an all-pole safety switch at the

switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit,

meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.

5) Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available. If electrical appliances

are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food

chain, damaging your health and well-being.

6) The structure to which the fan is to be mounted must be capable of supporting a weight of 40kg.

7) The fan should be mounted so that the blades are at least 2.3 metres above the floor for Europe.

Airfusion Type A Installation Instructions

3 | P a g e

8) The fan should be mounted so that the blades are at least 2.1 metres above the floor for Australia.

9) This fan is suitable for indoor use only. Mounting the fan in a situation where it is subject to water or moisture is

dangerous.

10) Only an authorized electrician should execute the installation.

BEFORE INSTALLATION

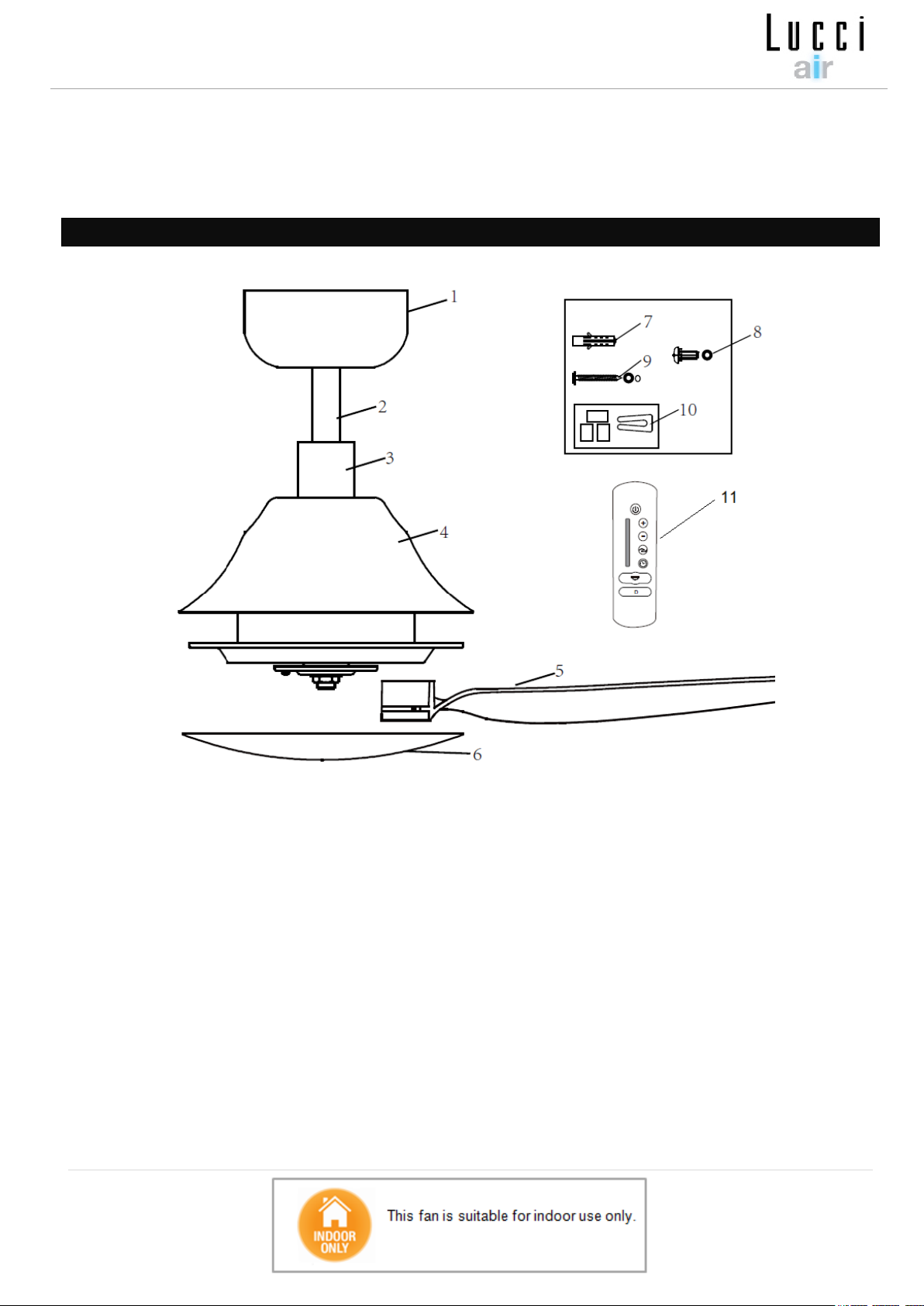

Unpack your fan and check contents. You should have the following:

Canopy x 1

Down rod x 1

Coupling cover x 1

Motor assembly x 1

Blades x 3

Bottom cover x 1

Plastic anchors x 2

Blades screws x10

Wood screws x 2

Balance kit x 1 set

Remote x 1 set

Fig. 1

Airfusion Type A Installation Instructions

4 | P a g e

INSTALLING THE FAN

TOOLS REQUIRED:

- Phillips / flat head screwdriver

- Pair of pliers

- Adjustable spanner

- Step ladder

- Wire cutter

- Wiring, supply cable as required by local provincial and national wiring codes and regulations.

INSTALLING THE MOUNTING BRACKET

The ceiling fan must be installed in a location so that the blades are 300mm spacing from the tip of the blade to the

nearest objects or walls.

Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 40kg, with two

long screws provided. Ensure at least 30mm of the screw is threaded into the support.

NOTE: The bracket screws provided are for use with wooden structures only. For structures other than wood,

the appropriate screw type MUST be used.

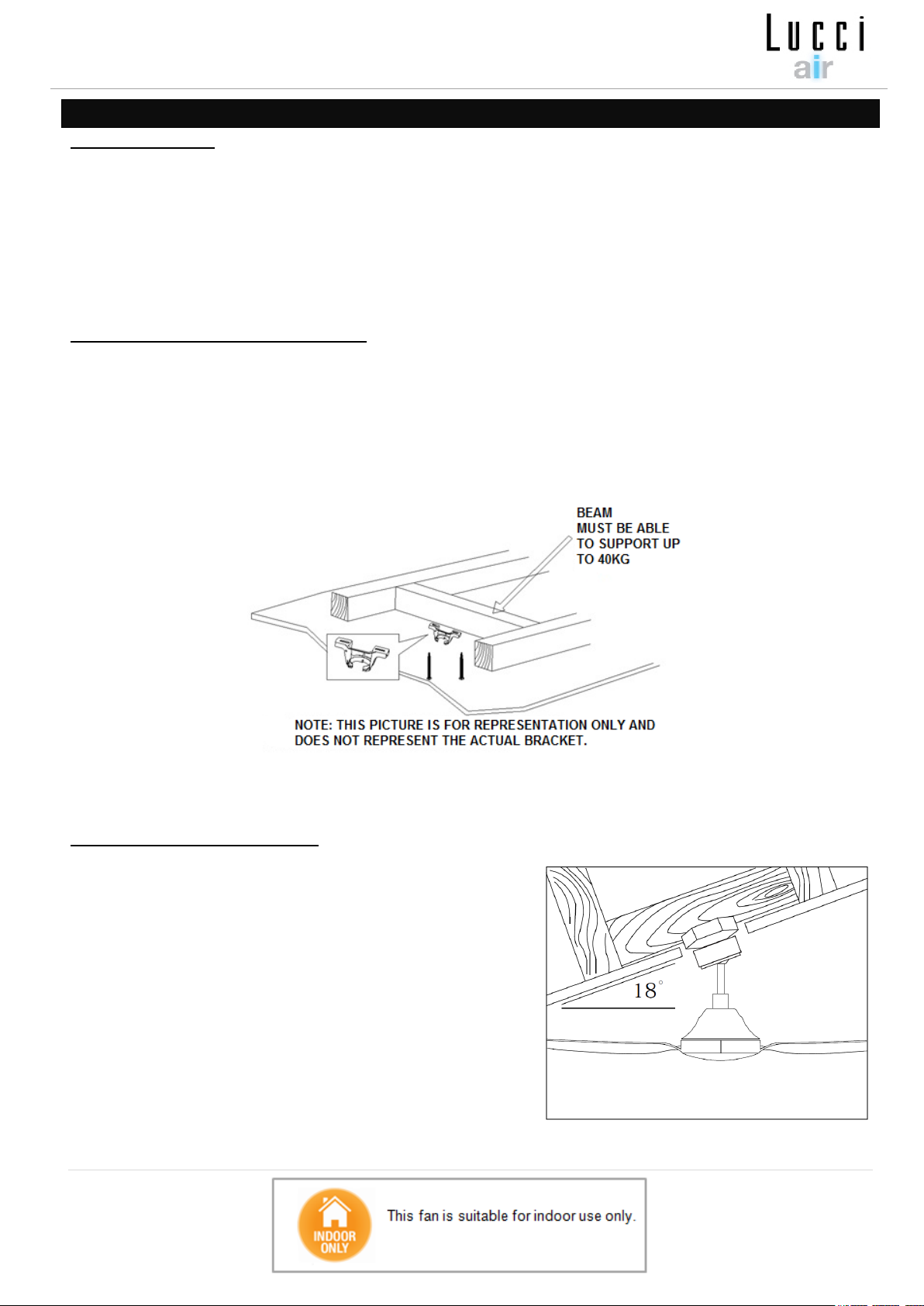

ANGLED CEILING INSTALLATION

This fan hanging system supports a maximum 18 degree angled

ceiling installation.

Fig. 2

Fig. 3

Airfusion Type A Installation Instructions

5 | P a g e

HANGING THE FAN MOTOR ASSEMBLY

Lift the fan assembly onto the mounting bracket. Fig. 4

Ensure the notch of the ball joint is positioned on the stopper of the mounting bracket to prevent the fan from

rotating when in operation. Fig. 5

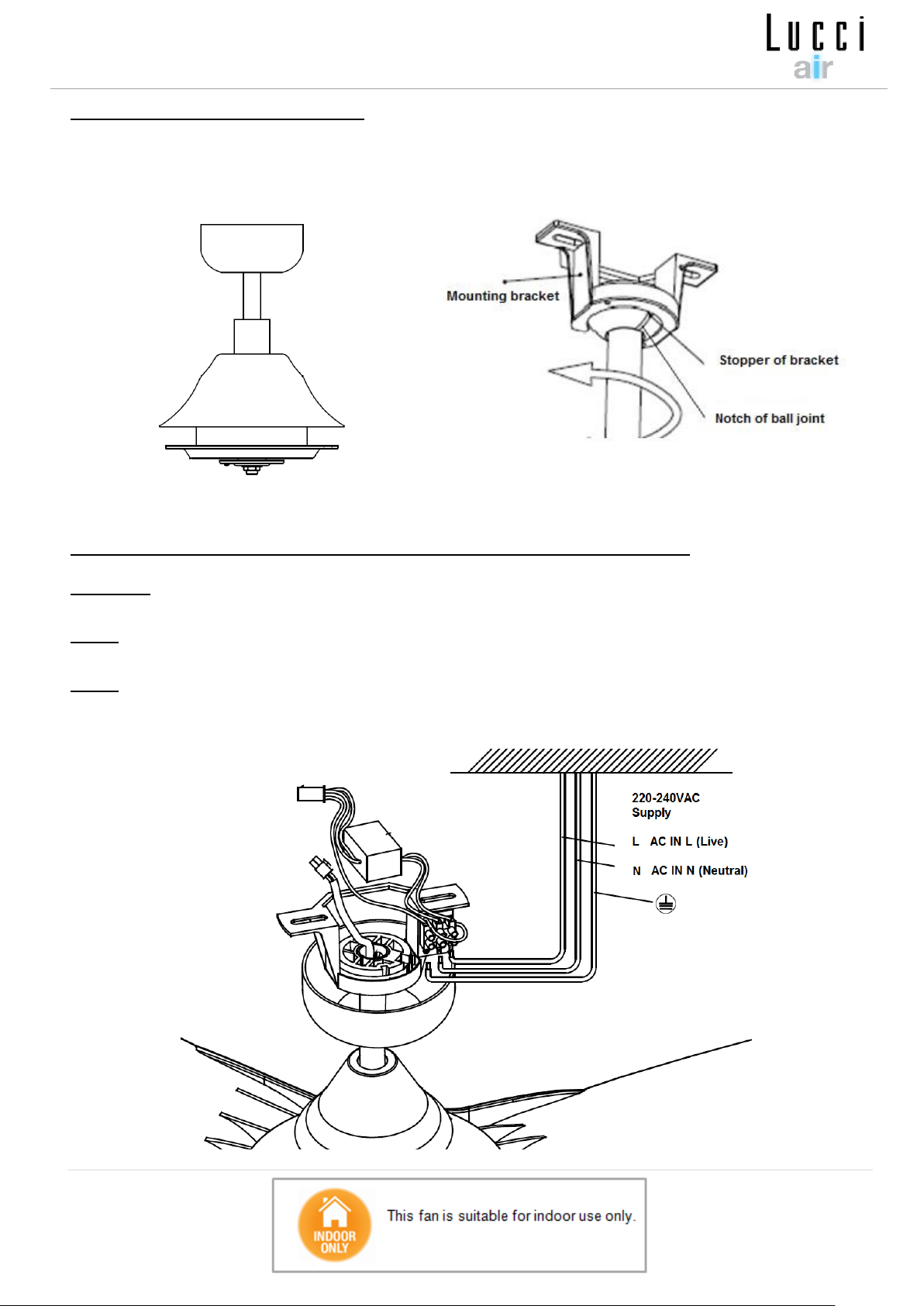

PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG. 6)

WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED

ELECTRICIAN.

NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING.

PLEASE MAKE SURE THE MAIN SWITCH HAS BEEN TURNED OFF BEFORE CONNECTING.

NOTE: IF THERE ARE TWO OR MORE DC CEILING FANS INSTALLED IN THE ONE LOCATION, AN ISOLATION

SWITCH IS REQUIRED FOR EACH CEILING FAN. THIS IS REQUIRED WHEN PROGRAMMING THE REMOTE

AND RECEIVER TO PAIR TOGETHER.

Fig. 6

Fig. 4

Fig. 5

Airfusion Type A Installation Instructions

6 | P a g e

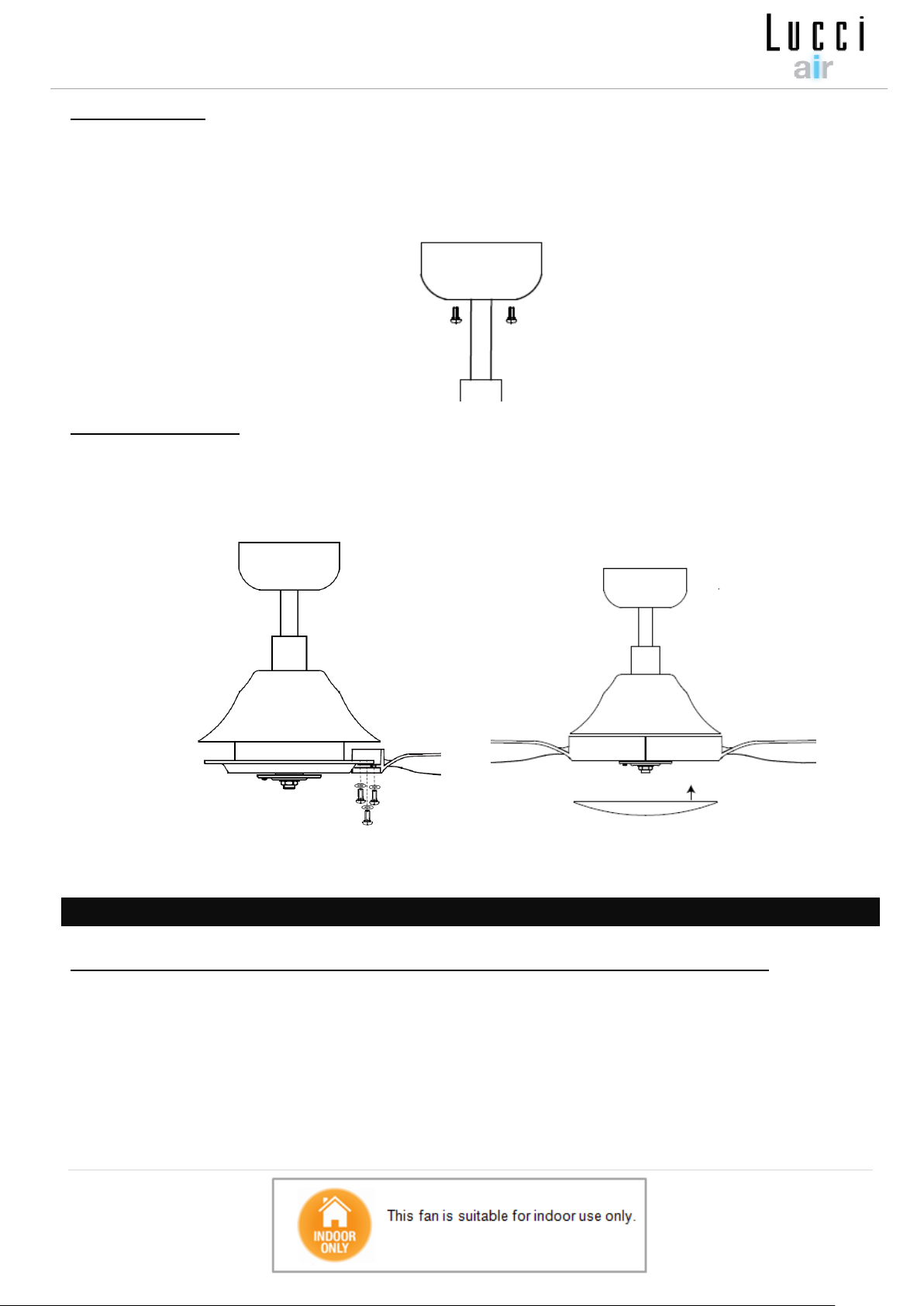

INSTALL CANOPY

Loosen the 2 screws from the bottom of the mounting bracket. Fig. 7

Slide the canopy up to the mounting bracket and place the key hole on the canopy over the screw on the

mounting bracket, turn the canopy until it locks in place at the narrow section of the key holes and secure it

by tightening the two set screws. Avoid damaging the electrical wiring prepared previously.

BLADE INSTALLATION

Insert the blade screws through the blade then secure the blade to the motor by tightening the 3 screws.

Fig.8

Repeat this process to install the other blades to the motor.

Finally install the bottom cover to the shaft by rotating it clockwise. Fig. 9

USING YOUR CEILING FAN

Pairing Transmitter and Receiver – when 2 or more DC ceiling fans are installed in one location

When two or more fans are located near each other, you may want to have the receiver/transmitter for each fan set to

a different code, so that the operation of one fan does not affect the operation of the other fan/s.

NOTE: Ensure power to the receiver is ON prior to pairing the transmitter with the receiver.

Transmitter/Receiver pairing for ceiling fan 1:

Turn off both ceiling fans 1 and 2 via the mains supply to the receiver.

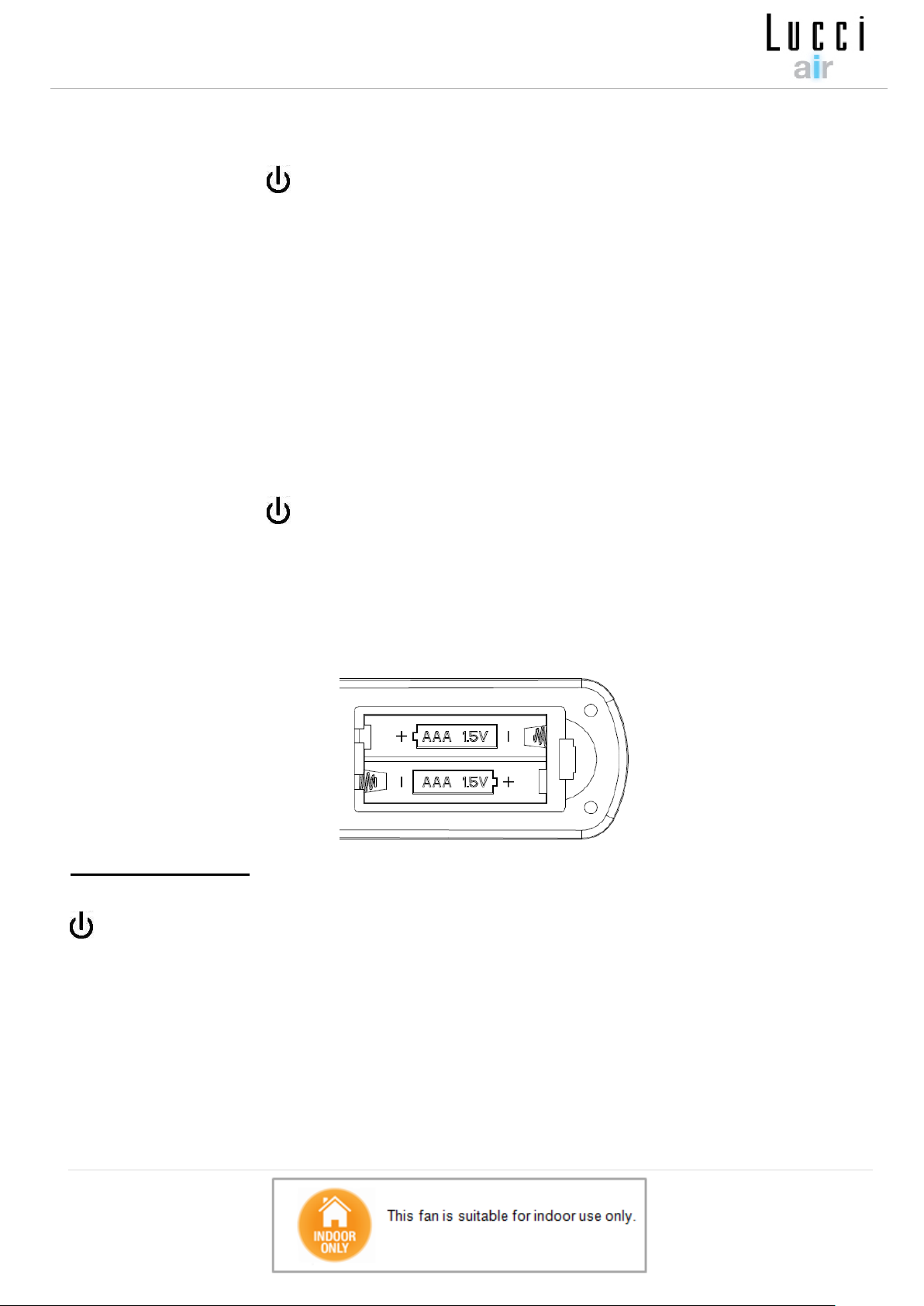

Install the 2 x 1.5VDC batteries in the compartment. Please make sure the polarity of the battery is correct.

Fig. 7

Fig. 8

Fig. 9

Airfusion Type A Installation Instructions

7 | P a g e

Turn on the power to receiver 1. Keep the power OFF to receiver 2. (Each ceiling fan must have its own

isolation switch, so that only the ceiling fan that needs to be paired with the transmitter will be ON).

Press and hold the “ ” button on transmitter 1 for 3 seconds within 60 seconds of switching the power to

the receiver of ceiling fan 1.

Turn ON and change the speed of the ceiling fan 1 by the transmitter to check the operation and successful

paring.

Setting DC Ceiling fan 2:

Turn off both ceiling fans 1 and 2 via the mains supply to the receiver.

Install the 2x1.5VDC batteries in the compartment. Please make sure the polarity of the battery is correct.

Turn on the power to receiver 2. Keep the power OFF to receiver 1. (Each ceiling fan must have its own

isolation switch, so that only the ceiling fan that needs to be paired with the transmitter will be ON).

Press and hold the “ ” button on transmitter 2 for 3 seconds within 60 seconds of switching the power to

the receiver of ceiling fan 2.

Turn ON and change the speed of ceiling fan 2 by the transmitter to check the operation and successful pairing.

Note: The pairing of transmitter and receiver is required if only one ceiling fan is installed. When more than

two ceiling fans are installed near each other, please refer to the instruction above.

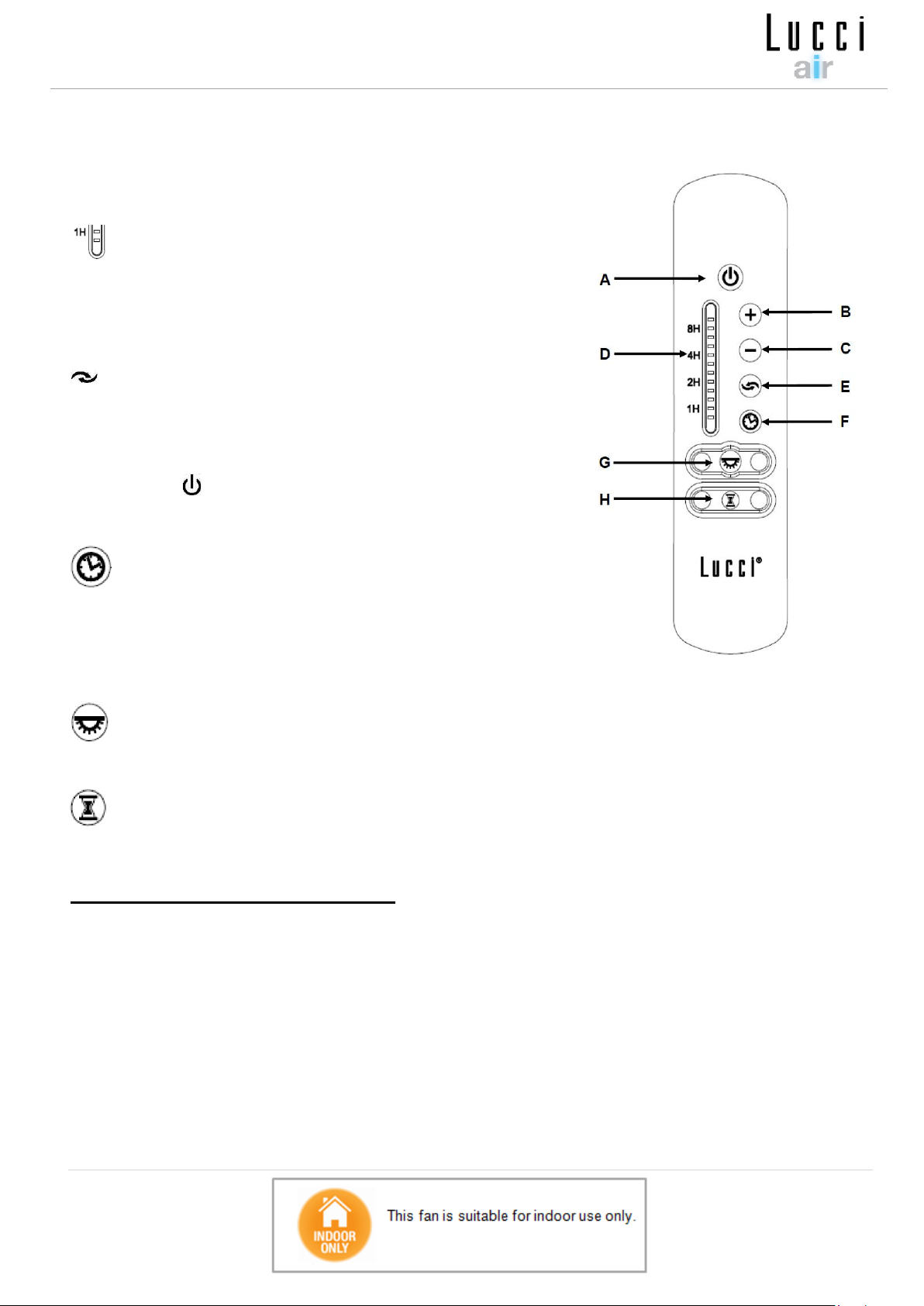

Remote Control Buttons

: FAN ON/OFF BUTTON (A):

Press the button to turn the fan on/off.

Press and hold the button for 3 seconds within 60 seconds of switching the power to the receiver for pairing the

transmitter and receiver.

+: SPEED INCREASE BUTTON (B): Press the button to increase the fan speed. The LED indicator (D) will indicate

the fan speed (1-12 speed) accordingly.

Fig. 10

Airfusion Type A Installation Instructions

8 | P a g e

-: SPEED DECREASE BUTTON (C): Press the button to decrease the fan speed. The LED indicator (D) will indicate

the fan speed (1-12 speed) accordingly.

: LED INDICATOR (D):

Indicates the fan current fan speed level (1-12 speed).

Indicates the current timer setting time (1 hour, 2 hours, 4 hours, 8

hours).

: REVERSE FUNCTION BUTTON (E): Press the button to activate the

reverse running function. The fan must be operating to activate the reverse

function.

NOTE: When the fan can NOT detect the rotary redirection it will stop,

just press the “ ” button two times to activate the fan again.

: FAN TIMER BUTTON (F): Press the button to start programming the

timer to switch the fan off automatically, or to cancel the timer. Press the

button to set timer at 1h →2h →4h →8h → Timer OFF. The LED indicator

(D) will indicate the fan timer (1H, 2H, 4H, and 8H) accordingly.

: LIGHT CONTROL BUTTON (G): Press the button to turn on/off the light.

: LIGHT DELAY BUTTON (H): Press the button to activate the light delay function, which will turn off the light 3

minutes later.

REPAIRING THE FAN RECEIVER & REMOTE

Should the remote and receiver lose control after installation or during use, the pairing of the remote and the receiver

must be repaired. Below are the operating symptoms and method to repair the pairing of the DC ceiling fan remote

and receiver.

Issues:

Loss of control - Fan is only running at high speed after installation

Loss of control - No reverse function after installation

Loss of control - Remote cannot communicate with the receiver

Fig. 12

Airfusion Type A Installation Instructions

9 | P a g e

Solution:

Switch off the main power to ceiling fan.

Press and hold the “ ” button on transmitter for 3 seconds within 60 seconds of switching the power to the

receiver of the ceiling fan.

Turn ON and change the speed of the ceiling fan by the transmitter to check the operation and successful

paring.

AFTER INSTALLATION

WOBBLE:

Note: Ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the

fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimeters is quite

acceptable and does not suggest any problem.

TO REDUCE THE FAN WOBBLE: Please check that all screws which fix the mounting bracket and down rod are

secure.

BALANCING KIT: A balancing kit is provided to balance the ceiling fan on initial installation. Please refer to the

instruction on how to use the balancing kit. The balancing kit can be used to assist re-balancing should the ceiling fan

become un-balanced again. Store your balancing kit away after installation for future use if required.

NOISE:

When it is quiet (especially at night) you may hear occasional small noises. Slight power fluctuations and frequency

signals superimposed in the electricity for off-peak hot water control, may cause a change in fan motor noise.

This is normal. Please allow a 24-hour “settling-in” period, most noises associated with a new fan disappear during

this time.

The manufacturer’s warranty covers actual faults that may develop and NOT minor complaints such as hearing the

motor run –all electric motors are audible to some extent.

CARE & CLEANING

Periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush or lint free cloth to avoid

scratching the paint finish. Please turn off electricity power when you do so.

Do not use water when cleaning your ceiling fan. It could damage the motor or the blades and create the possibility

of an electrical shock.

The motor has a permanently lubricated ball bearing. There is no need to oil.

NOTE: Always turn off the power at the mains switch before attempting to clean your fan.

TECHNICAL INFORMATION

AIRFUSION

SERIES TYPE A

DC FAN models

Rated Voltage

Rated power

(motor)

Battery for remote

60” blade fan only

220-240VAC

35W

2 x 1.5Vdc AAA

Autres manuels pour AIRFUSION A

Table des matières

Langues :

Autres manuels LUCCI Air Ventilateur

LUCCI Air

LUCCI Air AIRFUSION MOTO LD-MOTO-52 Guide d'installation

LUCCI Air

LUCCI Air FUTURA GX53 LED Guide d'installation

LUCCI Air

LUCCI Air AIRFUSION ZOOM Guide d'installation

LUCCI Air

LUCCI Air AIRFUSION A Guide d'installation

LUCCI Air

LUCCI Air AIRFUSION BREEZE 213120EU Guide d'installation

LUCCI Air

LUCCI Air GRENADA Series Manuel utilisateur

LUCCI Air

LUCCI Air ESPERANCE Series Manuel utilisateur

LUCCI Air

LUCCI Air ARRAY Manuel utilisateur

LUCCI Air

LUCCI Air AIRFUSION CLIMATE II Manuel utilisateur

LUCCI Air

LUCCI Air AIRFUSION BREEZE TRIPOD FAN Manuel utilisateur

LUCCI Air

LUCCI Air AIRFUSION CAROLINA Manuel du propriétaire

LUCCI Air

LUCCI Air REEF Manuel utilisateur

LUCCI Air

LUCCI Air LONDO DC Manuel utilisateur

LUCCI Air

LUCCI Air AIRFUSION SLIPSTREAM Manuel utilisateur

LUCCI Air

LUCCI Air SUMMIT Series Manuel utilisateur

LUCCI Air

LUCCI Air Nordic Manuel utilisateur

LUCCI Air

LUCCI Air AIRFUSION SHOALHAVEN Guide d'installation

LUCCI Air

LUCCI Air MOONAH GX53 Series Manuel utilisateur

LUCCI Air

LUCCI Air Airfusion Louisville Manuel utilisateur

LUCCI Air

LUCCI Air AIRFUSION CAROLINA Guide d'installation

LUCCI Air

LUCCI Air Breeze 16 Guide d'installation

LUCCI Air

LUCCI Air ARIA GX53 CTC DC Guide d'installation

LUCCI Air

LUCCI Air AIRFUSION CLIMATE III Manuel utilisateur

LUCCI Air

LUCCI Air POLIS 216162 Manuel du propriétaire

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
