Ltech LT-932 Manuel utilisateur

LT-932

www.ltech-led.com

Short circuit / Over current / Overheat protection

4 kinds of DMX interfaces Photoelectric

isolation

E500585

006

8 bit / 16 bit

Product introduction

7. With fast self-testing function.

4. With the operations can be completed via the

RDM master console, such as parameters browsing & settings, DMX address

settings, equipment recognition, etc.

RDM remote management protocol,

2. Easy operation with digital display and the touch buttons.

1. Designed for Hi-power multiple channels application, 32 channels output, and up

to 2304W output power.

when a fault occurs.

With short circuit / overheat / over current protection, as well as warning function

3. 3-pin XLR, 5-pin XLR, RJ45 and green terminal DMX interface with photoelectric

isolation, improve signal transmission efficiency and anti-interference ability, the

green terminal also has signal amplifier function.

9. 16bit (65536 levels) / 8bit (256 levels) grey level available.

8. High/low frequency availablePWM .

6. With firmware upgrade function.

Photoelectric

isolation

Short circuit

protection

RJ45 RDM Over current

protection

Overheat

protection

www.ltech-led.com

3-pin XLR 5-pin XLR

122

110

LT-932

DMX512/RDM

12~24Vdc

3A × 32CH Max. 96A

(0~36W...72W) × 32CH Max. 2304W

3-pin XLR, 5-pin XLR, RJ45, Green terminal

8bit (256 levels) / 16bit (65536 levels)

Yes

Short circuit / Overheat / Over current protection,

recover automatically.

-30°C~65°C

300×122×39mm(L×W×H)

313×127×41mm(L×W×H)

1180g

5-Year

Warranty

www.ltech-led.com

138

300

Unit: mm

138

Technical specs

Model :

Input signal :

Input voltage :

Current load :

Output power :

DMX interfaces :

Grey level :

Protection :

Working temperature :

Dimensions :

Package size :

Weight (G.W.) :

Photoelectric isolation

Product size

E500585

006

www.ltech-led.com

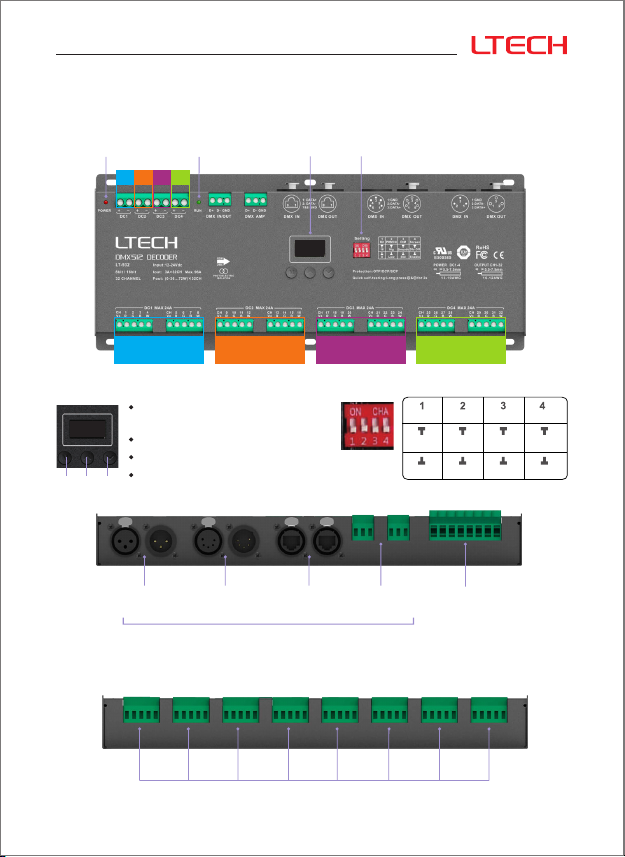

Main component description

Max. 24A

DC2DC1 DC3 DC4

Digital

display

Power

indicator

Signal

indicator

3-pin XLR RJ455-pin XLR

DMX/RDM input & output

Green terminals

LED lamp connection

Digital display

Digital display will enter the locked

mode without operating after 15s.

Long press “M” key to unlock.

Short press “M” key to switch numbers.

Press “ ””v” key to adjust value.

006

Max. 24A

Dip

switch

Dip switch

12-24V dc

Power input

Green terminals

(with signal amplifier function)

Screen

High Smooth

Low Std

30S off

Enable

PWM Hz DIM

Bit

LT-932 LT-932 LT-932

www.ltech-led.com

Wiring diagram

DMX console

DMX signal DMX signal

LT-932 is equipped with 4 kinds of DMX terminals for

users’ selection. The following diagram takes 3-pin

XLR as an example, same connecting method for the

rest three: RJ45 & 5-pin XLR & green terminal (with

amplifier function).

connect 0.25W 90-120Ω terminal resistor at the end of each line.

If the recoil effect occurs because of longer signal line or bad line quality, please try to

PUSH

12-24Vdc 12-24Vdc 12-24Vdc

DMX signal

1. DMX console onnectionc :

Terminal

resistor

LT-932

RGBW LEDs

RGBW

LEDs

RGBW

LEDs

2. Connecting LED lights:

DMX/RDM signalDMX/RDM signal

DMX/RDM signal DMX/RDM signal

Power to LEDs1, 2

Power to 1, 2LEDs

Power to 3, 4LEDs

Power to 5, 6LEDs

Power to 7, 8LEDs

LED

driver

LED

driver

LED

driver

LED

driver

LED driver

www.ltech-led.com

12-24Vdc

3. The connection diagram of 4 kinds of DMX/RDM terminals:

5-pin XLR connected in parallel

3-pin XLR connected in parallel

Green terminal connected in parallel

RJ45 connected in parallel

These 4 terminals can be connected in a mixed way.

Resistor

terminal

Resistor

terminal

Resistor

terminal

Resistor

terminal

Installation attentions : please reserve enough ventilation distance between decoders (>20mm),

be sure not to block the vent, or it will affect lifetime of decoder for .poor heat dissipation

LT-932

Installation distance > 20mm

Vent

www.ltech-led.com

LT-932

4. The connection diagram of :AMP signal amplifier terminal

Connecting with green terminal or an extra amplifier will be needed when more than 32

decoders are connected or use overlong signal wire (as shown below).

Signal amplifier should not be more than 5 times continuously.

Resistor

terminal

Resistor

terminal

Resistor

terminal

LT-932

AMP

www.ltech-led.com

LT-932

AMP

www.ltech-led.com

Work with RDM editor

LT-932 can work with LTECH RDM editor (Model: WiFi-RDM01) to realize changing the parameters

and firmware upgrade by long-range setting, wiring diagram as below:

5-24Vdc power input

Support portable

power supplies

LED driver LED driver

LT-932 LT-932

LEDs LEDs

WiFi-RDM01

LED driver

LT-932

LEDs

…

www.ltech-led.com

RDM editor App interface instruction

Well installation of products first, then working with WiFi-RDM01 to realize setting parameters

and firmware upgrade by App.

a: Click”Add”, edit the address in corresponding box.

b: Click”ID”, get more product details.

c: Click” ”, enter edited interface.

d: Click”No.”, issue the recognizing command.

Supporting WiFi-RDM01 upgrade

and DMX driver upgrade.

WiFi-RDM01

upgrade

DMX device

upgrade

Download the App, setting LT-932 parameters (dimming range, brightness, boot fade time etc.)

after well connecting the RDM editor, more details, please check the manual of WiFi-RDM01.
