Ltech WiFi-102-RGBW Manuel utilisateur

…

Operating Instruction

WiFi-102-RGBW

WiFi-102-CT

Model：

Living room lights

Bedroom lights

Corridor lights

Dinning room lights

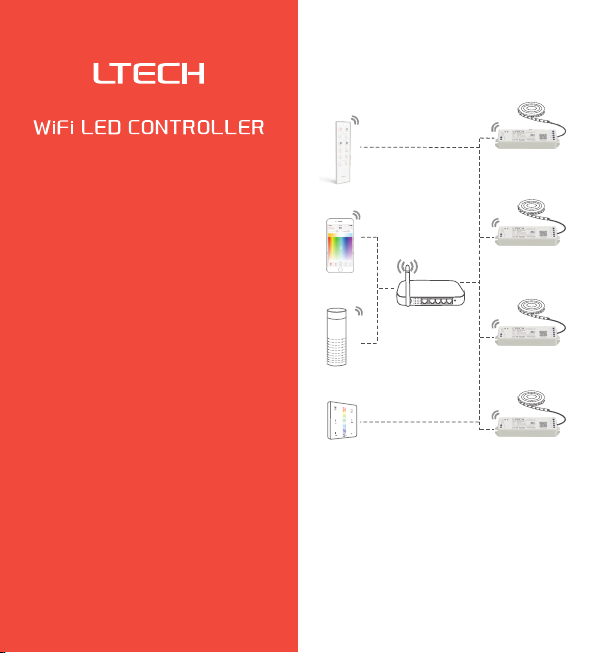

System Diagram

Wireless router

APP

Smart

speaker

Remote

Touch

panel

After WiFi LED controller matched up with a

router, brush it out in APP and enter the main

control interface, click the "+" key in the upper

right corner to enter next interface, find the

appropriate model and match code according to

the prompt.

Match code between panel / remote & WiFi

LED controller:

Model WiFi-102-RGBW

Product Parameters

WiFi LED Controller

12 ~ 24Vdc

RGBW LED lights

3A x 4CH Max. 12A

(0~36...72W)x4CH

WiFi 2.4GHz , IEEE 802.11b/g/n

2.4GHz

-30℃ ~ +55℃

L125 x W33 x H20(mm)

L127 x W35 x H24(mm)

70g

Product Name

Out Control

Current Load

Output Power

Network Type

RF Frequency

Working Temp.

Dimension

Packing

Gross Weight

Input Voltage

WiFi LED controller can be connected with

lamps directly, support remote control via

intelligent device, mobile phone, remote and

touch panel etc., flexible application makes

life more intelligent.

WiFi-102-CT

CT LED lights

Max. 6A

0~72W...144W

33mm

120mm

20mm

125mm

Product Structure

DC Power supply socket

(φ5.5mm x φ2.5mm)

12~24Vdc

power input

LED lamp

connection socket

The running light

Power indicator

Setting key

Long press 6s to

default setting

Product Installation

WiFi-102-RGBW

WiFi-102-CT

LED strip

Power adapter

220/110Vac

Load power below

240W, use this round

adapter socket for

connection.

iOS / Android

Operating Guidance

Scan QR Code to download the APP via

mobile phone.

Open WLAN via mobile phone, connect

to the wireless router.

After installation, the strip flashes within

30s when powered on and then the

controller is ready to the configuration

status accordingly.

我的路由器

邻居的路由器

Setting WLAN

WLAN

CHOOSE A NETWORK...

My router

Neighbor’s router

3:30 PM

4 5

Turn on APP, click icon on the right

top corner.

Enter the interface "Add Device", choose

"Color light" or “CT light” and follow the

prompts to connect.

6Once successfully connect to the device

that will immediately open intelligent

life and realize long-distance control via

mobile phone.

Attention

★ This manual only applies to this model. We

reserve the right to make changes without

prior notice.

serviced by the qualified person.

2.This product is non-waterproof. Please

avoid the sun and rain. When installed

outdoors, please ensure it is mounted in a

water proof enclosure.

3.Good heat dissipation will prolong the

life time of the controller. Please ensure

good ventilation.

4.Please check if the output voltage of the

LED power supply used comply with the

working voltage of the product.

5. Please make sure the diameter of the

wire must be sufficient to load the

connected LED lights with firm wire

connection.

6.Ens ure all wire co nn ec tions an d

polarities are correct before connecting

with power to avoid any damages to the

LED lights.

7.If errors caused, please do not attempt

to fix this product by yourself, please

contact the supplier.

The product shall be installed and

www.ltech-led.com Update time: 2018.11.01_A0
