LS Industrial Systems XGT Series Manuel utilisateur

XDesignerPlus Ver2.0 Communication device

1 / 41

LS Industrial Systems Co., Ltd

XGT(XGK-CPU), XGB(XBC-CPU/XBM-CPU) Series

CNET Driver

Support version

V4.0 and over

XDesignerPlus

4.0.0.0 and over

CONTENTS

Thank you for using TOP series of M2I corporation.

Please read this manual carefully to know connection methods and

procedures of “TOP to External device”.

1. System configuration

Page 2

A section for showing connectable external devices, serial signal

types, connection configurations. Refer this section to select the

right system configuration.

2. Selection of TOP, External device

Page4

A section for selecting a Top model and the external device.

3. Example of system setting

Page 5

A section for explaining examples to connect communications of

TOP to External Device.

Select the correct example in your case according to “1. System

configuration”

4. Communication setting

Page 27

A section for Communication setting.

The setting should be the same with the external device.

5. Cable diagram

Page 30

A section for cable to connect to external device.

Select a suitable cable diagram for your system.

6. Usable address

Page 35

A section for usable address to communicate with external

device.

XDesignerPlus Ver2.0 Communication device

2 / 41

Series

CPU*1)

Link I/F

Comm. type

System setting

Cable

XGK

XGK-CPUH

XGK-CPUA

XGK-CPUS

XGK-CPUE

XGK-CPUU

XGL-C22A, CH1

RS232

4.1 setting ex 1

( 5 Page )

5.1 cable diagram 1

( 30 Page )

XGL-C22A, CH2

RS232

4.2 setting ex 2

( 7 Page )

5.1 cable diagram 1

( 30 Page )

XGL-C42A, CH1

RS422

4.3 setting ex 3

( 9 Page )

5.2 cable diagram 2

( 31 Page )

RS485

4.4 setting ex 4

( 11 Page )

5.3 cable diagram 3

( 32 Page )

XGL-C42A, CH2

RS422

4.5 setting ex 5

( 13 Page )

5.2 cable diagram 2

( 31 Page )

RS485

4.6 setting ex 6

( 15 Page )

5.3 cable diagram 3

( 32 Page )

XGL-CH2A, CH1

RS232

4.1 setting ex 1

( 5 Page )

5.1 cable diagram 1

( 30 Page )

XGL-CH2A, CH2

RS422

4.5 setting ex 5

( 13 Page )

5.2 cable diagram 2

( 31 Page )

RS485

4.6 setting ex 6

( 15 Page )

5.3 cable diagram 3

( 32 Page )

XGB

XBM-D□16S

XBM-D□32S

XBC-D□32H

XBC-D□64H

CPU on Cnet*2), CH1

RS232

4.7 setting ex 7

( 17 Page )

5.4 cable diagram 4

( 33 Page )

CPU on Cnet*2), CH2

RS485

4.8 setting ex 8

( 19 Page )

5.5 cable diagram 5

( 34 Page )

XBL-C21A, CH2

RS232

4.9 setting ex 9

( 21 Page )

5.1 cable diagram 1

( 30 Page )

XBL-C41A, CH2

RS422

4.10 setting ex 10

( 23 Page )

5.2 cable diagram 2

( 31 Page )

RS485

4.11 setting ex 11

( 25 Page )

5.3 cable diagram 3

( 32 Page )

Type name


Detail name

Cnet

on CPU unit

5 pin terminal port of XBC/XBM/XEC CPU module ( RS-232 1 port + RS-485 1 port )

1. System configuration

System configuration of TOP and “LS Industrial Systems Co., Ltd – XGT(XGK), XGB(XBC/XBM) Series”.

*1) Confirm that version written CPU unit label is 1.1 and over.

*2) Cnet port on CPU unit of XGB Series

XDesignerPlus Ver2.0 Communication device

3 / 41

■ Connection configuration

ㆍ1 : 1(TOP 1 unit to External device 1 unit) connection – It is available with RS232C/422/485.

ㆍ1 : N(TOP 1 unit to External device N unit) connection – It is available with RS422/485.

XDesignerPlus Ver2.0 Communication device

4 / 41

Setting Items

Description

TOP

Series

OS Version

XTOP / HTOP

V4.0

Select a TOP series which is communicated with external device.

Install an OS file v3.1 as diagram below before download a project file you have made.

Name

Select a TOP model which is communicated with external device.

External Device

Vendor

Select vendor of the external device which is communicated with TOP.

Select “LS Industrial Systems Co., Ltd”.

PLC

Select a model name of the external device which is communicated with TOP.

Select “XGT(XGK), XGB(XBC/XBM) Series CNET”.

Check whether the external device you want to use is connectable or not

in “1. System configuration”.

2. Selection of TOP, External device

Select a external device which is communicated to the TOP.

XDesignerPlus Ver2.0 Communication device

5 / 41

Item

TOP

External device

Note

Serial Signal Level (port/channel)

RS-232 (COM2)

RS-232 (CH 1)

User set

Station number (PLC Address)

─

User set

Serial Baud rate

[BPS]

115200

User set

Serial Data bit

[Bit]

User set

Serial Stop bit

[Bit]

User set

Serial Parity bit

[Bit]

NONE

User set

Run Mode

XGT private server

User set

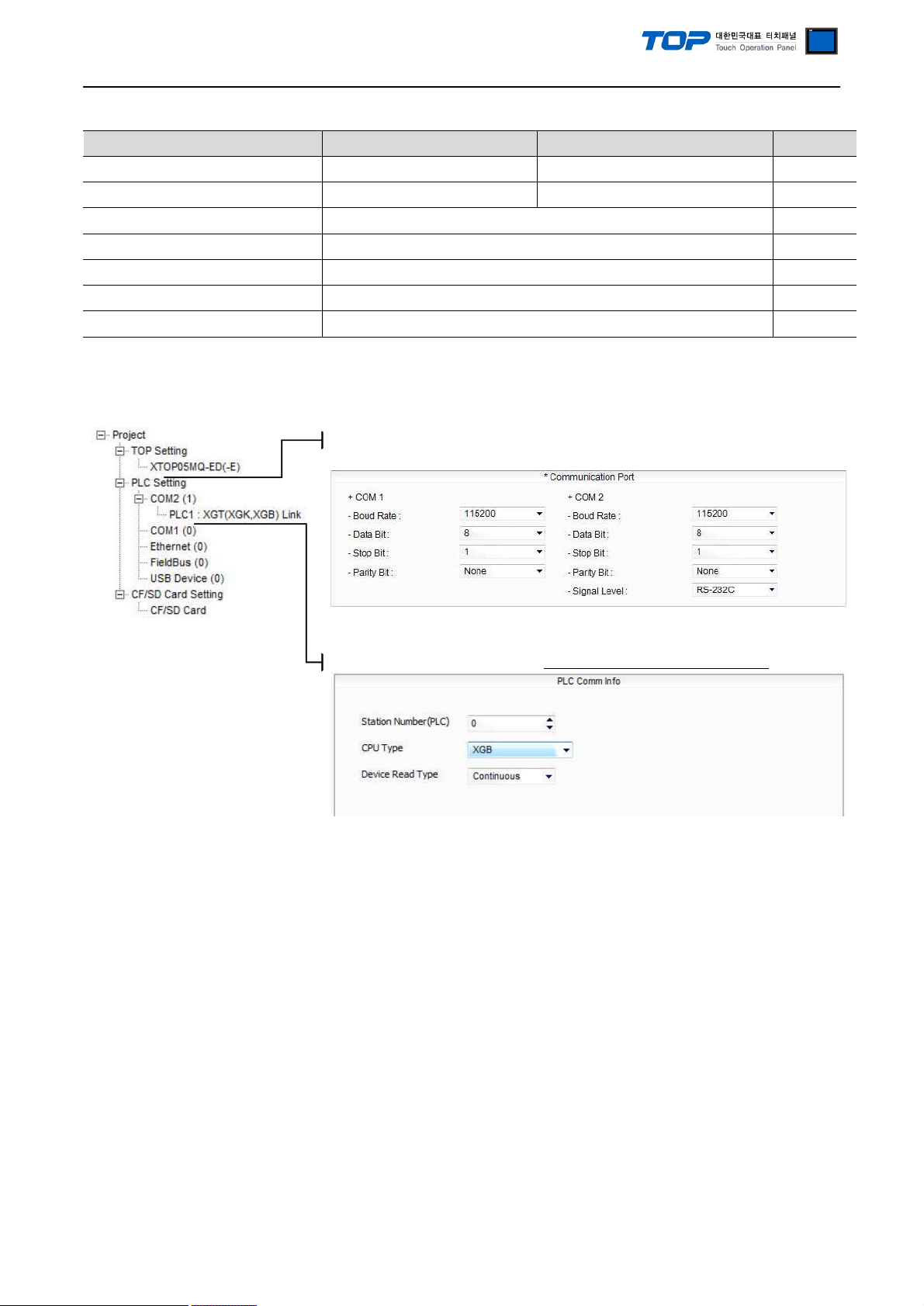

■ [ Project >Project Property > Project >TOP Setting > TOP Name ]

Set communication interface of TOP.

■ External device setup

Set the communication driver option “XGT(XGK), XGB(XBC,XBM) Series CNET”

-Station Number : Station number of external device.

-CPU Type : Select CPU type

-Device Read Type : Select protocol type.

3. Example of system setting

Set Communication interface of TOP and " XGT(XGK-CPU),XGB(XBC-CPU/XBM-CPU)Series CNET Driver".

3.1 Example 1

Set your system as below.

(1) XDesignerPlus Setting

[Project >Project property] of XDesignerPlus as below and download it to TOP machine.

XDesignerPlus Ver2.0 Communication device

6 / 41

(2) External device setup

Run "XG-PD Editor" program for communication setting and set as below.

If you want to change communication interface, modify refer to PLC manual.

1. Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”.

2. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable.

(If there is USB port in CPU, connect USB.)

3. Run [Online] > [Connection settings] menu. Select [Connection settings->Type] and click [Connect] button.

4. Run [Online] > [I/O Information] and read slot number. Run [Online] > [Read Parameter] and read parameter information of slot

of communication card.

5. double click slot of Cnet card in [Project Window], show dialog box of [Default settings].

Set [Connection] and [Run Mode] as below and click [OK].

6. Transfer setting contents to CPU at [Online] > [Parameter Write].

7. Reset PLC at [Online] > [Reset] > ][Reset PLC].

Item

Contents

Note

Connection

setting

CH 1

Comm. Type

RS232C

fixation

Baud rate

115200

User set

Data bit

User set

Stop bit

User set

Parity bit

NONE

User set

Modem Type

Null

Fixed

Station No.

User set

RunMode

CH 1

XGT server

fixed

XDesignerPlus Ver2.0 Communication device

7 / 41

Item

TOP

External device

Note

Serial Signal Level (port/channel)

RS-232 (COM2)

RS-232 (CH 2)

User set

Station number (PLC Address)

─

User set

Serial Baud rate

[BPS]

115200

User set

Serial Data bit

[Bit]

User set

Serial Stop bit

[Bit]

User set

Serial Parity bit

[Bit]

NONE

User set

Run Mode

XGT private server

User set

■ [ Project >Project Property > Project >TOP Setting > TOP Name ]

Set communication interface of TOP.

■ External device setup

Set the communication driver option “XGT(XGK), XGB(XBC,XBM) Series CNET”

-Station Number : Station number of external device.

-CPU Type : Select CPU type

-Device Read Type : Select protocol type.

3.2 Example 2

Set your system as below.

(1) XDesignerPlus Setting

[Project >Project property] of XDesignerPlus as below and download it to TOP machine.

XDesignerPlus Ver2.0 Communication device

8 / 41

(2) External device setup

Run "XG-PD Editor" program for communication setting and set as below.

If you want to change communication interface, modify refer to PLC manual.

1. Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”.

2. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable.

(If there is USB port in CPU, connect USB.)

3. Run [Online] > [Connection settings] menu. Select [Connection settings->Type] and click [Connect] button.

4. Run [Online] > [I/O Information] and read slot number. Run [Online] > [Read Parameter] and read parameter information of slot

of communication card.

5. Double click slot of Cnet card in [Project Window], show dialog box of [Default settings].

Set [Connection] and [Run Mode] as below and click [OK].

6. Transfer setting contents to CPU at [Online] > [Write].

7. Reset PLC at [Online] > [Reset PLC].

Item

Contents

Note

Connection

setting

CH 2

Comm. Type

RS232C

fixation

Baud rate

115200

User set

Data bit

User set

Stop bit

User set

Parity bit

NONE

User set

Modem Type

Null

fixation

Station No.

User set

RunMode

CH 2

XGT server

fixation

XDesignerPlus Ver2.0 Communication device

9 / 41

Item

TOP

External device

Note

Serial Signal Level (port/channel)

RS-422 (4 wire, COM2)

RS-422 (4wire, CH 1)

User set

Station number (PLC Address)

─

User set

Serial Baud rate

[BPS]

115200

User set

Serial Data bit

[Bit]

User set

Serial Stop bit

[Bit]

User set

Serial Parity bit

[Bit]

NONE

User set

Run Mode

XGT private server

User set

■ [ Project >Project Property > Project >TOP Setting > TOP Name ]

Set communication interface of TOP.

■ External device setup

Set the communication driver option “XGT(XGK), XGB(XBC,XBM) Series CNET”

-Station Number : Station number of external device.

-CPU Type : Select CPU type

-Device Read Type : Select protocol type.

3.3 Example 3

Set your system as below.

(1) XDesignerPlus Setting

[Project >Project property] of XDesignerPlus as below and download it to TOP machine.

XDesignerPlus Ver2.0 Communication device

10 / 41

(2) External device setup

Run "XG-PD Editor" program for communication setting and set as below.

If you want to change communication interface, modify refer to PLC manual.

1. Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”.

2. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable.

(If there is USB port in CPU, connect USB.)

3. Run [Online] > [Connection settings] menu. Select [Connection settings->Type] and click [Connect] button.

4. Run [Online] > [I/O Information] and read slot number. Run [Online] > [Read Parameter] and read parameter information of slot

of communication card.

5. Double click slot of Cnet card in [Project Window], show dialog box of [Default settings].

Set [Connection] and [Run Mode] as below and click [OK].

6. Transfer setting contents to CPU at [Online] > [Write].

7. Reset PLC at [Online] > [Reset PLC].

Item

Contents

Note

Connection

setting

CH 1

Comm. Type

RS-422

fixation

Baud rate

115200

User set

Data bit

User set

Stop bit

User set

Parity bit

NONE

User set

Modem Type

Null

fixation

Station No.

User set

RunMode

CH 1

XGT server

fixation

Autres manuels pour XGT Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels LS Industrial Systems Contrôleurs

LS Industrial Systems

LS Industrial Systems XGT Series Manuel utilisateur

LS Industrial Systems

LS Industrial Systems MASTER-K80S Manuel utilisateur

LS Industrial Systems

LS Industrial Systems G3L-RUEA Manuel utilisateur

LS Industrial Systems

LS Industrial Systems XGT Series Manuel utilisateur

LS Industrial Systems

LS Industrial Systems XBC-E Series Manuel utilisateur

LS Industrial Systems

LS Industrial Systems XBF-HO02A Manuel utilisateur

LS Industrial Systems

LS Industrial Systems GLOFA GM7U Series Manuel utilisateur

LS Industrial Systems

LS Industrial Systems XG5000 Manuel utilisateur

LS Industrial Systems

LS Industrial Systems SV-iS7 Series Manuel de programmation

LS Industrial Systems

LS Industrial Systems XGK-CPUUN Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
