Lowrance HOOK2 5 Manuel utilisateur

IMPORTANT. Do not use this template if it has been rescaled by copying or

prinng. If this is not the original, or is a print from a le, please check the

dimension lines below are to scale before use.

Check dimensions before cutting

10"

250 mm

Accessories (sold separately)

A. Sun cover

Part no.: 000-14174-001

B. Panel mounting gasket (adhesive)

Part no.: 000-14187-001

Parts included

1. Display unit

2. Bracket mounting kit

• Bracket

• 4x screws, self-tapping

#10 X 3/4 PN HD SS

3. Cable and fuse kit

• Power cable

• Fuse and holder

4. SplitShot or TripleShot

transducer

5. Document package

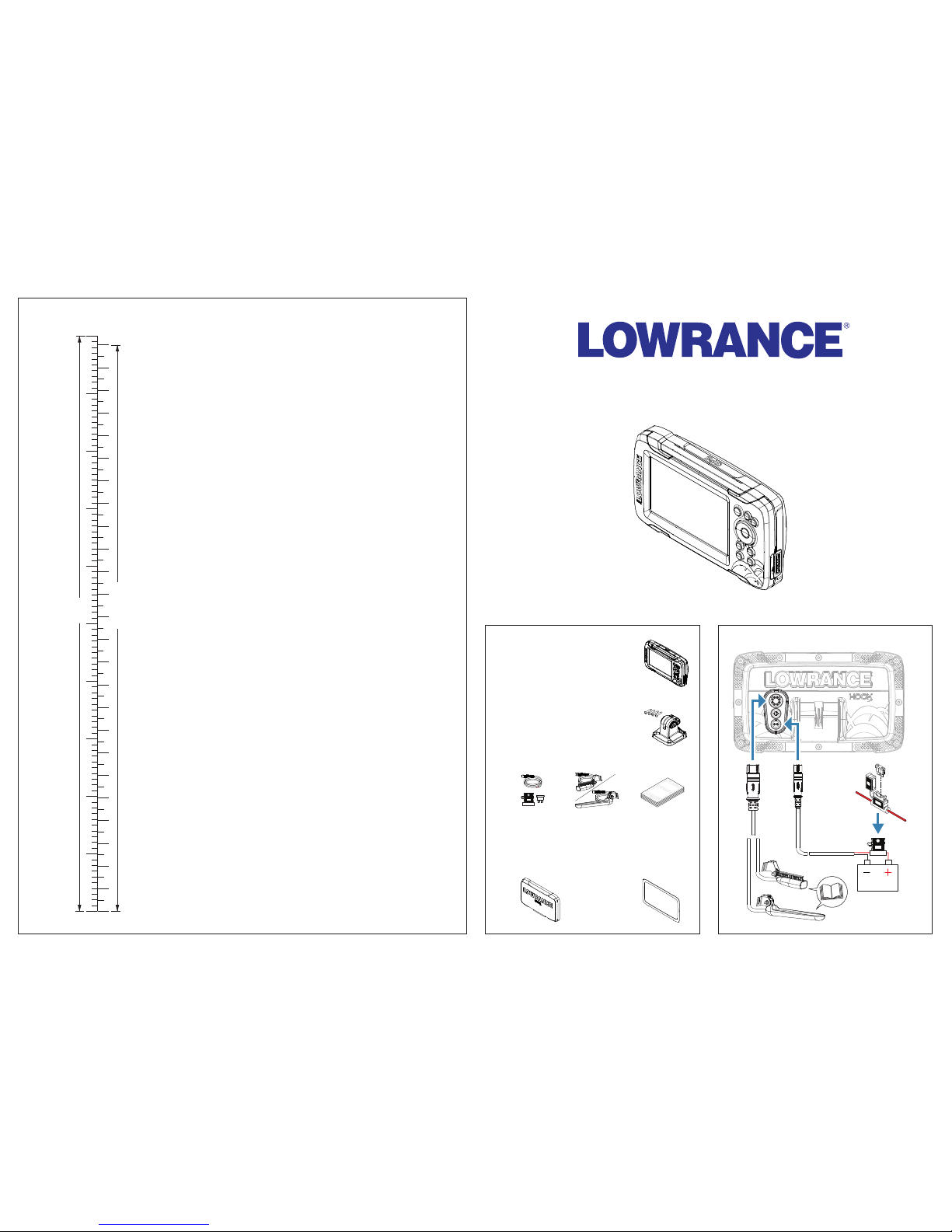

HOOK 5

INSTALLATION GUIDE

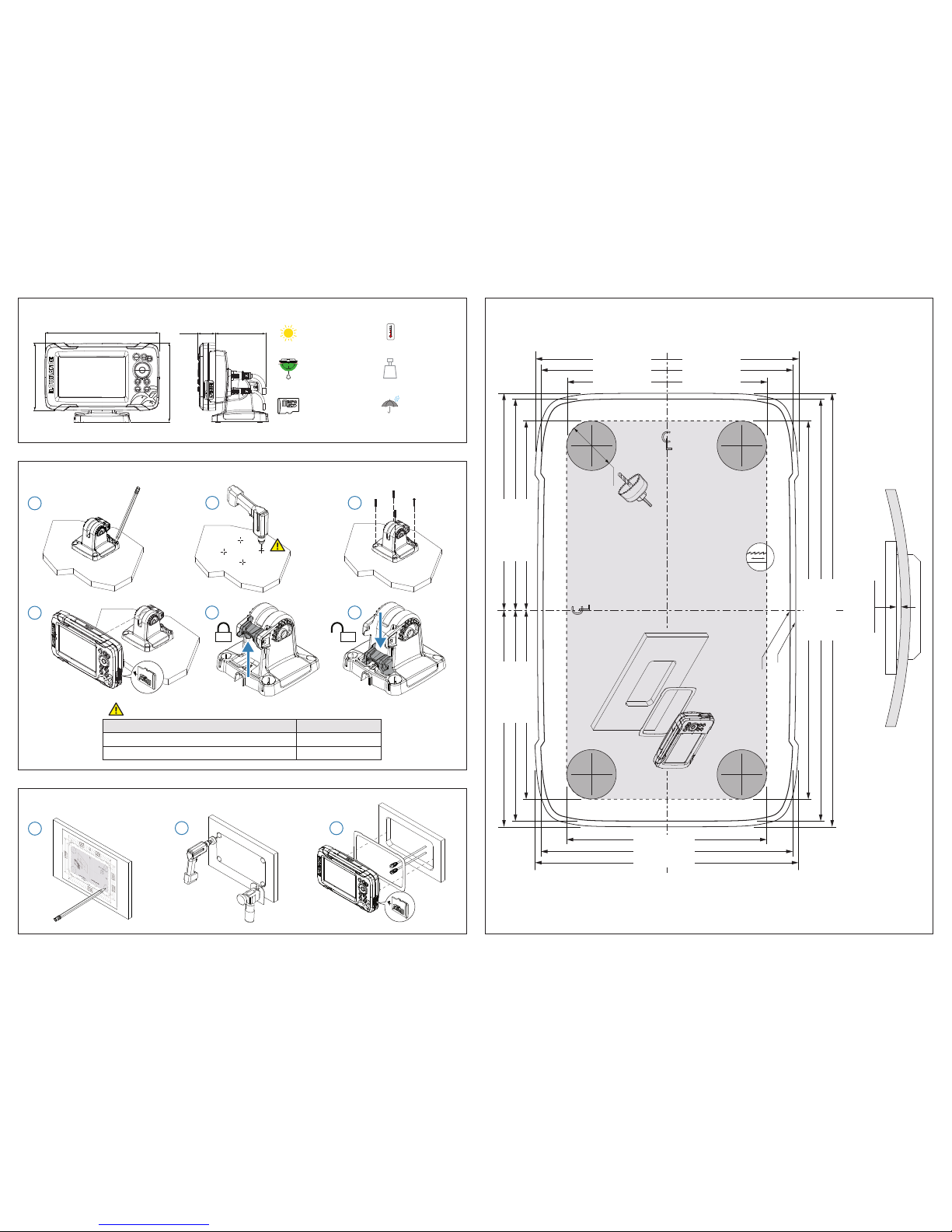

Mounting template (2/2)

Wiring

10.4 to 17.0 V DC

< 12.2 W (3 A fuse)

Mounting template (1/2)Details

1x card reader slot*

Micro SD

IPX6

IPX7

-15°C to +55°C

+5°F to +131°F

70°/50°, top/bottom

70°/70°, left/right

0.46 Kg

1.00 lbs

Sunlight readable

83.4 mm

(3.28“)

28.9 mm

(1.14“)

185.7 mm

(7.31“)

128.7 mm

(4.07“)

111.2 mm

(4.38“)

Bracket mounting

Panel mounting

Ø22.0 mm (0.87”)

REMOVE SHADED AREA

SUN COVER

PRODUCT OUTLINE

191.4 mm (7.53”)

167.0 mm (6.57”)

185.7 mm (7.31”)

83.5 mm (3.30”)

95.7 mm (3.78”)

92.9 mm (3.66”)

83.5 mm (3.30”)

95.7 mm (3.78”)

92.9 mm (3.66”)

88.4 mm (3.48”)

116.3 mm (4.58”)

111.2 mm (4.38”)

58.2 mm (2.29”)

44.2 mm (1.74”)

55.6 mm (2.19”)

58.2 mm (2.29”)

44.2 mm (1.74”)

55.6 mm (2.19”)

Material 10# screw

Soft materials e.g. Plywood Ø 3.7-4.0 mm (5/32”)

Hard materials e.g. Fiberglass, Acrylic, Hardwoods Ø 4.1-4.7 mm (3/16”)

Recommended pilot holes.

Note:Adhesive panel mounting gasket is sold separately.

Part no.: 000-14187-001.

Maximum curve of the dash

0.5 mm (0.02”)

* Depending on model

Swivel adapter to vessel screws, 4x

Unit to swivel adapter screws, 4x

Bracket swivel adapter, 1x

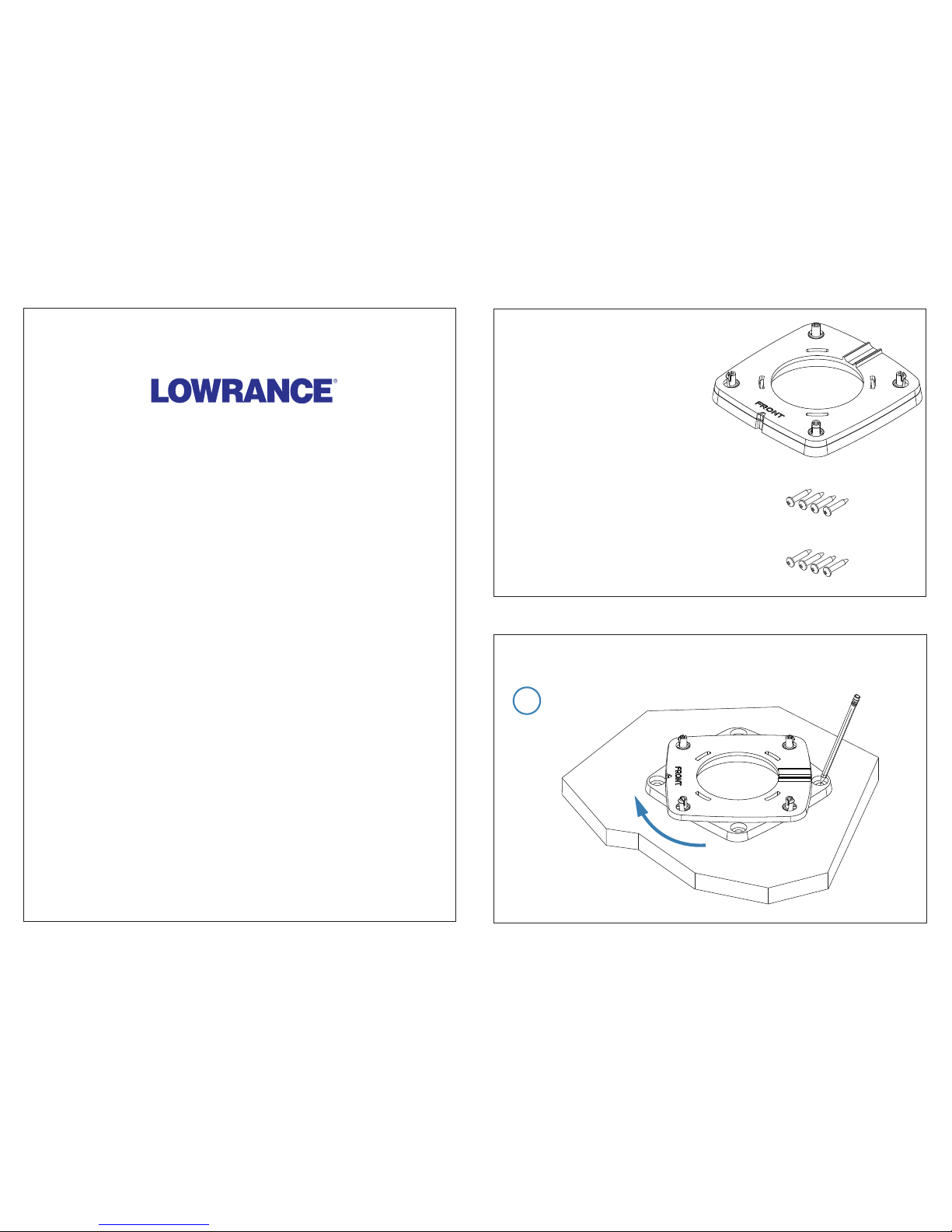

HOOK 4/5 BRACKET SWIVEL ADAPTER

INSTALLATION GUIDE

Mounting 1/2

Parts included

Mounting 2/2

2 3

4 5

#10 X 3/4”, 4x

pan-head, self tapping

2.5 mm x 8 mm, 4x

pan-head, self tapping
