Lowrance Mark-4 HDI Manuel utilisateur

Installation & Operation

manual

Mark-4 HDI & Elite-4 HDI

Operation manual

Lowrance® and Navico® are registered trademarks of Navico.

Fishing Hot Spots® is a registered trademark of Fishing Hot Spots Inc.

Navionics® is a registered trademark of Navionics, Inc.

Navico may nd it necessary to change or end our policies, regulations and special oers at any time. We reserve

the right to do so without notice. All features and specications subject to change without notice.

Compliance Statements

Lowrance Mark-4 & Elite-4 HDI

• complies with CE under RTTE directive 1999/5/EC

• complies with the requirements of level 2 devices of the Radiocommunications (Electromagnetic

Compatibility) standard 2008

The relevant Declaration of Conformity information is available on the this unit’s product page at www.lowrance.com.

WARNING: When a GPS unit is used in a vehicle, the vehicle operator is solely responsible for operating

the vehicle in a safe manner. Vehicle operators must maintain full surveillance of all pertinent driving or

boating conditions at all times. An accident or collision resulting in damage to property, personal injury or

death could occur if the operator of a GPS-equipped vehicle fails to pay full attention to travel conditions

and vehicle operation while the vehicle is in motion.

PB 1

Table of Contents | Mark-4 & Elite-4 HDI Table of Contents | Mark-4 & Elite-4 HDI

Introduction...................................... 3

Unit Controls............................................ 3

Basic Operation............................... 5

Setup wizard............................................ 5

Pages ......................................................5

Selecting Pages.......................................5

Page menus ............................................5

Fishing Modes .........................................8

Cursor...................................................... 9

Goto cursor.............................................. 9

Advanced Mode ....................................10

Standby mode .......................................10

Restore defaults ....................................10

Pages...............................................11

Steer Page............................................. 11

Sonar Page............................................ 11

DownScan page ...................................12

Chart Page ............................................12

Combo pages ........................................13

Overlay Data..........................................14

DownScan Operation .................... 16

Trackback .............................................16

Ping Speed............................................18

DownScan options.................................19

Sonar Operation ............................ 21

Trackback ..............................................21

Table of contents

2PB

Table of Contents | Mark-4 & Elite-4 HDI Table of Contents | Mark-4 & Elite-4 HDI

Sensitivity ..............................................23

Colorline ................................................23

Range....................................................23

Frequency .............................................24

Ping Speed............................................24

Fish ID ..................................................26

DownScan options.................................26

Sonar Settings.......................................27

Chart Operation ............................. 30

Waypoints, Routes, Trails......................31

Routes Screen....................................... 33

Trails Screen .........................................37

Orientation............................................. 39

Overlay Data..........................................39

Settings..................................................39

Chart Settings........................................ 40

Navigation Settings ..................................41

AIS................................................... 43

AIS Setup ..............................................43

Target symbols ......................................44

Viewing AIS target information ..............45

Settings .......................................... 46

System...................................................46

Saving Screenshots...............................48

Alarms ..................................................48

Specications ................................ 50

Index ............................................... 51

PB 3

Introduction | Mark-4 & Elite-4 HDI Introduction | Mark-4 & Elite-4 HDI

Getting Started

Turn unit

on/o

To turn on/o the unit, press and hold

the LIGHT/POWER key for three

seconds.

Man

Overboard

waypoint

Press the ZOOM IN and ZOOM OUT

keys at the same time to set a Man

Overboard waypoint. Your system will

automatically create an active route

back to the MOB waypoint. You must

cancel navigation to terminate the

function.

Adjusting

the

backlight

This unit has 11 backlight levels. Press

the LIGHT/POWER key to switch

backlight levels.

Muting

Audio

Select Audio from the System menu.

Select Mute and press ENTER.

Unit Controls

LIGHT/POWER: controls backlight level

and turns unit on/o

KEYPAD: controls cursor & selects items

on menus

PAGES: allows you to select a page to view

MENU: opens settings, context and page

menus

ENTER: nalizes menu selections; save

waypoint at cursor position

MOB: press and hold both Zoom keys to

create a Man Overboard waypoint

ZOOM KEYS: (+) used to zoom in; (-)

used to zoom out

microSD slot: insert a blank microSD card to save

screen captures, sonar logs, waypoints, routes and

trails; or insert a microSD mapping card to use

mapping data

Introduction

4PB

Introduction | Mark-4 & Elite-4 HDI Introduction | Mark-4 & Elite-4 HDI

Inserting microSD cards

Carefully slide the microSD card into the slot until

it clicks into place.

To remove, carefully push in the card until it clicks

out of place.

Conventional sonar and DownScan

This unit supports two types of sonar: Conventional

and DownScan.

Refer to the “Sonar Operation” section for

information about conventional sonar features and

settings.

DownScan features and settings are covered in the

“DownScan Operation” section.

Conventional DownScan

PB 5

Basic Operation | Mark-4 & Elite-4 HDI Basic Operation | Mark-4 & Elite-4 HDI

Selecting Pages

To select a page, press the keypad in the direction

of the desired page and press ENTER.

Page menus

The Steer, DownScan, Sonar and Chart pages have

menus that can only be accessed when those

pages are displayed.

Setup wizard

The Setup wizard will appear when the unit is

turned on for the rst time. To choose your own

settings, do not run the setup wizard. To restart the

Setup wizard, restore defaults.

Pages

This unit has eight pages: Steer, DownScan, Sonar,

Chart, Chart/Sonar, Chart/DownScan, Sonar/

DownScan and Chart/Sonar/DownScan.

Steer page

Steer menu

Pages dialog

Basic Operation

Basic Operation | Mark-4 & Elite-4 HDI Basic Operation | Mark-4 & Elite-4 HDI

Combo pages

Press the PAGES key twice to switch active

panels. The page menu for the active page will be

displayed when the MENU key is pressed.

Accessing the Settings menu

Chart page

Chart menu

DownScan page DownScan menu

Sonar page Sonar menu

Two-panel page Three-panel page

Basic Operation | Mark-4 & Elite-4 HDI Basic Operation | Mark-4 & Elite-4 HDI

On/Off features

Select an on/o menu item and

press ENTER to turn it on/o.

Dropdown menus

Access the dropdown

menu and press the

keypad up/down to select

the desired item and press

ENTER.

Dialogs

Dialogs are used for user input or

for presenting information to the

user. Depending on the type of

entry, dierent methods are used

to conrm, cancel or close the

dialog.

Accessing menu items

The keypad and ENTER key are used to select

menu items and open submenus. Use the keypad

to highlight the desired item and press ENTER.

Working with menus

There are several menu types used to make

adjustments to options and settings, including

scrollbars, on/o features and dropdown menus.

Scrollbars

Select the scrollbar and press the

keypad left (decrease) or right

(increase).

NOTE: Press the MENU key to exit

menus.

Basic Operation | Mark-4 & Elite-4 HDI Basic Operation | Mark-4 & Elite-4 HDI

Fishing Modes

(Conventional sonar only)

Fishing modes enhance the performance of your

unit by providing preset packages of sonar settings

geared to specic shing conditions.

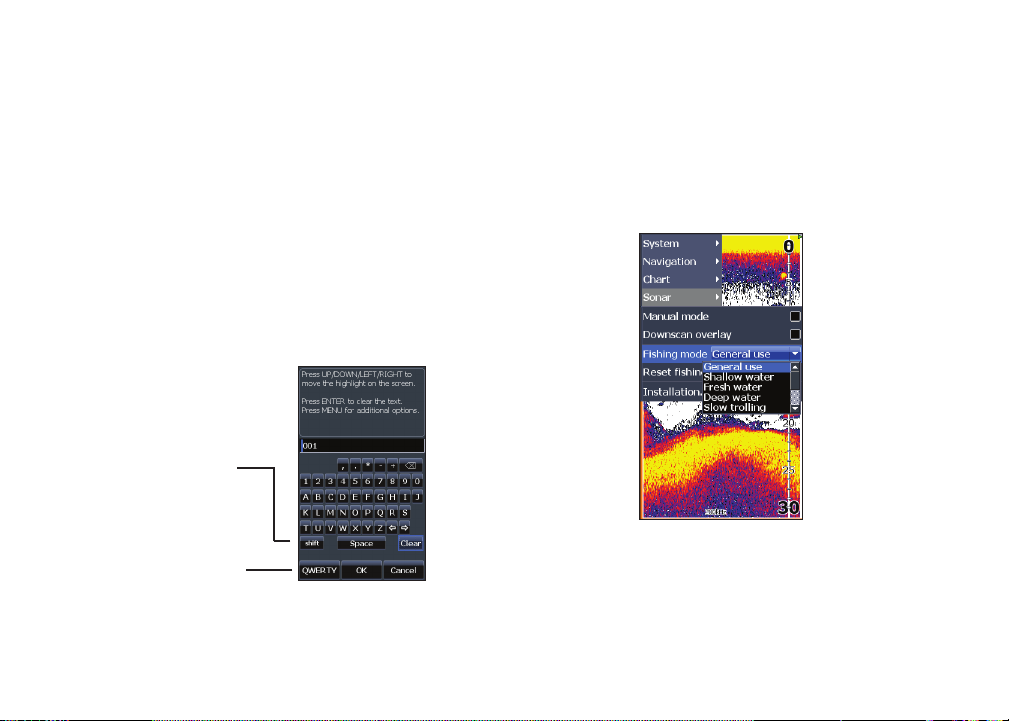

Switches keyboard

between ALPHA and

QWERTY layout

Switches letters

to uppercase/

lowercase

Entering text

Some functions, like naming a waypoint, route or

trail, will require you to input text.

To input text:

1. Use the keypad to select the desired

character and press ENTER.

2. Repeat Step 1 for each character.

3. When entry is completed, highlight OK

and press ENTER.
