Lowrance Elite-4m HD Manuel utilisateur

Installation & Operation

manual

Elite-4m HD

Operation manual

Lowrance® and Navico® are registered trademarks of Navico.

Fishing Hot Spots® is a registered trademark of Fishing Hot Spots Inc.

Navionics® is a registered trademark of Navionics, Inc.

Navico may nd it necessary to change or end our policies, regulations and special oers at any time. We reserve

the right to do so without notice. All features and specications subject to change without notice.

Compliance Statements

Lowrance Elite 4m HD

• complies with CE under RTTE directive 1999/5/EC

• complies with the requirements of level 2 devices of the Radiocommunications (Electromagnetic

Compatibility) standard 2008

The relevant Declaration of Conformity information is available on the this unit’s product page at www.lowrance.com.

WARNING: When a GPS unit is used in a vehicle, the vehicle operator is solely responsible for operating

the vehicle in a safe manner. Vehicle operators must maintain full surveillance of all pertinent driving or

boating conditions at all times. An accident or collision resulting in damage to property, personal injury or

death could occur if the operator of a GPS-equipped vehicle fails to pay full attention to travel conditions

and vehicle operation while the vehicle is in motion.

PB 1

Table of Contents | Elite-4m HD Table of Contents | Elite-4m HD

Introduction...................................... 3

Unit Controls............................................3

Basic Operation............................... 5

Setup wizard............................................5

Pages ......................................................5

Page menus ............................................5

Dialogs.....................................................7

Entering text ............................................7

Cursor......................................................7

Goto cursor..............................................8

Advanced Mode ......................................8

Restore defaults ......................................8

Pages................................................ 9

Steer Page...............................................9

Chart Page ..............................................9

Overlay Data..........................................10

Chart Operation ............................. 12

Waypoints, Routes, Trails...................... 13

Routes Screen.......................................15

Trails Screen .........................................19

Orientation.............................................21

Overlay Data..........................................21

Table of contents

2PB

Table of Contents | Elite-4m HD Table of Contents | Elite-4m HD

Settings..................................................21

Chart Settings........................................22

Navigation Settings ...................................23

AIS................................................... 25

AIS Setup ..............................................25

Target symbols ......................................26

Viewing AIS target information ..............27

Settings .......................................... 28

Settings menu........................................28

System...................................................28

Saving Screenshots...............................30

Alarms ..................................................30

Specications ................................ 32

Index ............................................... 33

PB 3

Introduction | Elite-4m HD Introduction | Elite-4m HD

Getting Started

Turn unit

on/o

To turn on/o the unit, press and hold

the LIGHT/POWER key for three

seconds.

Man

Overboard

waypoint

Press the ZOOM IN and ZOOM OUT

keys at the same time to set a Man

Overboard waypoint. Your system will

automatically create an active route

back to the MOB waypoint. You must

cancel navigation to terminate the

function.

Adjusting

the

backlight

This unit has 11 backlight levels. Press

the LIGHT/POWER key to switch

backlight levels.

Muting

Audio

Select Audio from the System menu.

Select Mute and press ENTER.

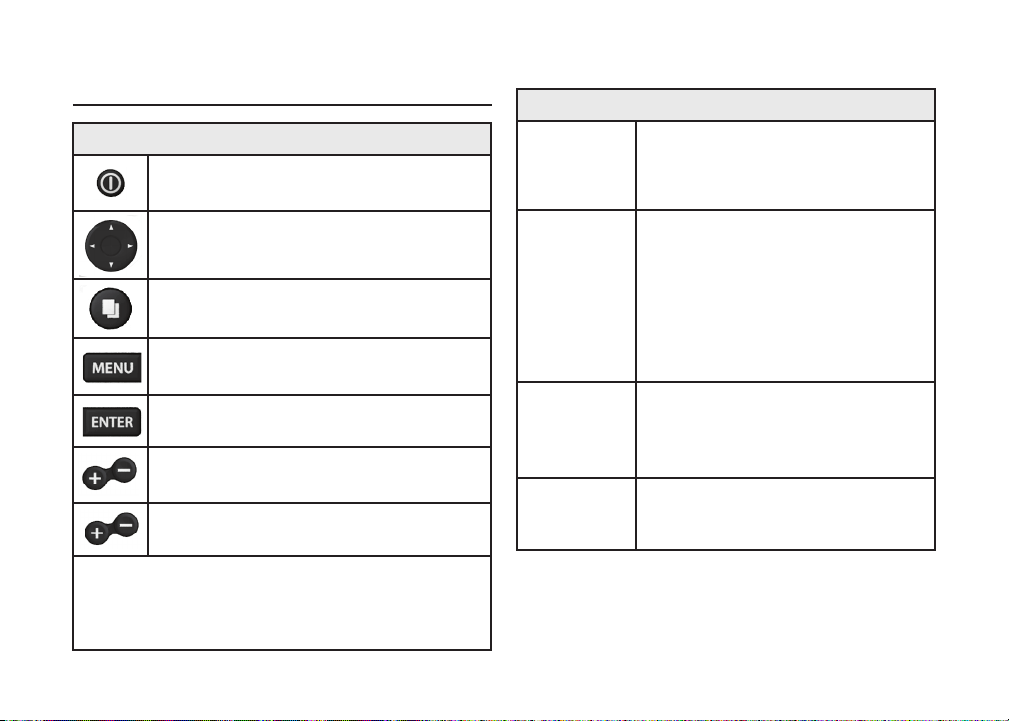

Unit Controls

LIGHT/POWER: controls backlight level

and turns unit on/o

KEYPAD: controls cursor & selects items

on menus

PAGES: allows you to select a page to view

MENU: opens settings, context and page

menus

ENTER: nalizes menu selections; save

waypoint at cursor position

MOB: press and hold both Zoom keys to

create a Man Overboard waypoint

ZOOM KEYS: (+) used to zoom in; (-)

used to zoom out

microSD slot: insert a blank microSD card to save

screen captures, sonar logs, waypoints, routes and

trails; or insert a microSD mapping card to use

mapping data

Introduction

4PB

Introduction | Elite-4m HD Introduction | Elite-4m HD

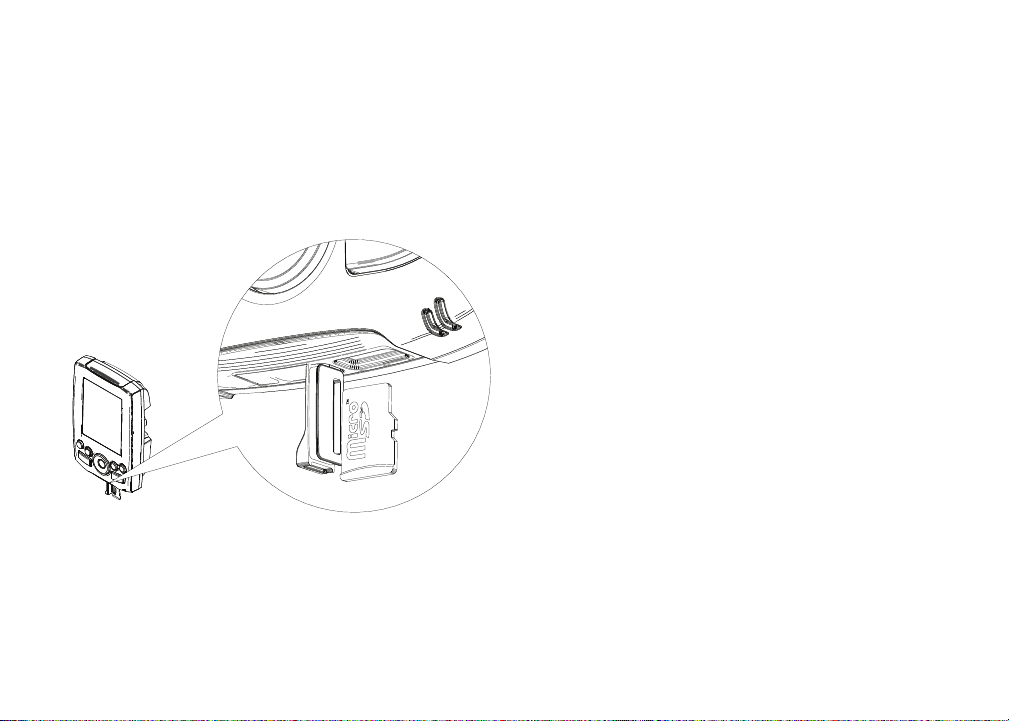

Inserting microSD cards

Carefully slide the microSD card into the slot until

it clicks into place.

To remove, carefully push in the card until it clicks

out of place.

PB 5

Basic Operation | Elite-4m HD Basic Operation | Elite-4m HD

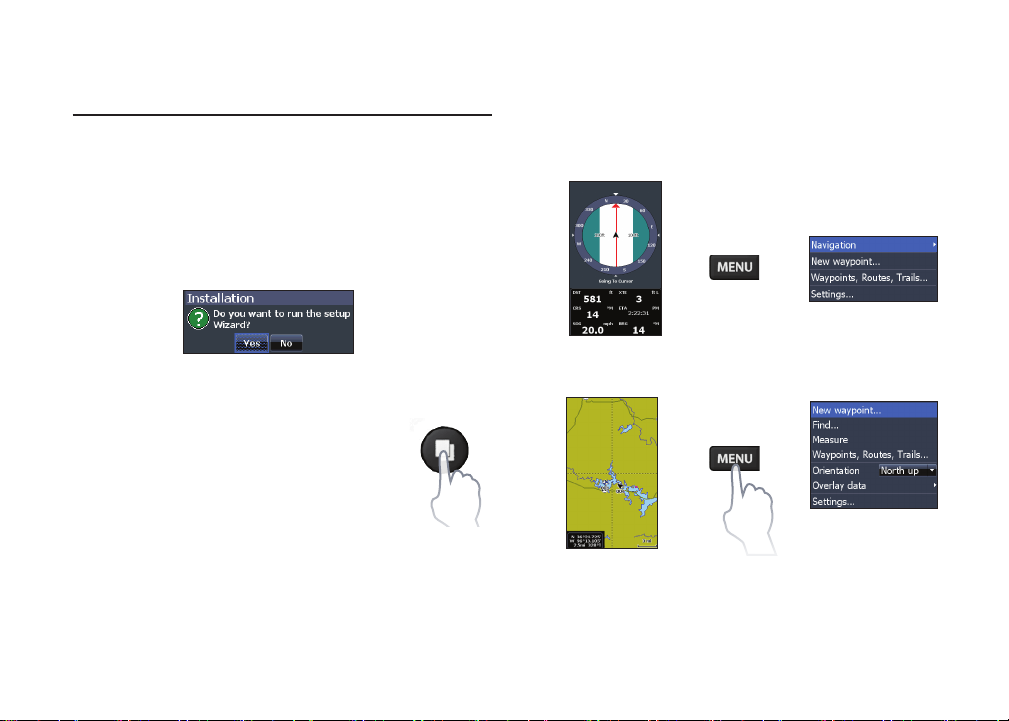

Page menus

The Steer and Chart pages have menus that can

only be accessed when those pages are displayed.

Setup wizard

The Setup wizard will appear when the unit is

turned on for the rst time. To choose your own

settings, do not run the setup wizard. To restart the

Setup wizard, restore defaults.

Pages

This unit has two pages: Steer and

Chart. Press the PAGES key to switch

pages.

Steer page

Steer menu

Basic Operation

Chart page

Chart menu

Basic Operation | Elite-4m HD Basic Operation | Elite-4m HD

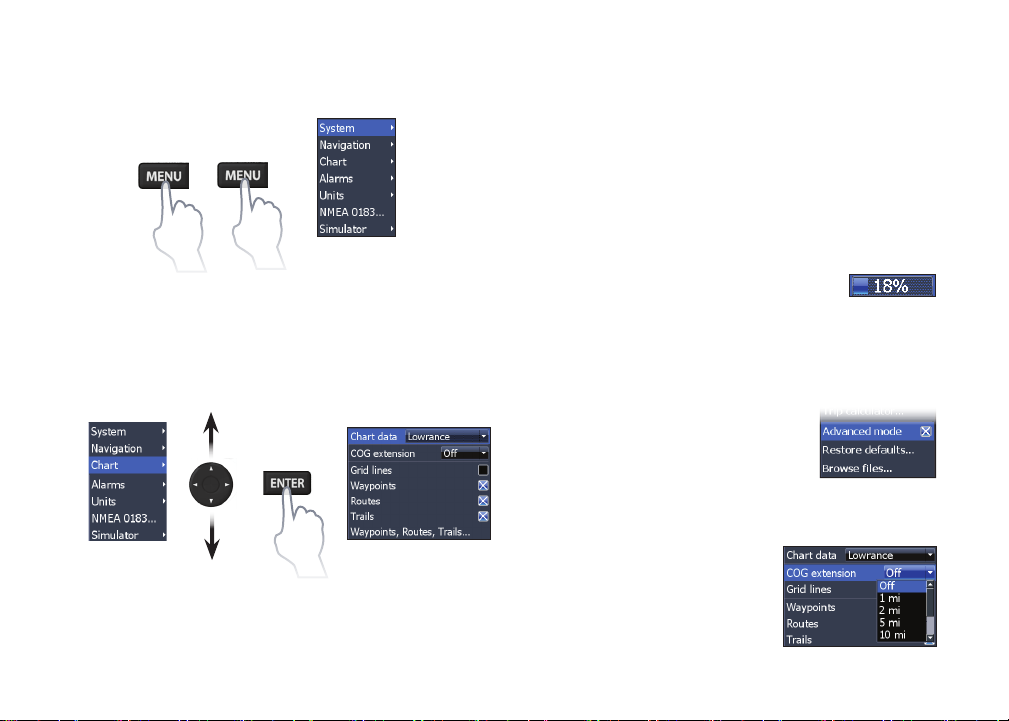

Accessing the Settings menu

Accessing menu items

The keypad and ENTER key are used to select

menu items and open submenus. Use the keypad

to highlight the desired item and press ENTER.

Working with menus

There are several menu types used to make

adjustments to options and settings, including

scrollbars, on/o features and dropdown menus.

Scrollbars

Select the scrollbar and press the

keypad left (decrease) or right

(increase).

On/Off features

Select the on/o menu item and

press ENTER to turn it on/o.

Dropdown menus

Access the dropdown menu

and press the keypad up/down

to select the desired item and

press ENTER.

Basic Operation | Elite-4m HD Basic Operation | Elite-4m HD

Cursor

The keypad moves the cursor around the display,

allowing you to scroll the map and select map

items.

Press MENU and select Return to vessel or Exit

cursor mode to clear the cursor.

Dialogs

Dialogs are used for user input or

for presenting information to the

user. Depending on the type of

entry, dierent methods are used

to conrm, cancel or close dialogs.

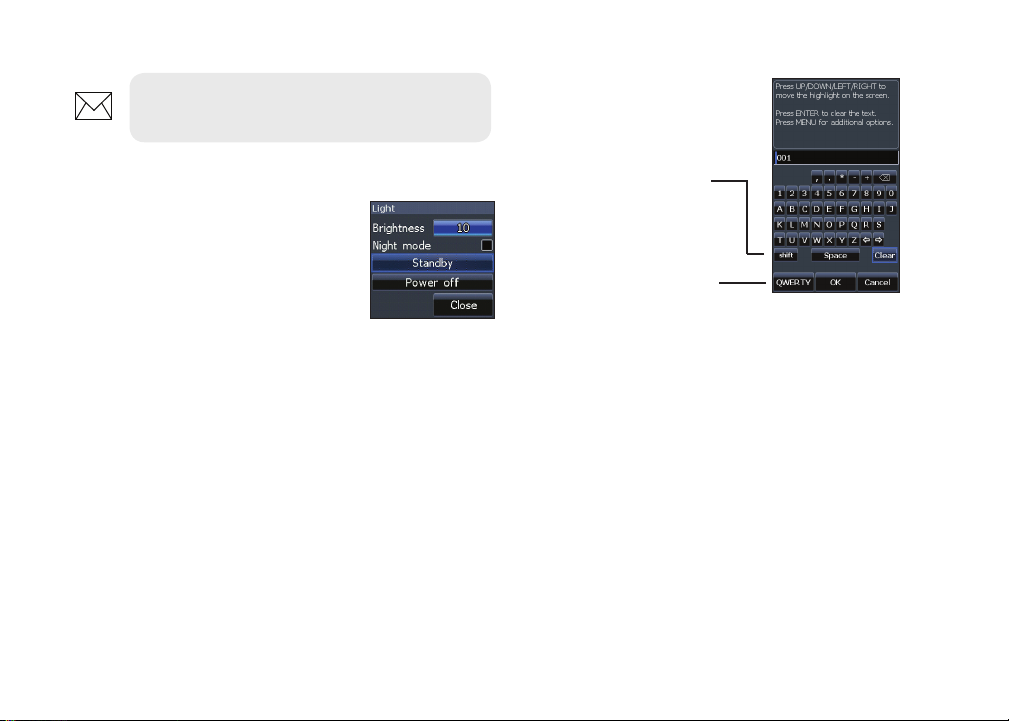

Entering text

Some functions, like naming a waypoint, route or

trail, will require you to input text.

To input text:

1. Use the keypad to select the desired

character and press ENTER.

2. Repeat Step 1 for each character.

3. When entry is completed, highlight OK

and press ENTER.

NOTE: Press the MENU key to exit

menus.

Switches keyboard

between ALPHA and

QWERTY layout

Switches letters

to uppercase/

lowercase

8PB

Basic Operation | Elite-4m HD Basic Operation | Elite-4m HD

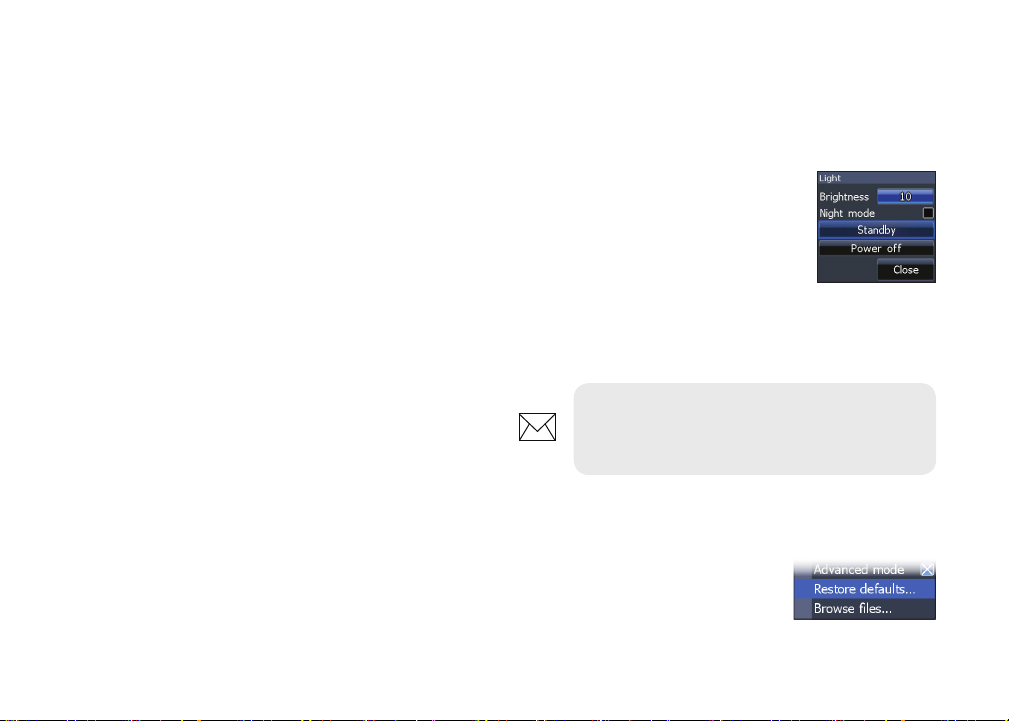

Standby mode

Lowers power consumption by turning o sonar

and the display.

1. Press the PWR/LIGHT

key to access the

Backlight dialog.

2. Select Standby and

press ENTER.

3. Press any key to resume normal

operation.

Restore defaults

Sets unit options and settings

to default values.

Goto cursor

Used to navigate to the cursor.

1. Move the cursor to a desired location

and press MENU.

2. Select Goto cursor and press ENTER.

Advanced Mode

Enables advanced features and settings.

The following features are enabled when Advanced

mode is turned on:

• Navigation (Enables arrival radius, off-

course distance and Bearings setting)

• Alarms (Enables arrival, off course and

anchor alarm options)

• NMEA 0183 conguration options

• Units (Enables distance, speed and

bearings conguration options)

NOTE: Leaving your unit in Standby

mode when your boat is not in use will run

down your battery.
