Fish Finding Sonar

988-0176-00B

Operations Guide

HDS-5x

Contents

Table of contents

Introduction ....................................................................................... 3

Getting Started................................................................................. 5

Turning on the Unit..................................................................................... 5

Keypad ....................................................................................................... 5

Backlight .................................................................................................... 5

Cursor ........................................................................................................ 5

Language ................................................................................................... 5

Menus ........................................................................................................ 6

Selecting a Fishing Mode .......................................................................... 6

Entering Letters in Text Boxes................................................................... 7

Restore Defaults ........................................................................................ 8

Pages................................................................................................. 9

Pages Screen ............................................................................................ 9

Data Overlay ............................................................................................ 10

 ................................................................................. 14

Sonar Page .............................................................................................. 16

Radar Page.............................................................................................. 17

Info Page.................................................................................................. 17

Utilities ..................................................................................................... 22

 ........................................................................ 24

Sonar Operation............................................................................. 27

Viewing Sonar History ............................................................................. 27

Sonar Menu ............................................................................................. 28

Sonar Options.......................................................................................... 31

Palette...................................................................................................... 32

Log Sonar Data........................................................................................34

Contents

Radar Operation............................................................................. 37

 ............................................................................................. 37

Cursor position window............................................................................ 43

Radar Overlay.......................................................................................... 43

Settings Menu ................................................................................. 45

Sonar Settings Menu ............................................................................... 52

Manual Mode ........................................................................................... 53

Fishing Modes .........................................................................................54

Installation Menu...................................................................................... 55

Keel Offset ............................................................................................... 55

Radar Settings Menu ............................................................................... 59

Fuel .......................................................................................................... 66

...................................................................................................... 70

Trails......................................................................................................... 72

Units......................................................................................................... 73

Network.................................................................................................... 74

Vessels..................................................................................................... 81

.................................................................................................. 83

.................................................................................. 87

Unit Care .......................................................................................... 88

Troubleshooting.............................................................................. 89

Index ................................................................................................. 97

Introduction

Thank you for purchasing from Lowrance, the industry leader in marine technology.

This manual is packaged with a Quick Start Guide, Installation Guide, License and

Warranty booklet and NMEA 2000 Networks Installation Instructions. If any of

these documents are missing, you may acquire them via a free download at www.

 or by contacting customer service.

Lowrance Customer Service

12000 E Skelly Dr

Tulsa, OK 74128

(800) 324-1356

Canada (800) 661-3983 or (905) 629-1614

About this manual

This manual documents how to adjust features and options in your display unit. The

information in each section follows the same sequence as your display unit’s menus.

If you would like information on how to get the most out of your unit, visit our web

site, click on the Support tab and select Tips and Tutorials.

Manual Conventions

When you are instructed to press a button in this manual, the button will be shown

in all caps and bold text like — MENU, EXIT, ENTER, etc. If you are instructed

to select an item from a menu, the item to be selected will be listed in bold like —

Brightness, Key beeps, etc.

For example: Press MENU, select Language and press ENTER.

Introduction

WARNING:When a GPS unit is used in a vehicle, the



-



-



could occur if the operator of a GPS-equipped vehicle

fails to pay full attention to travel conditions and vehicle



Introduction

Lowrance HDS-5x Sonar

ZOUT: 

ZIN

MOB: 

LIGHT/POWER:



level & turns the

unit on/off

MMC/SD Card slot: insert

MMC/SD and high-detail



FREQ: changes transducer

frequency

EXIT: cancels

entries, closes





cursor position and

chart location on

Chart page

KEYPAD

cursor, scroll through



view sonar/GPS history

MENU: opens

context &



PAGES: opens Pages





display

ENTER



shortcut key for

functions like saving

a waypoint at cursor

position

Getting Started

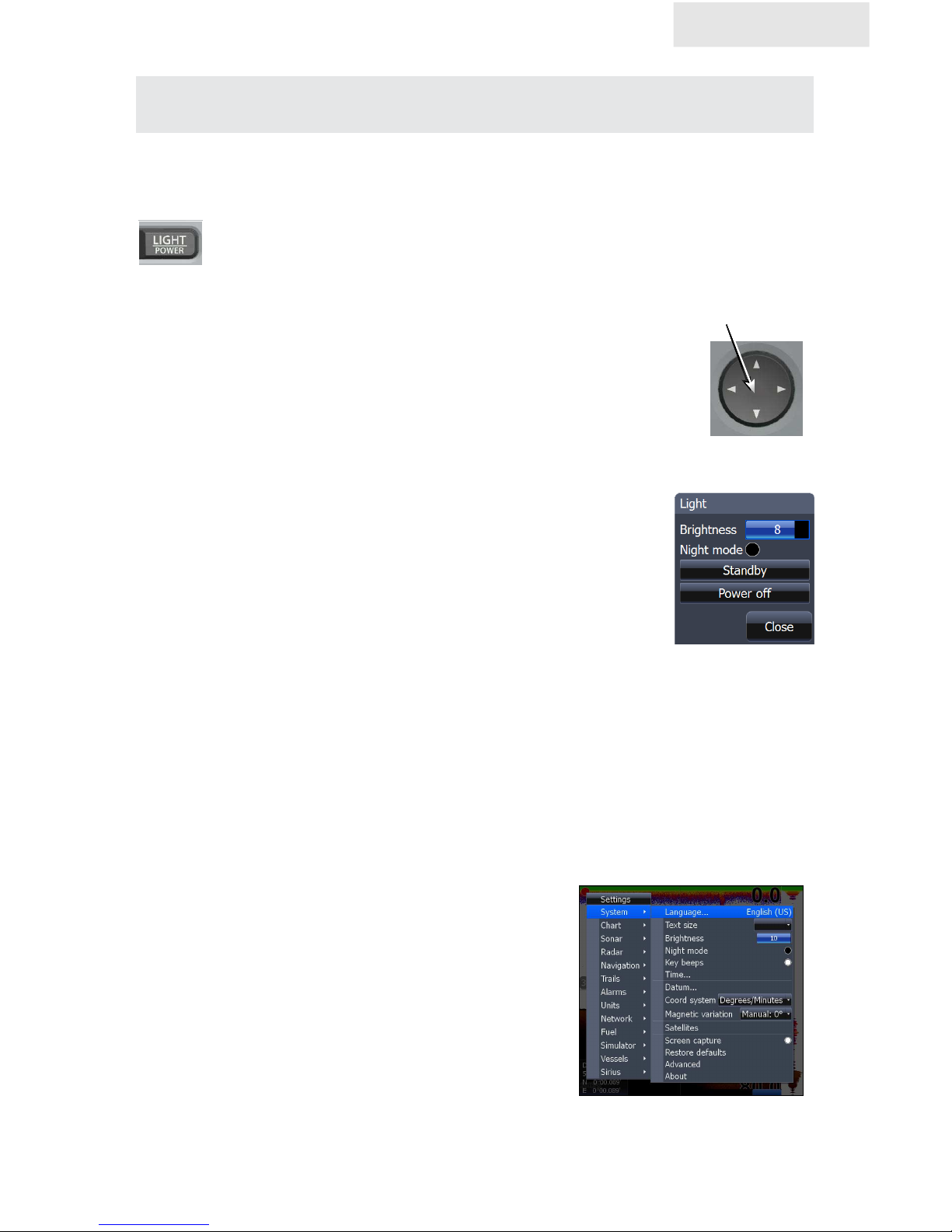

Turning on the Unit

Press the POWER/LIGHT key to turn on the unit. If the unit is not connected to

a transducer, the unit will start up in simulator mode. To turn off the unit,

press the POWER/LIGHT key for three seconds.

Keypad

This unit’s keypad can be used in two ways. Pressing the arrow sym-

bols on the keypad will move the cursor in the corresponding direc-

tion on the screen and allow you to scroll through menus.

Backlight

Tap the LIGHT/POWER key to make adjustments to the

backlight level and open the Backlight Menu. To turn on Night

Mode from the menu, highlight Night Mode and press ENTER.

Night mode optimizes the display for low light conditions.

Cursor

Use the unit’s keypad to move the cursor around the display, select onscreen objects,

highlight data items and view sonar history. Press EXIT to remove the cursor from

the screen.

Language

Selects language used for menus, text boxes and messages.

To select a language:

Press1. MENU twice.

Select2. System and press ENTER

Highlight3. Language and press ENTER.

4. Use the keypad to select a language

and press ENTER.

Getting Started

Keypad

Getting Started

Menus

This unit has a Settings menu, a Pages screen and several context

menus. The Settings menu provides access to the settings menus for

the three main operation modes: Sonar and Radar. The Settings menu

is accessed by pressing MENU twice.

The Pages screen allows you to select a page to be shown on the

display. Utilities are also accessed from the Pages screen. Press the

PAGES key to select a page.

Each page has its own context menu which allows you to access

functions for that page. Context menus are accessible only when its

corresponding page is displayed. The Sonar Menu, for example, will

only be available when the Sonar Page is on the display. To access a

context menu, select the desired page and press the MENU key.

Closing Menus

Press the EXIT key to close a menu. Repeatedly pressing EXIT will close all menus,

taking you back to the main screen.

Selecting a Fishing Mode

Fishing modes enhance the performance of your unit by providing preset packages





Press1. MENU twice.

Select2. Sonar and press ENTER.

Highlight3. Fishing Mode and press ENTER.

      4.

ENTER.





Pages screen

Settings



Getting Started

Fishing Mode Options

General Use 

Shallow Water      

depths less than 100 feet

Fresh Water 

Deep Water        

transducer frequency

Slow Trolling 

Fast Trolling      

speed

Clear Water 

Brackish Water     

lower chart speed

Entering Letters in Text Boxes

This unit has some features and functions that may

require you to enter data in a text box.

To enter data in a text box:

1. ENTER.



      2.

character and press ENTER. Repeat



entered.

Highlight3. OK and press ENTER. Keyboard window

Keypad button controls

uppercase & lowercase

Getting Started

Restore Defaults

The Restore Defaults command switches the unit back to the settings it had when

you purchased it (default settings).

To Restore Defaults:

Press1. MENU twice.

Select2. System and press ENTER.

Highlight3. Restore Defaults and press

ENTER    

appear.

Select4. Yes and press ENTER.
