Lovfeel F156 Manuel utilisateur
V1.0
Model:F156
R
1
CONTACT US................................................................................................................................................................2
WHAT’S IN THE BOX.....................................................................................................................................................3
GET TO KNOW YOUR DIGITAL PICTURE FRAME.........................................................................................................4
PRODUCT FEATURES............................................................................................................................................4
PRODUCT SPECS.......................................................................................................... ........................................4
SYSTEM REQUIREMENTS.................................................................................................... .................................5
FRONT AND BACK SIDE OF FRAME.................................................................................................................................5
WALL MOUNT YOUR FRAME
.................................................................................................................................6
IMPORTANT SAFETY PRECAUTIONS...................................................................................................................7
SAFETY INSTRUCTIONS........................................................................................................................................7
CARE AND MAINTENANCE..................................................................................................................................8
GET YOUR FRAME READY............................................................................................................................................9
GETTING STARTED......................................................................................................................................................10
HOW TO USE UHALE FRAME.....................................................................................................................................11
SHARE PHOTOS..........................................................................................................................................................12
NAVIGATING YOUR FRAME.......................................................................................................................................14
SETTINGS....................................................................................................................................................................18
PRIVACY.......................................................................................................................................................................27
SUPPORT.....................................................................................................................................................................27
FULL ONE YEAR MANUFACTURER'S WARRANTY.....................................................................................................28
OBTAINING WARRANTY SERVICE.................................................................................................................. ...........28
Contents
2
In case you face any issues with the product you have received, please contact our support team by:
[email protected]
We will offer prompt and authoritative reply within 24 hours and try our best to solve your problem ASAP! More
Safe Guarantee with LOVFEEL! If you are not satisfied with our product, please tell us about your thought. That
would be much appreciated.
CONTACT US
3

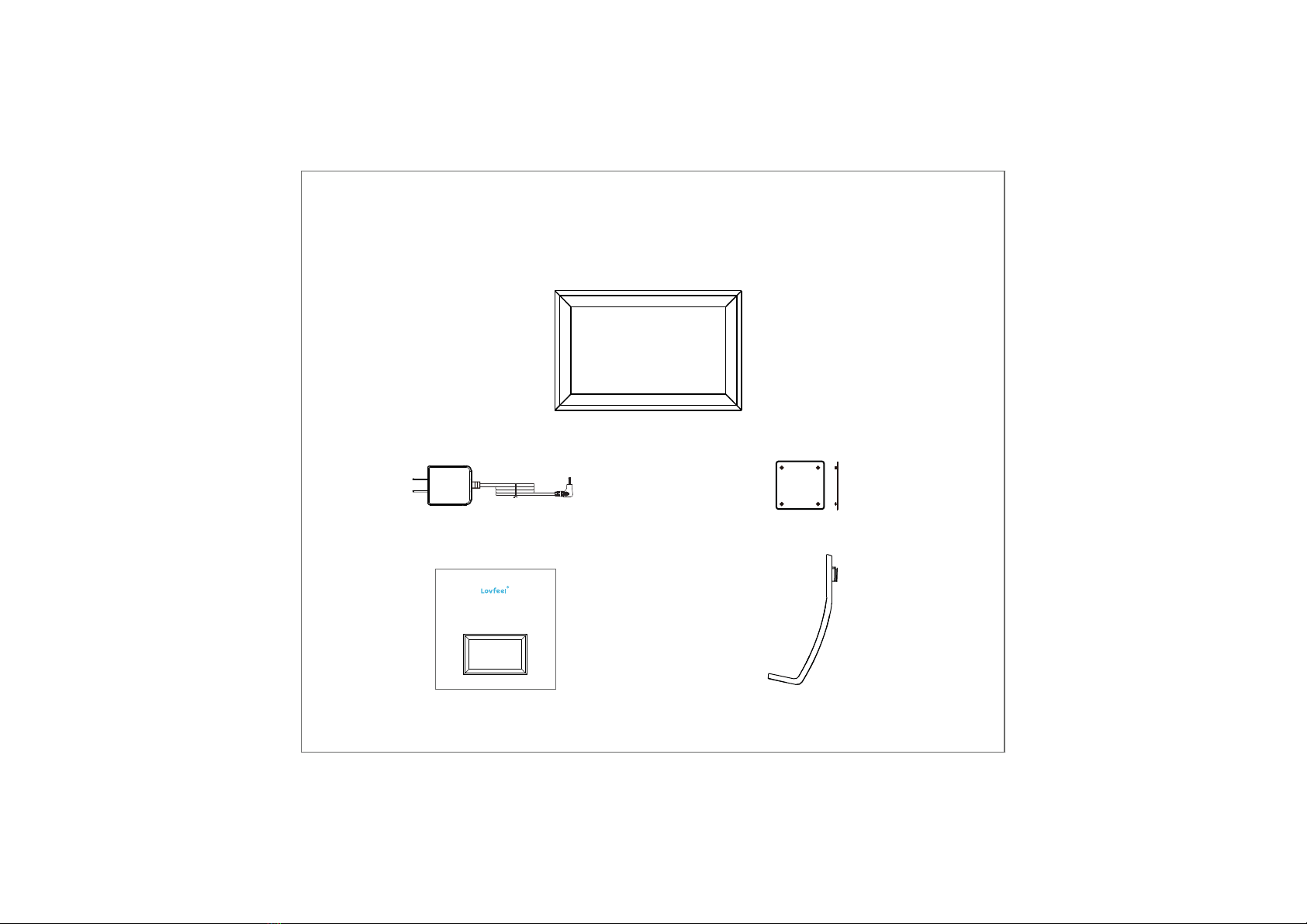

LOVFEEL Digital Picture Frame *1 pcs
Please check the accessories as soon as you receive the frame to make sure you have all of them.
Stand * 1pcs
Power Adaptor * 1pcs
User Manual * 1pcs
WHAT’S IN THE BOX
VESA Bracket * 1pcs
Model: F156
WI-FI Digial Photo Frame
USER MANUAL
4
1920*1080
2 PRODUCT SPECS
1 PRODUCT FEATURES
3 This photo frame supports SD cards up to 64GB, but only NTFS format, and SD cards of all
formats with less than 64GB memory.
GET TO KONW YOUR DIGITAL PICTURE FRAME
32
32
27
30
E
5
4 FRONT AND BACK SIDE OF FRAME
• Wi-Fi router with a 2.4GHz internet connection
• Android mobile device with OS 6.0 or higher, or Apple mobile device with iOS 10.0 or higher
This digital photo frame is NOT compatible with Linux or Windows phones.
3 SYSTEM REQUIREMENTS
NOTE:
Front of Frame
B
CD
E
F
Back of Frame
A
H
G
G
1920*1080
32
6
A: Power Button
Turns the digital frame on or puts it into standby. Long press around three seconds for turning on/off,
short press for standby.
C: Headphone/Speaker Port
Connect your headphones or speakers.
D: USB Port
Import photos to the digital photo frame from a USB drive (max 128GB).
B: SD/SDHC Card Slot
Import photos to the digital photo frame from a SD/SDHC card (max 128GB), of which 64G and 128G
only support NTFS format.
E: Mini USB port
For after-sales service only.
F: Power adapter DC input(12V)
Plug in the power adapter for power.
G: Loudspeakers
Built-in loudspeaker.
H: Removable bracket slot
Plug in the the bracket and slide up to lock into place.
5 WALL MOUNT YOUR FRAME
You have two ways to mount your frame on the wall.
1）Drill two screws on the wall, leave a 10mm gap between the wall and the head of screw. Mount the frame onto
the screws by wall mount hole and slide down to lock into place.
2）Prepare a VESA mount bracket. Lock the VESA mount bracket into the VESA holes on the back side of the frame.
Then you can hang the frame on the wall.
7
• High voltage product. Please do not open the casing of the digital photo frame. Servicing of the frame should
be done by qualified personnel only.
• To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
• To avoid permanent loss of data, do not insert or remove memory cards or USB devices when the frame is
powered on.
6 IMPORTANT SAFETY PRECAUTIONS
• Keep product away from open flames, such as candles.
• Keep the digital photo frame clean and never store it near a heat source or in dirty, humid, or wet places. Keep
it out of direct sunlight.
• Do not drop the product. It may result in damage to the product and loss of data.
• Do not attempt to repair or disassemble the unit by yourself. Only qualified service personnel should perform
repairs.
• Do not expose the product to liquids or objects filled with liquids, such as vases. Use in a dry location only.
7 SAFETY INSTRUCTIONS
NOTE:
A VESA mount bracket is included in our merchandise.
Wall Mount Holes *2
75*75mm
75*75mm
VESA Holes*4
8
• The digital photo frame is for indoor use only.
• Use only the DC 12V/1.5A power adaptor supplied with this product. Do not unplug the adaptor while viewing
the pictures.
• Always turn off the unit and remove the power adaptor from the electrical outlet before cleaning the unit.
• Use a soft dry cloth to clean this product.
• Never spray or pour liquids directly onto the screen or casing.
• Do not use abrasive materials or chemical cleaners such as alcohol, benzene, etc. Do not allow any water or
other liquid to enter the device.
• Do not drop the device as the devices cannot withstand shock from falls.
• Do not hit or scratch the screen. Handle it with care. The LCD panel of the photo frame may be damaged due
to excessive force or if it comes in contact with sharp objects.
8 CARE AND MAINTENANCE
• Do not block the ventilation holes on the back of the digital photo frame.
• Children should be supervised to ensure safety.
• Please insert the plug into the DC IN jack on the unit completely before connecting the AC adapter to an
electrical outlet.
• Do not use the product in extreme temperatures over 105° F (40° C).
• Do not allow metallic objects to touch the DC plug when the digital photo frame is on.
• To prevent overheating and damage to the screen, unplug the product when you do not intend to use it for a
long period of time.
