Lorex LZV2722 Manuel utilisateur

Instruction Manual

LZV2722 HD PTZ Camera

English / Français / Español

Instruction Manual

LZV2722 HD PTZ

Camera

#LX400025; r.30544/30780; en-US iii

Thank you for purchasing this product. Lorex is committed to providing our customers with a high

quality, reliable security solution.

This manual refers to the following models:

LZV2722

For the latest online manual, downloads and product updates, and to learn about our complete line of

accessory products, please visit our website at:

www.lorextechnology.com

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE

COVER. NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying

the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

UNIT TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF THE PLUG

TO THE WIDE SLOT AND FULLY INSERT.

#LX400025; r.30544/30780; en-US iv

Table of contents

1 Safety Instructions ............................................................................1

2 Features...........................................................................................2

3 Getting Started..................................................................................3

4 Connecting the Camera......................................................................4

5 Installation .......................................................................................5

5.1 Installation Tips and Warnings .....................................................5

5.2 Extension Cables......................................................................5

5.2.1 Connection Diagram for Extending the Cables Beyond

100ft (30m)...................................................................5

5.3 Installation (Indoor/Outdoor)........................................................6

6 Controlling the PTZ Camera with your DVR ......................................... 12

6.1 Controlling a PTZ Camera (Local DVR)........................................ 12

6.2 Advanced PTZ Controls ........................................................... 13

6.2.1 Presets ...................................................................... 14

6.2.2 Tours......................................................................... 14

6.2.3 Pattern....................................................................... 15

6.2.4 Auto Scan .................................................................. 15

7 Technical Specifications................................................................... 16

7.1 Dimensions ........................................................................... 16

8 Troubleshooting .............................................................................. 17

#LX400025; r.30544/30780; en-US v

Safety Instructions

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the camera within given temperature, humidity, and voltage levels noted in the

Technical Specifications.

• Camera is rated for outdoor use and is weatherproof when properly installed. Camera

is not intended for submersion in water. Installation under a sheltered environment is

recommended.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of intense light.

• Use only the supplied regulated power supply. Use of a non-regulated, non-conform-

ing power supply can damage this product and voids the warranty.

• Make sure to install the camera in a location that can support the camera weight. If

mounting the camera on a drywall surface, you must drill at least 2 of the mounting

screws through a wooden stud. See 5.3 Installation (Indoor/Outdoor), page 6 for com-

plete installation instructions.

• Make sure there are no live electrical cables in the area where you plan to mount the

camera.

• Periodic cleaning may be required. Use a damp cloth only. Do not use anything other

than water to clean the dome cover, as chemicals such as acetone can permanently

damage the plastic.

#LX400025; r.30544/30780; en-US 1

Features

• High definition 1080p 2MP Sony Exmor® image sensor.

• Powerful 12x optical zoom and 16x digital zoom to focus in on even the finest details.

• Full 360° continuous pan rotation for complete area coverage. Fast 300° per second

panning speed.

• Zoom lens for viewing small or distant objects with enhanced definition.

• Control PTZ camera movement and transmit video over a single coaxial cable.

• Program preset viewing points, patterns, scan cycles and tours when connected to a

DVR.

• Remote control of the PTZ camera using a smartphone or tablet when connected to a

DVR.

• Day/Night mode: picture automatically switches to B&W delivering better clarity in low

light conditions.

• ClearNight imaging for superior low light performance.2

• Infrared cut filter ensures accurate color representation.

• High definition video with outstanding detail, day or night.

• Weatherproof for outdoor & indoor installation (IP66 Rated).3

• Wall mount & 100ft extension cable included for installation flexibility.

NOTE

1. 1080p cameras are compatible with 1080p HD DVR recorders. 720p cameras are compatible with

720p & 1080p HD DVR recorders.

2. This camera features an ultra-low light sensitive image sensor and therefore does not feature Infra-

Red LEDs. The camera requires ambient lighting (for example, street/ building lighting, star or

moon light) to render a night time image. In total darkness (zero Lux), the camera will not produce a

night time image and therefore the camera should not be installed in completely dark areas.

3. Not intended for submersion in water. Installation in a sheltered location recommended.

#LX400025; r.30544/30780; en-US 2

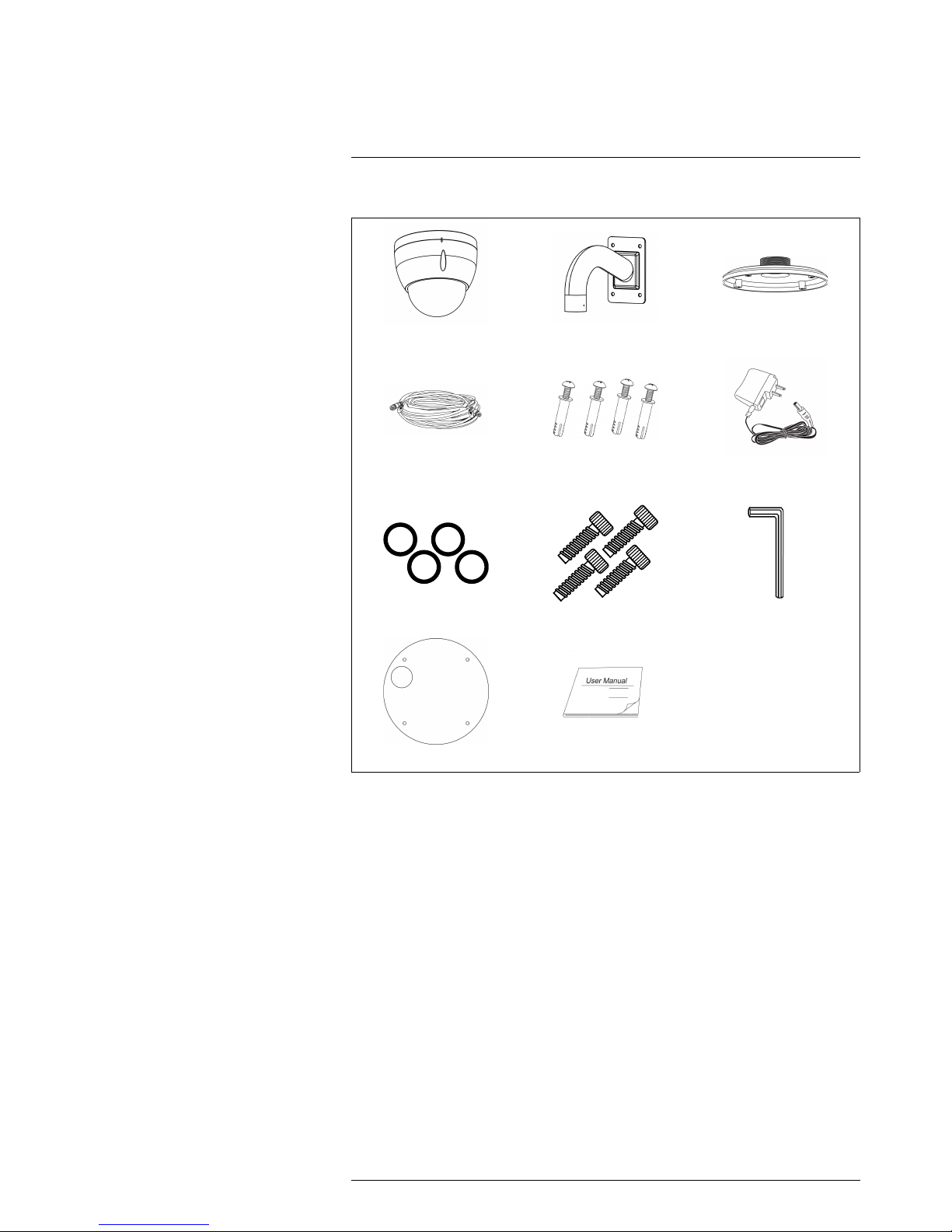

Getting Started

The system comes with the following components:

PTZ Camera Wall Mount Pendant Cap

100ft BNC / Power

Extension Cable

4x Mounting Screws

& Anchors Power Adapter

4x O-Rings 4x Allen Bolts Allen Key

Mounting Template Instruction Manual

#LX400025; r.30544/30780; en-US 3

Connecting the Camera

NOTE

• It is recommended to connect the camera to your DVR and test the PTZ controls before permanent

installation. For instructions on how to setup PTZ controls, see 6 Controlling the PTZ Camera with

your DVR, page 12.

• When you first power up the camera and connect it to the DVR, it may take up to 2 minutes for the

camera image to appear.

• The video signal can be extended up to 800ft (244m) with a single cable run. See 5.2 Extension Ca-

bles, page 5 for details.

1. Connect the BNC video connector on the camera cable to the included extension

cable.

2. Connect the female AC 24V power connector on the camera cable to the male power

connector on the included extension cable.

3. Connect the BNC cable on the extension cable to one of the Video Input ports on

the DVR. Make note of the port number where you connect the camera, as it will be

used when configuring the DVR to communicate with the camera.

4. Connect the power connector on the extension cable to the included power adapter.

Plug the power adapter into a power outlet.

CAUTION

• Make sure to disconnect the power adapter before installing the camera. The camera will begin

moving immediately when the power adapter is connected.

• Make sure to remove the foam ring inside the camera housing before powering the camera on

for the first time. See 5.3 Installation (Indoor/Outdoor), page 6 for details.

#LX400025; r.30544/30780; en-US 4
