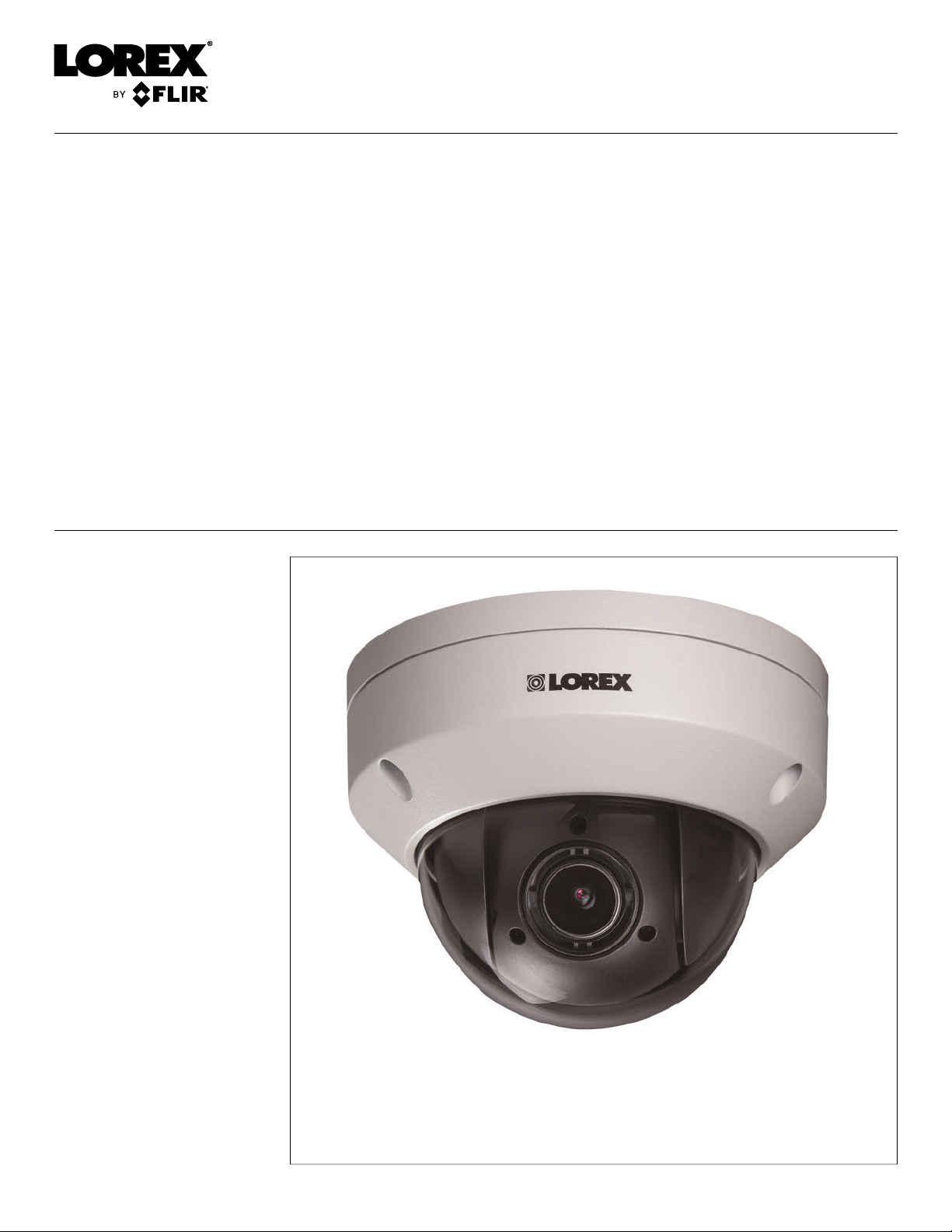

Lorex LNZ32P4 SERIES Manuel utilisateur

Instruction Manual

LNZ32P4 SERIES 4x IP PTZ

DOME CAMERA

LNZ32P4_SERIES_MANUAL_TRILINGUAL_R1

Thank you for purchasing this product. Lorex is committed to providing our customers with a high quality,

reliable security solution.

This manual refers to the following model:

LNZ32P4

For the latest online manual, downloads and product updates, and to learn about our complete line of

accessory products, please visit our website at:

www.lorextechnology.com

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE

COVER. NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying

the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT

TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF THE PLUG

TO THE WIDE SLOT AND FULLY INSERT.

#LX400075; r.34407/34407; en-US iv

Table of contents

1 Safety Instructions ..............................................................................1

2 Getting Started....................................................................................2

3 Connecting the Camera........................................................................3

3.1 OPTION 1: Connecting Cameras to an NVR .....................................3

3.2 OPTION 2: Connecting Cameras to the Local Area Network

(LAN).......................................................................................3

4 Installation .........................................................................................7

4.1 Installation Tips and Warnings .......................................................7

4.2 Installation (Indoor/Outdoor)..........................................................7

4.2.1 Wall Mounting .................................................................8

4.2.2 Ceiling Mounting ............................................................ 12

5 Controlling the PTZ Camera with an NVR.............................................. 13

5.1 Controlling a PTZ Camera (Local NVR) ......................................... 13

5.2 Advanced PTZ Controls ............................................................. 14

5.2.1 Presets ........................................................................ 15

5.2.2 Tours........................................................................... 16

5.2.3 Pattern......................................................................... 16

6 Technical Specifications..................................................................... 18

6.1 Dimensions ............................................................................. 19

7 Troubleshooting ................................................................................ 20

8 Resetting the Camera ........................................................................ 21

9 Notices.............................................................................................22

9.1 FCC/IC Notice.......................................................................... 22

9.2 Modification............................................................................. 22

9.3 ROHS .................................................................................... 22

#LX400075; r.34407/34407; en-US v

Safety Instructions

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the camera within given temperature, humidity, and voltage levels noted in the

Technical Specifications.

• Camera is rated for outdoor use and is weatherproof when properly installed. Camera

is not intended for submersion in water. Installation under a sheltered environment is

recommended.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of intense light.

• Use only the supplied regulated power supply. Use of a non-regulated, non-conforming

power supply can damage this product and voids the warranty.

• Make sure to install the camera in a location that can support the camera weight.

• Make sure there are no live electrical cables in the area where you plan to mount the

camera.

• Periodic cleaning may be required. Use a damp cloth only. Do not use anything other

than water to clean the dome cover, as chemicals such as acetone can permanently

damage the plastic.

#LX400075; r.34407/34407; en-US 1

Getting Started

The system comes with the following components:

IP PTZ Dome Camera

100ft (30.5m) Cat5e UL

Compliant Ethernet Extension

Cable

Allen Key (x2)

(One included in the mounting

hardware kit of the camera, and one

included in the mounting

hardware kit of the wall mounting

bracket)

Mounting Template

Mounting Screws (x3)

& Anchors (x3)

(For camera)

Wall Mounting Bracket

Mounting Screws ST4 (x4)

& Anchors S6 (x4)

(For wall mounting bracket)

Hex Bolt M4x10 (x3)

(For wall mounting bracket) Installation Diagram Guide

and Instructional Manual

#LX400075; r.34407/34407; en-US 2

Connecting the Camera

It is recommended to connect the camera to your NVR and test the PTZ controls before

permanent installation. For instructions on how to setup PTZ controls, see 5 Controlling

the PTZ Camera with an NVR.

3.1 OPTION 1: Connecting Cameras to an NVR

1. Connect the PoE connector on the camera cable to the included Ethernet extension

cable.

2. Connect the Ethernet extension cable to one of the PoE ports on the back panel of

your NVR.

NOTE

You can use a single CAT5e Ethernet cable up to 300ft (91m) to connect the camera to your NVR. Com-

patible with all Lorex HD NVRs, excluding the LNR200 & LNR300 Series. For the most up-to-date list of

compatible recorders, please visit www.lorextechnology.com/support

3.2 OPTION 2: Connecting Cameras to the Local Area Network (LAN)

For flexibility, you may also connect the camera to the same Local Area Network (LAN) as

the NVR. This is accomplished by connecting the camera to the same

router (not included) as the NVR. For these installations, an external

PoE switch (sold separately) or power adapter (not included) must be used to provide

power to the camera. You must also add the camera on the NVR before it will show a

picture on the monitor or be recorded by the NVR.

What is PoE?

PoE is a technology that allows Ethernet cables to carry electrical power to connected de-

vices. Compatible NVRs use integrated PoE ports to provide power and PTZ commands

to the camera, as well as video connection to the NVR over a single CAT5E cable. In order

to use PoE with this IP camera, you must connect it directly to a compatible NVR or a PoE

switch on the same network as the NVR.

For the most up-to-date list of compatible recorders,

please visit www.lorextechnology.com/support

PoE switches are available for purchase on www.lorextechnology.com.

Complete the following steps to connect the camera to the NVR over the LAN.

#LX400075; r.34407/34407; en-US 3

Connecting the Camera

Step 1 of 2 — OPTION A: Connecting the camera to your local network using an

optional PoE switch:

1. Connect an Ethernet cable of up to 300ft (91m) rated CAT5e or higher (not included)

from the LAN port on an external PoE switch (sold separately on

www.lorextechnology.com) to your router. Connect the power cable to the PoE switch

and plug into a power outlet or surge protector.

NOTE

Terminology may vary depending on the model of PoE switch you have.

2. Connect the camera to the PoE switch using the included Ethernet cable (or a CAT5e

Ethernet cable of up to 300ft (91m)). The PoE switch will provide power and video

transmission the same way as your NVR.

Step 1 of 2 — OPTION B: Connecting the camera to your local network using a

power adapter:

#LX400075; r.34407/34407; en-US 4

Connecting the Camera

1. Connect the camera to a power adapter (not included).

NOTE

For power requirement specification, see 6 Technical Specifications.

2. Connect the camera to a router in the same network as your NVR using the included

Ethernet cable (or an Ethernet cable of up to 300ft (91m) rated CAT5e or higher).

Step 2 of 2: Add the camera to your NVR:

CAUTION

The following instructions are based on the Lorex LNR400 Series NVR. See your NVR’s instruction man-

ual for instructions on controlling the PTZ camera with your system.

1. Right-click and select Device Search.

2. Log in using the admin account (default User Name: admin; default Password:

000000).

3. Click Device Search. The system searches the network for compatible cameras.

4. Check the camera(s) you would like to add.

#LX400075; r.34407/34407; en-US 5

Connecting the Camera

5. Click Add. The Status indicator turns green to show the camera is successfully

connected.

6. Click OK to save changes.

NOTE

You can also add a camera to a specific channel by hovering the mouse over an empty channel in split-

screen view and clicking . Click Device Search and double-click the camera you would like to add.

Right click to exit.

#LX400075; r.34407/34407; en-US 6

Installation

4.1 Installation Tips and Warnings

• Camera is rated for outdoor use. It is recommended to install the camera in a sheltered

area, such as under the eaves on a roof.

• Use the included wall mounting bracket for wall installation.

Otherwise, the camera image will be sideways. You can also refer to the included

installation diagram guide for wall mounting instructions.

• Camera is capable of seeing in low light conditions (0.1 Lux), but it cannot see in total

darkness.

NOTE

It is recommended to install the camera where there is some ambient light (for example, street lighting

or starlight, moonlight, etc.) or leave some lighting on in the area where the camera is installed.

• Mount the camera in a location that can support the camera weight.

• Mount the camera where the lens is away from direct and intense sunlight.

• Plan your cable wiring so that it does not interfere with power lines or telephone lines.

• Ensure you adhere to local building codes.

• Ensure that the camera wiring is not exposed or easily cut.

• Mount the camera in an area that is visible but out of reach.

NOTE

This camera is suitable for ceiling mounting. Wall mounting requires included wall mount.

4.2 Installation (Indoor/Outdoor)

The camera includes all necessary components for ceiling mounting and wall mounting.

For full instructions on each type of mounting, see 4.2.1 Wall Mounting or 4.2.2 Ceiling

Mounting.

Before installing the camera, decide whether to run the cables through the wall / ceiling

(drilling required) or along the wall / ceiling. If you run the cables along the wall / ceiling,

you must run the cable through the cable notch on the dome camera base. This will keep

the dome camera base flush to the ceiling when mounted.

#LX400075; r.34407/34407; en-US 7
