Lorex E893AB Series Manuel utilisateur

4K IP Smart Deterrence Bullet

Security Camera

Quick Start Guide

E893AB Series

lorex.com

Thanks for choosing the Lorex

4K IP Smart Deterrence Bullet Camera.

Here’s how to get started.

Welcome!

Contents

Package contents...........................................................................1

Dimensions.......................................................................................2

Safety precautions..........................................................................3

Disclaimers.......................................................................................4

Important installation guidelines.................................................5

1. Optimizing person and vehicle detection..........................6

2. Optimizing face and mask detection.................................7

Installing the camera......................................................................10

Connecting the camera.................................................................12

Using the RJ45 cable gland..........................................................14

Audio settings..................................................................................18

Using deterrence features.............................................................15

Troubleshooting..............................................................................19

Package contents

User-supplied tools

• 4K IP smart deterrence bullet security camera

• Mounting kit*

• Ethernet extension cable with pre-attached RJ45 cable gland*

• Drill (drill bit size ”)

• Philips screwdriver

*Per camera in multi-camera packs.

ATTENTION: It is recommended to connect the camera to the NVR or an external PoE switch.

If using a DC power adapter (not included) with the camera, a REGULATED power supply is REQUIRED

for use with this camera. Use of a non-regulated, non-conforming power supply can damage this

product and voids the warranty.

Dimensions

6.87” / 175mm

2.87”

73mm

2.76”

70mm

Safety precautions

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use and handling of the product.

• Use the camera only with compatible Lorex NVRs.

• Do not disassemble the camera.

• Use the camera within given temperature, humidity and voltage levels noted in the camera’s



• Do not point the camera directly towards the sun or a source of intense light.

• Install the camera where vandals cannot easily reach.

• Secure cabling so that it is not exposed or easily cut.

• This camera is rated for outdoor use. Installation in a sheltered location is recommended.

• Use only a regulated power supply with the product. Use of a non-regulated, non-conforming

power supply can damage the product and voids the warranty.

• Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh,

chemical-based cleaners.

• Check the packaging of the included cable to verify the cable grade based on the model number.

CBL605U: The supplied cable is rated for surface and in-wall mounting. CBL100C5: The supplied



sold separately (CMR type). These and other cables are available at lorex.com.

Disclaimers

• For a full list of compatible NVRs, visit lorex.com/compatibility.

• To ensure that you are viewing camera video in full 4K resolution (4K monitor required), check

the video output resolution of your NVR. For full instructions, see your NVR’s documentation at

lorex.com.

• Not intended for submersion in water. Installation in a sheltered location recommended.

• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between

Day/Night viewing modes, an audible clicking noise may be heard from the camera. This clicking



Important installation guidelines

The optimal installation location, including the height and angle of your camera, will depend on

the type of detection settings that you want to enable. Since the optimal angle for person and vehicle

detection is different from the optimal angle for face detection, you will need to select one approach.

1. Optimizing person and vehicle detection accuracy, see pg.6

2. Optimizing face and mask detection accuracy, see pg.7-9

Based on your detection preference choose between:

Note:

You cannot enable both face detection and person and vehicle detection at the same time.

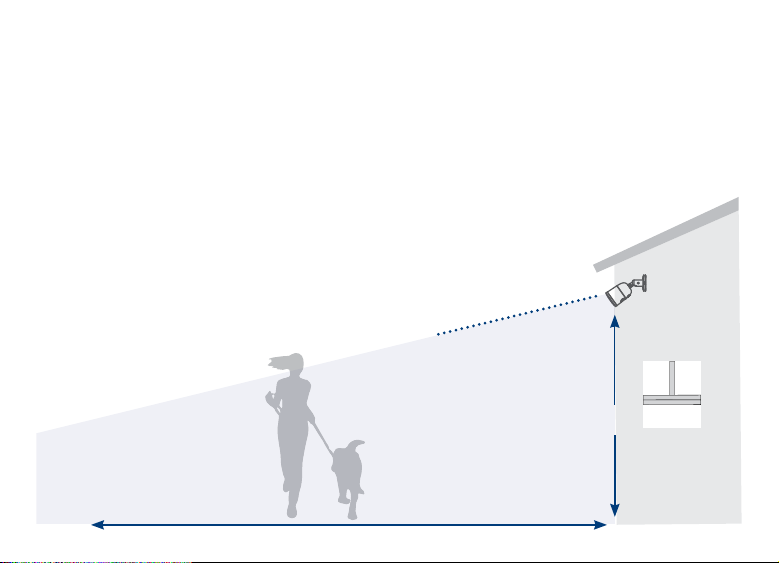

8-16ft

30-60° down

50ft

1. Optimizing person and vehicle detection accuracy

• Choose a location where objects of interest will be no further than 50ft (15m) from the camera.

• Install the camera between 8-16ft (2.5-5m) off the ground.

• Angle the camera between 30-60° down from the level position.

• Optimal accuracy for objects of interest appear in the bottom ⅔of the camera image.

• Point the camera where there is the least amount of obstructions (i.e. tree branches).



object’s distance from the camera, the size of the object, and

the height and angle of the camera. Night vision will also

impact the accuracy of detection.

Accuracy of person and vehicle detection
