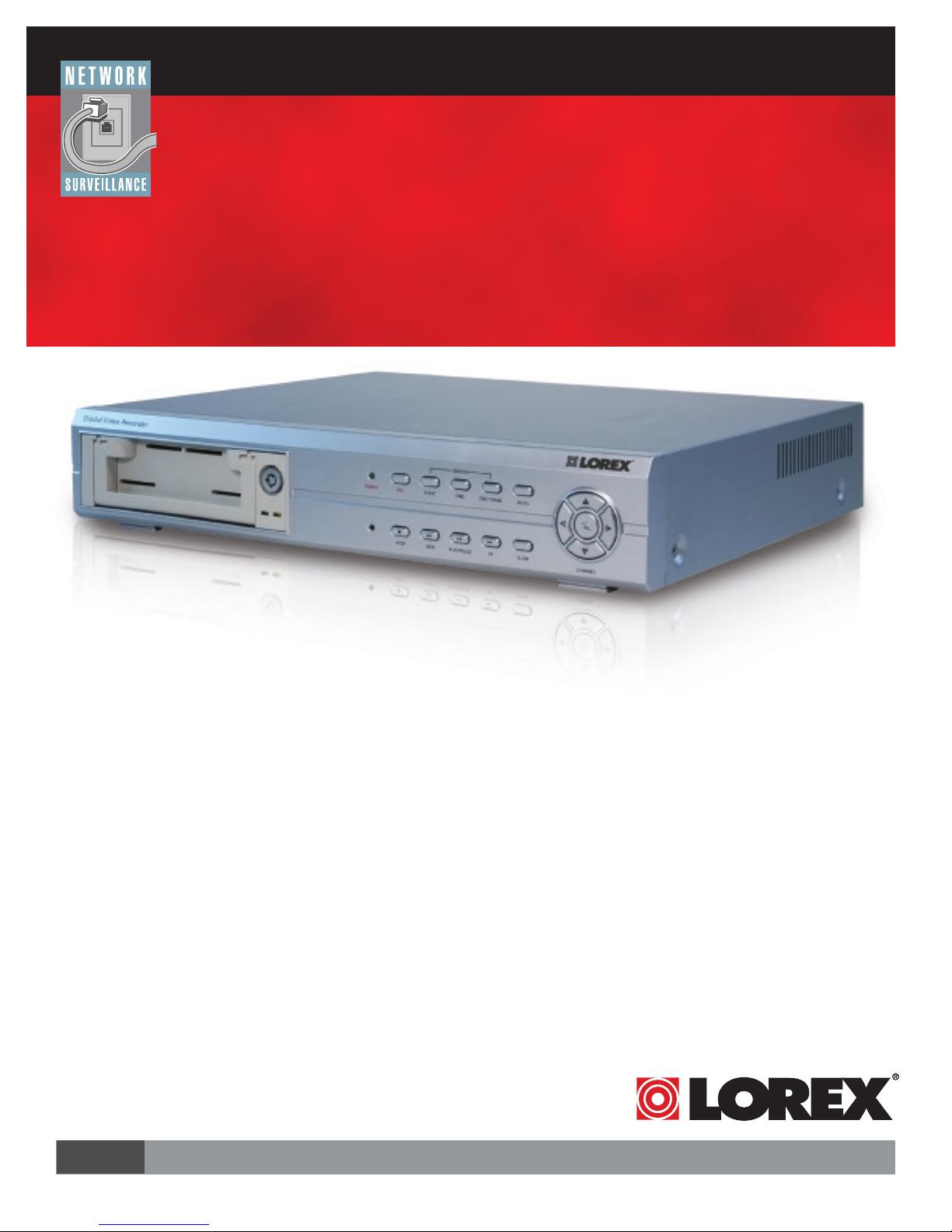

Lorex L284161 Manuel utilisateur

L284161 www.lorexcctv.com

The L284161 is a cost-effective,

networkable digital video solution with

an integrated 4 channel multiplexer.

It is quick and easy to install, making

it ideally suited for small to medium

size applications.

■

High quality recording using advanced MJPEG video compression

(5~20Kbyte/frame)

■

Supports 2 disk drives (1 internal/1 removable)

■

Remote Control or Main Panel operation

■

Password Security Protected

■

Multiple Viewing modes: Quad, Full Screen, Sequencing

■

Video motion detection supports 12 levels of sensitivity

■

Audio recording

■

Free DDNS Service Included for easy remote internet access

■

Motion detection triggered record function

■

Fast / slow forward and reverse searching function

■

Selectable Recording Modes: Event / Motion / Manual / Schedule

■

Selectable Playback Search Options: Event / Time / Last Recording

■

Video Quality settings: Normal / Low / High

HOME AND BUSINESS SECURITY

4 CHANNEL NETWORK

DIGITAL VIDEO RECORDER

WITH 160GB HARD DRIVE

300 Alden Road, Markham,

Ontario L3R 4C1

Canada

3700 Koppers Street, Suite 100

Baltimore, Maryland 21227,

USA

All trademarks are properties of their respective companies. Lorex Corporation

reserves the right to change models, configurations or specifications without

notice or liability. Product may not be exactly as shown.

LOREX TECHNOLOGY INC.

HOME AND BUSINESS SECURITY

4 CHANNEL NETWORK DIGITAL VIDEO RECORDER

WITH 160GB HARD DRIVE

OS Real Time OS (RTOS)

Video Input Composite Video (BNC x 4)

Video Output Composite Video (RCA x 1)

Audio Input 4 Inputs

Speaker Option

LAN TCP/IP (Option)

System Operation Remote Controller or Front Panel Operation

Screen Mode Quad Screen, Full Screen and

Auto-switching Mode

Recording Speed

NTSC 30 FPS (Quad Mode)/7.5 FPS (Each Mode)

Recording Resolution NTSC: 640 x 224

Compression Method Modified MJPEG

Image Size 12Kbytes LOW / 15Kbytes NORMAL

(Each Channel) 20Kbytes HIGH

6~16Kbytes @ 704 x 480

Recording Modes Continuous, Motion Detection and Scheduled

Recording Schedule Time [T], Sensor [S] or None [-]

Motion Detection Supports 12 Levels of Sensitivity

MS Windows Applicable WIN 2000, WIN XP

Storage Temp. and

Humidity -20~65 Deg. C / 20~80%RH

Operating Temp. and

Humidity 5~40 Deg. C / 20~80%RH

Power DC12V, 5A (Supported Adapter) Model #: L284161

Description: 4 Channel Network DVR

UPC: 7 78597 28416 4

Package 17” (W) x 15.75” (H) x 4.75” (D)

Dimensions: 432mm (W) x 400mm (H) x 120mm (D)

Package Weight: 8.6 LB / 4 kg

SPECIFICATIONS

RECORDING TIMES (IN HOURS)

PRODUCT INFORMATION

DIMENSIONS

368mm

(14.5”)

63.5mm

(2.5”)

FRONT VIEW

310mm

(12.2”)

63.5mm

(2.5”)

SIDE VIEW

FPS 30 15 7 5 1

Rec High 65 129 276 483 1951

Quality Normal 74 148 317 556 2222

Low 99 198 423 741 2963

HDD Type: 160 GB
