Lorex L16481 Manuel utilisateur

www.lorexcctv.com

L164-81 Page 1 Rev. 3

BUSINESS & HOME SECURITY

STEP 1

SETTING UP YOUR DIGTIAL VIDEO RECORDER (DVR)

Package Contents

1 - Digital Video Recorder (4 Channel)

1 - 80 GB Hard Disk Drive

1 - Remote Control

1 - Power Adapter

8 - RCA/ BNC Connectors

2 - Keys (for hard drive cartridge plus screws)

5 - RCA Cables

1 - Owner’s Manual

1 - Quick Installation Guide

*This set-up guide assumes you are connecting the DVR to a Lorex Observation System. Refer to your Observation System manual to learn how to set-up the observation monitor.

Consult your DVR’s owners manual for alternative DVR connection options.

1Connect the supplied

RCA/BNC connector

to the monitor’s CH1,

CH2, CH3, CH4 Video

Output

BACK OF A LOREX MONITOR

4Connect supplied

video cable from the

video OUT of the DVR

to the video VCR IN of

the monitor

DVR- Back Jack Panel

Monitor-

Back Jack Panel

Cameras

BNC VIDEO INPUT

RCA

INPUT

DIN

INPUT

BNC

OUTPUT

RCA

VIDEO

OUT

7Press the power

button to turn

ON the DVR

FRONT OF THE DVR

2Connect the supplied

RCA/BNC connector to

the DVR’s CH1, CH2,

CH3, CH4 Video

Output

BACK OF THE DVR

5Connect the DVR to

an electrical outlet

BACK OF THE DVR

FRONT OF A LOREX MONITOR

8Press the VCR button

to enable DVR

function (located at the

front of the Lorex moni-

tor)

3Connect the supplied

video cable from CH1

video input of the

DVR to the CH1 video

output of the monitor.

(Repeat this Step for Ch2,

Ch3, Ch4)

BACK OF THE DVR BACK OF A LOREX MONITOR

6Turn the Master power

switch ON (located at the

back of the DVR)

BACK OF THE DVR

Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to modify product design, speciﬁcations and prices, without notice and without incurring any obligation. E&OE © 2006 LOREX. All rights reserved.

www.lorexcctv.com

L164-81 Page 2 Rev. 3

BUSINESS & HOME SECURITY

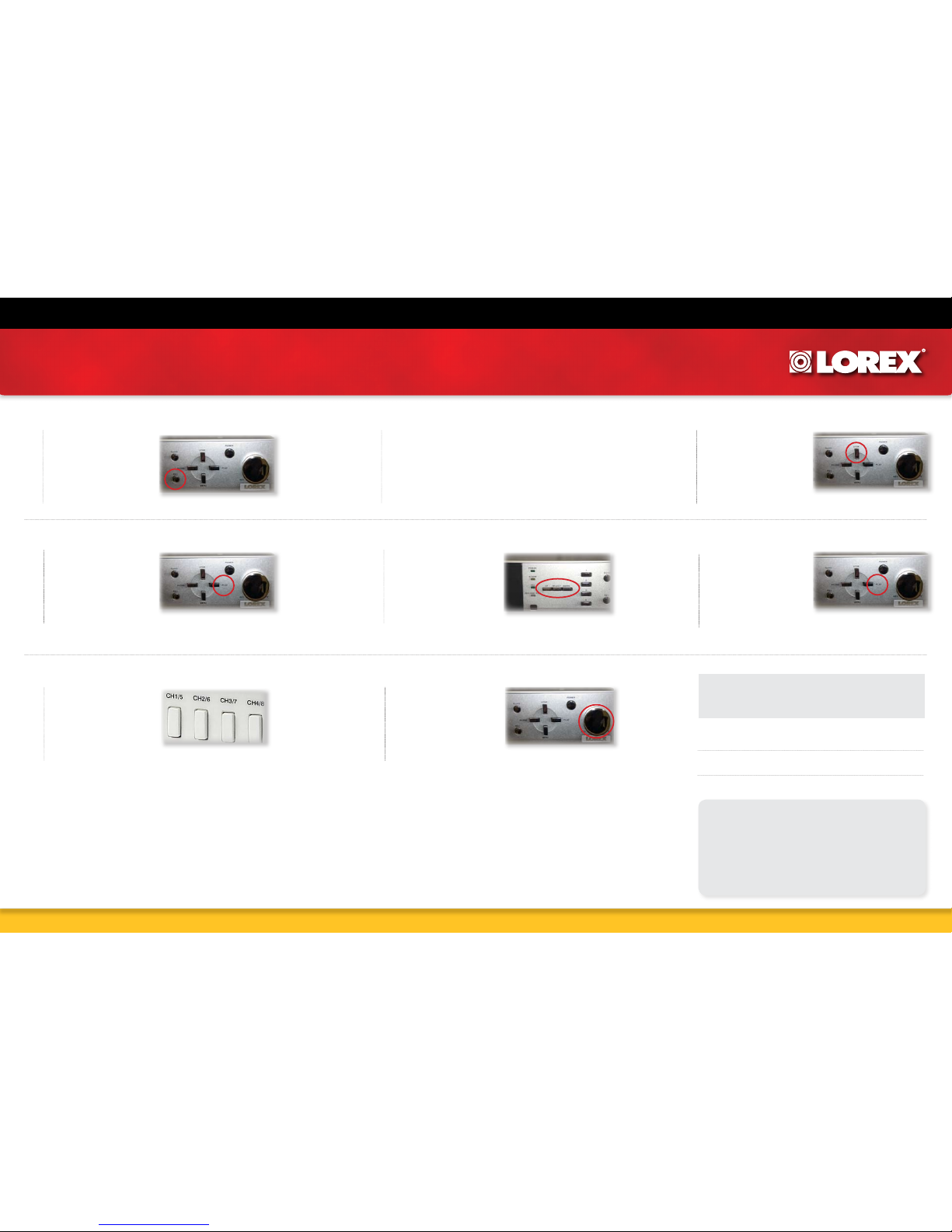

STEP 2

RECORDING AND REVIEWING SAVED IMAGES

*For advanced features in recording, playback options and search functions, refer to the DVR’s owner’s manual.

1Press the record

button on the

DVR

FRONT OF THE DVR

3Press the Stop

button on the

DVR

FRONT OF THE DVR

5Using the UP/Down

button, move the

pointer to manual

REC Event, next

press the select

button

FRONT OF THE DVR

7Select the

camera button

on the monitor to

display the images

in full screen

FRONT OF THE LOREX MONITOR

2Record the image

for 1-2 minutes

(ideally someone

should be moving in

front of the camera) 

4Press the Play

button to enter

the ‘Search’ menu

FRONT OF THE DVR

6Press the

Play button

to view the

recorded


FRONT OF THE DVR

8Turn the DVR’s

Shuttle button

Left/Right to

Rewind/Pause/

Fast Forward the

recorded event

FRONT OF THE DVR

It’s all on the web













Product Information

User Manuals

Quick Start Guides

Speciﬁcation Sheets

Software Updates

Firmware Upgrades

FOR ADDITIONAL INFORMATION OR TROUBLESHOOTING HELP, REFER

TO YOUR OWNERS MANUAL FOR ASSISTANCE. YOU CAN ALSO CALL OR

EMAIL FOR FURTHER SUPPORT.

TOLL FREE TECHNICAL SUPPORT: 1-888-42 LOREX (1-888-425-6739)

EMAIL SUPPORT: [email protected]

WEBSITE: WWW.LOREXCCTV.COM
