Lorex B451AJD-E Manuel utilisateur
2K QHD Video Doorbell
Quick Start Guide
B451AJ Series
lorex.com
EN
B451AJ_QSG_EN_R1.indd 1B451AJ_QSG_EN_R1.indd 1 2020-11-03 11:42:25 AM2020-11-03 11:42:25 AM
Thanks for your purchase of the
2K Video Doorbell. Here’s how to
get started.
Welcome!
B451AJ_QSG_EN_R1.indd 2B451AJ_QSG_EN_R1.indd 2 2020-11-03 11:42:25 AM2020-11-03 11:42:25 AM
Contents
Package contents
Section
Overview
Secure the mounting bracket(s)
Status indicator
Connect to the app
Preparation
Wiring the chime
Wiring the doorbell
Connect the doorbell
Lorex Home app overview
Troubleshooting
Frequently asked questions
1
2
3
4
5
6
7
8
9
10
11
12
B451AJ_QSG_EN_R1.indd 3B451AJ_QSG_EN_R1.indd 3 2020-11-03 11:42:25 AM2020-11-03 11:42:25 AM

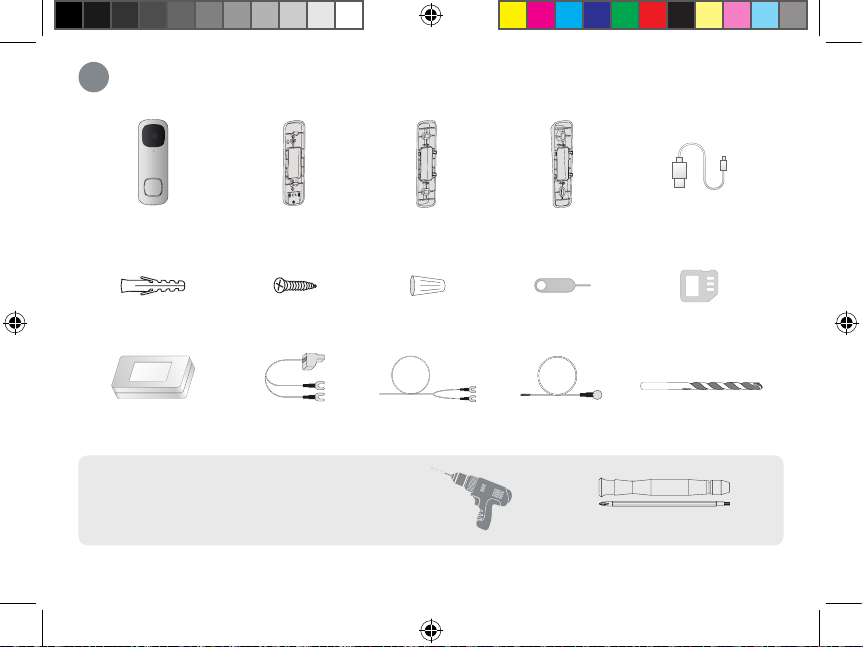

Package contents
User-supplied Tools
Video doorbell
Anchors (x2)
Chime Kit
* See product packaging for conguration details.
Mounting
bracket
Screws (x2)
Wire harness
Horizontal
bracket 15°
Vertical
bracket 5°
USB cable
Wire caps (x3) Pin microSD card
(pre-inserted)*
Extra wires (x2)Backup cable
Drill
15/64” Drill bit
Screwdriver
1
B451AJ_QSG_EN_R1.indd 4B451AJ_QSG_EN_R1.indd 4 2020-11-03 11:42:34 AM2020-11-03 11:42:34 AM
Overview
Front Panel Back Panel
2
Reset hole
Micro-USB port
microSD card slot
Power ports
Bottom View
Camera
Microphone
Call button
Status indicator
Speaker
Warning / night light
B451AJ_QSG_EN_R1.indd 5B451AJ_QSG_EN_R1.indd 5 2020-11-03 11:42:37 AM2020-11-03 11:42:37 AM
Status indicator
3
Solid green
The video doorbell
is operating
correctly.
Solid blue
The video doorbell
is powering on or
the video doorbell
is restarting.
Solid red
The video doorbell
is resetting to
factory default.
Flashing blue
slowly
The video doorbell
is ready to connect.
Flashing blue
rapidly
The video doorbell
has detected
motion.
Flashing blue, red,
and green
A rmware update
is in progress.
Flashing red
The video doorbell
failed to connect to
the network.
Spinning red
The video doorbell
is connected to the
network, but unable to
access the internet.
Flashing green
The talking function
on the video
doorbell is in use.
Spinning green
The calling function
on the video
doorbell is in use.
B451AJ_QSG_EN_R1.indd 6B451AJ_QSG_EN_R1.indd 6 2020-11-03 11:42:37 AM2020-11-03 11:42:37 AM
Connect to the app
4
1. If you already have the app, skip this step. Scan the QR code on the right using your
mobile device’s camera. Install the free Lorex Home app from the App Store™ or
Google Play Store™.
2. Tap the Lorex Home icon to launch the app.
3. If you already have an account, skip this step. Tap Sign up, then follow the on
screen prompts to create an account. Record your account details below:
Connect to the Lorex Home app to access the doorbell’s installation videos.
Email:
Account Password:
4. Tap on the icon on the top right of the screen to add a device.
Note: If your mobile device cannot scan the QR code, tap Manually enter Device ID.
5. Scan the device QR code found in the box or on the back of the doorbell.
6. Follow the in-app instructions to complete the installation OR refer to sections 5 through 9 in
this Quick Start Guide for a written description of the installation steps.
+
Scan QR code for
Lorex Home app
B451AJ_QSG_EN_R1.indd 7B451AJ_QSG_EN_R1.indd 7 2020-11-03 11:42:39 AM2020-11-03 11:42:39 AM
Preparation
5
Step 1
Step 2
To prepare for installation:
Before beginning setup, there are some essential preparations to make.
TURN OFF THE POWER RUNNING TO
YOUR EXISTING DOORBELL AND CHIME
BOX AT THE BREAKER (See Figure 1).
Test that power has been disconnected for
both the doorbell and chime box power by
pressing the doorbell. There should be no
chime sound.
Always be careful when handling electrical
wiring. If you’re not comfortable doing it
yourself, then consult a licensed electrician.
Remove your existing doorbell and
disconnect wiring (see Figure 2). Make sure
to bend the power cables so they do not fall
through the hole in the wall.
IMPORTANT: 16-24 VAC is required. If your house does not have this voltage, you will
need a 16-24 VAC doorbell transformer or you can consult with a licensed electrician.
Figure 1
Figure 2
B451AJ_QSG_EN_R1.indd 8B451AJ_QSG_EN_R1.indd 8 2020-11-03 11:42:43 AM2020-11-03 11:42:43 AM
Wiring the chime
6
You must determine the type of doorbell chime you have in your home: electronic or mechanical.
Not sure? If your doorbell chime is a classic *ding-dong* sound, chances are your chime is mechanical.
If your doorbell sounds more like a melody, then your chime is electronic. If you are still not sure, remove
the cover panel of your chime box - if you nd springloaded levers and a physical metal chime, you have a
mechanical chime.
For users with a mechanical chime, follow the extra step below to complete the installation.
1. Remove the cover panel of your doorbell
chime box.
2. Loosen the screws labeled FRONT and
TRANS using a Philips head screwdriver. Do
not remove the screws, and be sure to detach
any connected wiring (see Figure 1).
3. Connect the included chime kit to the green
terminal on the end of the included wire
harness (see Figure 2).
For mechanical chime owners:
Figure 1
Figure 2
B451AJ_QSG_EN_R1.indd 9B451AJ_QSG_EN_R1.indd 9 2020-11-03 11:42:46 AM2020-11-03 11:42:46 AM
Note: You may connect either
wire to either connector.
4. Connect the wiring from the chime kit to
the FRONT and TRANS connectors in
the chime box. Ensure that the existing
wiring stays connected as well (see
Figure 3).
5. Mount the chime kit to the inside of your
chime box, or along the cover plate of the
chime box, using the included
double-sided tape (see Figure 4).
IMPORTANT: Use the included
double-sided tape to ensure the chime kit
and wires are not touching the chimes
or any moving components inside the
chime box, or the doorbell chime will not
sound correctly.
Figure 3
Figure 4
Chime kit
B451AJ_QSG_EN_R1.indd 10B451AJ_QSG_EN_R1.indd 10 2020-11-03 11:42:48 AM2020-11-03 11:42:48 AM
