Loop Telecom Loop-W8110-BG-500-EANT Manuel utilisateur

Loop-W8110-BG-500-EANT

2.4 GHz 802.11b/g

Outdoor Access Point

Repeater - Bridge

Professional Turbo Speed - 108 Mbps

USER’S MANUAL

LOOP TELECOMMUNICATION INTERNATIONAL, INC.

8F, NO. 8, HSIN ANN RD.

SCIENCE-BASED INDUSTRIAL PARK

HSINCHU, TAIWAN

Tel: +886-3-578-7696

Fax: +886-3-578-7695

Version 5 05 FEB 2010

TABLE OF CONTENTS

PRODUCT DESCRIPTION ..................................................................................................1

1.1

Description ..............................................................................................................1

1.2

Features..................................................................................................................2

INSTALLATION...................................................................................................................3

2.1

Component List .......................................................................................................3

2.2

System Requirements for Configuration...................................................................3

CONNECTION.....................................................................................................................4

QUICK SETUP GUIDE.........................................................................................................5

4.1

Setup Guide ............................................................................................................5

4.2

Mounting Guide .......................................................................................................7

BASIC IP NETWORKING ....................................................................................................8

5.1

IP = Internet Protocol...............................................................................................8

5.2

Ports........................................................................................................................8

5.3

Static IP Address .....................................................................................................8

5.4

Dynamic IP Address ................................................................................................8

5.5

DHCP (Dynamic Host Configuration Protocol)..........................................................8

5.6

Wireless LAN Basics................................................................................................8

5.7

SSID........................................................................................................................9

5.8

Encryption ...............................................................................................................9

5.9

Channel...................................................................................................................9

5.10

Signal Strength........................................................................................................9

5.11

Interference .............................................................................................................9

5.12

Roaming................................................................................................................10

GETTING STARTED..........................................................................................................11

CONFIGURATION MENU..................................................................................................12

7.1

Administration........................................................................................................13

7.2

Site Survey............................................................................................................14

7.3

IP Configuration.....................................................................................................14

7.4

Operation Mode.....................................................................................................15

7.5

Statistics................................................................................................................17

7.6

Radio Setting.........................................................................................................18

7.7

Security Setting .....................................................................................................20

7.7.1

WEP Security ........................................................................................................20

7.7.2

WPA-PSK Security ................................................................................................21

7.7.3

WPA Security ........................................................................................................22

7.7.4

WPA2_PSK Security..............................................................................................23

7.7.5

WPA2 Security ......................................................................................................23

7.8

MAC Addr Control..................................................................................................25

7.9

Protocol Filter ........................................................................................................26

7.10

SNMP Configuration..............................................................................................27

7.11

Miscellaneous........................................................................................................28

7.12

QoS Setting...........................................................................................................29

7.13

System Log ...........................................................................................................29

7.14

System Status .......................................................................................................30

7.15

Association Status .................................................................................................30

7.16

Super User ............................................................................................................31

7.17

Firmware Upgrade.................................................................................................32

7.18

Firmware Version...................................................................................................33

7.19

License Key...........................................................................................................33

VIPER QUICK START INSTALLATION.............................................................................34

8.1

Introduction............................................................................................................34

8.2

PC Requirements ..................................................................................................34

8.3

Installation.............................................................................................................35

VIPER QUICK START USER GUIDE.................................................................................38

9.1

Viper QuickStart Icon.............................................................................................38

9.2

Parameters Display in Utility ..................................................................................38

9.3

Username and Password of Utility..........................................................................39

9.3.1

Making Changes....................................................................................................39

9.3.2

Updating Changes.................................................................................................39

9.4

Pinging the Device.................................................................................................40

DISCLAIMER.....................................................................................................................41

LIST OF FIGURES

Figure 1-1 W8110-BG-500 .........................................................................................................1

Figure 2-1 Contents of Package.................................................................................................3

Figure 3-1 Network Connection..................................................................................................4

iii

D Bitte führen Sie das Gerät am Ende seinerLewbensdauer den zue Verfügung

stehended Rückgabeund Sammelsystemen zu.

GB At the end of the product's useful life, please dispose of it at appropriate collection

points provided in your country

F Une fois le produit en fin devie, veuillez le déposer dans un point de recyclage

approprié.

ES Para preservar el medio ambiente, al final dela vida útil de su producto, depositelo

en los laguares destinado aello de acuerdo con la legislación vigente.

P No final de vida útil do producto, por favor coloque no ponto de recolha

apropriado.

I Onde tutelare l'ambiente, non buttate l'apparecchio trai i normali rifiuti al termine

della sua vita utile, ma portatelo presso i punti do taccolta specifici per questi rifiuti

previsti dalla normativa vigente.

NL Wij raden u aan het apparant aan het einde van zijn nuttige levensduur, niet bij hey

gewone huisafval te deponeren, maar op de dearvoor bestemde adressen.

DK Når produktet er udtjent, bor det børtskaffes via de sæ rlige indsamlingssteder i

landet.

N Ved slutten av produktets levetid bør det avhendes på en kommunal miljøstasjon

eller leveres til en elektroforhandler.

S Lämna vänligen in produkten på lämplig återvinningsstation när den är förbrukad.

FIN Hävitä tuote käytöiän päättyessä viemällä se asianmukaiseen keräyspisteeseen.

PL Gdy produkt nie nadaje sie juz do dalszego uzytku, nalezy zostawic go w jednym ze

specjalnych punktów zajmujacych sie zbiórka zuzytych producktów w wybranych

miejscach na terenie kraju.

CZ Po skončení jeho životnosti odložte prosím výrobek na přislušném sbĕrném místé

zřízeném dle předpisůve vaší zemi.

SK Po skončení jeho životnosti odovzdajte prosím zariadenie na príslušnom zbernom

mieste podía platných miestnych predpisov a noriem.

SLO Ko se izdelku izteče življenska doba, ga odnesite na ustrezno zbirno mesto oziroma

ga odvrzite v skladu z veljavnimi predpisi.

GR Σ τ ο Тέ λ ο ς тη ς λ ε ι τ ο υ ρ γ ι κ ή ς Ζ ω ή ς τ ο υ π ρ ο ϊ ό ν τ ο ς π α ρ α κ α λ ώ

Π ε τ ξ τ ε τ ο σ τ α ε ι ι κ ά σ η µ ε ί α π ο υ Π α ρ έ χ ο ν τ α ι ο τ η χ ω ρ α σ α ς .

PRC ,

CHAPTER 1 PRODUCT DESCRIPTION

1 PRODUCT DESCRIPTION

1.1 Description

The product is based on the IEEE 802.11b/g standard, which is the latest 54Mbps Wireless

LAN (WLAN) standard. Having this wireless protocols in one product ensure that your

investments are protected, while enabling you to enjoy the fastest Wireless LAN speed.

This product model – W8110-BG-500 could operate as either one of the following modes:

a. Wireless LAN Access Point (AP) mode.

b. Wireless Ethernet Bridge mode.

c. Repeater mode.

Figure 1-1 W8110-BG-500

CHAPTER 1 PRODUCT DESCRIPTION

1.2 Features



Fully compatible with IEEE 802.11b/g WLAN standard



Utilize OFDM (Orthogonal Frequency Division Multiplexing)



Wireless data rate of up to 108Mbps.



Operates in the 2.4GHz license-free frequency band



Industrial grade IP67 Casing



Power over UTP cable DC supply



WEP (Wired Equivalent Privacy). A simple WLAN encryption standard to protect

wireless data from sniffers.



WPA (WiFi Protected Access), for AP mode only. An improved WLAN encryption

standard where the secret key renew automatically at regular intervals.

TKIP (Temporal Key Integrity Protocol). A new encryption key will be generated by

corporate RADIUS server when a authorized wireless adaptor/user associate with

the Access Point. This encryption key renew automatically at regular intervals. This

is normally used in high security enterprise networks.

Pre Shared Key (WPA-PSK). A new key is generated each time a wireless

adaptor connects to the Access Point. This normally used for home user without a

RADIUS server.

Remote AP list provides added security for AP mode.



Protocol Filters provides security to the network

IPX Filter

Wireless Isolation. Each wireless user would not be able to see each other even

though they are in the same subnet. This is to protect the privacy of each user.

Broadcast Filter

Multicast Filter



User-friendly web-based interface for managing and configuring the Access Point.



QoS features for multimedia support - voice, video and audio.

Important Note

1) The transmitter module may not be co-located with any other transmitter or antenna.

2) Caution : Antenna installation should be done by experienced antenna installer.

CHAPTER 2 INSTALLATION

2 INSTALLATION

2.1 Component List

•W8110-BG-500

•48V  combiner adaptor (PoE)

•Screws, washers, nuts, U-bolt

•Mounting bracket (wall or pole)

•1.5m power cord

•Dual band omni antenna

•N jack metal cover

•Waterproof RJ45 Adaptor

Figure 2-1 Contents of Package

Note: Standard package may vary with model type and country. Using a combiner adaptor

with a power rating other than the one included in the package will cause serious damage to

the Access Point and void the warranty for this product.

2.2 System Requirements for Configuration



Computers with Windows, Macintosh or Linux-based operating systems and with an

Ethernet adaptor



Internet Explorer version 5.5 and above or Netscape Navigator that supports Java

CHAPTER 3 CONNECTION

3 CONNECTION

Figure 3-1 Network Connection

Network

LAN+DC

LAN

CHAPTER 4 QUICK SETUP GUIDE

4 QUICK SETUP GUIDE

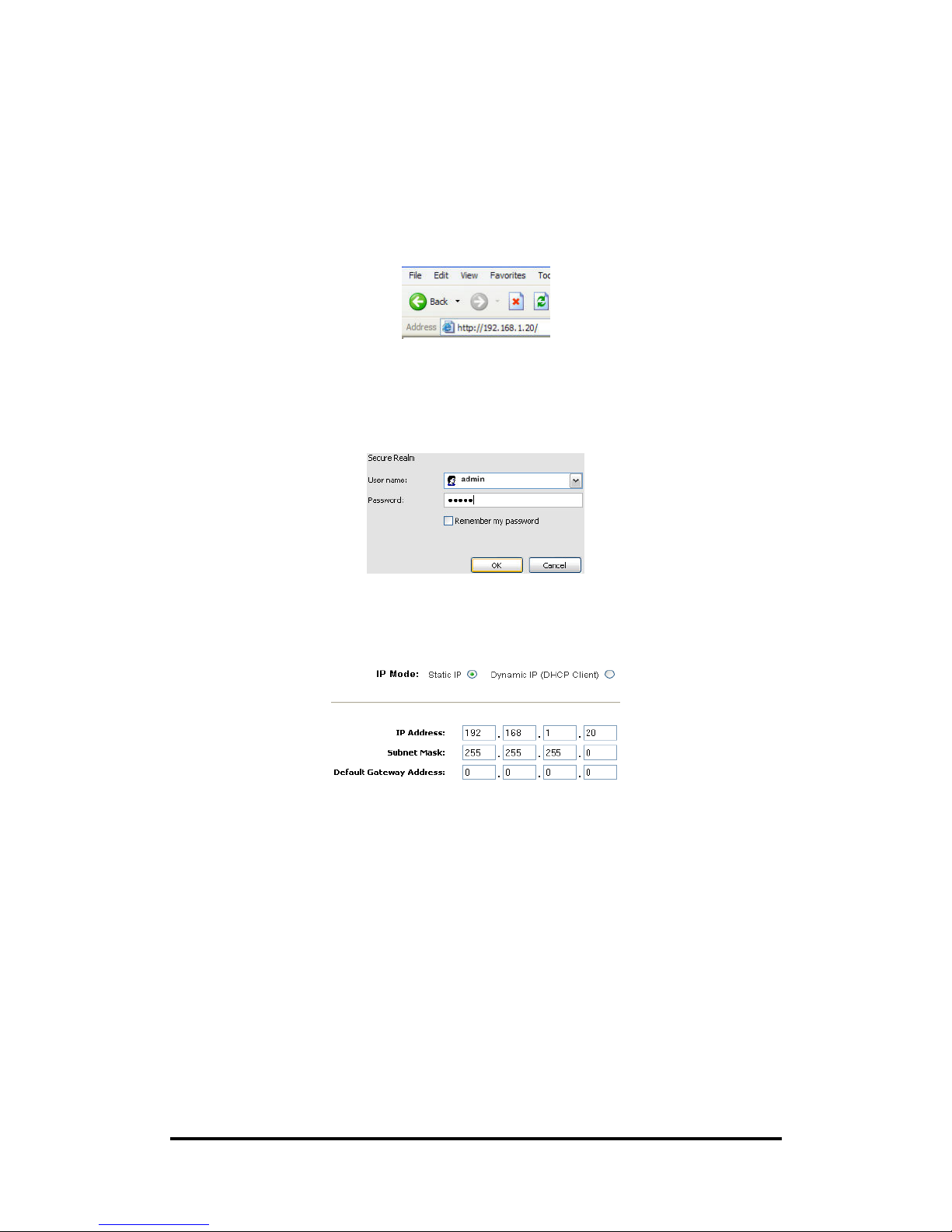

4.1 Setup Guide

Step 1: Set default LAN IP address

The default LAN IP address is 192.168.1.20

Step 2: Set password

The default login name is admin (in lower case letters), the default password is LOOP (in

upper case letters).

Step 3 : Configure the AP

Step 3.1 : Set IP configuration

This page allows you to choose the type of IP address

Table des matières

Autres manuels Loop Telecom Point d'accès sans fil

Loop Telecom

Loop Telecom Loop-O9500R Manuel utilisateur

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
