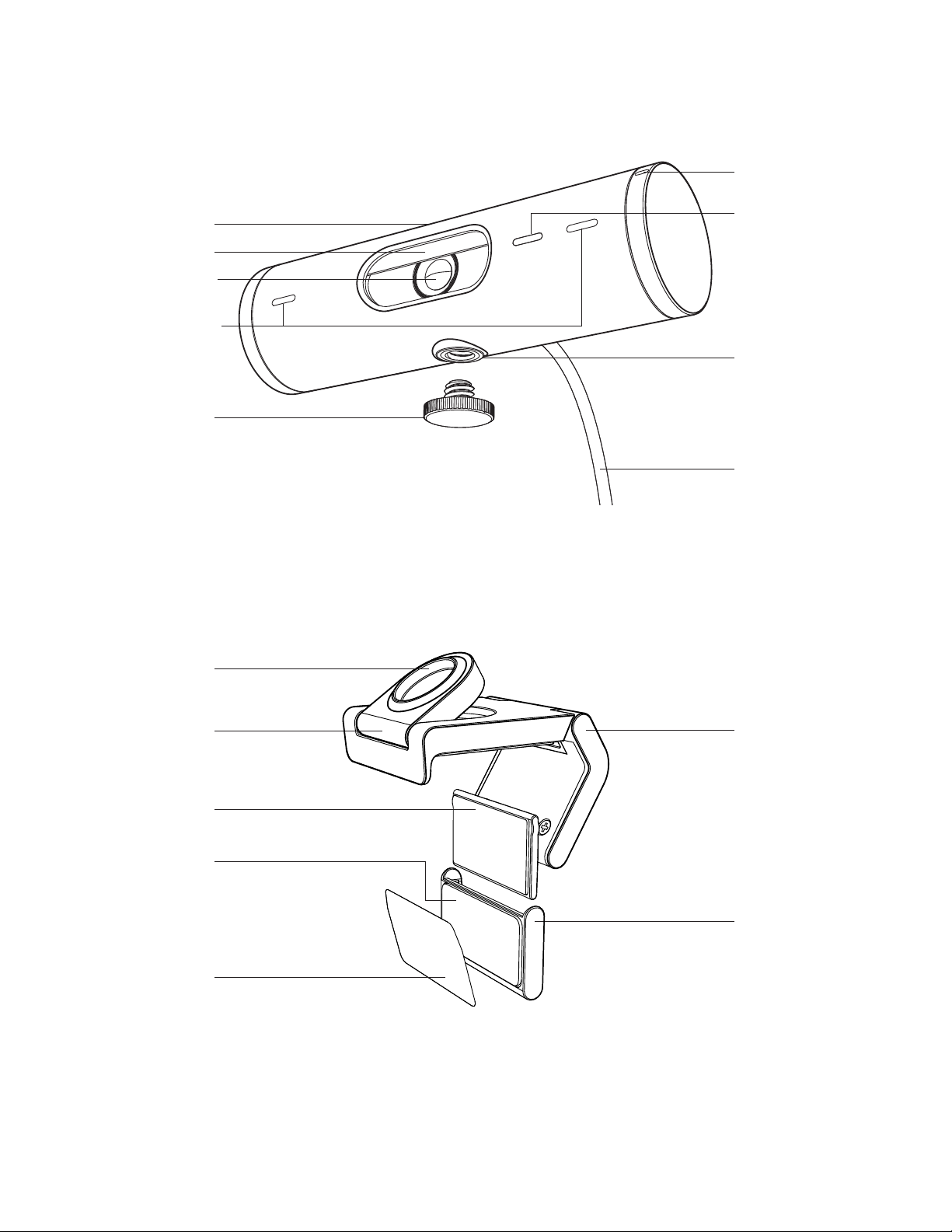

KNOW YOUR PRODUCT

BRIO 500 FRONT VIEW WITH

FUNCTION INDICATIONS

MOUNT DESIGN OVERVIEW

Privacy shutter dial

¼-20 adaptor for

3rd party mounts

Attached

USB-C cable

Rear adjustment

hinge for monitor

sizing

Removable mount

adaptor

LED activity light

Magnetic mount

receiver

Padded foot

Micro-suction pad

protective lm

(Remove before

setting up mount)

Tilt adjustment

hinge

Brio 500 webcam

Privacy shutter

Magnetic thread

mount screw

(Removable)

Ultrawide-angle

lens with 90° dFOV

Dual noise reduction

microphones

Micro-suction pad

Micro-suction pad allows the mount to

stay securely attached to your monitor. This

removable pad leaves no residue and can be

cleaned with water.

3English

STEP 1: WHAT’S IN THE BOX

1. Webcam with attached USB-C cable

2. Mount clip with removable

mountadaptor

3. User documentation

STEP 2: DETERMINE MOUNT PLACEMENT

Placement to allow one-handed camera

adjustments (using micro-suction pad)

1. Determine the best placement for

yourwebcam before continuing.

2. Wipe the back of your monitor to clear

any dust or dirt.

USB-C

3. Remove the protective lm from

themicro-suction pad.

4. Open the mount fully and place on top

of your monitor, being sure that the pad

of the front clip makes contact with the

front of the monitor.

5. Rotate the rear foot down until it makes

contact with the back of the monitor.

6. Press the micro-suction pad to the back

of your monitor rmly to create a good

bond.

Note:

– The mount adaptor can be removed and reused for

mounting adjustments without leaving residue.

– To clean the micro-suction pad, rinse with water

toremove debris, and let it air dry in order

toregain strong suction.

4English

STEP 4: ATTACH CAMERA TO THE MOUNT

Place the webcam into the magnet

attachmentpoint on top of the mount.

Listenforan audible click indicating the webcam

is properly seated on the mount.

(Optional) Placement without

themicro-suctionpad

Slide the removable mount adapter

downtoremove it from the webcam foot.

Adjustthe foot on the mounting clip until

itisush with the back of your device

andpressrmly in place.

STEP 3: MOUNT ADAPTOR REMOVAL

ANDCLEANING

1. Remove the webcam from mount and gently

peel the adaptor from one corner to remove.

2. With a wet nger gently rub the pad clear

ofdust and dirt and let the micro-suction pad

air dry completely before remounting (do not

use cloth or tissue to dry).

3. Repeat the monitor placement setup steps

tobest deploy your webcam.

5English

STEP 5: CONNECT THE WEBCAM VIA USBC

& GET STARTED

1. Plug the USB-C connector into the USB-C

port on your computer, monitor, laptop,

ordocking station.

STEP 6: SUCCESSFUL CONNECTION

LED activity light will light up when the webcam

isin use by any video application.

LED activity lights:

• Video ON/Audio ON: White

• Video ON/Audio OFF: White

• Video OFF/Audio ON: Yellow

• Video OFF/Audio OFF: No light

• Firmware Update: Breathing Lilac

2. Rotate the dial on the right side of the

webcam to open/close the privacy shutter.

3. Adjust the webcam by turning side to side

and tilting up and down to nd the best

framing for your video meetings.

6English

STEP 7: SHOW MODE

Easily show physical items in video calls by

tilting the camera down to present sketches,

objects, and work in progress. There are

twoways to use Show Mode:

1. If mount is secured with micro-suction

pad: Using one hand, tilt the camera

down to show your desktop, and tilt

backup to show yourself.

2. If mount is not secured with micro-suction

pad: Hold the mount still with one hand and tilt

the camera up or down with the other.

7English

STEP 8: LOGI TUNE

Logi Tune helps boost your webcam

performance with periodic software and

rmware updates.

It is recommended to update your webcam.

To do so, download Logi Tune from

www.logitech.com/tune

ADJUSTABLE OPTIONS

• Show Mode

• Auto-framing

• Zoom adjustment

• Field of View (90°/78°/65°)

• Image adjustment

• Auto-focus

• Disable mics

• LED on/o for video and audio

www.logitech.com/tune

Brio 500

CONNECTED

Show Mode

RightSight

Field of view 90°78°65°

Zoom

Image adjustments

Disable Show Mode

8English

STEP 9: OPTIONAL ATTACH TO A TRIPOD

For placement on a tripod (not included)

1. Rotate counterclockwise to remove

the mounting screw from the bottom of

the webcam.

2. Locate the ¼ inch tripod thread on

thebottom of the universal mounting clip.

3. Secure the webcam on your tripod

bytwisting it into the ¼ inch thread.

4. Repeat the monitor placement setup steps

to best deploy your webcam.

5. Please refer to step 5 and 6 to complete

your webcam setup.

9English

DIMENSIONS

WEBCAM:

Height x Width x Depth:

1.2 in (31.5 mm) x 4.3 in (110 mm) x 1.2 in (31.5 mm)

Height x Width x Depth (incl. mount clip):

2 in (51.5 mm) x 4.3 in (110 mm) x 1.8 in (45 mm)

Weight: 4.2 oz (121 g), incl. mount clip & cable

Attached Cable length: 5 ft (1.5 m)

MOUNTING CLIP:

Height x Width x Depth:

1 in (25 mm) x 1.8 in (45.8 mm) x 2.6 in (65.1 mm)

Weight: 1.4 oz (40 g), incl. Removable mount adapter

of Logitech Europe S.A. and/or its aliates in the U.S. and other countries. The Bluetooth®word

mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such

marks byLogitech is under license. USB-C is a registered trademark of USB Implementers Forum.

Allothertrademarks are the property of their respective owners. Logitech assumes no responsibility

for any errors that may appear in this manual. Information contained herein is subject to change

without notice.

www.logitech.com/support/Brio500
