English 3

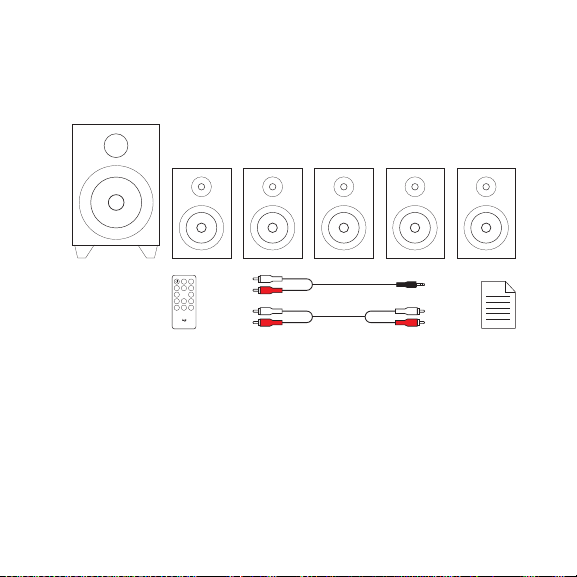

WHAT’S IN THE BOX

1. Subwoofer with xed power cable

and FM Radio Antenna

2. Five satellites - 2 front satellites,

2 rear satellites, 1 center satellite

3. Remote control with button cell battery

4. Three RCA to RCA cables

5. One 3.5mm to RCA cable

6. User documentation

4English

AUX DVD (5.1CH)

F.R

R.R

SUB

F.L

R.L

CEN

FRONT

RIGHT

FRONT

LEFT

REAR

RIGHT

REAR

LEFT

CENTER

INPUT

OUTPUT

SPEAKER TERMINALS

– +

AUX DVD (5.1CH)

F.R

R.R

SUB

F.L

R.L

CEN

FRONT

RIGHT

FRONT

LEFT

REAR

RIGHT

REAR

LEFT

CENTER

INPUT

OUTPUT

SPEAKER TERMINALS

– +

1. Connect each satellite to its corresponding

plug on the subwoofer back panel.

2. Plug power cord in AC power outlet.

3. Turn on the system from the subwoofer

back panel switch.

5.1 SYSTEM SETUP

English 5

110˚

30˚

OPTIMAL 5.1 SURROUND SOUND SPEAKER PLACEMENT

1. For optimal sound place each

front speaker 30 degrees

from the center point.

2. For optimal sound place

eachrear speaker 120 degrees

from center point.

6English

/SCAN/

1. Standby

2. Sound

3. Decrease volume

4. Previous

5. Play/Pause/Scan/

Bluetooth®Pairing

6. Source

7. Increase volume

8. Next

CONTROLS ON SUBWOOFER

English 7

CONTROLS ON SUBWOOFER

1. Standby:

Activates/Deactivates standby mode (the system automatically

goes into standby mode after 20 min if there is no audio input

signal, if the input signal is paused or if it is at 1kHz volume level).

2. Sound:

Switches between 5.1 and 2.1 channels

(only if input supports 5.1 channels)

3. Decrease the volume level:

4. Previous:

a. USB/SD mode:

i. Short press to select previous song.

ii. Long press to select previous folder.

b. FM mode:

i. Short press to select previous station.

ii. Long press to select previous automatically stored channel/station.

c. Bluetooth mode: short press to select previous song

8English

5. Play/Pause/Scan/Bluetooth Pairing:

a. USB/SD Mode: Short press to play/pause music.

b. FM mode:

i. Short press to start auto search, second short press to select a station.

ii. All active frequencies are stored automatically in dierent channels.

c. Bluetooth mode:

i. Short press to play/pause music.

ii. Long press will start bluetooth pairing mode, LED will quickly blink ‘bt’

onthe display.

6. Source:

a. Switch between Bluetooth, AUX, DVD, USB/SD and FM mode.

LED display on subwoofer panel will indicate related source

mode.

7. Increase the volume level:

8. Next:

a. USB/SD mode:

i. Short press to select next song.

ii. Long press to select next folder.

b. FM mode:

i. Short press to select next station.

ii. Long press to select next saved channel/station.

c. Bluetooth mode: short press to select next song.

English 9

LOCAL AUDIO SOURCES

1. SD card slot 2. USB drive slot

i. To play audio fully insert SD card into

SD card slot and select SD/USB source

from either remote control or controls

on the subwoofer.

ii. To remove SD card simply pull it out

of the slot.

iii. Z607 supports up to 32GB SDHC

cards with the following audio

leformats: MP3, WMA, WAV,

APE,FLAC.

SD card not included

i. To play audio insert USB drive into

USB slot and select SD/USB source

from either remote control or controls

on the subwoofer.

ii. To remove USB drive simply pull it out

of the slot.

iii. Z607 supports up to 32GB USBdrives

formatted FAT16 or FAT32 with

thefollowing audio le formats:

MP3,WMA, WAV, APE, FLAC.

USB drive not included

10 English

TUNE –

RADIO

AUX

CHANNEL

LEVEL

—

VOL

RCA

5.1

2.1

USB

TUNE +

SCAN

2 3 1. Standby:

Activates/Deactivates

standby mode (the system

automatically goes into

standby mode after 20 min

if there is no audio input

signal, if the input signal

is paused or if it is at 1kHz

volume level).

2. Mute: Mutes the system.

3. 5.1 / 2.1: Switches from 5.1

to 2.1 channels as needed

(only if input supports 5.1

channels).

4. -Vol:

a. Decreases the master

volume.

b. When selecting channel

level buttonrst,

-voldecreases

thevolume of

theselected channel.

REMOTE CONTROL
