Logik L17MS10 Manuel utilisateur

Microwave

Instruction Manual

L17MS10

DSG Retail Limited is responsible for after sales service.

If you have a query about the product please contact our product support line

0844 561 6263 (Currys) and 08700 118 117 (Pixmania).

Logik L17MS10_IB_GB_100121.indd 1 1/21/10 2:45 PM

GB-2

Logik L17MS10_IB_GB_100121.indd 2 1/21/10 2:45 PM

GB-3

Before Use Operating Instructions Care, Maintenance and

Troubleshooting

Table of Contents

Your new Logik Microwave 4

Safety Information 4 - 8

Using Aluminium Foil in your Microwave 9

Unpacking and Getting Ready 10

Introducing Microwave Cooking 11 - 15

• Cooking with a Microwave 11

• Microwave Heating Categories 12

• Steam 13

- Condensation 13

• Product Overview 13 - 14

- Control Panel Overview 14

- Accessories 14

• Checking your Microwave 15

Clock Setting 16

Setting the Child Lock 17

Microwave Cooking 18

Multi-Stage Cooking 19

Delay Start Cooking (Programme Set in Advance) 20 - 21

Quick Start Cooking 22

Defrosting 23

• Defrost by Weight 23

• Defrost by Time 23

Querying the Cooking Function 24

Cleaning your Microwave 26 - 27

Frequently Asked Questions 28 - 29

• Questions and Answers 28 - 29

Specication 30

Logik L17MS10_IB_GB_100121.indd 3 1/21/10 2:45 PM

GB-4

Your new Logik Microwave

Before using your Logik Microwave

• Read these instructions carefully and retain for future reference.

• Remove all packaging labels. Please dispose of them properly.

Before calling for service

• Review the section on Troubleshooting. This will help you to solve some general

problems by yourself and reduce the need to ask for the help of professional

technicians.

Safety Information

General Safety

• Switch o and unplug before tting or removing tools/attachments, after use and before

cleaning.

• Keep your ngers away from moving parts and tted attachments.

• Never use a damaged machine.

• Never operate the machine when it is empty.

• Keep mains cable out of reach from children.

• Keep power unit, mains cable or plug away from water.

• Never exceed the maximum capacities.

• When using an attachment, read the accompanying safety instructions.

• Take care when lifting this appliance as it is heavy.

• You should always have your microwave checked by a qualied technician if it has been

dropped or damaged to ensure it is safe to use.

• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Only use the appliance for its intended domestic use. We will not accept any liability if

the appliance is subject to improper use, or failure to comply with these instructions.

Congratulations on the purchase of your new Logik Microwave.

These operating instructions will help you use it properly and safely.

Logik L17MS10_IB_GB_100121.indd 4 1/21/10 2:45 PM

GB-5

Before Use

Safety Information

Maintenance of your microwave

WARNING : It is hazardous for anyone other than a qualied technician to carry out any

service or repair operation which involves the removal of a cover that gives protection against

exposure to microwave energy.

WARNING : If the door or door seals are damaged, the microwave must not be operated

until it has been repaired by a qualied technician.

• If smoke is observed, switch o or unplug the appliance and keep the door closed in

order to contain any ames.

• If the mains cable is damaged, it must be replaced by a service agent or a qualied

technician.

• If you have a pacemaker, please contact your doctor before using a microwave.

Microwave use

• This microwave is not intended for commercial use.

• It should never be used for drying clothes or for other non-food purposes.

• The microwave should not be left unattended when in use.

• The temperature of accessible surfaces may be high when the appliance is operating.

• To prevent high moisture content gathering inside the microwave cavity, open the door

immediately after the cooking function has stopped to allow steam to escape.

• Only use utensils that are suitable for microwave use.

• Care should be taken when using paper, plastic, wooden or other combustible materials

in the microwave as they can catch re.

• Oil & fat for deep frying should not be heated in the microwave.

• Only use cling lm designed for microwave use and take extra care when removing the

lm to avoid steam burns.

• Only heat popcorn that has been designed for microwave use.

Logik L17MS10_IB_GB_100121.indd 5 1/21/10 2:45 PM

GB-6

Safety Information

Cooking Use

As the power of dierent microwave ovens can vary considerably, care must be taken when

rst using this appliance as it may cook faster than expected.

• Do not leave the appliance unattended during use.

• Take care when cooking food with a high sugar or fat content, such as Christmas

pudding or fruitcake. The sugar or fat can overheat and in some cases catch re.

Fire!

In the event of re:

• Keep the microwave door closed.

• Turn o the power.

• Unplug the appliance from the mains power.

First Aid

Treat scalding by:

• Quickly placing the scald under cold running water for at least 10 minutes.

• Cover with a clean dry dressing. Do not use creams, oils or lotions.

Cleaning your Microwave

The microwave should be cleaned regularly and food deposits removed. Failure to maintain

the microwave in a clean condition can aect the life of the appliance and possibly result in a

hazardous situation. (See cleaning your microwave)

Logik L17MS10_IB_GB_100121.indd 6 1/21/10 2:45 PM

GB-7

Before Use

Safety Information

Do not use these in your Microwave

• Metal objects are not to be used in the microwave. This include:

– Metal cooking utensils.

– Metal plates or trays

– Wine twist ties

– Crockery with metal trims

– Meat thermometer

• Never use equipment made of metal, except foil in your microwave. The microwave

energy cannot pass through the metal so it bounces o and sparks against the inside of

the microwave.

• Stop the microwave straight away if any equipment is causing sparks.

• Remember that some crockery has a metal trim around the edge. Even this trim can cause

sparks.

Checking your Cooking Utensils

Most heat-resistant, non-metallic cooking utensils are safe to use in your microwave. If you are

not sure if you can use a utensil in your microwave, follow this simple test:

1. Put the utensil into the microwave next to a cup of water – use a cup that you know

is microwave safe. Close the door.

2. Turn the microwave on for 30 seconds only.

3. After 30 seconds, carefully check to see if the water has warmed up.

4. If the water has not warmed up but the utensil has, the utensil is not microwave safe

and should not be used in the microwave.

5. Do not use your hands to touch the utensils as it may already be hot.

Containers

WARNING : Pressure will build up in sealed containers and can cause them to explode.

Therefore, do not use the following in your microwave:

– Sealed containers

– Capped bottles

– Vacuum containers

– Sealed jars

– Hard-boiled eggs

– Eggs in their shells

– Nuts

• Always pierce the skin of fruit and vegetables, such as potatoes.

• Never use scratched, cracked or damaged glass in a microwave. Damaged glass can

explode.

Logik L17MS10_IB_GB_100121.indd 7 1/21/10 2:45 PM

GB-8

Safety Information

Delayed Boiling

Liquids heated in a microwave can boil up when removing them from the microwave.

Take the following precautions :

• Always stir liquids, before and after cooking.

• Allow them to stand.

• Use containers that are wider at the top than at the bottom.

Preparing food for Babies

Extra care must be taken when preparing food or drink for babies and small children.

• Always test the food or liquid temperature before feeding it to the baby.

• When using a baby bottle, ensure the teat is removed before heating.

• When warming milk, ensure the bottle is shaken.

Caution!

During cooking the outer surface will become hot. Do not touch the outer casing of the

microwave. Care should be taken not to store any items on top of your microwave.

Earthing Instructions

WARNING: THIS APPLIANCE MUST BE EARTHED.

• This appliance is equipped with a mains cable having an earthed plug.

• The plug must be plugged into an appropriate outlet that is installed

and earthed in accordance with all local standard and requirements.

Warning!

• Improper connection of the appliance-earthing conductor can result in a

risk of an electric shock.

• Check with a qualied electrician or service representative if you are in

doubt whether the appliance is properly earthed.

• Never modify the plug provided with the appliance.

• If the plug does not t properly in the mains socket, have a qualied

electrician to install a proper mains socket.

Logik L17MS10_IB_GB_100121.indd 8 1/21/10 2:45 PM

GB-9

Before Use

Using Aluminium Foil in your Microwave

It is safe to use aluminium foil in your microwave as long as you follow these safety guidelines.

As with all metal, microwave energy cannot pass through foil, but provided that you keep

the foil away from the side of the microwave it will not cause sparks and there will not be any

damage to your microwave.

Using foil is a good way of shielding parts of food that you do not want to cook as quickly as

others – perhaps where the food is narrower and would otherwise overcook.

Place the foil over the area you want to shield, taking care that the foil will not touch the sides

of the microwave when the turntable rotates. Only use one piece of foil at a time so that you

do not get sparks between the separate pieces.

Follow these guidelines when using foil in your microwave:

• Remove foil lids from containers before using in the microwave. Some lids are made

of card with a foil covering – these should be removed too. Use a microwave safe

transparent lid if possible.

• Stir food during cooking if the container has a lid or lm cover.

• Always use the glass turntable.

• Use shallow containers with a large surface area. Do not use containers that are more than

1.25in (3.5cm) deep.

• Use gloves when handling hot foil containers.

• Do not completely cover food with foil. The microwave energy cannot pass through the

foil so the food will not cook.

• Do not let aluminium foil touch the inside of the microwave.

• Do not use more than one piece of foil in the microwave at the same time.

Logik L17MS10_IB_GB_100121.indd 9 1/21/10 2:45 PM

GB-10

Unpacking and Getting Ready

This microwave is designed for home use. It should

not be used for commercial catering.

1. After unpacking your microwave, check that it

has not been damaged whilst in the box. Make

sure there are no dents, and the door closes

properly. A damaged microwave could allow

microwave energy to escape. Make sure that you

have taken out all of the packaging from inside

the microwave. Please dispose of the plastic

wrappings/ bags safely and keep out of the

reach of babies and young children.

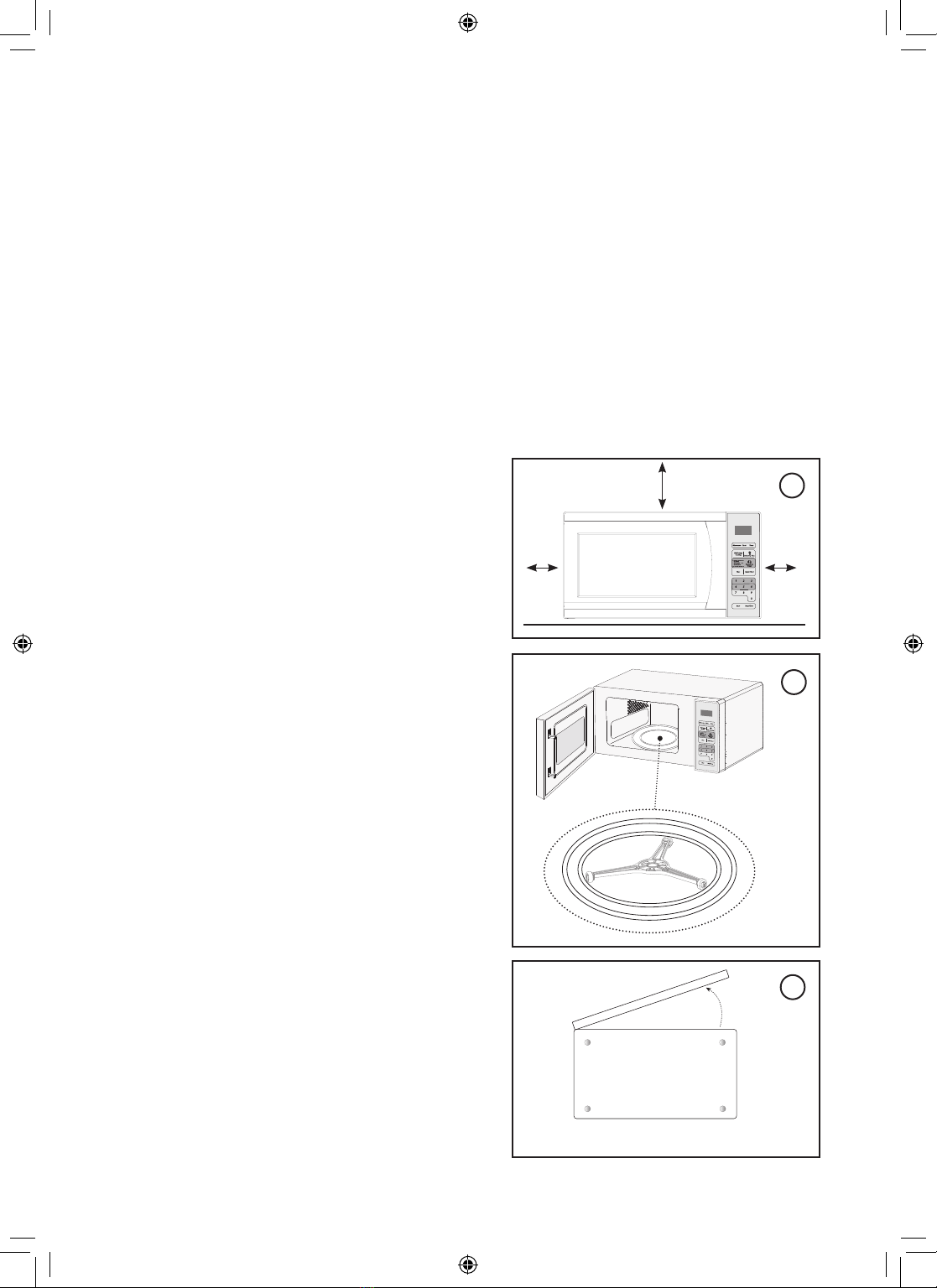

2. Choose a at work surface for your microwave

away from heat sources such as radiators or res

and away from cold areas. You should allow a

10cm space all around the microwave and 30cm

above so that warm air can escape from the

vents during cooking – This microwave is not

designed to be built in. (See Fig. 1)

3. Plug your microwave into a standard household

electrical socket (230 volt, 13 amp rated). Avoid

using a socket that also has an adaptor and

other equipment plugged in. Do not use a multi

adaptor.

4. Put the turntable ring inside the microwave and

place the glass turntable on top of the ring. (See

Fig. 2) The turntable is shaped to sit securely on

the spindle. You must always use the turntable

and ring whenever you use the microwave.

5. To protect your work surface, we recommend

that you x some non-slip cushion pads (not

included) to the underside of the microwave.

(See Fig. 3)

30cm

10cm10cm

Underside View

Logik L17MS10_IB_GB_100121.indd 10 1/21/10 2:45 PM

Table des matières

Autres manuels Logik Four à micro-ondes

Logik

Logik L23CB13E Manuel utilisateur

Logik

Logik L20GSS11E Manuel utilisateur

Logik

Logik L20MR17 Manuel utilisateur

Logik

Logik L20GSS11 Manuel utilisateur

Logik

Logik L17GSS10 Manuel utilisateur

Logik

Logik L20BIG17E Manuel utilisateur

Logik

Logik L20MS10 Manuel utilisateur

Logik

Logik L21CS10 Manuel utilisateur

Logik

Logik L17MW14E Manuel utilisateur

Logik

Logik L25CW10 Manuel utilisateur

Logik

Logik L25MW10 Manuel utilisateur

Logik

Logik L20MR12 Manuel utilisateur

Logik

Logik L20GS14 Manuel utilisateur

Logik

Logik L25GB10 Manuel utilisateur

Logik

Logik L17MSS10 Manuel utilisateur

Logik

Logik L25MDM14 Manuel utilisateur

Logik

Logik L20GSS10E Manuel utilisateur

Logik

Logik L20GS11 Manuel utilisateur

Logik

Logik L20CS11 Manuel utilisateur

Logik

Logik L17MSS14 Manuel utilisateur

Logik

Logik L17MSB13E Manuel utilisateur

Logik

Logik L17MSS11 Manuel utilisateur

Logik

Logik L17MSW13E Manuel utilisateur

Logik

Logik L25CS10 Manuel utilisateur

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur
