UK
DANGER!
A warning such as this indicates the existence of a serious risk that has high probabilities to cause death or a serious accident if
appropriate precautions are not taken.
ATTENTION!
A warning such as this indicates a reference to the application of safety practices, or draws the attention on unsafe behaviours
that might cause personal injuries or damages to the boat.
1.1 Purpose of the manual
This manual will supply information on safety and correct use of the product. Follow these warnings carefully to avoid possible
accidents or damages.
2.1 Contents of the package
- chain counter, seal and closure cover;
10-pole male connector with crimp-type10
- male contacts;
- magnetic sensor;
- support kit (support for the vertical shaft anchor windlass
sensor, supporting base, 2 fastening screws, O-ring);
- magnet;
- horizontal shaft anchor windlass sensor support;
- instructions for use.
1.2 Assistance
The Lofrans products are backed throughout the world by a network of authorised distributors and assistance. In case of need,
please contact your local Lofrans distributor. Details on website www.lofrans.com
2.2 Recommended accessories
Use exclusively original Lofrans accessories and spare parts, designed and manufactured to ensure performances, duration and for
keeping valid the warranty. For information on available spare parts, contact your local reseller or visit website www.lofrans.com
1.3 Receipt and Storage
Upon receipt of the package, verify the integrity of packing. Should it be necessary to store the product for a prolonged period,
keep it in a dry and protected place.
1 INTRODUCTION

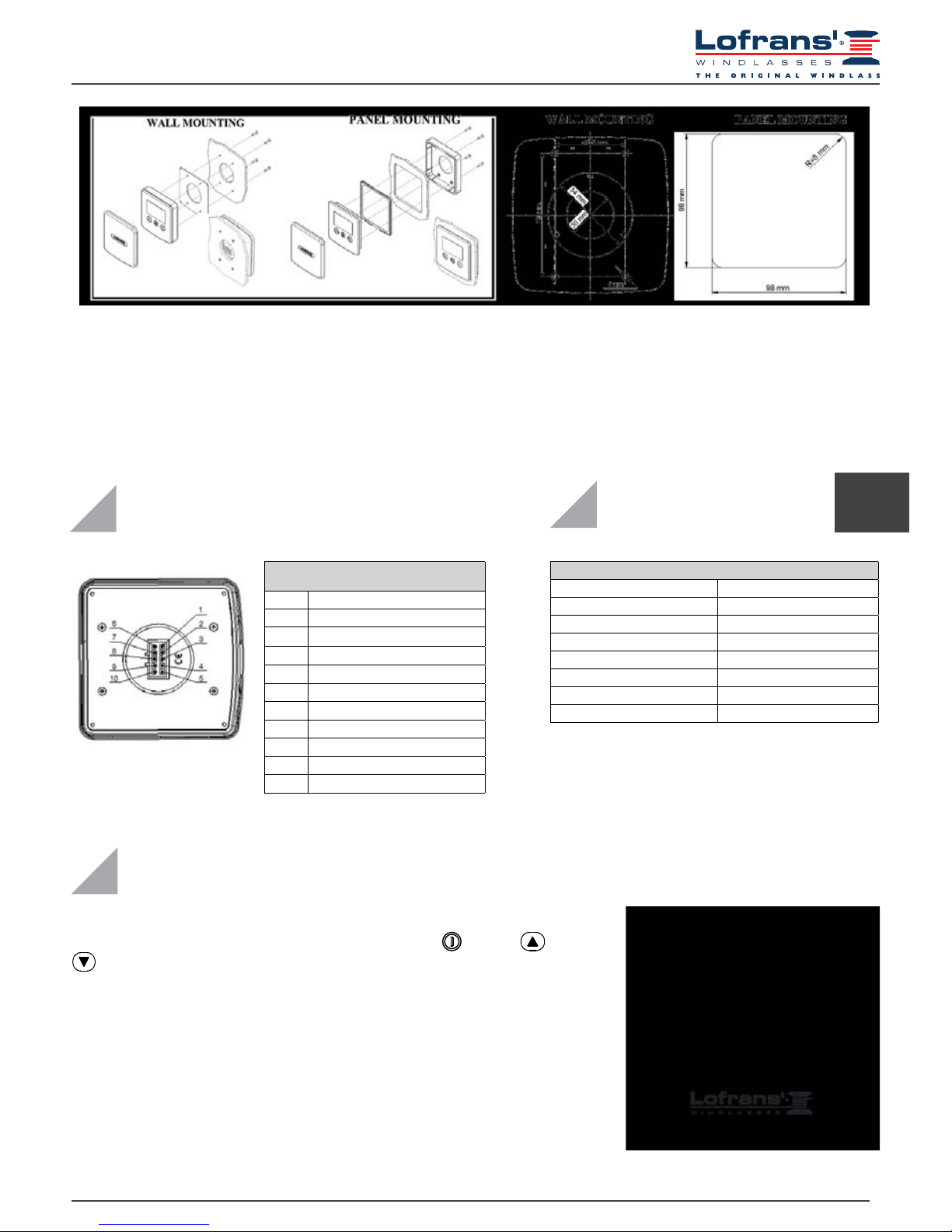

2 INSTALLATION
2.3 Installing the magnet on the anchor windlass
On a few models of anchor windlass the sensor and the magnet are
already installed (chain counter setting).Therefore, the operations
described below are not necessary.
1. A hole having a diameter of 6.5 mm (~1/4”) and depth of 8 mm (5/16”) must
be drilled on a tooth of the gipsy, in a place outside the chain’s path.
2. In the case of vertical shaft anchor windlasses (see Fig.1B), drill the hole
in the lower circumference of the gipsy.
3. In the case of horizontal shaft anchor windlasses (see Fig.2B), drill the hole
in the outer circumference of the gipsy.
4. Also make sure that the protruding part of the magnet will not collide with
the base or sensor during rotation of the gipsy.
Insert the metal part of the magnet in the hole, allowing the protected part
to protrude by about 2 mm. Fix it in place using an adhesive for metals (two
component epoxy glue) or silicone. The glue used must be able to withstand
a marine environment.
Fig. 1B
Fig. 2B
