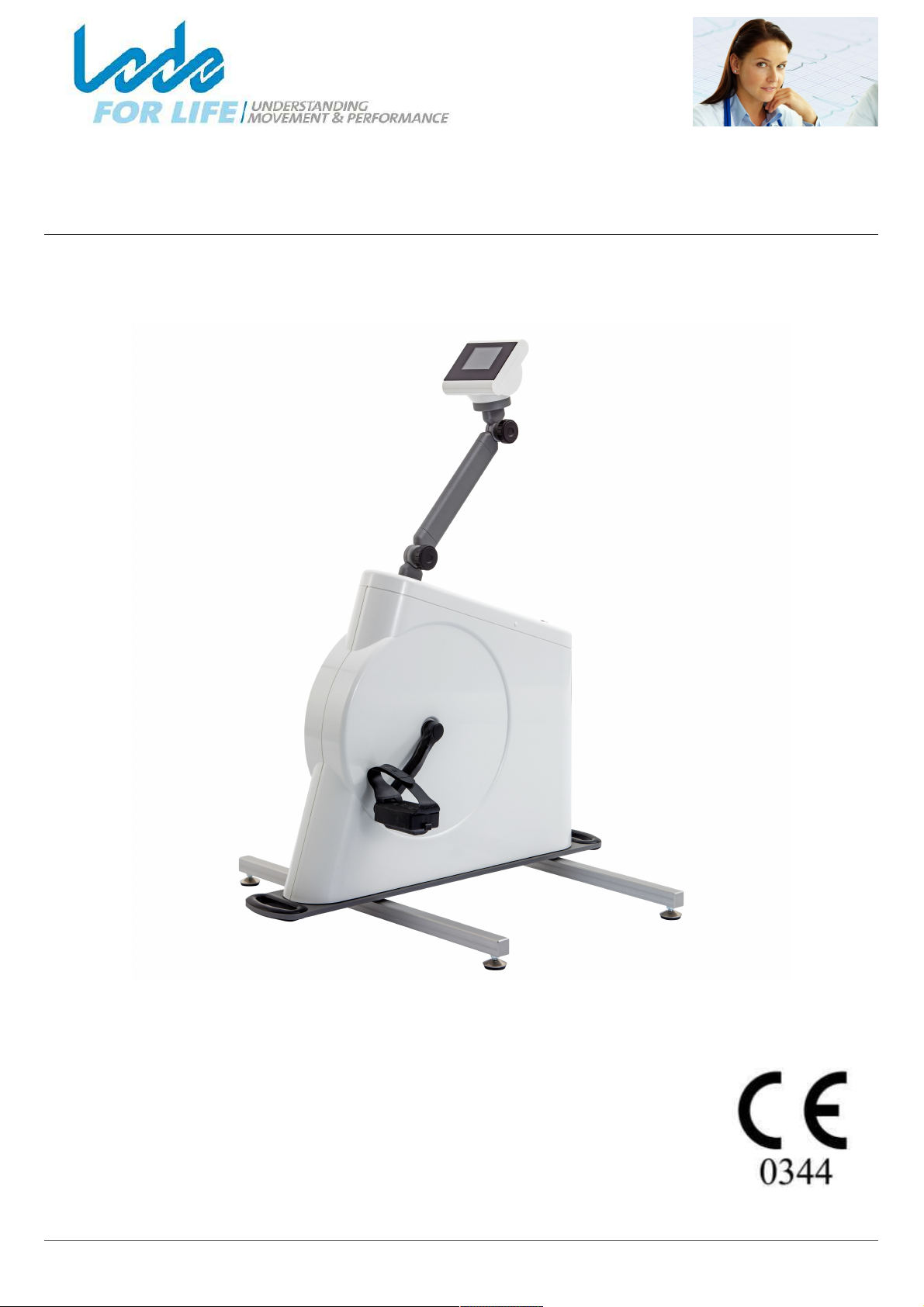

Lode M967900 Manuel utilisateur
M967900 - Manual Angio single
set
Cardio Pulmonary
Lode BV
Zernikepark 16
NL 9747 AN
Groningen
The Netherlands
t: +31 50 571 28 11
f: +31 50 571 67 46
@: ask@lode.nl
www.lode.nl
M967900 - MANUAL ANGIO SINGLE SET / VERSION: 1.0 - 2017-02-23
33
33
88
8
99
10
11
1212
12
12
1313
13
13
13
1414
1515
1515
1717
1818
2020
Table of contents
1 - Intended Use1 - Intended Use
2 - Precautions2 - Precautions
3 - Contra Indication3 - Contra Indication
3.1 - Free area
4 - Validity4 - Validity
4.1 - Description of parts
4.2 - Angio - description of parts bottom side
5 - Installation5 - Installation
5.1 - General installation of the device
5.2 - Cable Management
6 - Terminal - external control6 - Terminal - external control
6.1 - External control with optional communication card
6.2 - External control with LEM or LCRM
6.3 - Display
7 - List of symbols used7 - List of symbols used
8 - Maintenance8 - Maintenance
9 - Cleaning9 - Cleaning
10 - Calibration10 - Calibration
11 - Accessories11 - Accessories
12 - Specifications12 - Specifications
1 - Intended Use
This device is intended to be used as a stress test device in a medical environment. The main goal of
the use of the devices is to create reproducible stress tests. With cycling ergometers typically workload
(watt) is imposed. With treadmills typically speed (km/h) and inclination (% grade) are imposed. This
product is designed both for manual operation and for control by external ECG-, pulmonary
equipment. Most likely this device will be used in conjunction with another medical device to obtain
other important physiological data, allowing a physician to evaluate a test subjects physical status.
The product may also be used for rehabilitation or active aging therapy.
As such the intended use of the device solely cannot be defined specifically.
The device has to be operated under the supervision of well-trained medical specialists in the field of
use.
The ultimate judgment whether a test subject should undertake a stress test with the device must be
made by the responsible medical specialist, based on the limitations of each individual, the medical
history and all other applicable circumstances. Neither the manufacturer nor its distributors assume
any responsibility for the final use of its equipment.
If the device is used as arm ergometer (with hand curbles) it can be combined with various products
(e.g. wall mounts, automatic stand, etc.) to facilitate the stress tests. The device in those situations can
be used for (cardiac) rehabilitation or cardio pulmonary exercise testing with patients who can’t use
their legs (f.i. wheelchair users).
2 - Precautions
Read this manual before using the device and follow it
carefully.
The operator should instruct the test subject prior to
performing an exercise protocol. If, at any time during
exercise, the test subject feels faint, dizzy, or experiences
pain, stop the test and he or she should be consulted by the
physician.
3/20M967900 - MANUAL ANGIO SINGLE SET / VERSION: 1.0 - 2017-02-23
Care should be taken in mounting or dismounting the
ergometer. Be aware of feet when replacing the ergometer.
If this equipment is modified, appropriate inspection and
testing must be conducted to ensure continued safe use of
the equipment.
Set up and operate the device on a solid level surface.
The test subject should not wear loose or dangling clothing
while using the device.
Service of this device is restricted to factory trained
personnel only.
The operator should not touch accessible parts and the
patient simultaneously.
Read all warnings posted on the device.
Inspect the device for worn or loose components prior to
use. Tighten / replace any loose or worn components prior to
use.
Do not place any loose parts or objects on the device before
and during use.
4/20M967900 - MANUAL ANGIO SINGLE SET / VERSION: 1.0 - 2017-02-23
The equipment has a safety earth (ground) connection and
must be connected to a (grounded) wall socket with
protective earth to avoid the risk of electric shock. The
functional earth connection is for potential equalisation only.
Replacement of parts can only be done by the manufacturer
or designated service personnel.
Use of accessories, transducers and cables other than those
specified or provided by the manufacturer of this equipment
could result in increased electromagnetic emissions or
decreased electromagnetic immunity of this equipment and
result in improper operation.
The operator should clean the device (handgrips, cushions)
after each exercise test.
For those test subjects who are not able to use the
handgrips, a handgrip fixation set should be used.
Heart rate monitoring systems, BP measurements or SpO2
monitoring may be inaccurate. Over exercise may result in
serious injury or death. If the test person feels faint stop
exercising immediately.
The installation should only be done by authorized persons
who follow the installation instructions.
Do not spill any liquid over the device.
5/20M967900 - MANUAL ANGIO SINGLE SET / VERSION: 1.0 - 2017-02-23
No modification of this equipment is allowed.
Not suitable for use in the presence of flammable
anaesthetics.
Use of this equipment adjacent to or stacked with other
equipment (other then medical equipment intended to be
used as described in the intended use) should be avoided
because it could result in improper operation.
The test subject should keep the feet in the pedals or hold
the hand grips during the total duration of the exercise test.
Portable RF communications equipment (including
peripherals such as antenna cables and external antennas)
should be used no closer than 30 cm (12 inches) to any part
of the ergometer, including cables specified by the
manufacturer. Otherwise, degradation of the performance of
this equipment could result.
The operator should have knowledge about absolute and
relative contraindications. The operator should have
knowledge about the Warnings and Cautions before using
the device.
The (support of the) Control Unit can’t be used as handlebar
or support.
6/20M967900 - MANUAL ANGIO SINGLE SET / VERSION: 1.0 - 2017-02-23
The test subject should wear proper sports clothing. The
operator should check possible entrapment of clothing,
fingers or feet, before the start of an exercise test.
This device should only be sold by, or under the supervision
of authorized persons.
Take care that the cable of the control unit cannot get stuck
between the cranks when using the ergometer.
7/20M967900 - MANUAL ANGIO SINGLE SET / VERSION: 1.0 - 2017-02-23
3 - Contra Indication
The device is to be operated by classified personnel only. As stated in the intended use, the device is
intended to be used in a medical environment. During the intended use the test subject will deliver
energy. Application of the wrong dosis of energy could lead to permanent damage of the test subject
health. Only use this device under supervision of a medical physician.

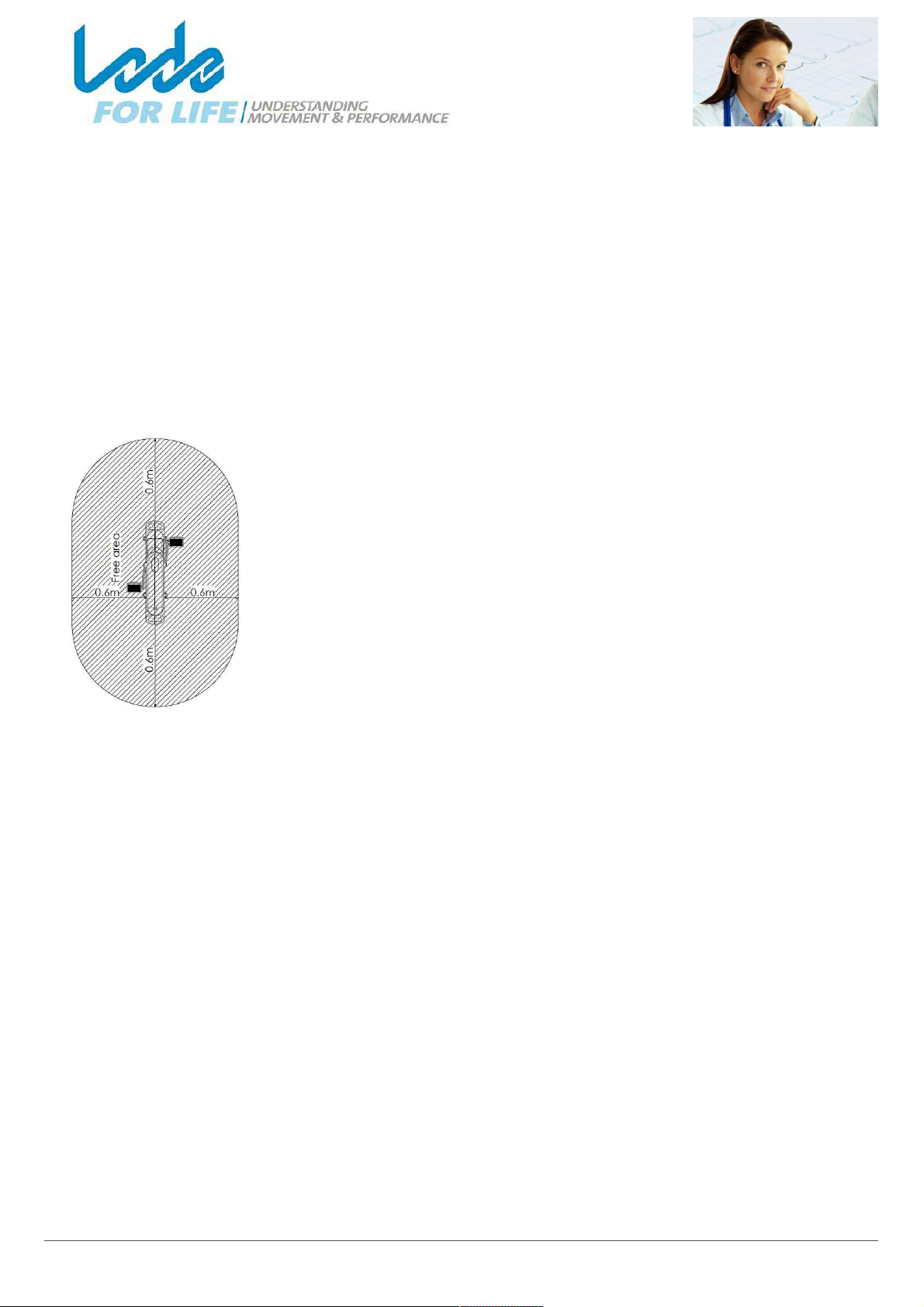

3.1 - Free area
The free area around the ergometer shall be not less than 0,6 m greater
than the training area in the directions from which the equipment is
accessed. The free area must also include the area for emergency
dismount. Where equipment is positioned adjacent to each other the
value of the free area may be shared.
8/20M967900 - MANUAL ANGIO SINGLE SET / VERSION: 1.0 - 2017-02-23
4 - Validity
This manual covers all Angio versions starting with the following serial number:
9679xx Angio cpet: S/N 20170001 -
Date of issue: 2017-01-31
9/20M967900 - MANUAL ANGIO SINGLE SET / VERSION: 1.0 - 2017-02-23

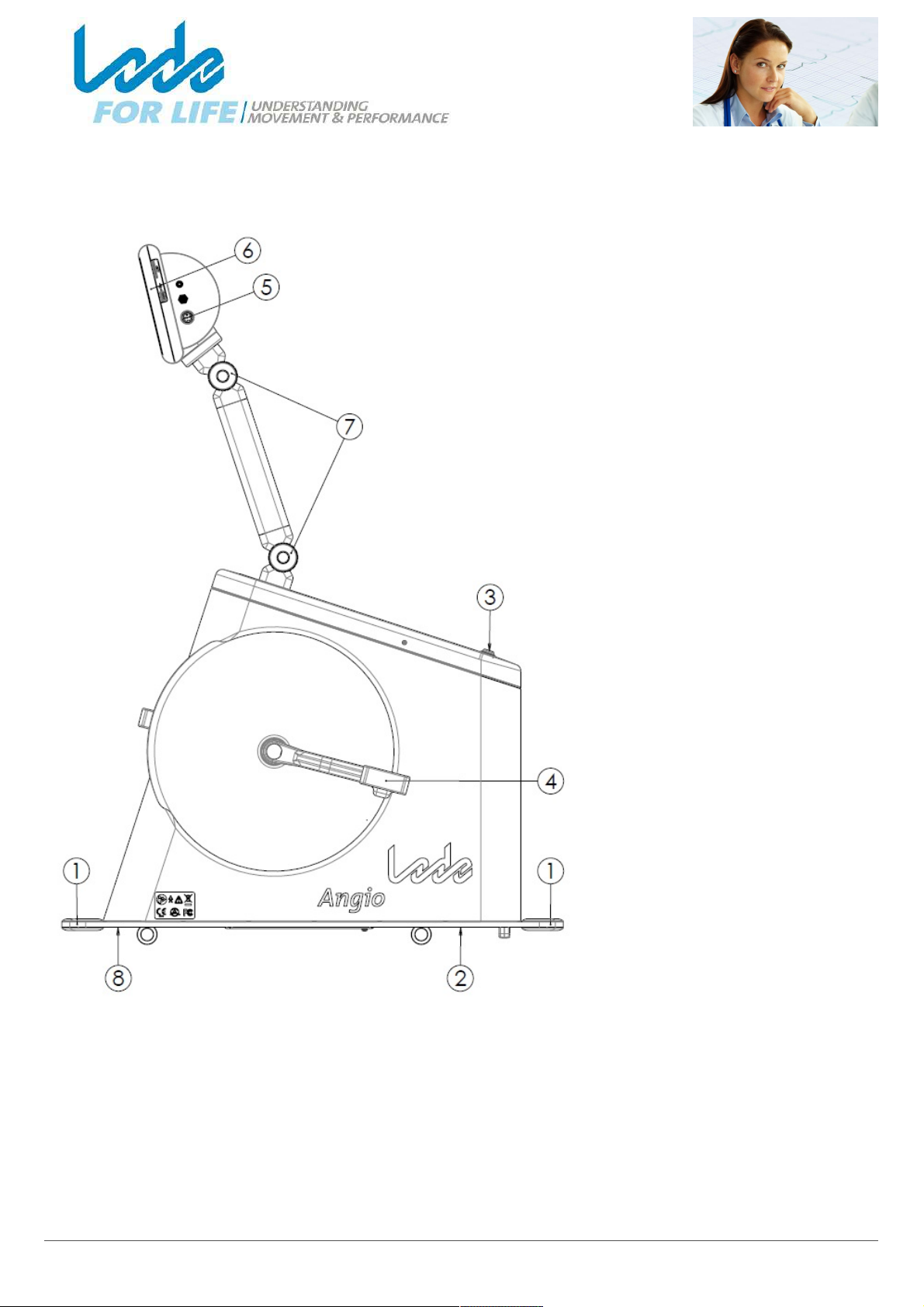

4.1 - Description of parts
1.Handgrips for transport
2.Communication ports
3.Main On/off switch
4.Hand curble or Pedal
(APPLIED PART)
5. Connector - not in use
6.Display
7.Adjustable support control
unit (not for arm ergometers)
8.Type plate
Note that if the SpO2 option is
included, the sensor is also an
APPLIED PART
Note that a USB A-B cable is
standard supplied. For rehab
products this cable can only be
used for service purposes. For
cpet products, it can be used
for connection to ECG and
pulmonary testing devices as
well.
Note: check the angle of the
display: the patient must be
able to have a clear view on the
display to see the pedal
revolution (rpm).
Note: be aware of hands near
the display-arm! Tighten the
knobs of the display-arm to
prevent dropping.
10/20M967900 - MANUAL ANGIO SINGLE SET / VERSION: 1.0 - 2017-02-23
