Lockly DUO Manuel utilisateur
INTERCONNECTED EDITION
INSTALLATION
GUIDE
DUO™
Go to Lockly.com/installation to watch a video version
of this installation guide.
Reference installation parts overview foldout on back page
Welcome!
This guide will walk you through step-by-step how to
install and get your Lockly Duo
™
up and running.
Installation generally takes less than 30 minutes. If
you have any questions please reference our online
support at: Lockly.com/support or call (669) 500-8835
for help.
3
Phillips Screwdriver
To complete the installation you will need:
Flathead Screwdriver Tape measure or ruler
Preparation
Pliers
Optional
Screwdriver with drill bits
Drilling maybe required to install this lock. If you are installing your lock on a brand new door, a
drill is required if there are no holes prepared for lock installation. Use provided template to bore
holes on door.
4
Preparation
Measure and confirm your door is
between 1-3/8" - 2"
(
35mm - 50mm).
Measure and confirm the hole in the
door is 2-1/8" (54mm).
Measure and confirm that the
backset is between 2-3/8" (60mm)
to 2-3/4" (70mm).
Measure and confirm that hole in
the door edge is 1" (25mm).
Remove existing door hardware, latch or deadbolts before installing the new lock.
Use provided template to bore new holes if needed.
1
2
3
4
Measure and confirm that distance
between front door holes is
4"(101.6mm) or 5.5"(139.7mm)
5
1- 3/8"—2"
(35mm—50mm)
2-3/8"(60mm)
or
2-3/4"(70mm)
2-1/8"
54mm
54mm
1"
25mm
4"(101.6mm)
or
5.5"(139.7mm)
2-1/8"
1"
25mm
*Optional
IMPORTANT NOTICE
*
Use goggles to protect your eyes if you need to drill door holes.
5
INSTALLING THE LOCKSET
Step 1
1
2 ⅜"(60mm) 2 ¾"(70mm)
(a)
II. Hold the metal plate (c) and
twist the deadbolt body (d)
clockwise till it snaps to 2-3/8"
III. To return to default status,while
the deadbolt (b) is extended, hold
the metal plate (c) and twist the
dead bolt body (d) counter-clock-
wise till it snaps to 2-3/4"
I. Push the crank (a) to extend
the deadbolt (b)
Deadbolt Adjustment
Latchbolt Adjustment
b
cd
dc
a
Push the shaft (a) to adjust
the lockset to 2-3/8"(60mm)
or 2-3/4"(70mm).
2-3/8"
(60mm)
2-3/4"
(70mm)
G
G
G
G
Measure the distance between center of front door hole to the edge of your door hole to
determine the backset. Adjust latchbolt Fand deadbolt Jaccording to the backset
of your door.
6
INSTALLING THE LOCKSET
Step 1
continued
After adjusting the latchbolt F, determine the orientation of the latchbolt.
Determine the orientation of latchbolt. Facing the door exterior, install the
latchbolt according to the opening direction of your door.
2
J
K
K
F
Install deadbolt J (top) and latchbolt F(bottom) to door and secure with screws Kand G.
Retract deadbolt and make sure bore hole is horizontally positioned.
Optional: Stainless steel mortise slot cover, 4" or 5.5" Face Plates available. To purchase,
PGA018
PGA019 PGA019S
For mortise slot
5.5” 4”
3
LEFT OUT-SWING DOOR
LEFT IN-SWING DOOR
RIGHT OUT-SWING DOOR
RIGHT IN-SWING DOOR
Inside
Inside
Outside
Outside
Inside
Outside
Inside
Outside
7

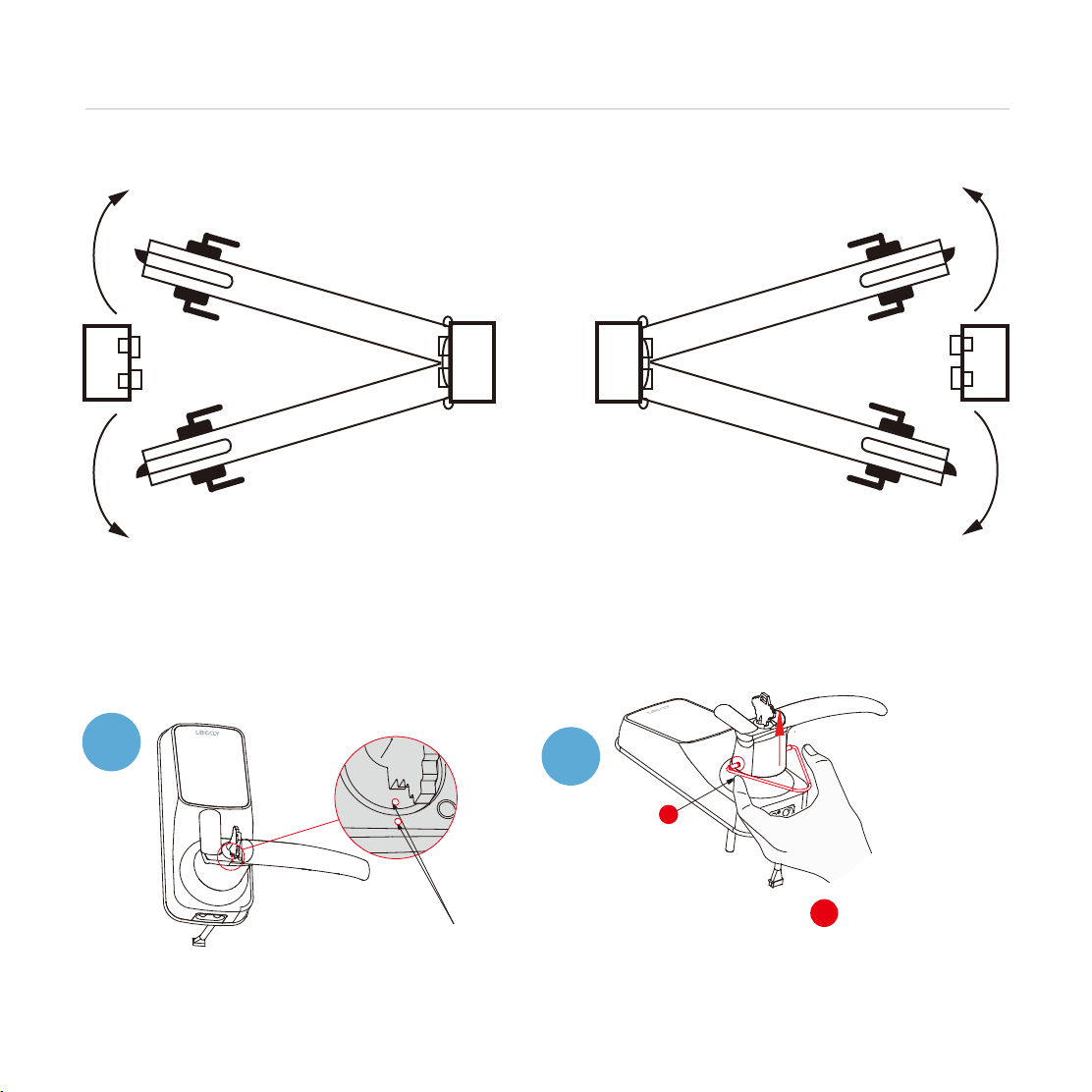

CHANGING HANDLE FOR RIGHT OR LEFT SWING DOORS
Step 2
The lock ships with handle default for right in-swing or left out-swing door. Check the diagram below
if you are unsure of you door orientation.
Changing the Exterior Handle Orientation
(Right handle)
Insert key and rotate lock
face so that the two white
dots align as shown.
12
R
Hinge
Side
RIGHT IN-SWING DOOR
LEFT OUT-SWING DOOR RIGHT OUT-SWING DOOR
LEFT IN-SWING DOOR
Use the provided pin insert Rto push the metal
pin located at the 3 o’clock of the the base handle,
then the other pin at 9 o’clock position. Remove
the
handle once the pins are
compressed.
INTERIOR
EXTERIOR
No need to change door handle
orientation. Skip Step 2.
LEFT-IN SWING and RIGHT OUT-SWING DOORS
require changing the door handle orientation.
Contnue to follow Step 2 to change exterior
and interior door handle orientation.
8
CHANGING HANDLE FOR RIGHT OR LEFT SWING DOORS
Step 2
continued
Check that your handle works
smoothly by giving it a turn up
and down.
Twist key back to horizontal position. The
key can be taken out once it goes back
to the horizontal position.
34
56
Rotate the handle 180° to the other side of the
lock.
Using your fingers, press the two pins located on
the left and right side of the the lock to insert
the handle back onto the lock.
Confirm that your installation was complete
by checking if the pins are flush against
the handle, and has popped out. Adjust
the handle accordingly to make sure the
pins are fully decompressed and sits flush
against the surface.
CHANGING HANDLE FOR RIGHT OR LEFT SWING DOORS
Step 2
continued
Remove the handle retaining screw and
detach the handle. Rotate it to 180° then
return as shown.
Changing the Interior Handle Orientation
Insert the handle retaining screw and
tighten using a screw driver.
12
9
At the back of the exterior panel,
remove the screw on point "R".
78
Align the screw hole on point "L"
then
insert the removed screw and tighten.
