Lochinvar Efficiency-Pac EW 150 -- 300 Guide d'application

EB/EW-RP-04

RPL7030

EB 150 — 300

EW 150 — 300

Water Heaters & Boilers

Starting Serial Number A05H00172365

Replacement Parts List

PARTS & SERVICE DEPARTMENT

Lebanon, Tennessee

615-889-8900 • Fax: 615-547-1000

www.Lochinvar.com

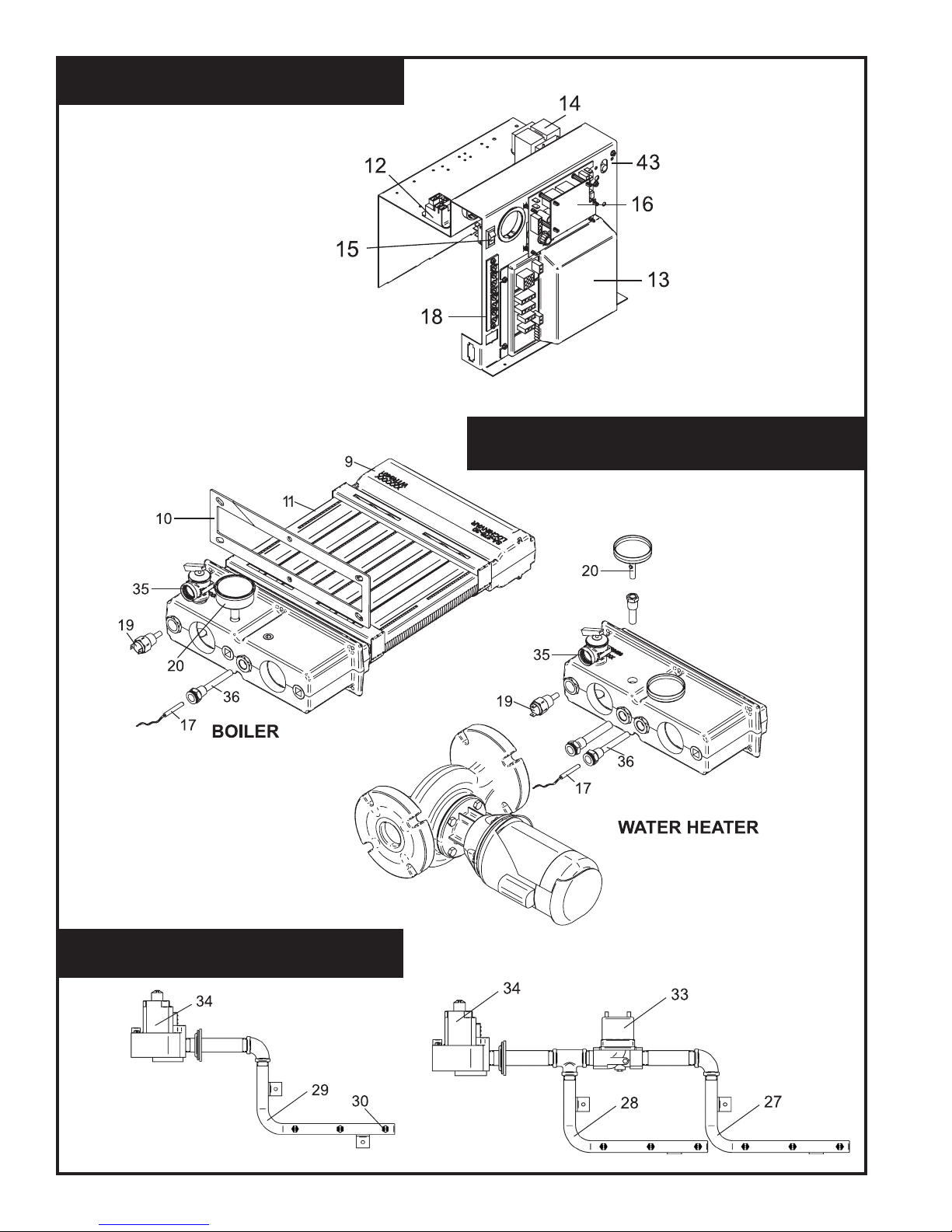

CONTROL PANEL ASSEMBLY

GAS TRAIN ASSEMBLIES

HEAT EXCHANGER ASSEMBLY

SINGLE STAGE 2 STAGE

LOCH-HEAT®TILE

1 FIB2800 LOCH-HEAT TILE, TOP EB/EW 150

1 FIB2801 LOCH-HEAT TILE, TOP EB/EW 200

1 FIB2802 LOCH-HEAT TILE, TOP EB/EW 250

1 FIB2803 LOCH-HEAT TILE, TOP EB/EW 300

2 FIB2420 LOCH-HEAT TILE, FRONT HEAD SIDE EB/EW 150-300

3 FIB2421 LOCH-HEAT TILE, REAR HEAD SIDE ALL

4 FIB2264 LOCH-HEAT TILE, FRONT EB/EW 150

4 FIB2265 LOCH-HEAT TILE, FRONT EB/EW 200

4 FIB2266 LOCH-HEAT TILE, FRONT EB/EW 250

4 FIB2267 LOCH-HEAT TILE, FRONT EB/EW 300

5 FIB2484 LOCH-HEAT TILE, BACK EB/EW 150

5 FIB2485 LOCH-HEAT TILE, BACK EB/EW 200

5 FIB2486 LOCH-HEAT TILE, BACK EB/EW 250

5 FIB2487 LOCH-HEAT TILE, BACK EB/EW 300

6 FIB2488 LOCH-HEAT TILE, BOTTOM LEFT EB/EW 150

6 FIB2489 LOCH-HEAT TILE, BOTTOM LEFT EB/EW 200

6 FIB2490 LOCH-HEAT TILE, BOTTOM LEFT EB/EW 250

6 FIB2491 LOCH-HEAT TILE, BOTTOM LEFT EB/EW 300

7 FIB2806 LOCH-HEAT TILE DIVIDER ALL

8 FIB2804 LOCH-HEAT TILE, BOTTOM RIGHT EB/EW 150

8 FIB2489 LOCH-HEAT TILE, BOTTOM RIGHT EB/EW 200

8 FIB2805 LOCH-HEAT TILE, BOTTOM RIGHT EB/EW 250

8 FIB2491 LOCH-HEAT TILE, BOTTOM RIGHT EB/EW 300

HEAT EXCHANGER

9 HEX3445 HEAT EXCHANGER EB 150

9 HEX3028 HEAT EXCHANGER EW150

9 HEX3446 HEAT EXCHANGER EB200

9 HEX3029 HEAT EXCHANGER EW200

9 HEX3447 HEAT EXCHANGER EB 250

9 HEX3030 HEAT EXCHANGER EW250

9 HEX3448 HEAT EXCHANGER EB300

9 HEX3031 HEAT EXCHANGER EW300

10 GKT2400 GASKET, FRONT HEADER EB/EW 150-300

11 JKA2000 V-BAFFLE EB/EW 150

11 JKA2001 V-BAFFLE EB/EW 200

11 JKA2002 V-BAFFLE EB/EW 250

11 JKA2003 V-BAFFLE EB/EW 300

PUMPS

ARM3044PAB PUMP WATER HEATER EW 150-300

CONTROLS

12 RLY2105 RELAY,PANEL MOUNT,24VAC,COIL EB

12 RLY2052 RELAY,PANEL MOUNT,24VAC,COIL EW

13 RLY2400 IGNITION MODULE ALL

14 TRF2004 TRANSFORMER 50V.A. ALL

15 MSC2426 SWITCH, ROCKER ON-OFF ALL

16 TST2314 THERMOSTAT EB

16 TST5314 THERMOSTAT EW

17 TST2032 SENSOR ALL

-- WTR2041 FLOW SWITCH ALL

43 TST2026 MANUAL RESET HIGH LIMIT EW

ITEM PART MODEL

NO. NO. DESCRIPTION NUMBER

PILOT & BURNER ASSEMBLIES

BNR3417 is Main Burner

BNR3415 is Main Burner with Pressure Tap

(Burners include burner gasket.)

24 GKT2429 GASKET, BURNER ALL

26 PLT3400 HOT SURFACE IGNITOR ALL

27 MAN2441 GAS MANIFOLD, RIGHT EB 150

27 MAN2440 GAS MANIFOLD, RIGHT EB 200-250

27 MAN2439 GAS MANIFOLD, RIGHT EB 300

28 MAN2440 GAS MANIFOLD, LEFT EB 150-200

28 MAN2439 GAS MANIFOLD, LEFT EB 250-300

29 MAN2439 GAS MANIFOLD EW 150

29 MAN2442 GAS MANIFOLD EW 200

29 MAN2443 GAS MANIFOLD EW 250

29 MAN2444 GAS MANIFOLD EW300

30 ORF2406 ORIFICE, MAIN BNR. NAT. ALL

30 ORF2407 ORIFICE, MAIN BNR. LPG. ALL

31 MSC3415 KIT, SIGHT GLASS ALL

32 JKA6506 MIRROR, INSPECTION ALL

GAS VALVES

33 VAL2409 GAS VALVE, HIGH FIRE EB 150-300

34 VAL2412 GAS VALVE, NAT. MAIN EB/EW 150-300

34 VAL2411 GAS VALVE, LPG. MAIN EB/EW 150-300

MISCELLANEOUS

18 MSC2016 TERMINAL BOARD ALL

19 HLC2500 HIGH LIMIT EB 150-300

19 HLC2501 HIGH LIMIT EW 150-300

20 GTP2900 GAUGE, T & P EB

20 GTP2002 GAUGE, TEMPERATURE EW

21 FAN2724 ASSEMBLY, FAN EB/EW 150

21 FAN2410 ASSEMBLY, FAN EB/EW 200-300

22 GKT2009 GASKET, FAN EB/EW 150

22 GKT2416 GASKET, FAN EB/EW 200-300

23 PRS2420 SWITCH, AIR PRESSURE EB/EW 150-200

23 PRS2421 SWITCH, AIR PRESSURE EB/EW 250-300

35 RLV2005 RELIEF VALVE, PRESSURE ONLY EB

35 RLV2006 RELIEF VALVE, T & P EW

36 TST2301 BULB WELL ALL

37 JKA6510 COVER, DUST AIR INTAKE ALL

-- DRH2722 BELL INCREASER (NOT PICTURED) EB/EW 150 & 200

-- DRH2729 BELL INCREASER (NOT PICTURED) EB/EW 250 & 300

-- MSC3001 KIT, TUBING EPDM EB/EW 150 - 200

-- MSC3002 KIT, TUBING EPDM EB/EW 250 - 300

-- MSC2075 TUBE, INLET AIR EB/EW 150-200

-- MSC2076 TUBE, INLET AIR EB/EW 250-300

-- MSC2077 CLAMP, INLETAIR EB/EW 150-300

39 GKT2417 GASKET, ESCUTCHEON PLUG ALL

40 GKT2408 GASKET, MANNING GLASS (inner combustion chamber wall) ALL

41 GKT2715 GASKET, SILICONE (inside outer jacket lower door) ALL

42 GKT2401 GASKET, SIGHT GLASS ALL

NOTE: EB = BOILER / EW = WATER HEATER

PLEASE HAVE MODEL NUMBER AND SERIAL NUMBER WHEN ORDERING PARTS.

MODEL BNR3417 BNR3415

150 2 1

200 3 1

250 4 1

300 5 1

©-1/05-Printed in U.S.A.

ITEM PART MODEL

NO. NO. DESCRIPTION NUMBER
