Llaza BIP-SCREEN 300 Manuel utilisateur

BIP - SCREEN 300

Page1 - Copyright Llaza World, S.A.

Technical Manual

BIP - SCREEN 300

Page

- Copyright Llaza World, S.A.

BIP - SCREEN 300

Page

- Copyright Llaza World, S.A.

Contents

EXPLODED VIEW OF PRODUCT AND REFERENCES 3

1. CUTTING AND SELECTION TABLES 4

1.1. BIP - SCREEN 300 assembly allowances 4

1.2. Fabric assembly allowances 5

1.3. Choosing the fabric 6

1.4. Description of the roller tube 6

1.5. Description of the counterweights 7

1.6 Choosing the motor 7

2. CROSS SECTIONS 8

3. ASSEMBLY INSTRUCTIONS 9

3.1. Assembly of the cassette 9

3.2. Preparing the roller tube 12

3.3. Preparing the fabric 13

3.4. Load bar 15

3.5. Guide profiles 16

4. ASSEMBLY INSTRUCTIONS 17

4.1. Installation with wall/ceiling brackets 18

4.2. Installation without wall/ceiling brackets 19

5. CHANGING THE FABRIC 22

BIP - SCREEN 300

Page

- Copyright Llaza World, S.A.

1. CUTTING AND SELECTION TABLES

1.1. BIP SCREEN 300 ASSEMBLY ALLOWANCES

Sizes in mm

MOTOR Ø40

GEARBOX

CASSETTE HOUSING

L - 8 mm

FRONT PROFILE

L - 8 mm

ROLLER TUBE

L - 114 mm

L - 134 mm

LOAD BAR

L - 106 mm

PROTECTIVE HEM ROD PROFILE

L - 8 mm

20 x 5 COUNTERWEIGHT

L - 180 mm

BASE GUIDE PROFILE

H - 120 mm

BASE GUIDE COVER

H - 120 mm

L= total length measurement H= total height measurement

20 mm side slots (Add fabric weights to the side hems,

we suggest 20 mm per hem)

The hem rods for the upper and lower slots are the same. (Add the fabric weights

to the H of the roller tube, we suggest +50 mm)

Minimum width 1,200 mm (Please enquire for smaller measurements)

BIP - SCREEN 300

Page

- Copyright Llaza World, S.A.

CUTTING TABLES FOR GEARBOX

BIP - SCREEN 300

Page

- Copyright Llaza World, S.A.

CUTTING TABLES FOR MOTOR

BIP - SCREEN 300

Page

- Copyright Llaza World, S.A.

1.2. SCREEN - BIP 300 FABRIC ASSEMBLY ALLOWANCES FOR ATTACHING

IT TO THE UPPER DROP BAR

Sizes in mm

GEARBOX

MOTOR 40

FABRIC WIDTH

L - 62 mm

UPPER SLOT

L - 134 mm L - 114 mm

LOWER SLOT

L - 106 mm

TOTAL HEIGHT

H + 50 mm

L= total length measurement H= total height measurement.

20 mm side slots. (Add the fabric weights to the side hems)

The hem rods for the upper and lower slots are the same. (Add the fabric weights

to the H of the roller tube)

Minimum width 1,200 mm (Please enquire for smaller measurements)

Drop height

BIP - SCREEN 300

Page

- Copyright Llaza World, S.A.

DROP (m)

1.3. CHOOSING THE FABRIC

WIDTH (m)

11.5 22.5 3

1.5

24000P/7000P

2.5

1.4. ROLLER TUBE (mm)

WIDTH (m)

1.5

2.5

1.5

DROP (m)

Ø65

2.5

1.5.

DESCRIPTION OF THE

COUNTERWEIGHTS

Weight

0.79 kg/m

20x5

BIP - SCREEN 300

Page

- Copyright Llaza World, S.A.

1.5. DESCRIPTION OF THE COUNTERWEIGHTS

* MINIMUM WIDTH

WIDTH (m)

1.2

1.5

2.5

DROP (m)

1.5

(A)

2.5

Note:

Recommended counterweights. These figures may vary depending on the characteristics of the installation.

1.6. CHOOSING THE MOTOR

* MINIMUM WIDTH

WIDTH (m)

1.2

1.5

2.5

DROP (m)

1.5

9 Nm

2.5

13 Nm

Note:

Choose the motor according on the counterweights described in the above table. Modifications to the configuration of the

counterweights may result in a motor that is different from that in the selection table.

For these systems, the motors must have two limit switches: a no-pressure BOX type upper one, and a lower one.

BIP - SCREEN 300

Page

- Copyright Llaza World, S.A.

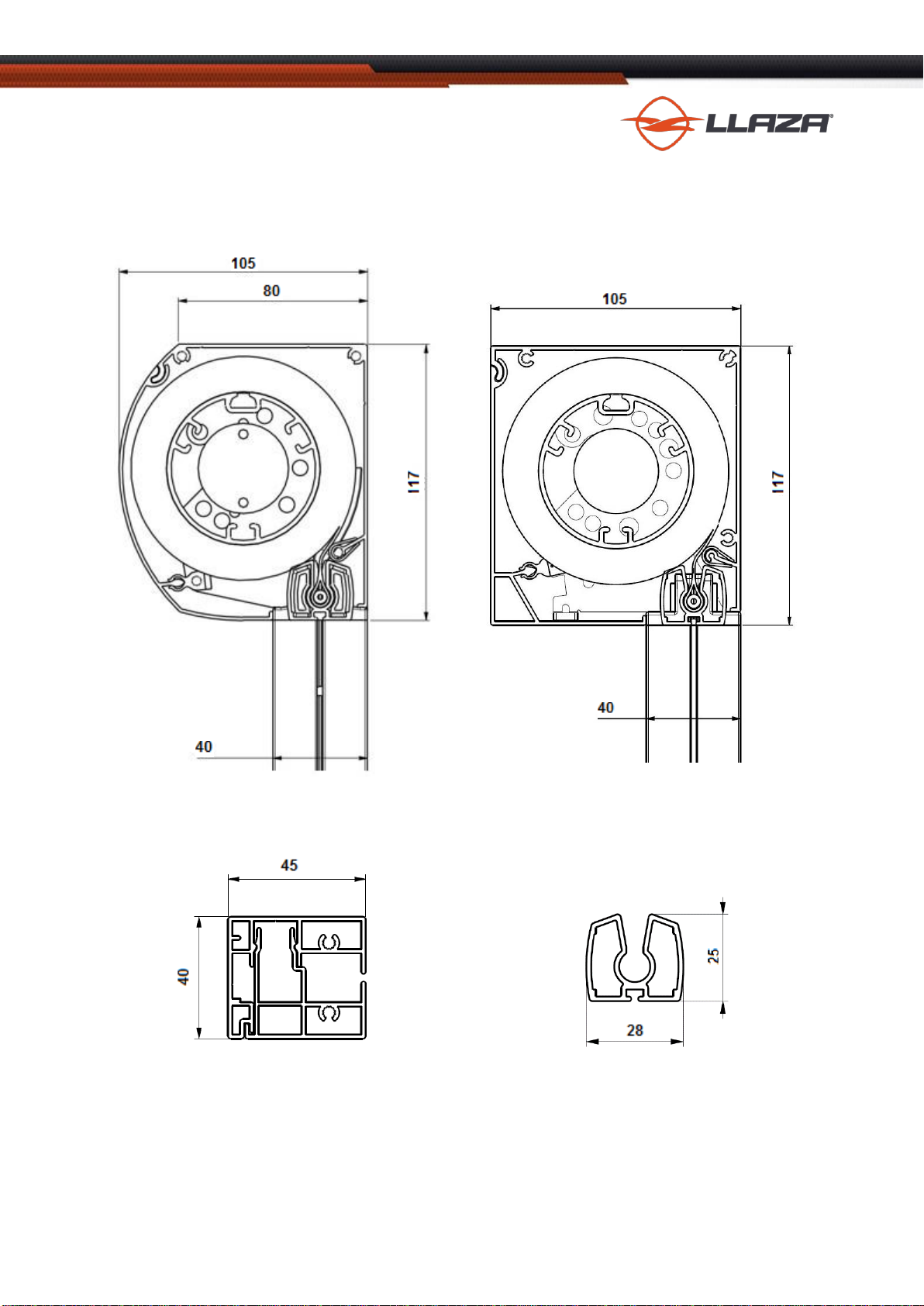

2. CROSS SECTIONS (in mm)

ROLLER TUBE SYSTEM

GUIDE PROFILE DROP BAR PROFILE
