Dear Customer,

We thank you for the trust you have shown in Livpure Water Puriﬁer and its technology.

Livpure is a “state-of-the-art” water puriﬁer with the most advanced puriﬁcation system. It is specially

designed, keeping in mind the changing water quality & your lifestyle.

It conforms to the most advanced drinking water quality standards for purity & safety.

Please go through these simple & easy to understand instructions to get the most out of your Livpure

water puriﬁer.

Any queries & suggestions, please call us at 1800-419-9399.

We once again thank you for choosing “Livpure” and look forward to a long and fruitful association with

you.

Welcome to Livpure Family

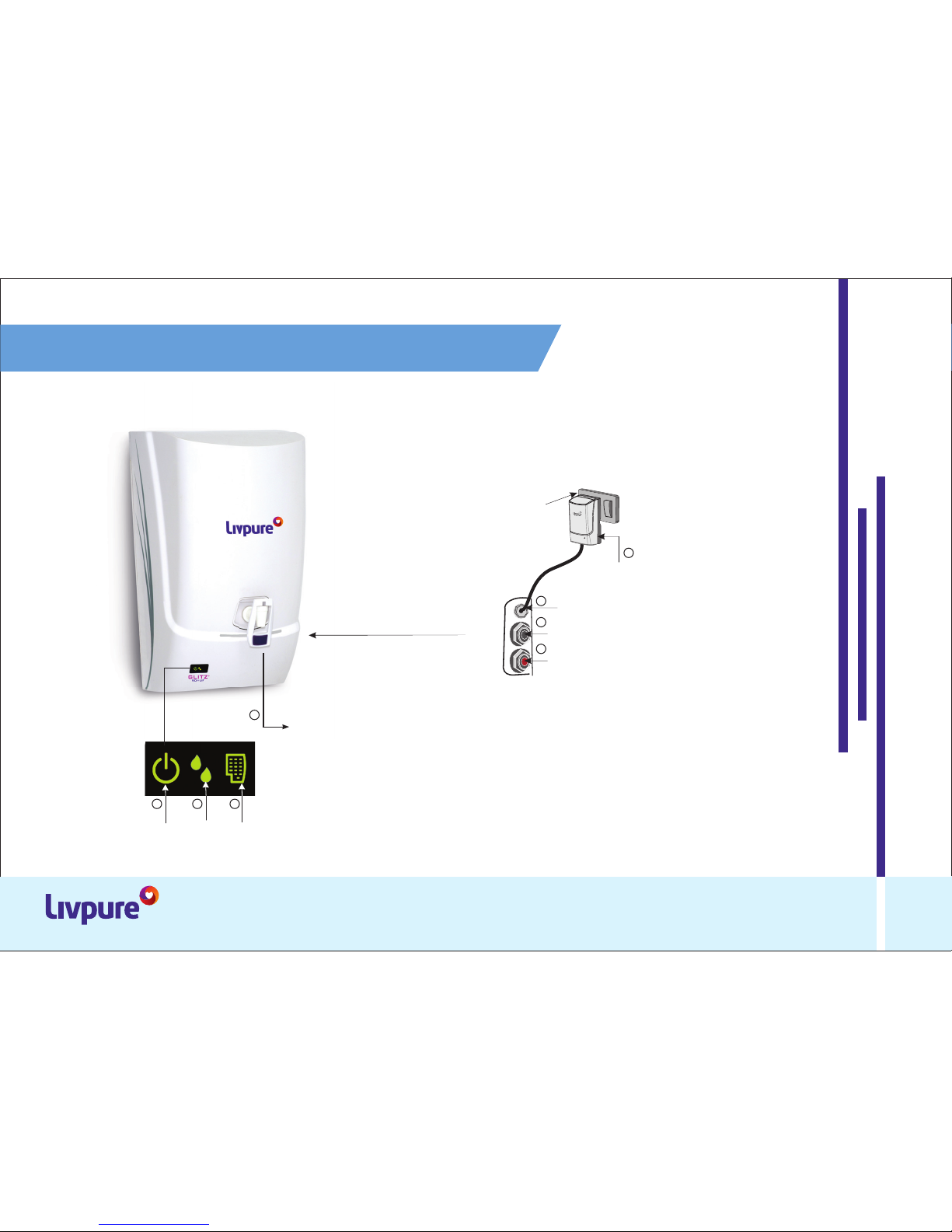

Know your Livpure Water Puriﬁer

Socket Board

Power Supply

(SMPS)

Input Water

Input Power

Reject Water

Two way tap

for puriﬁed water

dispensing

Power ON

Indication

Puriﬁcation

Process

Indication

7 8

Tank Full

Indication

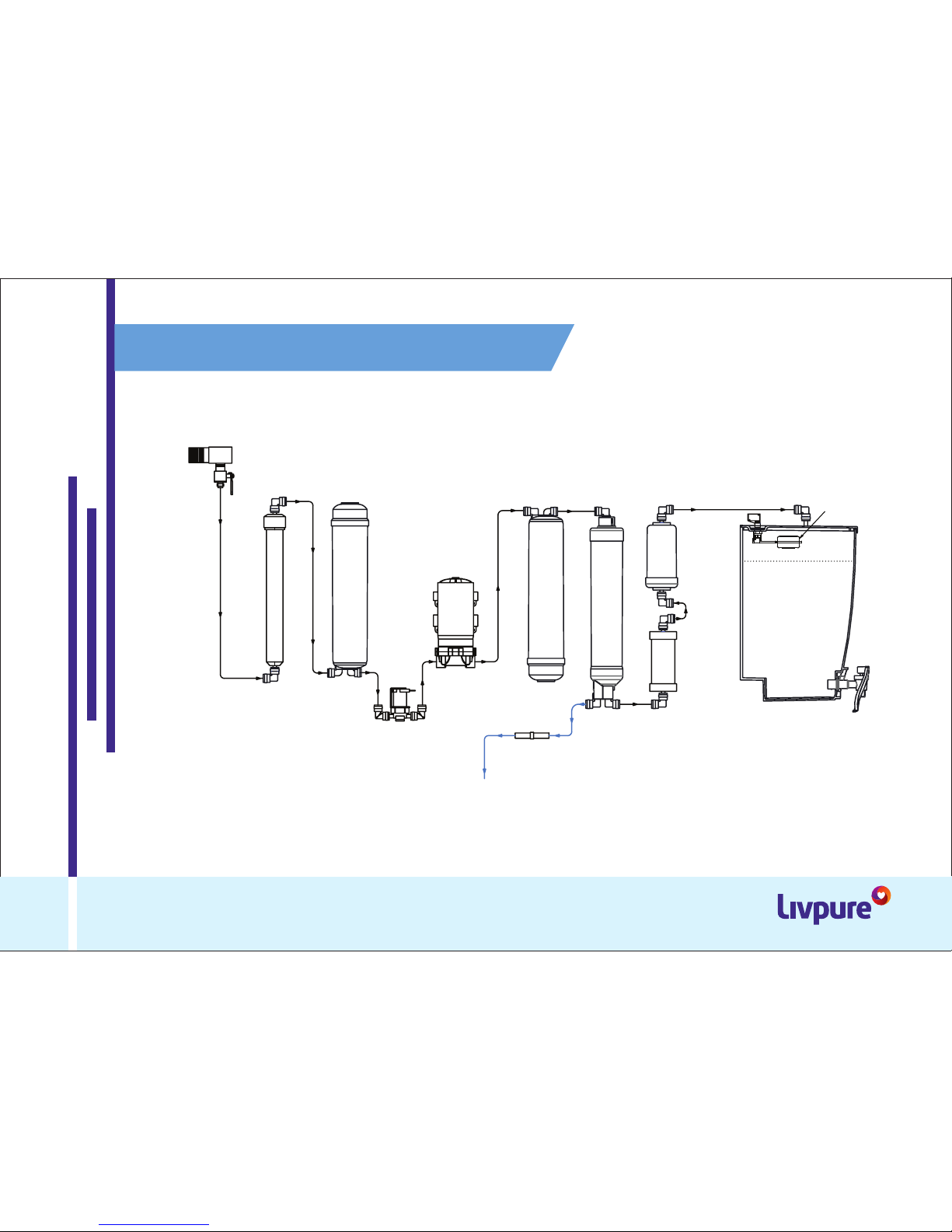

Water Flow Diagram

ANTI-SCALANT FILTER

RO MEMBRANE FILTER

PRE ACTIVATED CARBON FILTER

FLOW RESTRICTOR

REJECT

WATER

3 WAY CONNECTOR

SEDIMENT FILTER

BOOSTER

PUMP

SOLENOID

VALVE

SS BALL VALVE

TANK

FLOAT VALVE

POST CARBON

FILTER

UF FILTER

How your Livpure Water Puriﬁer works

1. Antiscalant Cartridge

The Antiscalant Cartridge chelates scale causing salts in water to prevent scaling on membrane

layers. It results in improved puriﬁcation capacity and increased life of membrane.

2. Sediment Filter

Sediment Filter removes coarse and ﬁne suspended dirt impurities from water and makes water clean.

3. Pre Activated Carbon Filter

It adsorbs residual chlorine and hazardous impurities like pesticides, herbicides, THM’s etc. from

water. It also adsorbs bad taste, color and odor causing organic compounds from water.

4. Reverse Osmosis (RO) Membrane

The water is passed through RO membrane at high pressure, RO Membrane removes Bacteria, Virus

and Protozoa and reduces Dissolved Salts, Hardness, Pesticides and heavy metals from water like

Arsenic.

5. Ultra Filtration Cartridge

Eectively removes Bacteria, Cysts like Giardia and Cryptosporidium etc. from water. It also makes

water sparkling clear by removing ﬁne suspended impurities.

6. Silver Impregnated Post Carbon Cartridge

It enhances the taste and quality of puriﬁed water by removing volatile organic impurities.

PURIFICATION STAGES

• Open the box and check availability of below accessories required for installation

- SS Ball Value and 3 Way connector

- Wall Mounting Plate

- Insert & Screw for Wall Mounting Plate

- PL4 Pipe White and Blue

- User Manual cum Warranty Card

- Power Adaptor

• Choose an appropriate water connection point.

• Please note water puriﬁer unit should be connected to normal temperature water supply only. Hot water

supply is not recommended for water puriﬁer connection.

• Fix 3 Way connector & SS Ball valve with the help of a pipe wrench at this water point to separate water

supply for water puriﬁer Keep Ball Valve in Lock condition.

• Fix Mounting Plate at a suitable place on the wall near to Input Water Connection.

• Kindly ensure Fixing of Mounting plate is not inclined. On a inclined mounting plate unit will be hanged

inclined and it may result in ﬂoat valve malfunctioning/water overﬂow from unit.

• Hang the unit on Mounting plate

• Connect Input Water pipe (White) at the inlet connector in the unit. Cut the excess pipe length; do not

fold/round it.

• Now Fix the Power Adaptor into a 3 Pin, 5A230VAC electrical socket.

Installation Instructions

• Switch ON the Main Switch. After switching ON the switch, LED in power adaptor will glow and unit

will start working.

• Allow water to Flush/Drain from all ﬁlters by removing the outlet pipe of each ﬁlter.

• While ﬂushing ﬁlters kindly ensure water is not spilled onto any Electrical/Electronic part to avoid

failure. If so then switch OFF the Mains and soak the water with the help of a cloth from

Electrical/Electronic Part and allow it to dry.

• Check for any leakage from piping & ﬁttings/loose ﬁttings. If any pipe is found loose then reinsert it

into the connector to avoid leakage later.

• Take front cover and connect the Display PCB connector and ﬁx it.

• Check the function of Display PCB. It should be in working condition.

• Allow water storage tank to ﬁll completely and discard the ﬁrst ﬁll. You may use this water for

Floor/Utensils Cleaning and Gardening of Plants instead of draining.

1. Antiscalant Cartridge

The Antiscalant Cartridge chelates scale causing salts in water to prevent scaling on membrane

layers. It results in improved puriﬁcation capacity and increased life of membrane.

2. Sediment Filter

Sediment Filter removes coarse and ﬁne suspended dirt impurities from water and makes water clean.

3. Pre Activated Carbon Filter

It adsorbs residual chlorine and hazardous impurities like pesticides, herbicides, THM’s etc. from

water. It also adsorbs bad taste, color and odor causing organic compounds from water.

4. Reverse Osmosis (RO) Membrane

The water is passed through RO membrane at high pressure, RO Membrane removes Bacteria, Virus

and Protozoa and reduces Dissolved Salts, Hardness, Pesticides and heavy metals from water like

Arsenic.

5. Ultra Filtration Cartridge

Eectively removes Bacteria, Cysts like Giardia and Cryptosporidium etc. from water. It also makes

water sparkling clear by removing ﬁne suspended impurities.

6. Silver Impregnated Post Carbon Cartridge

It enhances the taste and quality of puriﬁed water by removing volatile organic impurities.

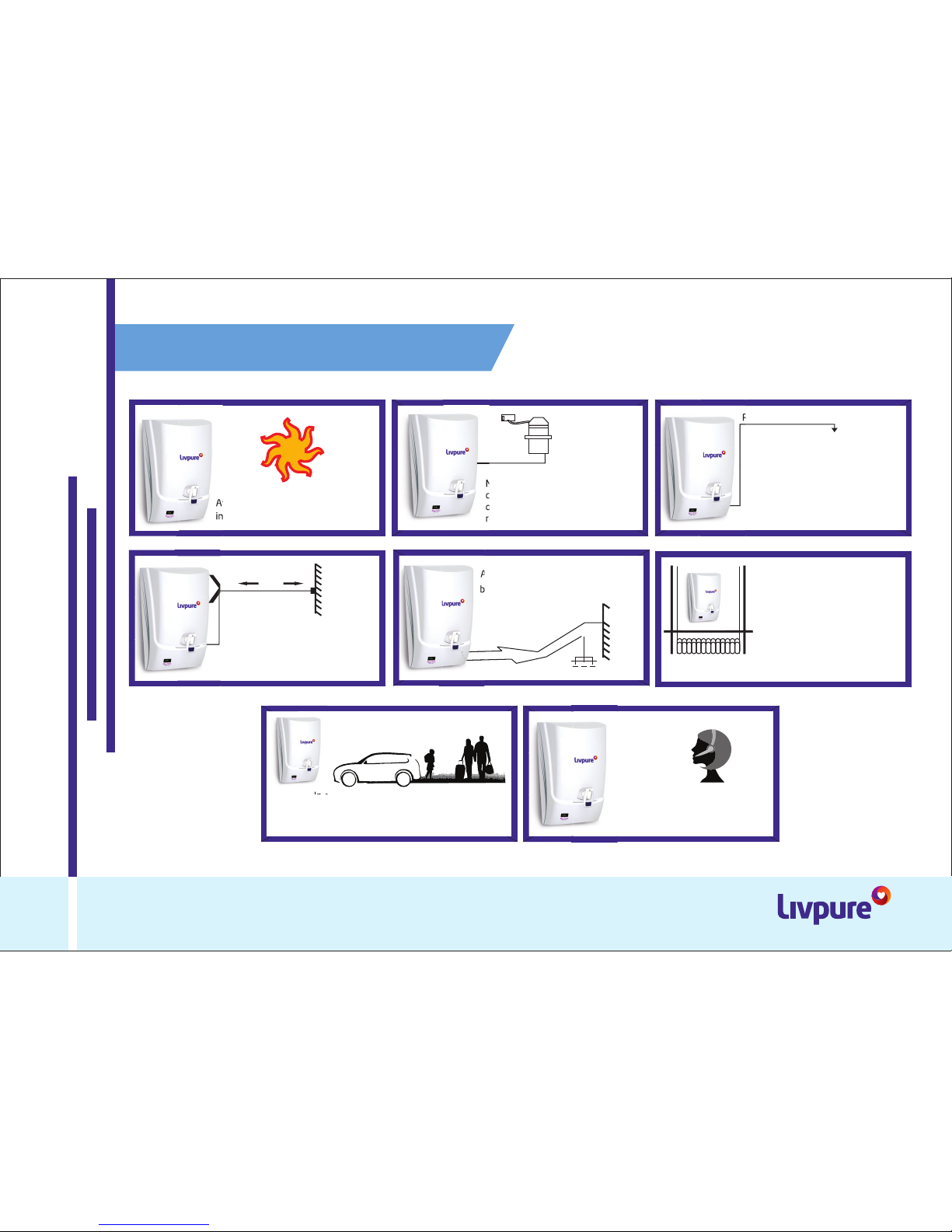

Important Instructions

Avoid exposure to direct sunlight and

installation in damp areas

Avoid exposure to direct sunlight and

installation in damp areas

Make sure that the puriﬁer is

connected to normal water supply

only. Hot water supply is not

recommended for RO connection.

GEYSER

Make sure the reject water pipe is

not placed at a level higher from the

puriﬁer otherwise reject water may

ﬂow backward into the puriﬁer.

Avoid sharp bends in the pipe. Do not

bend or block the water pipe.

The maximum distance between

the water source and the puriﬁer

should not be more than 1.5 meters

Water Source

Water in

1.5 M

Do not conﬁne the puriﬁer in a

closed cabinet.

Do not try to service the puriﬁer on

your own. Instead, call service

engineer for help.

In case of not using the puriﬁer for more than

two days, kindly switch of the power supply

and drain the storage tank.

Reject Water

In case of not using the puriﬁer for more than

Avoid sharp bends in the pipe. Do not

bend or block the water pipe.

Make sure that the puriﬁer is

connected to normal water supply

only

recommended for RO connection.

Reject Water

Technical Speciﬁcations#

NOTE -

1. Use a Pre ﬁlter cartridge if water contains more than 10 NTU turbidity.

2. Input Raw Water temperature should be between 10°C to 45°C.

3. Total Dissolved Solids in input raw water should not exceed 1500 ppm.

4. Raw Water should be free from oil & grease.

5. Permissible Iron content in Input Raw water is 0.3 mg/L (max).

6. Total Hardness in Input Raw Water should not exceed 600 mg/L (max).

* If input water pressure is below 0.3 kg/Sq.cm, use of Booster Pump attachment is recommended to increase input water pressure and proper functioning of the unit. Flow rate depends on the input water

pressure and condition of the ﬁlters.

** If input water pressure is above 3.0 kg/Sq.cm, use of pressure reducing valve is recommended for Leak proof and smooth functioning of the unit.

#Manufacturer reserves the right to change/replace/upgrade any part of component in pursuit of providing continuous improvement in the quality of the products to its esteemed customers.

RO + UF

Upto 12 litres/hour

Upto 75 litres/day

7 Litres (approx)

75 GPD (Gallons Per Day)

Anti Scalant Cartridge, Sediment Filter, Pre Activated Carbon Filter

RO Membrane, Ultra Filtration (UF) Cartridge,

Silver Impregnated Post Carbon Cartridge

0.3 Kg/Sq.cm*

3 Kg/Sq.cm**

140-300 V AC / 50 Hz

24 V DC
