Livall C20 Manuel utilisateur

www.livall.com

I.Introduction

Welcome to the User Guide for LIVALL smart commuter helmets. Avoid crowds and ride free withthe new commuter

helmet. Smart features include built-in SOS fall detection, LED lighting, and sleek, waterproof design.This Guide will

help you better use this product. With continuous improvements of our products, this Guide will be updated from

time to time. You can access the latest version and learn more about the helmet on www.livall.com.

Visor

prevail.

Chinstrap Tension adjuster Taillight Magnetic USB charging port Power Switch

II. Packing List

Helmet x1 Quick Start Guide & Warranty Information x 1 Magnetic USB charging cable x 1

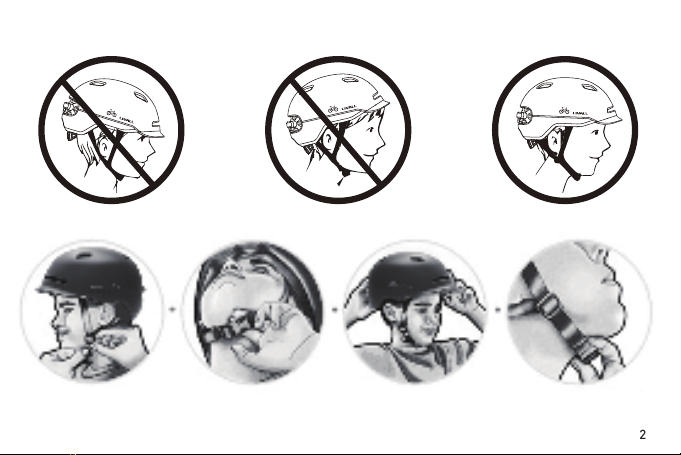

III. Wearing Instructions

IncorrectIncorrect Correct

Adjust the length of

the chinstrap

Leave a gap asthick as

one finger

Correctly positionthe

helmet

Check whetherthebuckle

is properly fastened

Power on

Lighting Mode

Adaptive Warning Lighting

Hold the button at the back

of the helmet for 2 seconds,

then the LED taillight will blink

for 10 seconds after the helmet

is powered on, which means

the helmet automatically enters

adaptive warning light mode.

Hold the

lighting mode: After the helmet is power on, press the button for a second to switch the three lighting modes in

order. 1.adaptive warning mode A;2.adaptive warning mode B;3.keep warning light always on.

2 seconds after power on, press the button (less than 1 second), the helmet will enter the adaptive warning

Hold 2 seconds

Remark: When powering on, you could check the remaining battery level of the helmet by the number of tail lights,

all the 7 lights on indicates full power.

Charging

Lighting Always on Mode

Brake warning light When the helmetdetects a clear deceleration, the whole taillight will light up for 1-2 seconds to warn the vehicles

behind.

Comment: When the helmet shakes too heavy, the built-in sensor detects obvious deceleration to trigger the warning

lightalways on, which is normal.

Auto Power-on When the battery of the helmet is charged, shake the helmet a few times. It will power on automatically. (This

When the soft rubber lid with “ ”

image is opened, the Magnetic charging

port will be seen. Insert a USB cable

into the USB Charging cable interface

of the helmet. Charging starts when the

central LED blinks. During charging,

when the central LED stops blinking Open the soft rubber

NO FunctionC20C21

1 Quick Flashing Light, Tidal Light

2Adaptering light

3Brake warning light

5Auto-power on

6SOS Alert

Connect to the phone (Tip: Once connected, to ensure the stability of the connection, please try to position your

mobile phone in front of you.)

Helmet Headset

"Click to

connect"

"" function

button

Turn on the helmet.

Only if the helmet is successfully connected to LIVALL Riding App, SOS alert feature can work.

LIVALL Riding AppSwith on the Bluetooth on your

phone and click to connect the

"Smart Helmet" device.

IV. Technical Specifications

Notes:The above data is measured by LIVALL in a controlled environment, with room temperature at 25°C and

Model:C20/C21

Charging port : Magnetic USB

Battery : 3.7V/455mAh

Waterproof class : IPX4

Temperature: Storage Temperature: -20°C ~45°C. Temperature for use: 0°C~40°C. Temperature while charging:

0°C~40°C.

Electricity parameter : DC 5V/1A

Charging time : 3-4 hours

Battery life : about. 26-36hrs for lighting all the time

Performance standards:

16 CFR 1203

EN 1078:2012+A1:2012

V. Considerations

1. The helmet contains electronic parts inside. Please do not take a long ride in the rain although the helmet can

prevent the rainfrom splashing.

2. After the helmet gets wet in the rain, the water droplets might occur in the chimney of tail LED lights. The water

droplets will disappear when you put the helmet under the ventilation environment for 1-2 days.

3. The helmet contains the battery of 3.7V/455mAh. The battery capacity varies with temperature change. The

battery life can decay when the helmetis used at low temperatures or below Zero degrees Celsius.

4. Trying to clean the golden colour contacts of the charging plug sheet with metal orhard toolssuch as bladesor

tweezers is strictly forbidden. Please use cotton swabs with clean water or alcohol in case of cleaning. Please make

sure the charging plug is clean and try while charging the helmet.

5. If the electronic functions do not work, please charge the helmet for 3 hours and then checkif it works normally.

AS/NZS 2063-2008

NTA 8776:2016-12

VI. Instructions for Use and Care

which feels secure and comfortable on the head.

2. That the helmet should be adjusted to ﬁt the user e.g. the straps positioned so that they do not cover the ears, the

buckle positioned away from the jawbone and the straps and buckle adjusted to be both comfortable and ﬁrm.

3. How the helmet should be position on the head to ensure the intended protection is provided (e.g. that it should

be placed so as to protect the forehead and not be pushed too far over the back of the head.

4. That ahelmetcannot always protect against injury.

5. That ahelmetsubjected to a severe impact should be discarded and destroyed.

6. Astatement of the dangerof modifying or removing any of the original component parts of the helmetother

than as recommended by the manufacturer, and that helmets should not be adapted for the purpose of ﬁtting

accessories in a way not recommended by the manufacturer.

Note:

1. Problems such as network anomalies, may result in the failure to successfully send or receive SOS messages.

storage (six months to one year).

6. The built-in battery is forbidden to be disassembled, squeezed, heated or burned. It is also forbidden to use

screwdrivers and other sharp devices breaking down or prying apart the battery. The above operationsmay make

the battery caught ﬁre.

7. Please do not place the helmet with sharp objects, avoiding to damage the helmet.

8. The helmet contains impact detection devices. Only if you connect your helmet with LIVALL Riding App,

emergency contacts set on LIVALL Riding App can accordingly receive your SOS messages.

7. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This

device may not cause harmful interference, and (2) this device must acceptany interference received, including

interference that may cause undesired operation.

8. Take good care of the product, do not wash the surface of the helmet with corrosive solvent, do notstrike the

helmet;

9. Validity: Valid for 3 years without impact and under normal use.

During the usage, if the following troubles occur, please charge the product according to quick guide of the

model(the helmet can be reset during the charging). If the problems still can not be solved, please contact the after-

salesservice center. (After-sales email: riding@livall.com)

Faults:

2. The helmet is turn on, but the lights, micphone, speakers etc can not work normally;

Note: Please refer to the quick guide of the speciﬁc model for function details.

VII. Electronic functions troubleshooting

This helmet is in conformity with the regulation (EU) 2016/425 and Regulation 2016/425 on personal protective

equipment asbrought into UK law and amended.

Hereby, LIVALL Tech Co., Ltd. declare that the radio equipment type Smart Helmet is compliance with Directive

2014/53/EU.

LIVALL Tech Co., Ltd. declare that the full EU Declarationof conformity and UK Declaration of conformity are available

on the Internet at http://www.livall.com/tech/product.html

Operating Frequency Range The maximum RF Output Power

Bluetooth 2402 - 2480 MHz -4.98 dBm EIRP

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

the useris encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Consultthe dealer or an experienced radio/TV technician for help

Changes or modiﬁcations not expressly approved by the party responsible for compliance could

void the user'sauthority to operate the equipment.
