K-Flex Quadro
Rev02-220404

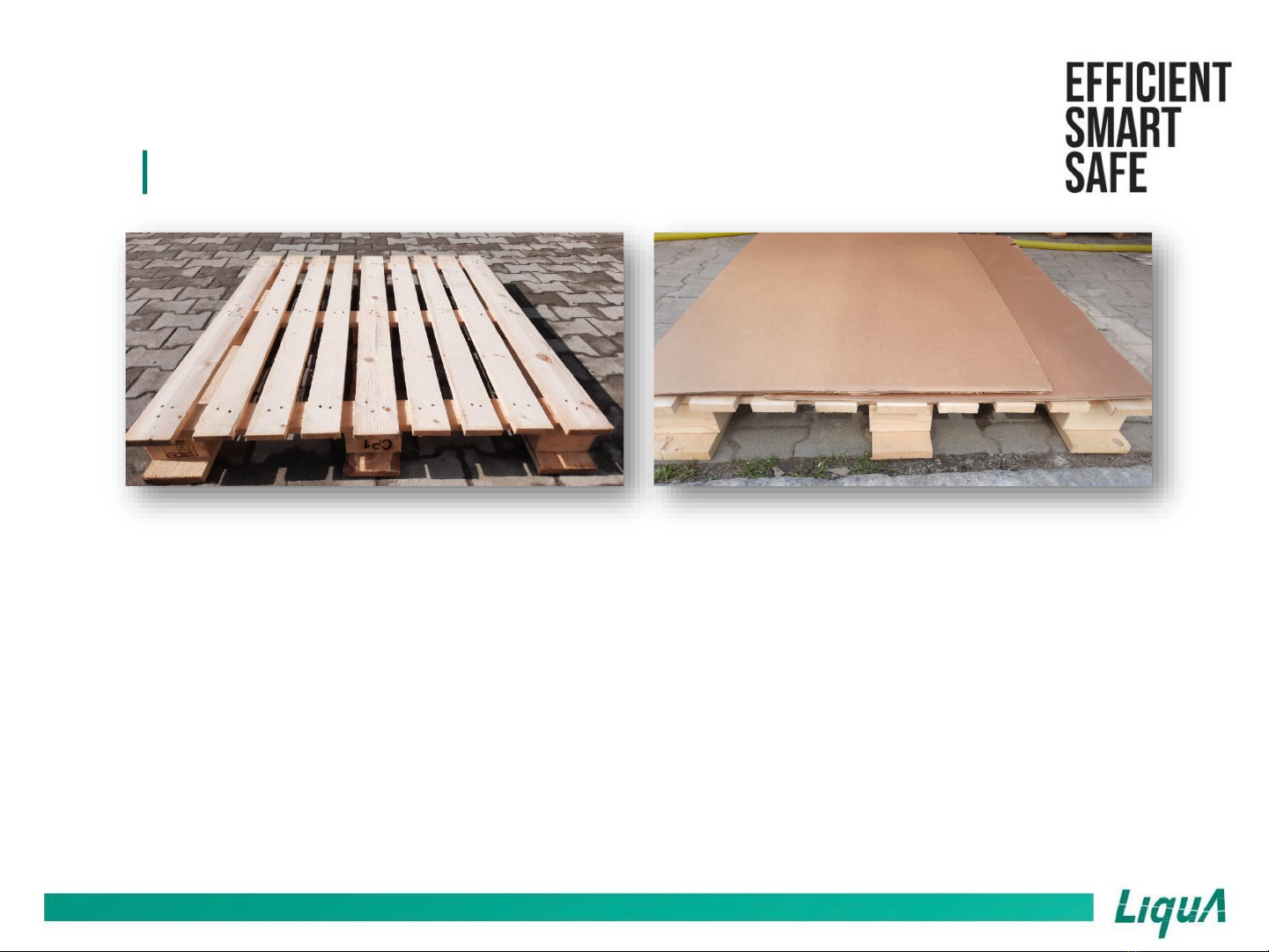

▪CP1 pallet must be used. No other pallet type is compatible.
▪Pallet size must be 100 x 120cm, CP1 pallets must be in good condition, free of
nails and sharp objects.
▪Cover the surface of the pallet with a carton board.
▪Pallets must have 2000kg Safety Working Load.
Rev02-220404
Pallet Selection
2
Rev02-22040433
Open the K-Flex box and ensure that the following are in the package:
1. K-Flex
2. Separator
Contents of the Box
3
Rev02-220404

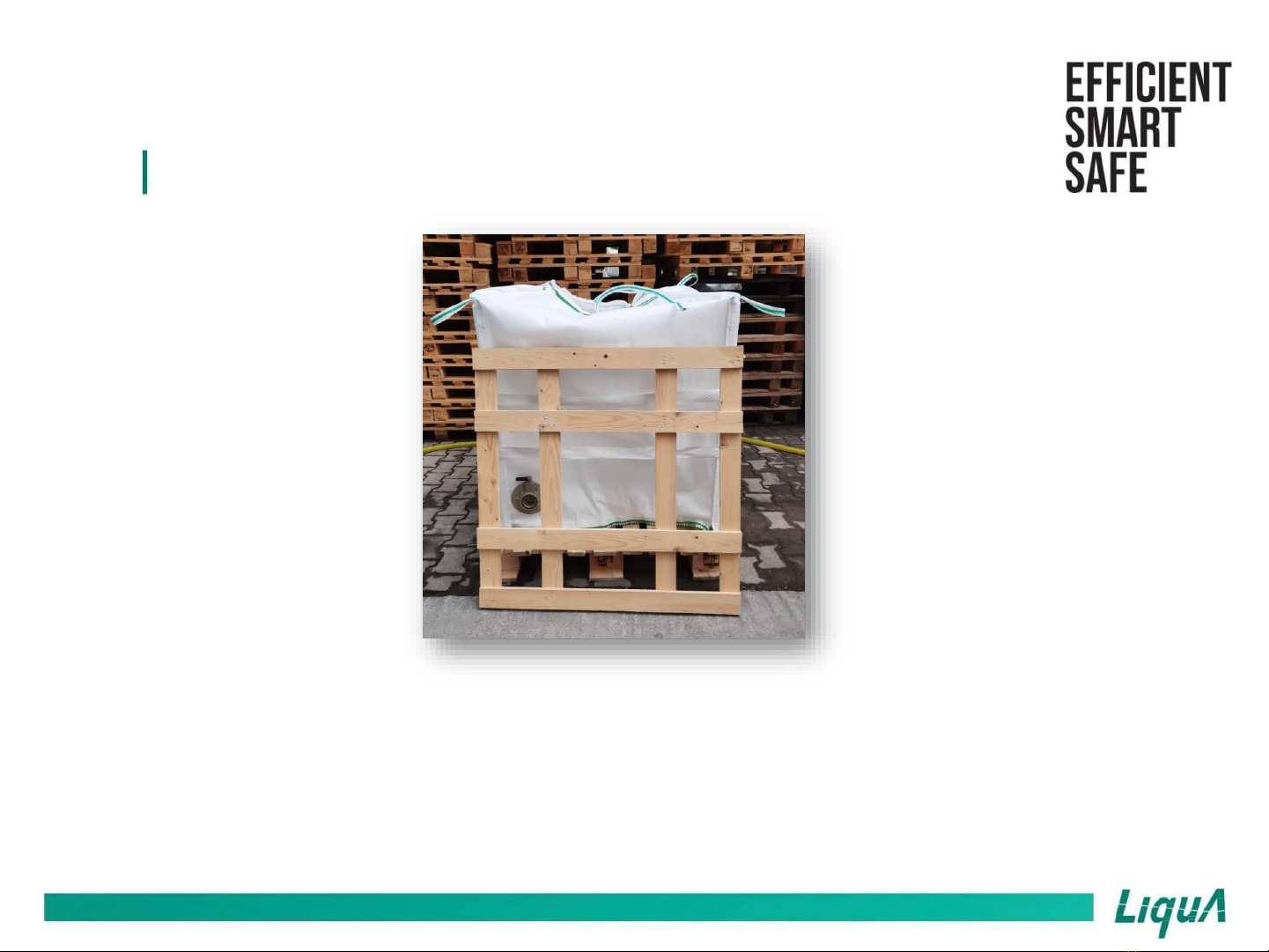

▪Erect the K-Flex on a CP1 pallet.
▪Position the K-Flex to the center of the pallet.
Setup
4
Rev02-220404
Setup
5

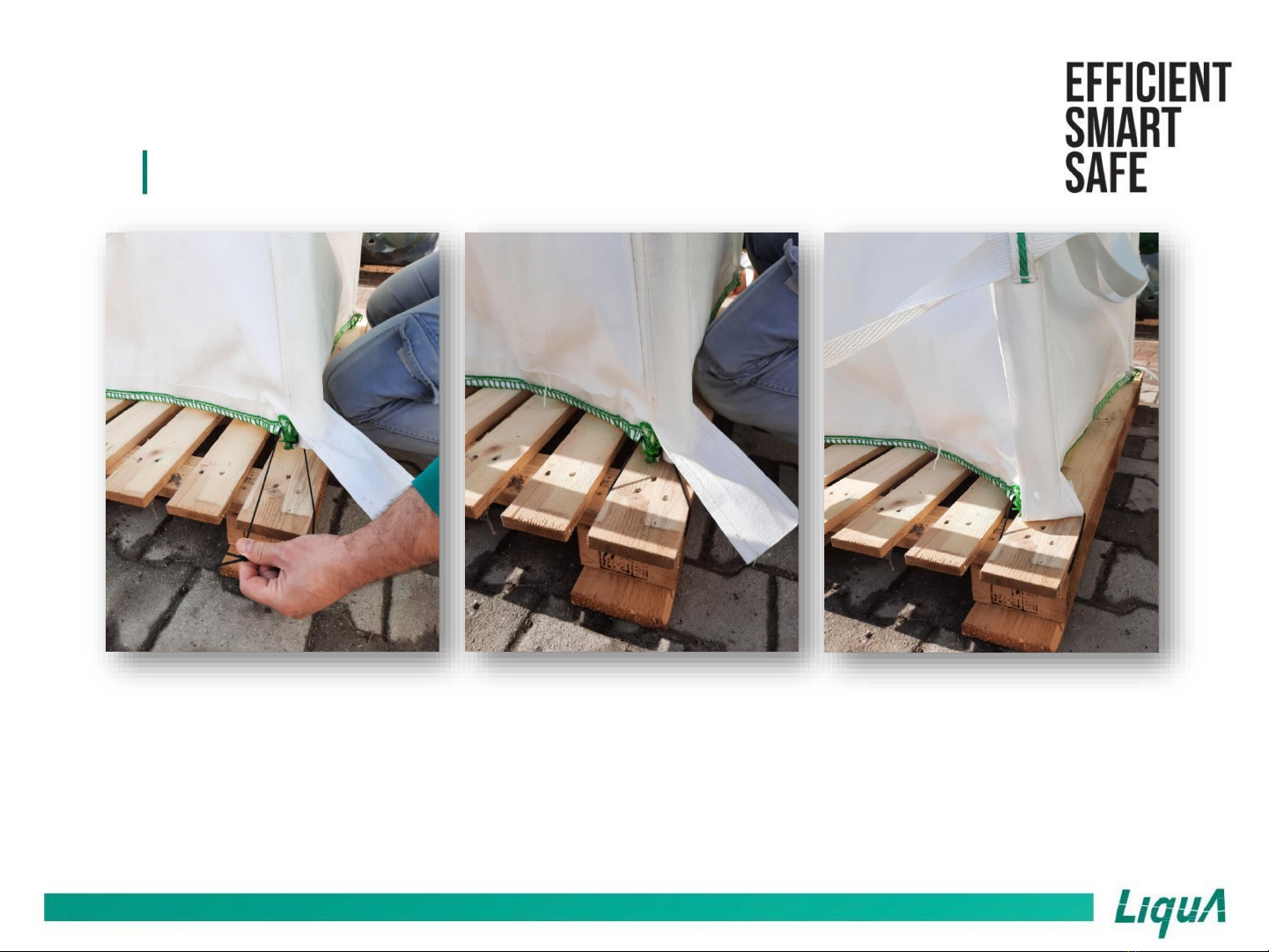

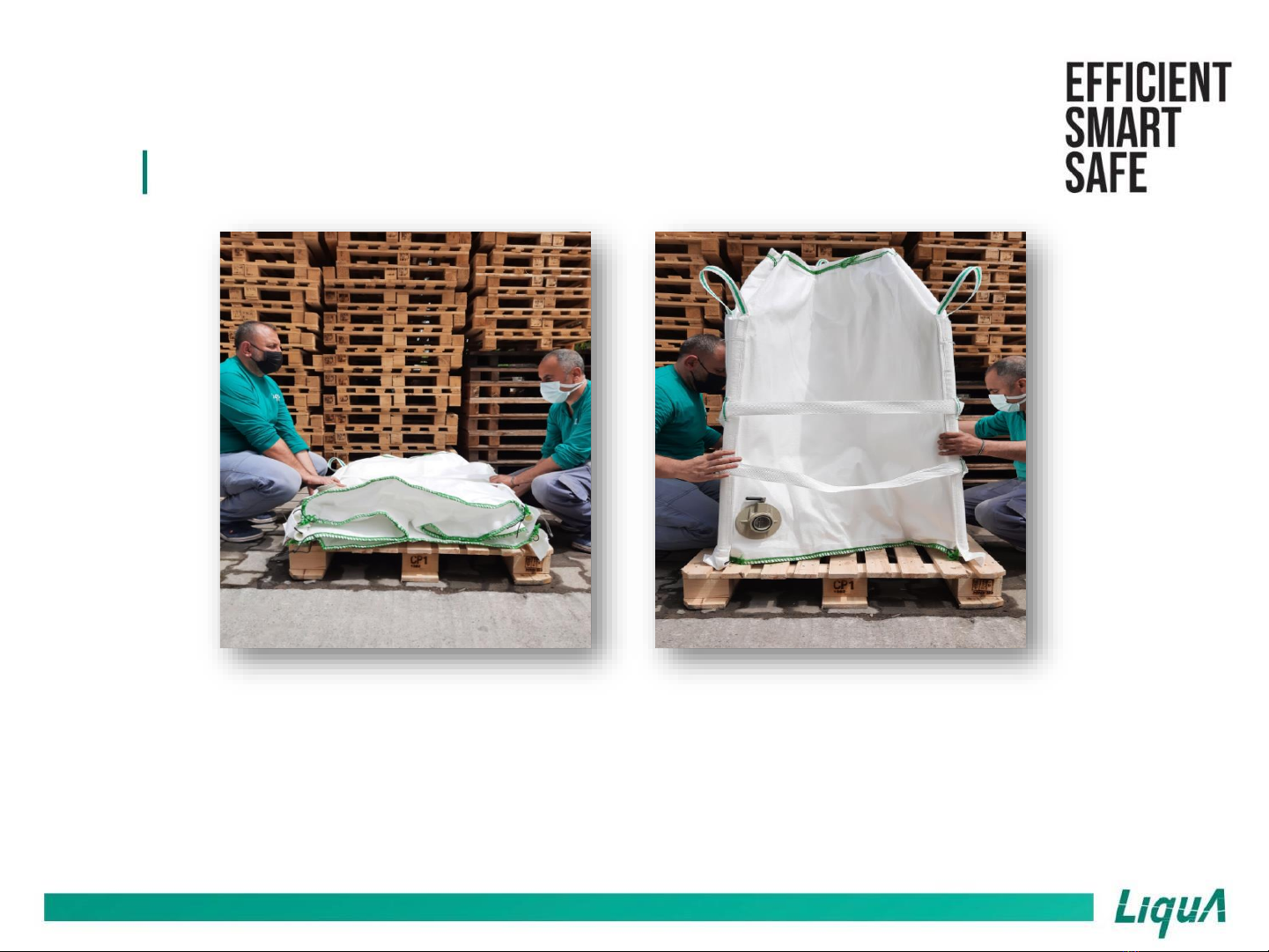

▪Fix the elastic bands to the pallet corners.
Rev02-220404
Setup

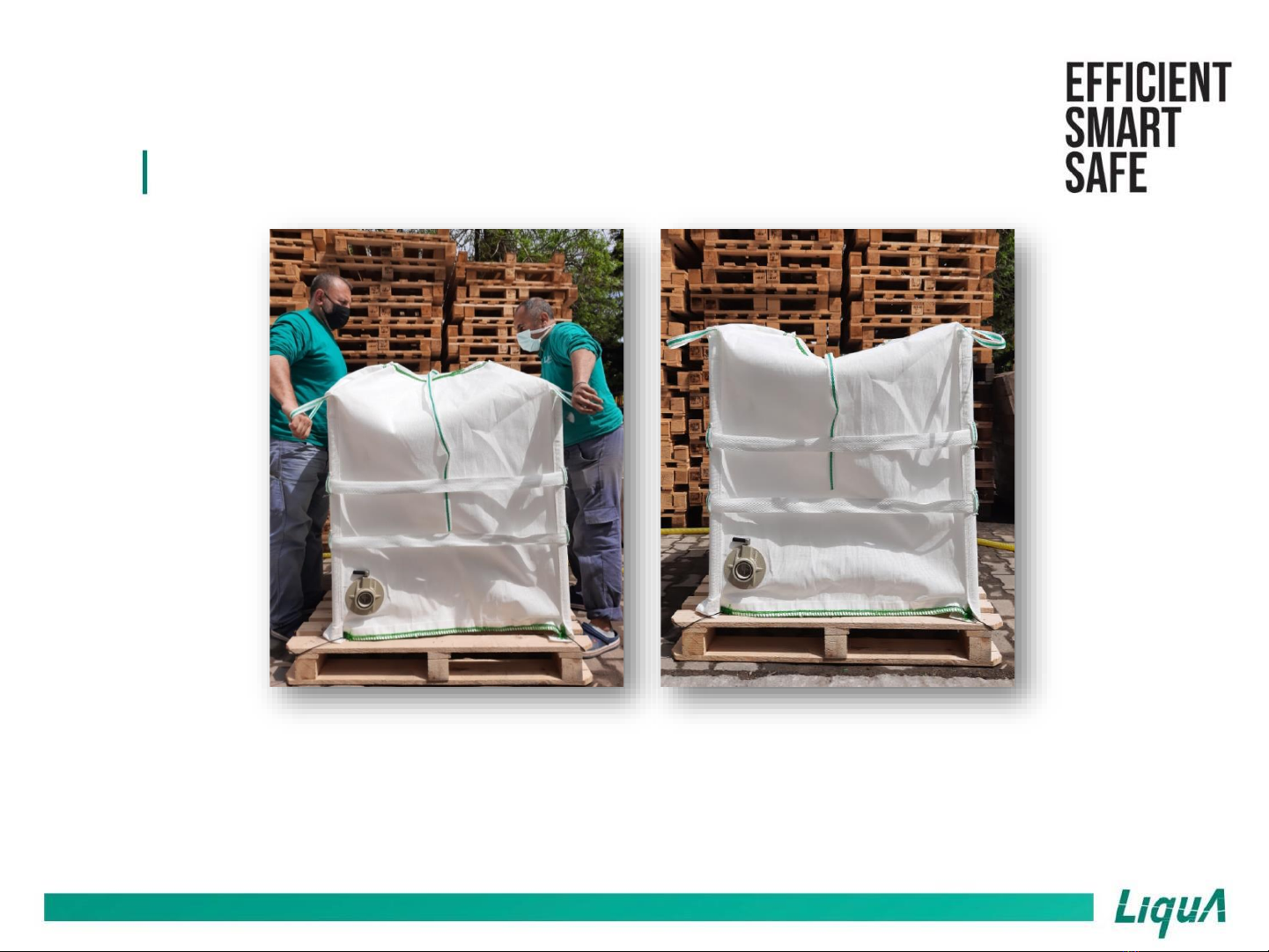

▪Pull the loops to yourself and obtain a cubical form.
6
Rev02-220404
Setup
7

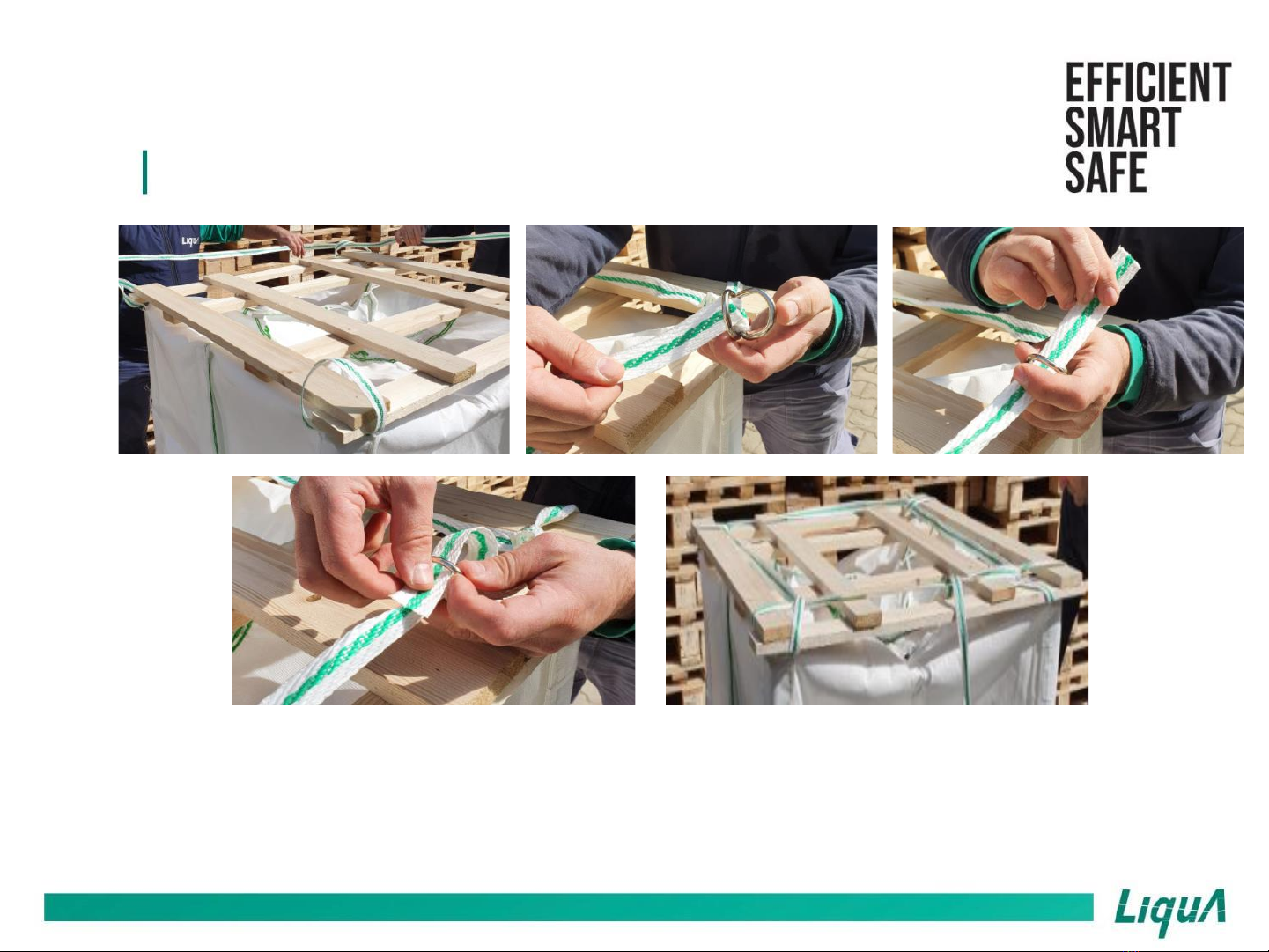

▪Position the separator at the top of the K-Flex.
▪Fasten and integrate top separator and K-Flex to each other.
Rev02-220404
Coupling

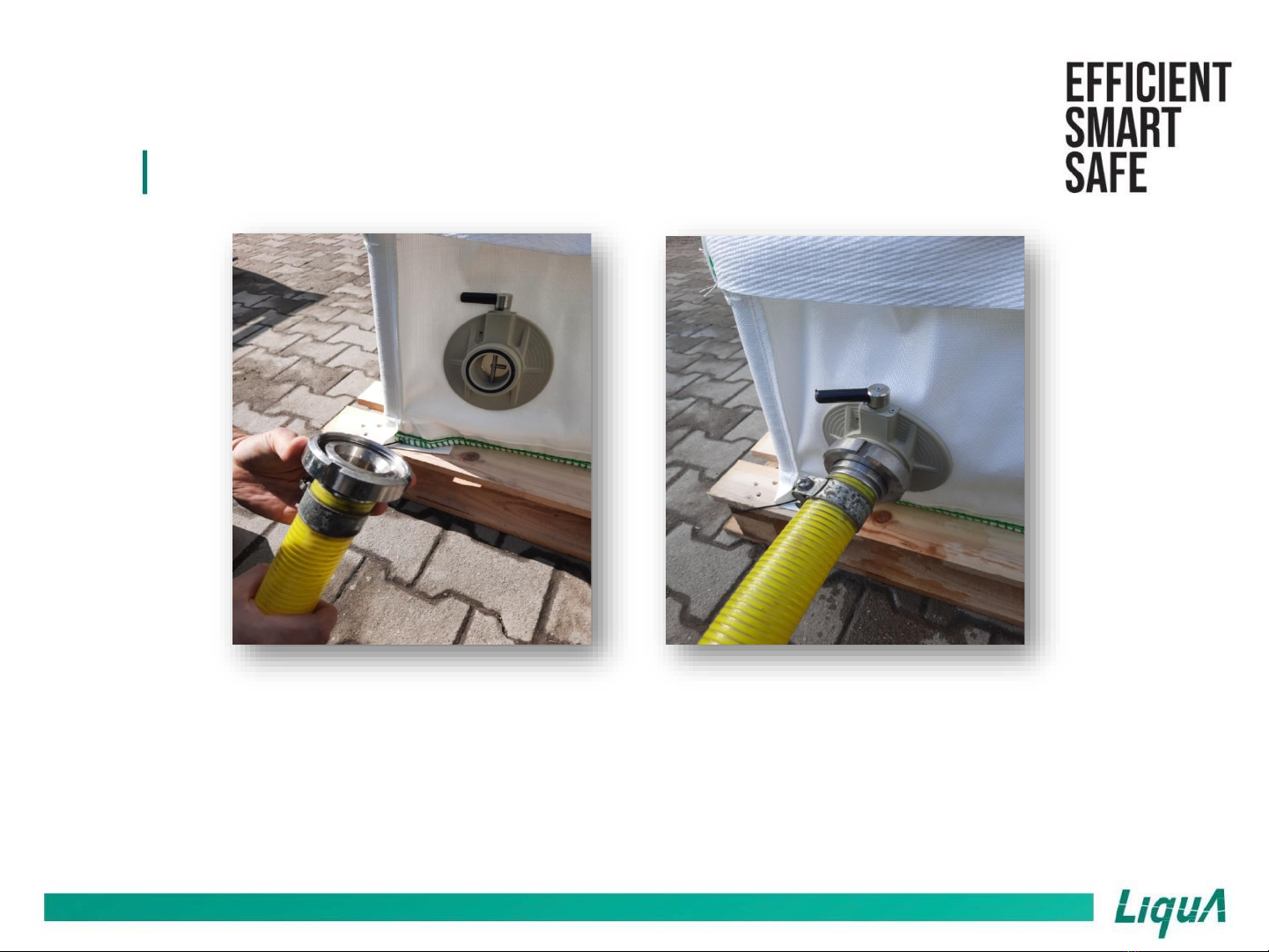

▪You will need to have a 2” coupling. (DIN EN 14 420–7)
▪Couple the hose to the valve.
▪Ready for filling.
8
▪Ensure that the valve does not get any stress at any time.

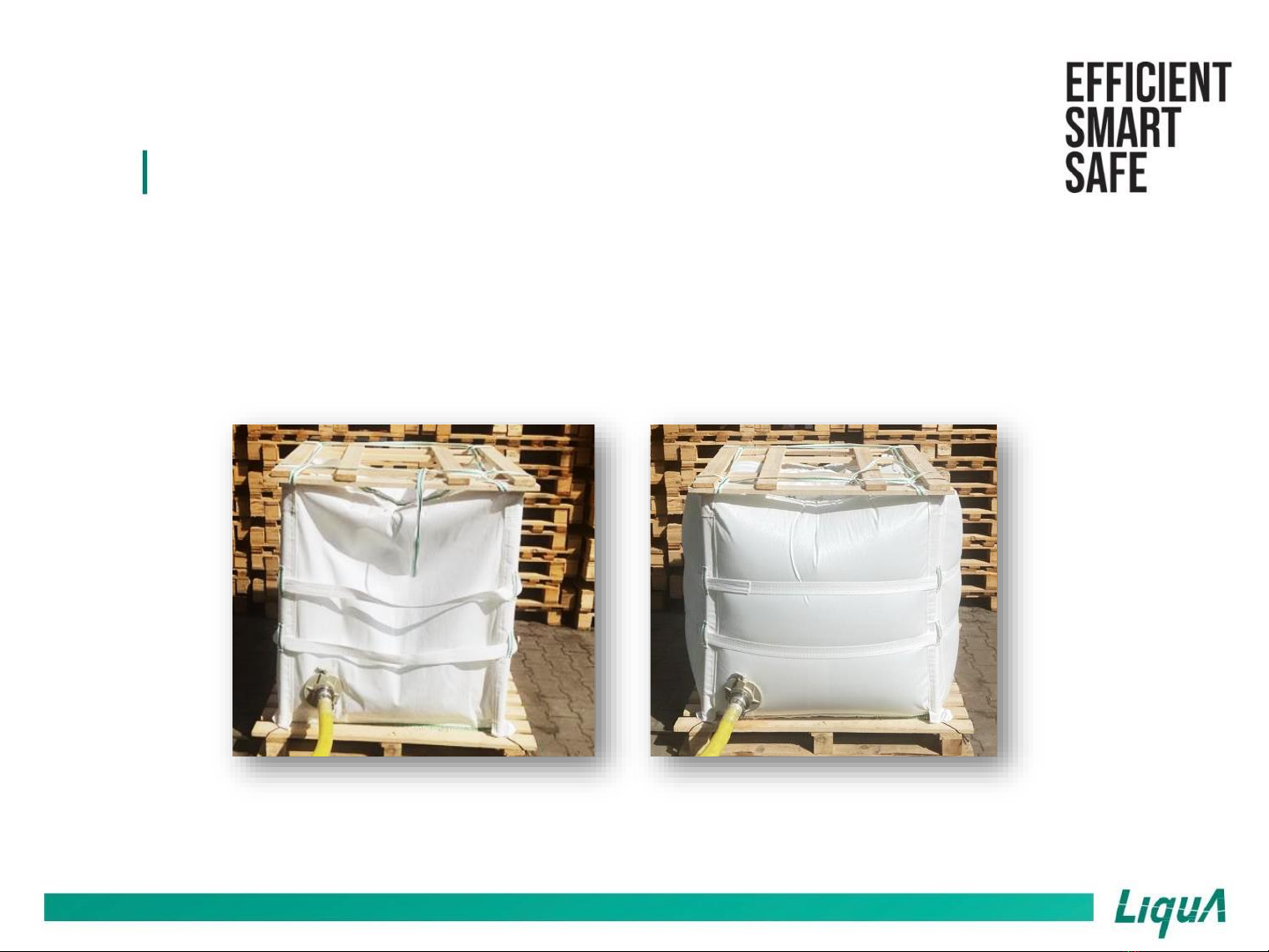

▪Start filling at low speed, 30-50lt per minute for the first 20seconds.
▪Ideal filling time is 5 minutes per 1000lt.
Rev02-220404
Filling
9
After loading;
▪Remove the hose.
▪Fasten the cap.
Rev02-220404
Filling
10
