104X-E4690
PCI/104-Express Graphics Card
Technical Manual
TME-104X-E4690-1V0.doc Rev 1.0
Technical Manual 104X-E4690
LiPPERT Document: TME-104X-E4690-1V0.doc, Revision 1.0
Copyright © 2010-2011 LiPPERT Embedded Computers GmbH, all rights reserved
Trademarks
Windows is a trademark of Microsoft Corporation. AMD, the AMD arrow logo, ATI, the ATI logo, Radeon, and
combinations thereof are trademarks of Advanced Micro Devices, Inc. PCI/104-Express is a registered trademark
of PC/104 Consortium. All other trademarks appearing in this document are the property of their respective
owners.
Disclaimer
Contents and specifications within this technical manual are subject of change without notice.
LiPPERT Embedded Computers GmbH provides no warranty with regard to this technical manual or any other
information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness
for any particular purpose with regard to any of the foregoing. LiPPERT Embedded Computers GmbH assumes no
liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions
contained herein or for discrepancies between the product and the technical manual. In no event shall LiPPERT
Embedded Computers GmbH be liable for any incidental, consequential, special, or exemplary damages, whether
based on tort, contract or otherwise, arising out of or in connection with this user’s guide or any other information
contained herein or the use thereof.
TME-104X-E4690-1V0.doc Rev 1.0 i
Table of Contents
1Overview 1
1.1 Introduction ........................................................................................................................1
Features ....................................................................................................................................1
Block Diagram...........................................................................................................................2
1.2 Ordering Information...........................................................................................................3
104X-E4690 Models..................................................................................................................3
Accessories...............................................................................................................................3
1.3 Specifications .....................................................................................................................4
Electrical Specifications............................................................................................................4
Environmental Specifications....................................................................................................4
MTBF.........................................................................................................................................4
1.4 Mechanical .........................................................................................................................5
TOP...........................................................................................................................................6
2Getting Started 7
2.1 Connector Locations ..........................................................................................................7
Top ............................................................................................................................................7
2.2 Hardware setup ..................................................................................................................8
2.3 Cooling solutions ................................................................................................................9
Heat spreader ...........................................................................................................................9
Heat pipe adapter .................................................................................................................. 10
Heat sink active...................................................................................................................... 10
3Module Description 11
3.1 Interfaces..........................................................................................................................11
VGA (X6, X10)......................................................................................................................... 11
DisplayPort (DP) Connector (X1 (X12), X2 ( X13)) .................................................................. 12
Integrated HD Audio Controller (Azalia) and Codec .............................................................. 12
LVDS (X3) ............................................................................................................................... 13
LVDS Color Mapping ............................................................................................................. 14
Backlight (X5) ......................................................................................................................... 14
Display Voltage Jumpers (X4) ................................................................................................ 15
3.2 PC/104-Plus Bus Interface (X11).......................................................................................16
3.3 PCI/104-Express Bus Interface (X7) ..................................................................................17
TME-104X-E4690-1V0.doc Rev 1.0 ii
3.4 Fan Connector (X9) ...........................................................................................................18
4Using the Module 19
4.1 Drivers ..............................................................................................................................19
Scalable Power Consumption ............................................................................................... 19
Appendix A, Contact Information A
Appendix B, Additional Information B
Appendix C, Getting Help C
Appendix D, Revision History D
TME-104X-E4690-1V0.doc Rev 1.0 iii
Acronyms
ACPI Advanced Configuration and Power Management Interface
AMD Advanced Micro Peripherals
BIOS Basic Input Output System
BPP Bits Per Pixel
CPU Central Processing Unit
CRT Cathode Ray Tube
DAC Digital-to-Analog-Converter
DC Direct Current
DDR Double Date Rate
DMA Direct Memory Access
EMC Electromagnetic Compatibility
HDA High Density Audio
I²C Inter-Integrated Circuit
LCD Liquid Crystal Display
LED Light Emitting Diode
LVDS Low Voltage Differential Signaling
PCIe Peripheral Component Interconnect Express
PLL Phase-Locked Loop
PWM Pulse Width Modulation
PWR Power
ROM Read Only Memory
SBC Single Board Computer
SMB System Management Bus
SMC System Management Controller
SPI Serial Peripheral Interface
VGA Video Graphics Array
TME-104X-E4690-1V0.doc Rev 1.0 1(19)
1Overview
1.1 Introduction
The 104X-E4690 is a graphics card with an ATI Radeon™ E4690 graphics processor for embedded applications
with an excellent performance power ratio. The board adds unprecedented graphics performance to an
embedded PC on a small 3.78" by 3.55" printed circuit board.
Based on 55nm technology, the E4690 delivers more than double the performance per watt* than previous
generation processors. Built with ATI’s PowerPlay™ technology the E4690 has dynamic power management
delivering high performance when needed, while intuitively conserving energy at idle or when demand is low. The
E4690 graphics processor also allows for exceptional scalability of performance between 8W and 25W.For analog
monitors there is a VGA-interface and digital ones can be connected to LVDS or Display Port. Backlighting is
provided for LCD modules, too.
For larger projects, the Display Port and VGA connectors can be left unstuffed while display cables can be
soldered directly onboard.
System expansion can easily be realized over PCI/104-Express and PC/104-Plus bus connectors.
The 104X-E4690 is powered by the PCI/104-Express and PC/104-Plus bus connectors and needs no additional
power supply.
The 104X-E4690 runs at Linux, Windows XP, Windows XP Embedded, Windows Vista and Windows 7.
Features
GPU
•ATI Radeon™ E4690
•CPU Interface PCIe 2.0 (x1, x2, x4, x8, x16)
•320 Shader Processing Units
•AVIVO Display Engine
•Full 30-bit Display Pipeline
•Stream Computing
Main Memory
•512MByte GDDR3 700 MHz RAM (128Bit)
Graphics Acceleration
•DirectX 10.1
•Shader Model 4.0
•OpenGL 3.x
•OpenCL (2H09)
•Motion Video Decode for H.264, VC-1,
MPEG2
Extension slots
•1 x 32-bit PC/104-Plus 22 mm height on top
•1 x PCI/104-Express 22m height on top
Interfaces
•VGA
•2 x DisplayPort (v1.1a)
•18Bit or 24Bit Dual Channel LVDS
Other Features
•Integrated HD Audio Controller (Azalia)
•Temperature Controlled Fan
Other configurations are possible. Please contact your local LiPPERT representative to discuss requirements.
TME-104X-E4690-1V0.doc Rev 1.0 2(19)

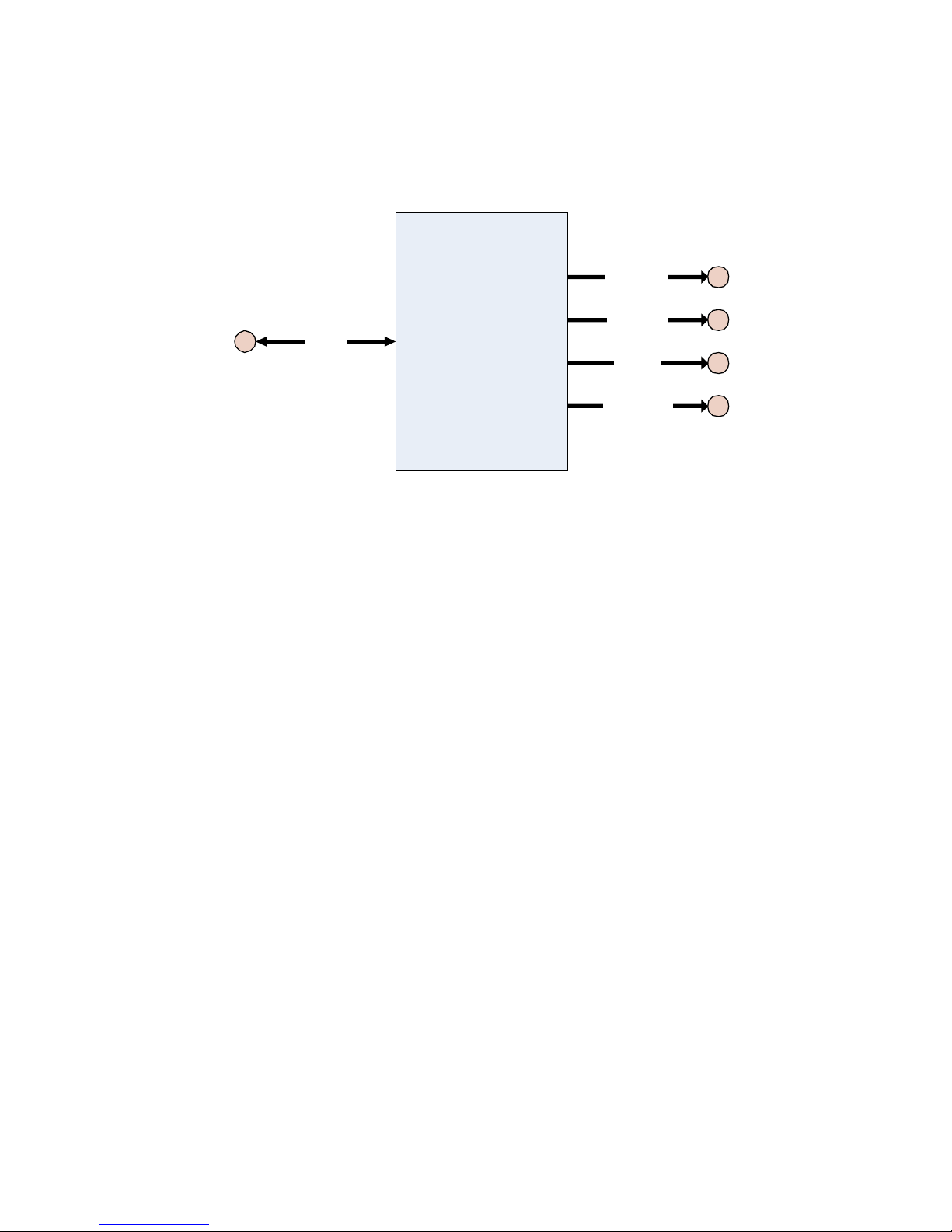

Block Diagram
ATI
RadeonTM E4690
512MB on chip
memory
DisplayPortA
DisplayLinkA
DisplayLinkB
DAC1Link
DisplayLinkE/F
DisplayPortB
VGA
24BitLVDS(DualChannel)
PCIex16PCI/104-Express
TME-104X-E4690-1V0.doc Rev 1.0 3(19)
1.2 Ordering Information
104X-E4690 Models
Order number
Description
712-0007-10 104X-E4690
Operating temp. range: 0°C…+60°C
812-0007-10 104X-E4690
Operating temp. range: -20°C…+60°C
Accessories
There are some options available for the 104X-E4690. Please check their availability before ordering.
Order number
Description
765-0033-10
765-0034-10
765-0026-10
Heat spreader 104X-E4690 (already included on delivery)
Heat Pipe Adapter 104X-E4690
Heat sink active 104X-E4690
TME-104X-E4690-1V0.doc Rev 1.0 4(19)
1.3 Specifications
Electrical Specifications
Supply voltage +5 V DC
Rise time < 10 ms
Supply voltage tolerance ± 5%
Inrush current t.b.d.
Supply current +5 V DC / max. 5A
+3.3V DC / max. 2A
Environmental Specifications
Operating:
Temperature range 0 … 60 °C (standard version)
-20 … 60 °C (industrial version)
Temperature change 10K / 30 minutes maximum
Humidity (relative) 10 … 90 % (non-condensing)
Pressure 450 … 1100 hPa
Non-Operating/Storage/Transport:
Temperature range -55 … 85 °C
Temperature change
10K / 30 minutes maximum
Humidity (relative) 5 … 95 % (non-condensing)
Pressure
450 … 1100 hPa
MTBF
MTBF at 25°C 450.937 hours
TME-104X-E4690-1V0.doc Rev 1.0 5(19)
1.4 Mechanical
Dimensions (L x W) 90.2 mm x 95.9 mm
Height max. 11mm on topside above PCB (without bus connectors)
max. 5 mm on bottom side above PCB (without bus connectors)
Weight approx 90 gr. without cooling solution
approx 250 gr. with active heat sink
Mounting 4 mounting holes as defined in the PCI/104-Express specification
4 mounting holes for cooling device
Note:
It is strongly recommend using plastic spacers instead of metal spacers to mount
the board. With metal spacers, there is a possible danger to create a short circuit
with the components located around the mounting holes. This can damage the
board!
