Lionel Scout Set Manuel utilisateur
Lionel Scout
Ready-to-Run Train Set
Owner’s Manual
73-0127-250
4/10
CAUTION—ELECTRIC TOY
NOT RECOMMENDED FOR CHILDREN UNDER EIGHT YEARS OF AGE. AS WITH
ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING
HANDLING AND USE TO PREVENT ELECTRIC SHOCK.
TRANSFORMER RATINGS—INPUT: 120 VAC; 60 HZ ONLY.
AC OUTPUT: 18 V; 40 VA
Lionel Scout
Ready-to-Run Train Set
Owner’s Manual
Congratulations!
2
Congratulations on your purchase of the Lionel Scout Ready-To-Run Train Set! This set features
everything you need to get started—a PowerMax Plus Transformer, a huge loop of easy-to-
assemble FasTrack track, a string of detailed cars, and a powerful Lionel locomotive.
Have fun growing with this complete train set! Start with the set components, then follow your
imagination into your own miniature world. Expand your railroad empire with additional FasTrack
track sections, enhance your layout with accessories, lengthen your consist with extra cars, or oper-
ate a new locomotive at the head end of your train! Explore the possibilities at your authorized
Lionel dealer.
Use this Owner’s Manual to learn how to set up, operate, and maintain your train set for years of
reliable operation.
The transformer included with this set should be periodically
examined for conditions that may result in the risk of fire,
electric shock, or injury to persons (such as damage to the
output cord, blades, housing, or other parts). In the event that
such conditions exist, the transformer should not be used until
properly repaired.
Parents!
Train Set Features
• Bright headlight
• Puffing smoke
• Air whistle
• Forward-Neutral-Reverse operation
• Operating couplers
The following Lionel marks are used throughout this catalog and are protected under law. All
rights reserved.
Lionel®, LEGACY™, TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™,
DynaChuff™, StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1®
Remote Controller, American Flyer®, Lionel ZW®, ZW®, MagniVision®, TMCC®, Lionelville®,
Wireless Tether™, Powerhouse™, LionMaster®, Conventional Classics™, Postwar Celebration
Series™, TruRail™, PH-1 Powerhouse®, Powermaster®, Powerstation-Powerhouse®, Accessory
Motor Controller™, AMC™, Accessory Switch Controller™, ASC™, Action Recorder Controller™,
ARC™, Track Power Controller 300™, TPC 300™, Track Power Controller 400™, TPC 400™,
Block Power Controller™, BPC™, Operating Track Controller™, OTC™, FatBoy™, Lionel
Lines®, Joshua Lionel Cowen Series™, Lockon®, TrainSounds™, MultiHorn™, MultiWhistle™,
Choo-Choo™
Train Set Inventory
• 2-4-2 Locomotive
• Tender
• Gondola with two canisters
• Hopper
• Square window caboose
• PowerMax Plus Transformer with accessory wire
• One straight FasTrack track sections
• Eight curved FasTrack track sections
• One straight FasTrack terminal track section
• Smoke fluid
• Replacement traction tire
• Owner’s Manual
• BONUS Lionelville DVD included
3
Table of contents
Creating your layout
Operating your PowerMax Plus Transformer safely 4
Building your Lionel layout 5
Joining the FasTrack track sections 6
Wiring your PowerMax Plus Transformer 7
Running your train
Running your train set 8
Adding smoke fluid to your locomotive’s smoke generator 9
Coupling 10
Operating your train with the PowerMax Plus Transformer 10
Experiencing the features of the PowerMax Plus Transformer 11-12
Reverse unit procedure 13
PowerMax Plus Transformer operation
Powering your layout with the PowerMax Plus Transformer 14
Maintaining and servicing your set
Lubricating your locomotive 15
Replacing your locomotive’s traction tire 15
Replacing your locomotive’s headlamp 16
Advanced connections: powering two isolated blocks with two transformers 17
Troubleshooting 18
Notes 19
Lionel Limited Warranty Policy & Service 20
Operating your PowerMax Plus Transformer safely
4
Your Lionel PowerMax Plus Transformer is listed by Underwriter’s Laboratory Inc. and
has been carefully designed to ensure peak performance. When using electrical products,
basic safety precautions should be maintained.
Be sure to observe the following guidelines:
• Read the manual thoroughly before using this device.
• This device is not recommended for children under eight years of age.
• Parents should periodically inspect this product for potential hazards and, if necessary,
have them repaired by an authorized Lionel Service Center. In the event that such a condi-
tion exists, the transformer should not be used until it has been properly repaired.
• The PowerMax Plus Transformer is intended to be used indoors. Do not use this device if
water is present. Serious or fatal injuries may result.
• Use the PowerMax Plus Transformer only for its intended purpose.
• The PowerMax Plus Transformer was meant to operate on 120-volt, 60-Hertz power. Do not
connect this product to any other power supply.
• Do not operate the PowerMax Plus Transformer with a damaged cord, plug, or case.
• To avoid the risk of electrical shock, do not disassemble the unit. There are no user service-
able parts inside. If damaged, take this product to an authorized Lionel Service Center.
• Do not operate the PowerMax Plus Transformer on your layout unattended. Obstructed
accessories or stalled trains may overheat, resulting in damage to your layout.
• Always unplug the PowerMax Plus Transformer from the power source when not in use.
• Never insert objects into the ventilation slots on this product. Damage to sensitive
electronic components can result.
Creating your layout
5
Building your Lionel layout
Your set comes with eight curved, three straight, and one terminal section of track. Figure
1 provides some examples of layouts that you can build with these track sections.
By adding more FasTrack track sections, you can create an endless number of exciting
track arrangements for more fun, action, and variety. The railroad empire of your dreams can
quickly become a reality!
Creating your layout
Figure 1. Track layout ideas
Joining the FasTrack track sections
FasTrack track sections join together easily. With interlocking roadbed sections and large
rail tabs, the track fits together securely so you always get good electrical contact. Take a
look at Figure 2 to see how to join the track sections.
1. Line up your two sections of track.
2. Insert the rail tabs into the openings at the ends of the corresponding
rails.
3. Press the sections together until the interlocking roadbed snaps into
place.
Figure 2. Joining the track sections
Creating your layout
6
Rail tab
Wiring your PowerMax Plus Transformer
7
Creating your layout
Connect your FasTrack terminal section to the PowerMax Plus Transformer. Use the wires
that are already attached to the terminal section. Make sure that all connections are
secure. Loose connections can produce extremely high temperatures. For this reason, do not
touch the terminals or track connections during use. Also, do not locate scenery materials
such as lichen or ground foam near the terminals.
1. Feed the wires through the notch in the FasTrack terminal section. Refer to
Figure 3.
2. Loosen the red TRACK thumbscrew terminal, then slide the spade-
shaped connector on the red wire into position. The thumbscrew post should
be positioned between the “blades” of the spade connector. Be sure that the blades are
touching the metal post. Tighten the thumbscrew to secure the connection.
3. Loosen the black TRACK thumbscrew terminal, then slide the spade-
shaped connector on the black wire into position. Tighten the thumbscrew to
secure the connection. Be sure that the blades are touching the metal post. Tighten the
thumbscrew to secure the connection.
4. Plug the PowerMax Plus Transformer into your wall outlet (120 volts).
As your layout expands, you may also make power connections with the stripped ends
of wires, placing no more than two wires on each terminal. For best performance on large
layouts, it is recommended that you use 16-gauge wire to connect your PowerMax Plus
Transformer to the track. On larger layouts where several track connections are required,
the use of separate junctions/terminal strips (available at your local electronics store) is
recommended to prevent voltage drops.
To prevent the excessive build up of heat, be sure to select the proper wire gauge
for your layout. Track connections must be made with 18-gauge wire or heavier.
Larger layouts require a minimum of 16-gauge wire.
Caution!
U
120/60z
A
0~18VAC
TRACK

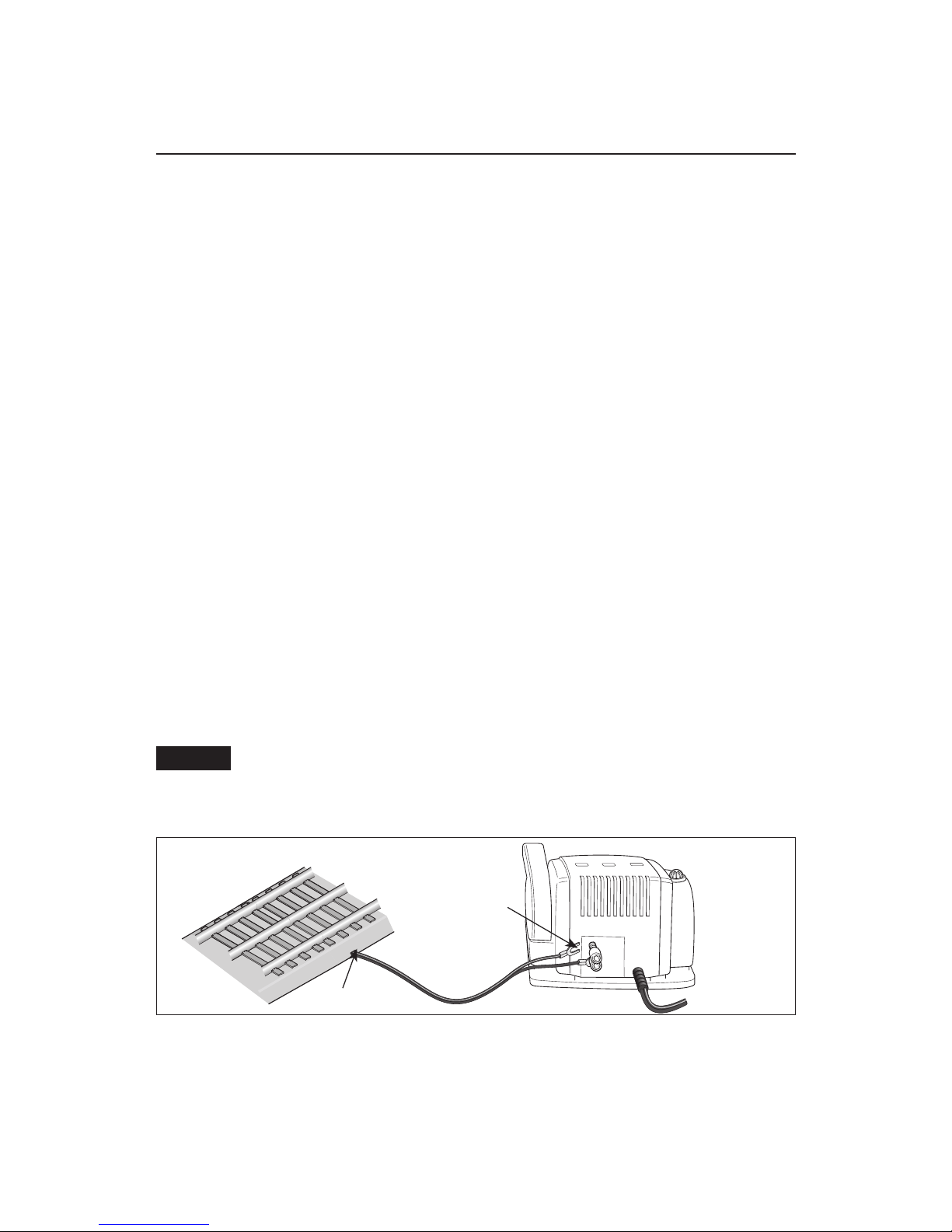

Figure 3. Controller connections
FasTrack terminal section
Notch
Spade-shaped
connector
8
Running your trains
Running your train set
With track power off, place your train set on the track.
Refer to page 10 for information on coupling the cars.
3
3
2
4
Power up your locomotive with your transformer.
Your locomotive is designed to operate on 7-15 volts alternating cur-
rent. Virtually all Lionel and Lionel-compatible alternating-current transformers
are suitable.
Do not power your locomotive with direct-current (DC) transformers.
The locomotive was designed for use with alternating-current (AC)
transformers only.
Move ‘em out!
Get your locomotive moving. Your locomotive goes through a repeating pattern
of operations: forward, neutral, reverse, neutral, and so on. To sequence the reverse
unit, press the DIRECTION button on your transformer, or briefly bring the throttle
all the way back to the OFF position and then forward. Each press of the DIRECTION
button or interruption in track power causes the locomotive to advance to the next
operational state.
Adjust track voltage until your locomotive moves at your desired speed.
1
Connect the drawbar between the locomotive and tender.
See Figure 4.
If the smoke unit switch is in the ON position, add smoke fluid to your
locomotive’s stack to prevent damage to the smoke unit. Refer to
page 10 for additional information.
Caution!
Note!
Figure 4. Drawbar connection
Running your train
9
Adding smoke fluid to your locomotive’s smoke generator
Y
our locomotive is equipped with a smoke generator that produces safe, clean white smoke
during operation if the smoke unit switch is in the ON position. Refer to Figure 8 on
page 13 for the location of the switch.
The smoke generator requires the periodic addition of Lionel smoke fluid in order to function.
A small bottle of smoke fluid is included with this set. Press down and unscrew the cap. Pierce the
tip on the nozzle. Add about four drops of fluid directly into the locomotive’s stack. Smoke pro-
duction commences momentarily. It will start faster if you run your locomotive at higher speeds.
When smoke production decreases, add more fluid (about four drops). An idle locomotive will
not smoke.
Smoke production is greater at higher voltages and when the locomotive is pulling a heavy
load or a long consist.
Caution! When the smoke unit switch is in the ON position, always keep a small amount
of smoke fluid in the locomotive’s smoke generator; the generator’s element
can become damaged if operated without smoke fluid. This is particularly true
if your locomotive sits in neutral for an extended period of time without smoke
fluid in the generator.
If you prefer to operate the locomotive without smoke or you do not want to add
smoke fluid, slide the smoke unit switch to the OFF position.
Note!
10
Operating your trains with the PowerMax Plus Transformer
You’re clear for departure! Move the throttle control handle forward to increase power to
the track. The farther forward you push the handle, the faster your train will go.
Quickly shutting off or throwing the throttle all the way forward will not result in
an instant change in track voltage.
When operating in the conventional (non-Command) environment, remember that the great-
er the load on the engine (adding more cars for the engine to pull, for example), the farther
forward the handle must be pushed before it will operate the locomotive.
Note!
Running your train

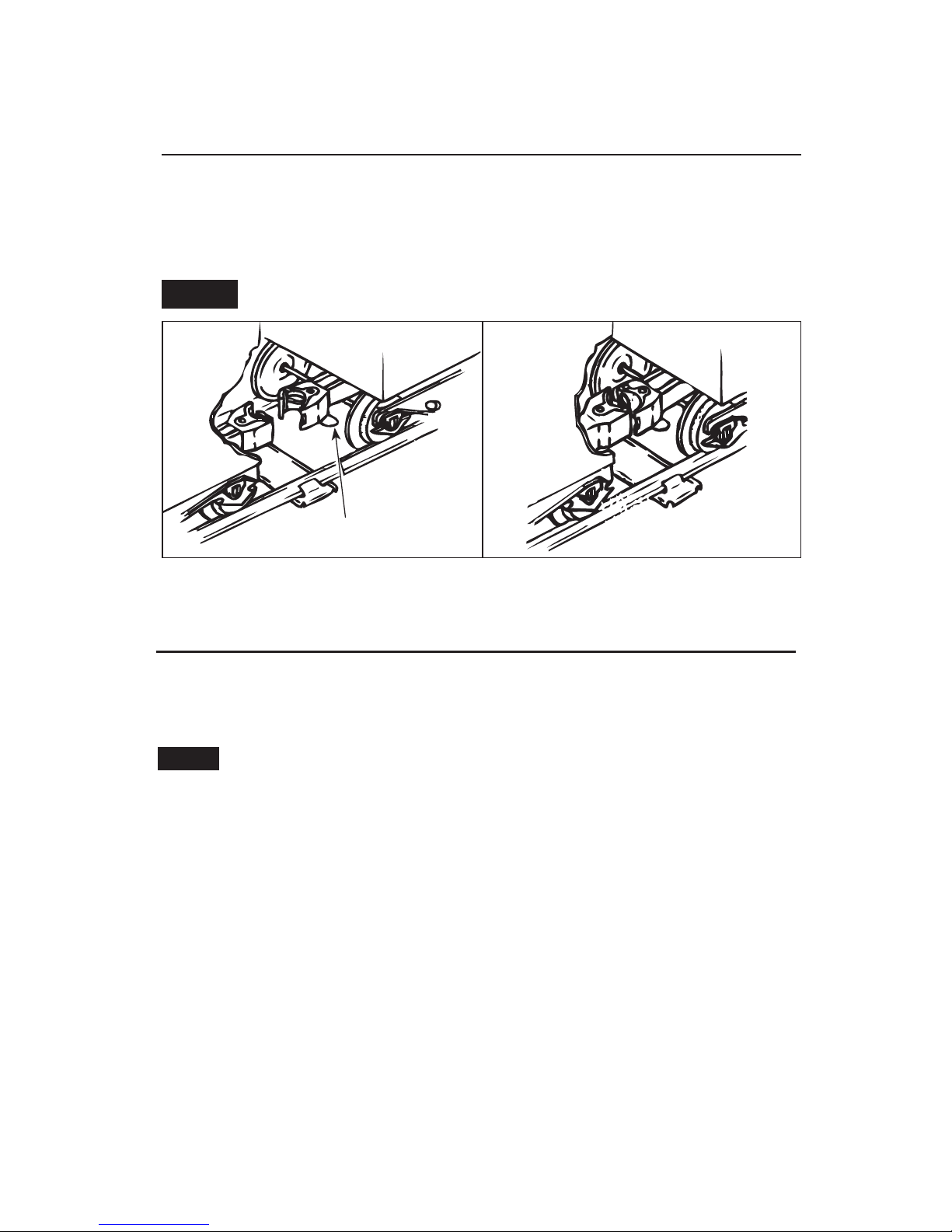

Coupling
When coupling your cars, at least one of the mating couplers must be open as shown at the left
in Figure 5. Press down on the lock release to open the coupler, then push the cars toward
each other until they lock together.
Keep in mind that it’s easier to couple cars on a straight stretch of track.
Lock release
Figure 5. Coupler operation
Note!
Autres manuels pour Scout Set
1
Table des matières
Autres manuels Lionel Jouet
Lionel
Lionel 4-4-2 Atlantic Manuel utilisateur
Lionel
Lionel American Flyer 4-8-4 Northern SteamLocomotive and... Manuel utilisateur
Lionel
Lionel GP-7 diesel locomotive Manuel utilisateur
Lionel
Lionel NW2 Manuel utilisateur
Lionel
Lionel Ready-to-Play Series Manuel utilisateur
Lionel
Lionel BARREL SHED Manuel utilisateur
Lionel
Lionel Disney Train Set Manuel utilisateur
Lionel
Lionel Lion Master Manuel utilisateur
Lionel
Lionel 352 Icing Station Manuel utilisateur
Lionel
Lionel U30C Manuel utilisateur
Lionel
Lionel 464R Sawmill Manuel utilisateur
Lionel
Lionel Century Club II Niagara Milk Manuel utilisateur
Lionel
Lionel Gingerbread Junction Docksider Manuel utilisateur
Lionel
Lionel Jones & Laughlin Steel Slag Train Manuel utilisateur
Lionel
Lionel Pennsylvania Operating Stock Car Manuel utilisateur
Lionel
Lionel Lionel Manuel utilisateur
Lionel
Lionel F3 A-A DIESEL LOCOMOTIVE SET Manuel de la liste des pièces
Lionel
Lionel Coal Loader to an SC-2 Manuel utilisateur
Lionel
Lionel Railroad Tugboat Manuel utilisateur
Lionel
Lionel Heritage Series Lincoln Funeral Train Manuel utilisateur
