Lionel Fastrack Manuel utilisateur

71-2044-250

8/04

Siding Track

Add-on Track Pack

Owner’s Manual

Congratulations!

Congratulations on your purchase of the Lionel FasTrack Siding Track Add-on Track Pack!

This track pack is the perfect addition to your train set loop, or you may purchase four

straight and eight curved sections separately from an authorized Lionel dealer.

Siding Track Inventory

10” straight section 3

Left-hand manual switch 1

Quarter curve 1

Uncoupling track 1

Earthen bumper 1

The following Lionel marks may be used throughout this instruction manual and are protected under law.

Lionel®, TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™, DynaChuff™,

StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1®Remote Controller,

PowerMaster®, Lionel ZW®, ZW®, PowerHouse®, TMCC®, Lionelville™, Lockon®, Wireless Tether™,

LionMaster®

The name FasTrack®is used with permission from Pitsco, Inc.

Table of contents

Creating a Siding Track layout 3

Joining the FasTrack sections 4

Throwing the switch 5

Changing the switch stand location 6

Operating the Uncoupling Track section 7

Connecting your Uncoupling Track section to an auxiliary power supply 8

Operating the Uncoupling Track section in Command Control environment 9

Connecting your transformer 10

Notes 11

Lionel Warranty/Lionel Service 12

Creating a Siding Track layout

Use the track sections from the track pack and eight curve sections, three straight sections,

and one terminal section (available separately and included in ready-to-run train sets) to

create a Siding Track layout. Refer to Figure 1 below as you assemble the track sections.

10”straight track A

O36 curve section B

Quarter curve C

LH manual switch D

Uncoupling track E

Earthen Bumper F

ADA

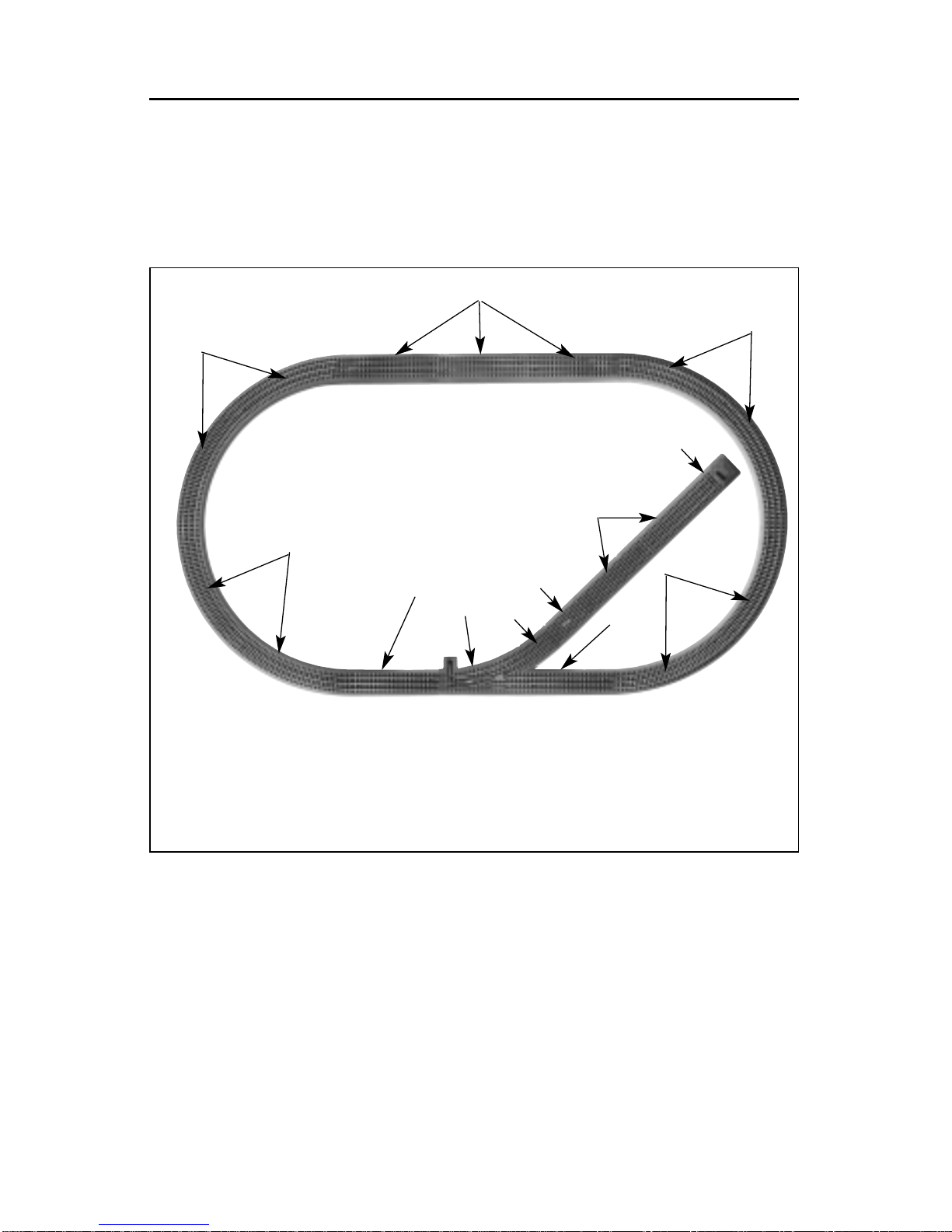

Figure 1. Siding Track layout

Joining the FasTrack track sections

FasTrack track sections join together easily. With interlocking roadbed sections and large rail

tabs, the track fits together securely so you always get good electrical contact. Take a look at

Figure 2 to see how to join the track sections.

1. Line up your two sections of track.

2. Insert the rail tabs into the openings at the ends of the corresponding rails.

3. Press the sections together until the interlocking roadbed snaps into place.

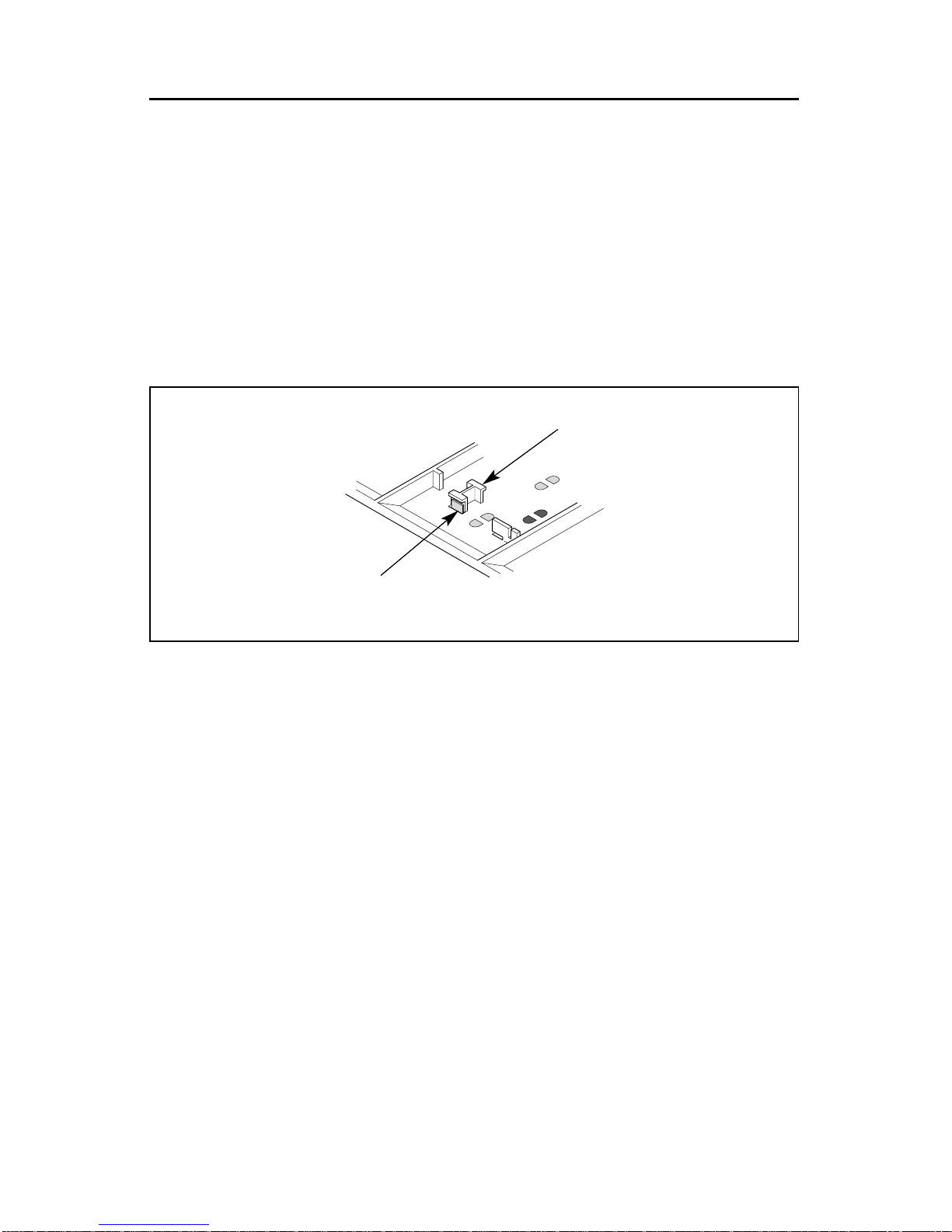

Figure 2. Joining the track sections

Rail tab

Throwing the switch

As illustrated in Figure 3, rotate the top of the switch stand to throw the switch. The switch is

equipped with a non-derailing feature. The train’s wheels automatically throw the

“points,” or the moving rails, to the proper position when the train travels toward the

converging track. If you experience difficulties, simply throw the switch into the correct position

for the train to travel using the switch stand controls.

Figure 3. Throwing the switch

Points

Switch target

Switch handle

Changing the switch stand location

You may choose to position the switch stand either inside or outside the loop of track. Follow

these steps and refer to Figure 4 to change the location of the switch stand.

1. Remove the two screws that secure the small roadbed section to the switch and lift away the

roadbed section.

2. Place the “points,” or moving rails, in the proper position to make removing the switch

stand roadbed section easier.

• If the switch stand is being removed from the curved side, the blades should be set to the

through/straight position.

• If the switch stand is being removed from the straight side, the blades should be set to

the out/curve position.

3. Remove the two screws that secure the switch stand roadbed section to the switch. Please

note that these screws are located towards the inside edge of the switch stand roadbed

section. Lift away the switch stand roadbed section being careful to prevent the switch target

and handle from rotating more than a quarter turn. (The handle and target are labeled in

Figure 3 on page 5.)

4. Slide the blades to the opposite position to access the slot at the end of the switch control

arm. The blades are illustrated in Figure 3 on page 5.

5. Install the switch stand roadbed section at its new location. The posts on the switch should

be inserted into the holes on the switch stand roadbed section. The pin on the switch stand

mechanism should be inserted into the slot on the switch control arm. Insert the two screws

to secure the switch stand. Remove the switch target from the handle and replace in the

proper direction.

The painted target face should point toward the straight/through when the blades are

set in the out/curved position.

6. Install the small roadbed section, securing it in place with the two screws.

7. Check for proper clearance of all locomotives and rolling stock. You may choose to move the

switch target from the switch stand for additional clearance.

Note!

Figure 4. Switch stand installation

Remove

these

screws

Small

roadbed

section Slot

Switch stand

roadbed

section

Operating the Uncoupling Track section

Without making any additional connections, your Uncoupling Track is powered through

track power. Be sure that your throttle is set to 10-12 volts (AC) to activate the magnet.

To uncouple or operate your rolling stock, position the trigger disc over the central magnet,

press the button on the controller, and the magnet will pull the trigger disc downward to release

the coupler or activate the car. Refer to Figure 5.

Do not exceed ten seconds when pressing the button. Holding down the button for

over ten seconds may damage the track section.

Figure 5. Central magnet

Caution!

Central

magnet

Connecting your Uncoupling Track section to an auxiliary power

supply

You may choose to power your Uncoupling Track section with a separate power supply using

an Accessory Power Wire with quick connectors (available separately, 6-12053). This will

allow you to uncouple or operate your rolling stock with track power off. Refer to Figure 6 as

you make the power supply connections.

Do not use the accessory terminals on your track power supply.

1. Attach the quick connectors at the end of the Accessory Power Wire (available separately,

6-12053) to the AUX IN and AUX GND tabs on the underside of the Uncoupling Track

section.

2. Connect the bare ends of the Accessory Power Wire to the Power/A and Common Ground/U

terminals on your power supply.

3. Move the quick connector at the end of the controller cable from the tab labeled TRK PWR to

the tab labeled AUX PWR.

4. Turn on your power supply when you are ready to operate the track section using the

controller. Note that the power supply must be set at 10-12 volts.

POWER

SUPPLY

Figure 6. Power supply connections

Note!

TRK PWR

AUX PWR

AUX IN

AUX GND

Controller button

Operating the Uncoupling Track section in the Command Control

environment

For operation in the TrainMaster Command Control environment, you may choose to

purchase an Operating Track Controller (available separately, 6-14185). A FasTrack

Accessory Power Wire is required (available separately, 6-12053). Refer to these manuals for

additional information. Refer to Figure 7 as you connect the Uncoupling Track section to the

OTC.

1. Remove the controller button by sliding the quick connectors off the tabs on the underside

of the track.

2. Attach a bare wire at the end of the Accessory Power Wire to a numbered position on the

OTC.

3. Attach the other bare wire at the end of the Accessory Power Wire to the COMMON position

on the OTC.

4. Determine the appropriate power tab connection.

• If the Uncoupling Track section is powered through the track, slide a quick connector at

the end of the Accessory Power Wire over the TPK PWR tab.

• If the Uncoupling Track section is powered by a separate power supply, slide a quick

connector at the end of the Accessory Power Wire over the AUX PWR tab.

5. Slide the remaining quick connector over the COIL tab. Use the AUX1 button on your CAB-1

Remote Controller to operate the track section.

Figure 7. OTC connections

TRK PWR

(for track power)

AUX PWR

(for fixed voltage)

COIL

Connecting your transformer

Connecting your transformer to your FasTrack layout is very simple. If you are adding on to

your train set loop or you have a FasTrack terminal section with the wires already

connected, you can connect your transformer directly to the FasTrack terminal section wires.

Refer to the train set or power terminal section owner’s manual.

If you have purchased eight curve and four straight sections separately, we recommend that

you connect your transformer to the track using an Accessory Power Wire (available separately,

6-12053). The quick connectors at the end of the Accessory Power Wire are connected to the

connector tabs on the underside of the track. Slide the quick connectors over the connector tabs

to make the connections. Refer to Figure 8. Connect the other end of the wire to your

transformer’s Power/A for the inner rail and Common/Gound/U terminals for the outer rail.

Figure 8. Connector tabs

Connector

tab for outer

rail (ground)

Connector

tab for inner

rail (power)

Connections are made on the

underside of the track.
