Lionel
Cab Forward AC-12
Steam Locomotive
Owner’s Manual
73-8071-250
4/05
SYSTEM
featuring
and
Congratulations!
Congratulations on your purchase of the Lionel Cab Forward AC-12 steam locomotive and
tender! On the outside, this locomotive features numerous prototypical details and expert
decoration in your favorite livery. Inside the body, this locomotive is equipped with some of the
most advanced sounds and controls in model railroading. This powerful locomotive is ready for
duty on your layout.
Features of this locomotive
• TrainMaster Command Control equipped—able to run in the TrainMaster
Command Control environment or in the conventional environment with
only a standard transformer
• Odyssey System for speed control with ON/OFF switch
• Refined Conventional Transformer Control Mode with lower starting
speeds, improved smoke output, and simplified Odyssey System controls
• RailSounds 5.0 sound system with intelligible CrewTalk dialog and
TowerCom announcements
• High-torque Pittman®motor
• Wireless Tether connection between locomotive and tender
• Directional lighting with operating headlight and back-up light on rear of
tender
• ElectroCoupler on rear of tender
• Illuminated classification lights, marker lights, and number boards
• Synchronized fan-driven smoke unit
• Illuminated cab interior
• Minimum radius: O-72
2
The following Lionel marks may be used throughout this instruction manual and are protected under law.
All rights reserved.
Lionel®, TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™, DynaChuff™,
StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1®Remote Controller,
PowerMaster®, Lionel ZW®, ZW®, PowerHouse®, TMCC®, Lionelville™, Lockon®, Wireless Tether™,
LionMaster®, FatBoy™, American Flyer®, TrainSounds™
The name FasTrack®is used with permission from Pitsco, Inc.
Pittman®is a registered tracdmark of Pittman, a PennEngineering company
Table of contents
Quick Start
Transformer operations 4
TrainMaster Command Control operations 4
Conventional transformer operations
Conventional transformer operations 5
Operating your locomotive in the conventional environment 6
Locking your locomotive into a single direction 7
Coupling your locomotive in the conventional environment 8
RailSounds 5.0 sound system operations
RailSounds 5.0 sound system operations 9
Installing the battery 10-11
Using the RailSounds 5.0 sound system in the conventional environment 12
Installing a Lionel Sound Activation Button for conventional operation 13
Activating the CrewTalk dialog and TowerCom announcements
in the Command Control environment 14
Using the RailSounds 5.0 sound system in the TrainMaster Command Control environment 15
Activating the CrewTalk dialog and TowerCom announcements
in the conventional environment 16
RailSounds 5.0 sound system dialog on a round trip 17
Odyssey System operations
Odyssey System operations 18
Odyssey System conventional transformer operation 18
Odyssey System Command Control operation 19
TrainMaster Command Control operations
TrainMaster Command Control operations 20
Operating your locomotive in the Command Control environment 20
CAB-1 Remote Controller commands 21
CAB-1 Remote Controller numeric keypad commands 22
Tuning your locomotive’s performance 23-24
Assigning your locomotive a new ID# 25
Reprogramming your locomotive to restore features 26
Maintaining and servicing your locomotive
Adding fluid to your locomotive’s smoke generator 27
Lubricating your locomotive 28
Maintaining your locomotive’s handrail antennas 29
Servicing your locomotive’s lamps 29
Replacing your tender’s lamps 30
Replacing the traction tires 31
Installing the O gauge coupler 31
Limited Warranty/Lionel Service 32
3
Quick Start
Transformer operations
1. Place your locomotive on Lionel or Lionel-compatible O-72 or larger
track.
2. Power your locomotive at 8-18 volts with your alternating-current (AC)
transformer.
Do not power your locomotive with a direct-current (DC) transformer. Damage to
sensitive electronic components may occur.
3. Wait three to eight seconds as your locomotive determines whether it is in
a conventional environment or a TrainMaster Command Control
environment. The headlight will stop flashing.
4. Move ‘em out! Press the DIRECTION button on your transformer, then
throttle up.
TrainMaster Command Control operations
To operate your locomotive in the Command Control environment, you need a Command
Base (available separately, 6-12911) and a CAB-1 Remote Controller (available separately,
6-12868). Both products are offered together in the TrainMaster Command Set (6-12969).
1. Turn off track power and plug-in the Command Base.
2. Place your locomotive on Lionel or Lionel-compatible O-72 or larger
track.
3. Increase track voltage to full power (no more than 19 volts AC).
Do not power your locomotive with a direct-current (DC) transformer. Damage to
sensitive electronic components may occur.
4. Press ENG and 1 to address your locomotive with your CAB-1 Remote
Controller.
5. Throttle up and move ‘em out.
4
Caution!
Caution!
Conventional transformer operations
Conventional transformer operations
Your locomotive is capable of operating in the conventional environment, controlled by
nothing more than a standard Lionel alternating-current (AC) transformer.
In the conventional environment, your locomotive cycles through a repeating pattern of
operations: forward, neutral, reverse, neutral, and so on. To advance to the next operation, press
the DIRECTION button on your transformer. Alternately, you could use the throttle to briefly
turn off track power so that the locomotive advances to the next operation when power is
restored.
Once you cycle the locomotive into forward or reverse, you control your locomotive’s speed
by varying track voltage with the transformer’s throttle. To increase the speed of the locomotive,
you increase track voltage. To decrease the speed, you decrease track voltage. To stop the
locomotive and to change directions (or to enter neutral), track voltage is turned off or
interrupted.
Use the WHISTLE and BELL buttons on your transformer (or separate buttons if your
transformer is not equipped with these controls) to activate these features.
To experience all of your locomotive’s features, we recommend operating in the TrainMaster
Command Control environment. With a simple one-wire connection, you can use the CAB-1
Remote Controller to access all of the functions of your locomotive. Refer to pages 20-26 to see
how to operate your locomotive in the TrainMaster Command Control environment.
5
Conventional transformer operations
Operating your locomotive in the conventional environment
1. With your transformer turned off, place your locomotive on Lionel or
Lionel-compatible O-72 or larger track.
2. Connect the drawbar between the locomotive and tender as illustrated in
Figure 1.
6

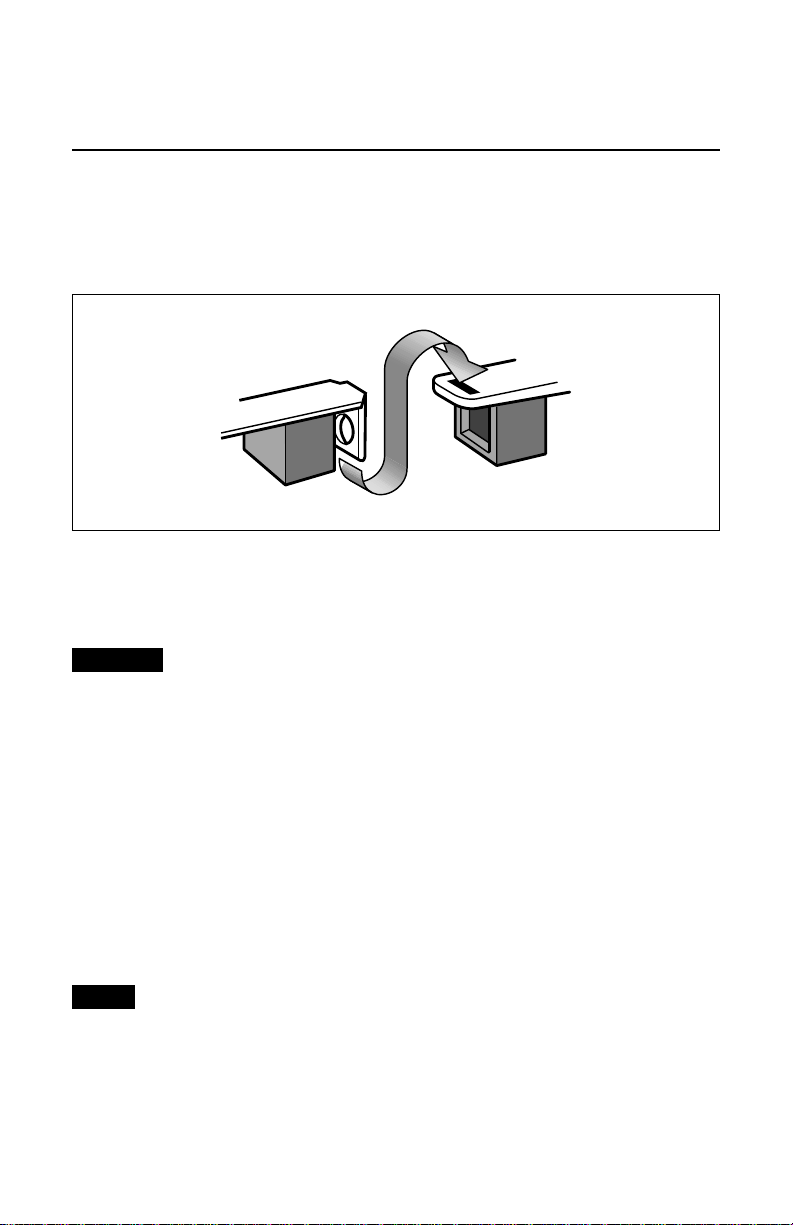

Figure 1. Drawbar connection
3. Power your locomotive at 8-18 volts with your alternating-current
transformer.
Power your locomotive with an alternating-current (AC) transformer only.
Powering your locomotive with a direct-current (DC) transformer may result in
damage to sensitive electronic components.
4. Wait three to eight seconds as your locomotive determines whether it is in
a conventional environment or a TrainMaster Command Control
environment. The headlight flickers as the locomotive searches for a signal from the
Command Base. When the locomotive has determined that a Command Base is not
connected to the track, the flickering will stop and the headlight will remain illuminated.
You are ready for operation in the conventional environment.
5. Move ‘em out! Press the DIRECTION button on your transformer to sequence your
locomotive through the repeating pattern of operations: forward, neutral, reverse, neutral,
and so on. You may also briefly turn off track power to advance the locomotive to the next
operating state. Adjust the throttle until your locomotive moves at your desired speed.
When placing your locomotive on your layout for the first time, it will start out in
neutral. Thereafter, it will start in forward after every power interruption lasting five
seconds or longer.
Use the WHISTLE and BELL buttons on your transformer to activate those features. Refer
to page 13 if your transformer is not equipped with those buttons.
Caution!
Note!
OFF ON
ODYSSEY
Smoke Unit
(see page 27 for details)
Command reverse
unit switch
Odyssey switch

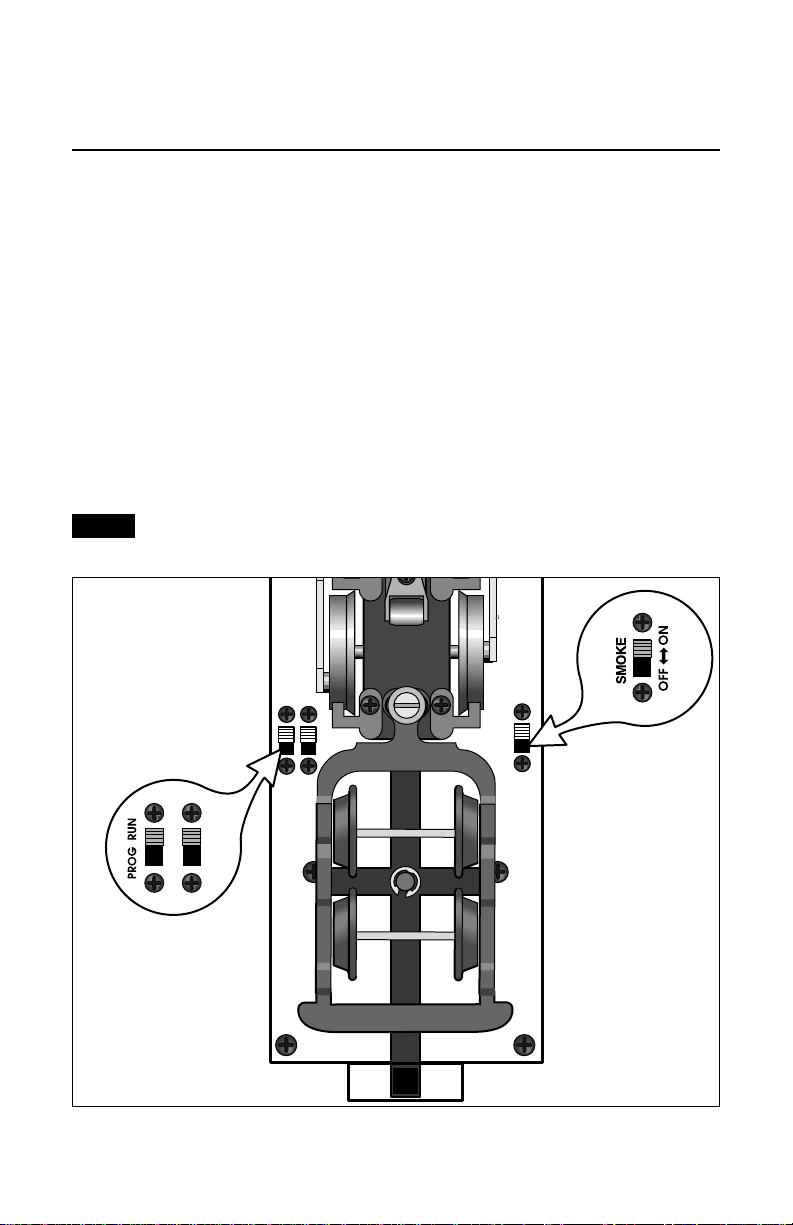

Figure 2. Switch locations
Conventional transformer operations
Locking your locomotive into a single direction
When the Command reverse unit switch is in the RUN position, your locomotive sequences
through a repeating pattern of operations: forward, neutral, reverse, neutral, and so on.
To “lock” your locomotive into a single direction (for example, to operate in forward only),
you can deactivate the Command reverse unit’s sequencing function. Refer to Figure 2 for the
location of the Command reverse unit switch.
1. Use your transformer’s DIRECTION button or interruptions in track power to get your
locomotive moving in the desired direction.
2. Slow the locomotive down without stopping (reduce the throttle without turning off track
power).
3. Slide the Command reverse unit switch to the PROG position. At this point, the locomotive is
“locked” into your chosen direction. To restore the forward-neutral-reverse sequence, just
slide the Command reverse unit switch back to the RUN position.
Your locomotive will “reset” to forward after any power interruption lasting five
seconds or longer, regardless of the direction you set.
7
Note!
FRONT
REAR
Conventional transformer operations
Coupling your locomotive in the conventional environment
The locomotive’s tender features one ElectroCoupler that is released by remote control at any
point around your layout in the TrainMaster Command Control environment.
In the conventional environment, the ElectroCouplers will not open manually or by using a
Remote-Control Track section. To couple your locomotive in the conventional environment, you
must rely on a piece of rolling stock equipped with a magnetic coupler. Simply release the
magnetic coupler and couple the rolling stock to the locomotive, even if the ElectroCoupler is
closed.
Keep in mind that you may still make use of Lionel Remote-Control Track sections (6-65530
for O gauge; 6-12746 and 6-65149 for O-27 gauge; and 6-12020 or 6-12054 for FasTrack
layouts) with the magnetic couplers on the rolling stock. Place the trigger disc on the magnetic
coupler over the central coil on the Remote-Control Track section, then press UNCOUPLE on the
track section’s controller. As illustrated in Figure 3, the magnetic field pulls the disc downward,
releasing the coupler.
8

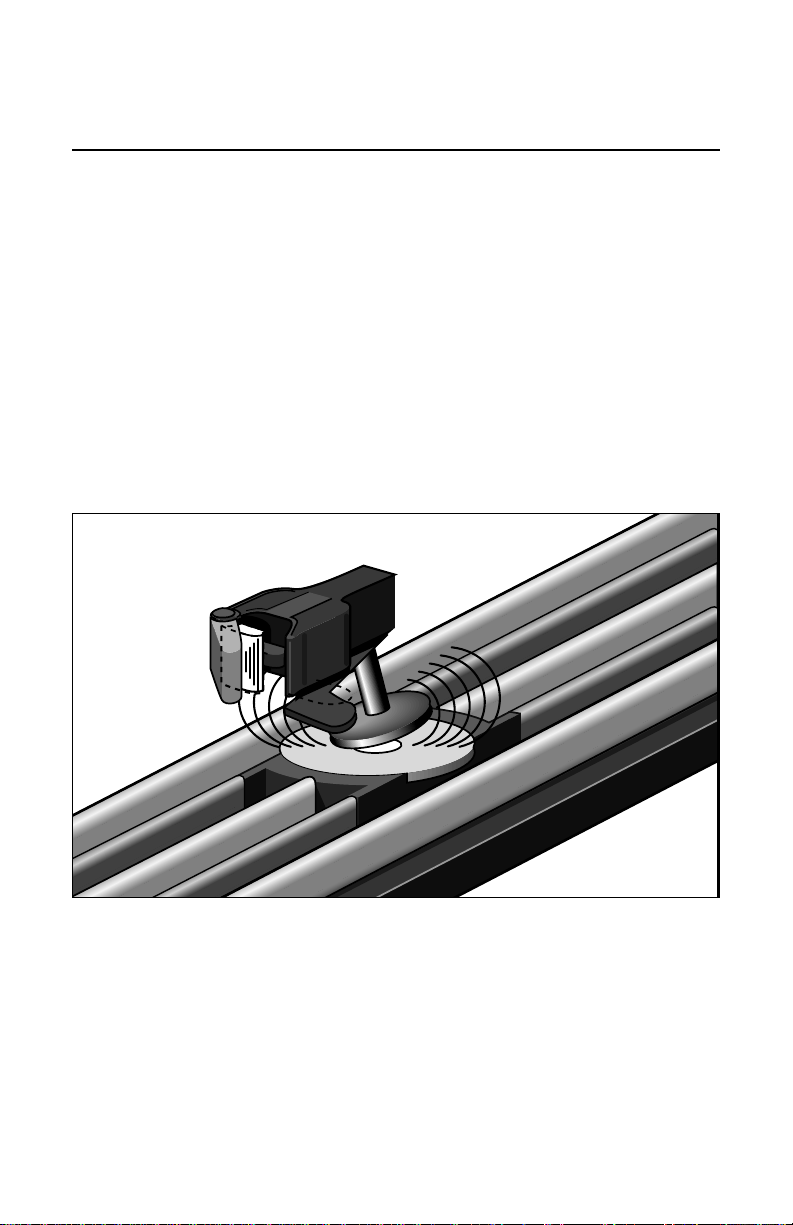

Figure 3. Magnetic coupler operation
Remote-Control
Track Section
9
RailSounds 5.0 sound system operations
RailSounds 5.0 sound system operations
Your locomotive is equipped with the Lionel RailSounds 5.0 sound system, the most realistic
model railroad sound system in the world. The RailSounds 5.0 sound system brings the
sounds of the railroad to your layout through high quality digital samples of real locomotives.
When you operate your locomotive in the conventional environment, you get realistic
chuffing sounds, which automatically increase through 15 levels as the speed of the locomotive
increases. You can sound the locomotive’s whistle or activate the ringing of the bell. When you
are through with operations and power down the track, your locomotive’s RailSounds 5.0 sound
system starts a realistic steam shutdown sequence. (A nine-volt battery is required for the
operation of the RailSounds 5.0 sound system when the track is powered down, see pages 10-11.)
When you operate your locomotive in the TrainMaster Command Control environment, you
get full control of the RailSounds 5.0 sound system, including the whistle, air horn, and bell
sounds. The locomotive’s chuffing sounds automatically increase, but you can also set a
particular chuff intensity level using your CAB-1 Remote Controller. In the Command Control
environment, the release of the ElectroCoupler is accompanied by a coupler release sound. Use
the BRAKE button, and listen for the sound of squealing metal. You can also trigger CrewTalk
dialog and TowerCom announcements, which simulate the interaction between the locomotive
crew and the yardmaster. Whenever you choose to shutdown your locomotive, the realistic
shutdown sequence commences.(A nine-volt battery is required for the operation of the
RailSounds 5.0 sound system when the track is powered down, see pages 10-11.)
RailSounds 5.0 sound system operations
Installing the battery
While the RailSounds 5.0 sound system is powered through the track, we recommend that
you install a nine-volt alkaline battery in the tender to prevent the sound system from
shutting down during track power interruptions (for example, at a switch or a dirty section of
track). Follow these steps and refer to Figure 4 as you install the battery.
If the RailSounds sound system turns off during interruptions in track power, you
may need to replace the battery.
1. Remove the body screws from the underside of the tender. Refer to Figure 4 for the location
of the screws.
2. Lift the body off the frame. Be careful to avoid pulling on the wires that connect the body to
the frame.
3. Remove the protective cover from the battery harness.
4. Snap the battery harness onto the nine-volt alkaline battery’s terminals.
5. Slide the battery into the battery holder.
6. Replace the body on the frame and secure it with the body mounting screws. Be careful to
avoid pinching wires between the body and the frame.
10
Note!
Table des matières
Autres manuels Lionel Jouet
Lionel
Lionel Plug-Expand-Play Manuel utilisateur
Lionel
Lionel 6-16706 Manuel utilisateur
Lionel
Lionel SD60-M Manuel utilisateur
Lionel
Lionel Pioneer Zephyr Manuel utilisateur
Lionel
Lionel Breakdown B-Unit Diesel Locomotive Manuel utilisateur
Lionel
Lionel New York Central FlyerReady-To-Run O-27 Set Manuel utilisateur
Lionel
Lionel 71-2889-250 Manuel utilisateur
Lionel
Lionel Frisco 0-27 Manuel utilisateur
Lionel
Lionel FasTrack 78-2110-250 Manuel utilisateur
Lionel
Lionel Aluminum Passenger Car Manuel utilisateur
Lionel
Lionel American Flyer 2-8-8-2 Steam Locomotive Manuel utilisateur
Lionel
Lionel SD-80 Diesel Locomotive Manuel utilisateur
Lionel
Lionel 763e Hudson Manuel utilisateur
Lionel
Lionel Aquarium Car Manuel utilisateur
Lionel
Lionel 400E Manuel utilisateur
Lionel
Lionel American Flyer U-Boat Manuel utilisateur
Lionel
Lionel Coal Loader to an SC-2 Manuel utilisateur
Lionel
Lionel Union Pacific ALCo PA Manuel utilisateur
Lionel
Lionel GP-7 diesel locomotive Manuel utilisateur
Lionel
Lionel 264 Manuel utilisateur
