Lionel Alco PA-1 Manuel utilisateur

Alco PA-1

diesel locomotive

Owner’s Manual

71-8961-250

08/99

featuring

LIONEL

Congratulations!

You own one of the most sophisticated

model trains ever built—the Lionel

TrainMaster Command-equipped Alco PA-1

diesel locomotive. From the crisp detail and

expert decoration on the outside to the

advanced technology and brute power under

the hood, the Lionel Alco PA-1 is ready for

duty on your model railroad. Experience the

superiority of today’s Lionel.

• Two powerful Lionel Pullmor®Direct™

motors

• Lionel Command™reverse unit for use

with the Lionel TrainMaster®Command™

model railroad control system

•SignalSounds Digital horn and bell

• Tire-Traction®

• Electrocouplers

• Directional headlights,and illuminated

marker lights

Table of contents

Transformer operations

Running your Lionel Alco PA-1 with a Lionel transformer 3

Using your PA-1’s ElectroCouplers in the non-Command environment 3

Locking your Alco PA-1 into a single operational state 4

Installing the Lionel no. 610-5906-001 sound activation button 5

TrainMaster®CommandTM operations

Your Alco PA-1 in the TrainMaster Command environment 6

Running your Alco PA-1 in the TrainMaster Command environment 7

CAB-1 commands for your Alco PA-1 7

CAB-1 numeric keypad commands for your Alco PA-1 8

Tuning your Alco PA-1’s performance 8

Assigning your Alco PA-1 a new ID# 9

Maintaining and servicing your Alco PA-1

Replacing your Alco PA-1’s lamps 10

Tire-Traction™ 10

Lubricating your Alco PA-1 11

Limited Warranty/Lionel Service 12

Using your PA-1’s ElectroCouplers in the

non-Command environment

To use your PA-1 ElectroCouplers in the

non-Command environment, you must

first couple a piece of rolling stock equipped

with Lionel magnetic couplers directly to your

PA-1. The magnetic coupler on the rolling

stock will then react to the magnetic field

generated by a Lionel remote-control track

section (available separately). Place your

rolling stock’s coupler “trigger disc” over the

central coil of a remote-control track section

and press uncouple on the controller. The

magnetic field pulls the disc downward, and

the coupler opens.

Magnetic coupler on the rolling

stock coupled to your PB-1 unit

Your Alco PA-1 Electrocouplers will NOT

open manually or by using a remote-

control track section

Note!

Remote-control

track section

Transformer operations

Running your Lionel Alco PA-1 with a Lionel transformer

Place your Alco PA-1 on Lionel or Lionel-compatible

O gauge track.

Power up your Alco PA-1 with your transformer.

• Your Alco PA-1 is designed to operate on 7-18 volts alternating cur-

rent. Virtually all Lionel and Lionel-compatible alternating-current transformers

are suitable; we recommend the TrainMaster Command model railroad control sys-

tem.

• Do not power your Alco PA-1 with direct current (DC). Damage to sensi-

tive electronic components may occur.

• When you first power up your track, the Alco PA-1 will wait between

3 and 8 seconds as it “listens” for digital language from the TrainMaster

Command Base (available separately). When it’s determined that it’s on a conven-

tional (nonCommand) railroad, the Alco PA-1’s headlight will illuminate. At this

point, the Alco PA-1 is in neutral. (This occurs when placing the Alco PA-1 on your

railroad for the first time. Thereafter, it starts in forward after every three-second

power interrupt.)

Note!

Move ‘em out!

• Get your Alco PA-1 moving. Press the DIR button on your CAB-1 remote or

Lionel transformer. This sequences the Liontech Command reverse unit (DCDR) to

the next operating state.

• Adjust track voltage until your Alco PA-1 moves at your desired speed.

1• Your Alco PA-1 will operate on 031 radius track. We recommend 042

radius minimum.

Transformer operations

To select a single operational state for

your Lionel Alco PA-1 (example: forward

only), you can deactivate the DCDR’s

sequencing function with the reverse unit

control switch, located on the underside of

the locomotive.

Get your locomotive moving in the desired

direction, then slow it down without stop-

ping. Set the reverse unit control switch to

OFF. The Alco PA-1 is now “locked” into your

chosen direction.

When you no longer want single-direction

operation, just slide the reverse unit control

switch back to ON.

OFF Use this setting to

choose a single

operational state

like“forward.”

Reverse unit control switch Front of engine

ON Use this setting for

normal operations.

ON OFF

OFF

Locking your Alco PA-1 into a single operational state

Using your Alco PA-1 Electrocouplers in the

TrainMaster Command environment

Your Lionel Alco PA-1 is equipped

with front and rear Electro-

couplers and it will respond to the

COUPLER F (front) and COUPLER R

(rear) button on your CAB-1 remote

when operated in the Trainmaster

Command environment. Simply press

either button on your CAB-1 remote, and

that coupler opens.

YourPA-1’s Electrocouplers are not designed to be opened manually.

Note!

Installing the Lionel no. 610-5906-001 sound activation button

To operate the bell and horn sounds when

operating your Alco PA-1 with conven-

tional transformers, you’ll need to install the

Lionel no. 610-5906-001 sound activation

button (available separately). Connect the

button(s) as shown below.

For AC transformers lacking a horn/whistle button (two no. 5906s required)

Lionel no. 610-5906-001

sound activation button for

activating the bell

Lionel no. 610-5906-001

sound activation

button (for horn) Lionel no. 610-5906-001

sound activation button (for

bell)

Black wire

Red wire

Red wire attach to ground terminal

attach to power terminal

to your transformer

The no. 610-5906-001 sound activation button (available separately) works with

any Lionel AC transformer except no. 6-4690 Type MW. Transformers made by other

manufacturers may not be compatible with Signalsounds.

Note!

attach to ground terminal

attach to power terminal

Red wire

to your transformer

Customer’s wire

Black wire

Note! All track power must feed through

“SoundActivation Button”

Do not bypass button

For AC transformers with a horn/whistle button

Transformer operations

TrainMaster Command operations

Your Alco PA-1 in the TrainMaster Command environment

Lionel TrainMaster Command is the fun

and sophisticated model railroad control

system from Lionel. Your Alco PA-1 features

the Lionel DCDR reverse unit, which acts as

both a conventional reverse unit as well as

the key to unlocking many extra features

when you operate in Command mode.

TrainMaster Command gives you the

power to operate multiple Command-

equipped locomotives on the same track, at

the same time. It’s the most fun you can

have with electric trains, and it’s incredibly

easy too! Just follow the directions below and

you’ll be on your way.

To operate in Command, you need

a Command Base and a CAB-1

remote. Find them both at your authorized

Lionel retailer.

Place your Alco PA-1 on Lionel or Lionel-

compatible O gauge track.

• Make sure track power is OFF before placing it on track.

• Make sure your Lionel Command Base is ON and its communications wire is

connected to the COMMON post on your Lionel transformer or the U on any of

your installed PowerMasters.

• Once positioned on the track, increase track voltage to FULL (on PowerMaster,

slide the CMD/CONV switch to CMD).

Address your Alco PA-1 with CAB-1.

• Press ENG and 1 on the numeric keypad of your CAB-1 remote. This command

is sent by CAB-1 to the Command Base, which then translates your commands

into digital code. That code is sent around your railroad’s outside rails in the

form of a digital “halo.” All Command-equipped Lionels listen to this digital

communication, but they do not respond until they hear their own ID number.

• The digital language of TrainMaster Command—and not track power—con-

trols the actions of Command-equipped Lionels. Track power is simply like

gasoline in the tank of your car—it gives you the power to go places, but it

doesn’t tell you where to go or how fast to get there.

• All Command-equipped Lionels come factory-programmed with an ID# of “1.”

To change your Alco PA-1’s ID#, see page 9.

Move ‘em out!

• Throttle up or press any command button on CAB-1. Your Alco PA-1 will

respond to your every command. Read on. The fun is just beginning!

Press HALT to shut

down all

PowerMaster elec-

trical output on your railroad.

Stops all Command-equipped

Lionels in operation.

Press AUX2 to turn

your Alco PA-1’s

headlight on and off.

Press WSTL/HRN to

activate the Alco

PA-1’s horn.

Diesel horn sound.

Press DIR—the loco-

motive decelerates to a

complete stop; turn the throttle

up, and the locomotive moves in

the opposite direction. There is

no neutral.

Press BELL once to

activate the bell, again

to discontinue.

Diesel mechanical bell sound.

Turn the THROT-

TLE to the right to

accelerate, left to

decelerate.

CAB-1 commands for your Alco PA-1

Press and hold BOOST

for extra power. Release

BOOST and return to the Alco PA-

1’s previous speed.

Press and hold BRAKE to

slow down or stop. Re-

lease BRAKE and return to the

previous speed.

Alco PA-1 Signalsounds effects in bold italic

Running your Alco PA-1 in the TrainMaster Command environment

Your Command-equipped Alco

PA-1 comes factory-pro-

grammed with an ID# of “1.” To get

your Alco PA-1 in action, set

PowerMasters to CMD or set all

power supplies on full. Press ENG

and “1” on CAB-1. Turn the throttle

or press any command button. Your

Alco PA-1 is ready for Command

operations.

address Locomotive #1

PowerMasters set to CMD or traditional

power supplies ON FULL

Press ENG

Press 1 (the ID#)

Throttle up/press any command button

Example

Front coupler

releases.

Rear coupler

releases.

TrainMaster Command operations

Tuning your Alco PA-1’s performance

MOMENTUM

TrainMaster Command’s momentum fea-

ture simulates the labored performance of a

locomotive pulling a heavy load. Press L, M,

or H (located under CAB-1’s removable

panel) for light, medium, or heavy momen-

tum. The Alco PA-1’s DCDR remembers this

setting until you change it. For quick loco-

motive response, choose L. For delayed

response, choose H.

BRAKING AND BOOSTING

There’s more to starting and stopping than

just turning the CAB-1 throttle. Use the

BOOST and BRAKE command buttons—they

give you incremental control of speed and

are the superior way to handle grades, grad-

ual stops-and-starts, and more.

SOUND QUALITY

For quick remote-control of volume below

the master setting—for example, muting—

use the CAB-1 numeric keypad’s volume con-

trol. Press AUX1 and then 4 on the numeric

keypad to lower overall Signalsounds output.

HIGH VOLTAGE SETTING

Press SET, headlight will flash. Get your

locomotive moving to the maximum speed

you want it to run, press BOOST. Use this to

keep your locomotive from excess-speed

derailing. Turn off the high voltage setting

by pressing SET, then BOOST, holding each

for one second.

0Stops and resets the Alco PA-1. Resets the Alco

PA-1’s direction to FORWARD. Horn blows.

8Turns side marker/interior lights off.

9Turns side marker/interior lights on.

When you press AUX1 on CAB-1,

you turn the numeric keypad

into 10 command buttons. The key-

pad lets you control extra command

features (until you press any top-row

button like SW, ACC, RTE, TR, or ENG). The

CAB-1 keypad overlays included with

your Alco PA-1 are designed to help

you learn the auxiliary features spe-

cific to this locomotive.

SignalSounds in bold italic.

CAB-1 numeric keypad commands for your Alco PA-1

AUX1

These settings will be lost when you assign new engine ID#s.

Note!

Assigning your Alco PA-1 a new ID#

As your fleet of Command-equipped

Lionels grows, you’ll want to give your

Alco PA-1 a more individualized number.

Choose from any between 1 and 99. To make

things easy, use a portion of your Alco PA-1’s

cab number.

Turn the Command Base ON and place the

Alco PA-1 on track. Power up, then set the Alco

PA-1’s reverse unit control switch to OFF (see

the illustration). Using CAB-1, press ENG, the

locomotive ID# (you select), then press the

SET button located under CAB-1’s removable

panel. Hear the horn blow (or see the head-

light flash if Signalsounds is off); that’s the

DCDR confirming the new ID#. Set the reverse

unit control switch to ON. Your Alco PA-1 is

ready for operations with its all-new ID#.

Assign a new ID# to

your Command-

equipped Alco PA-1

Command Base ON

Place the Alco PA-1 on track

PowerMasters set to CMD or

traditional power supplies ON FULL

Set the Alco PA-1’s reverse unit

control

switch to PROGRAM/LOCK

Turn track power on

(PowerMasters):

Press BOOST

Program the Alco PA-1 with a new

ID #:

Press ENG

Press a number you

choose (the ID#)

Press SET

Set the reverse unit control switch

to ON

Your locomotive remembers its ID#

forever; change it any time with these

steps

Example

;;



ÀÀ

;;



ÀÀ

;;



ÀÀ

;;

Set the Alco PA-1’s reverse unit program switch

to OFF. When you’ve finished programming

the ID#, set the switch to ON.

Reverse unit control switch

Front of engine

ON OFF

OFF

TrainMaster Command operations

Maintaining and servicing your

Alco PA-1

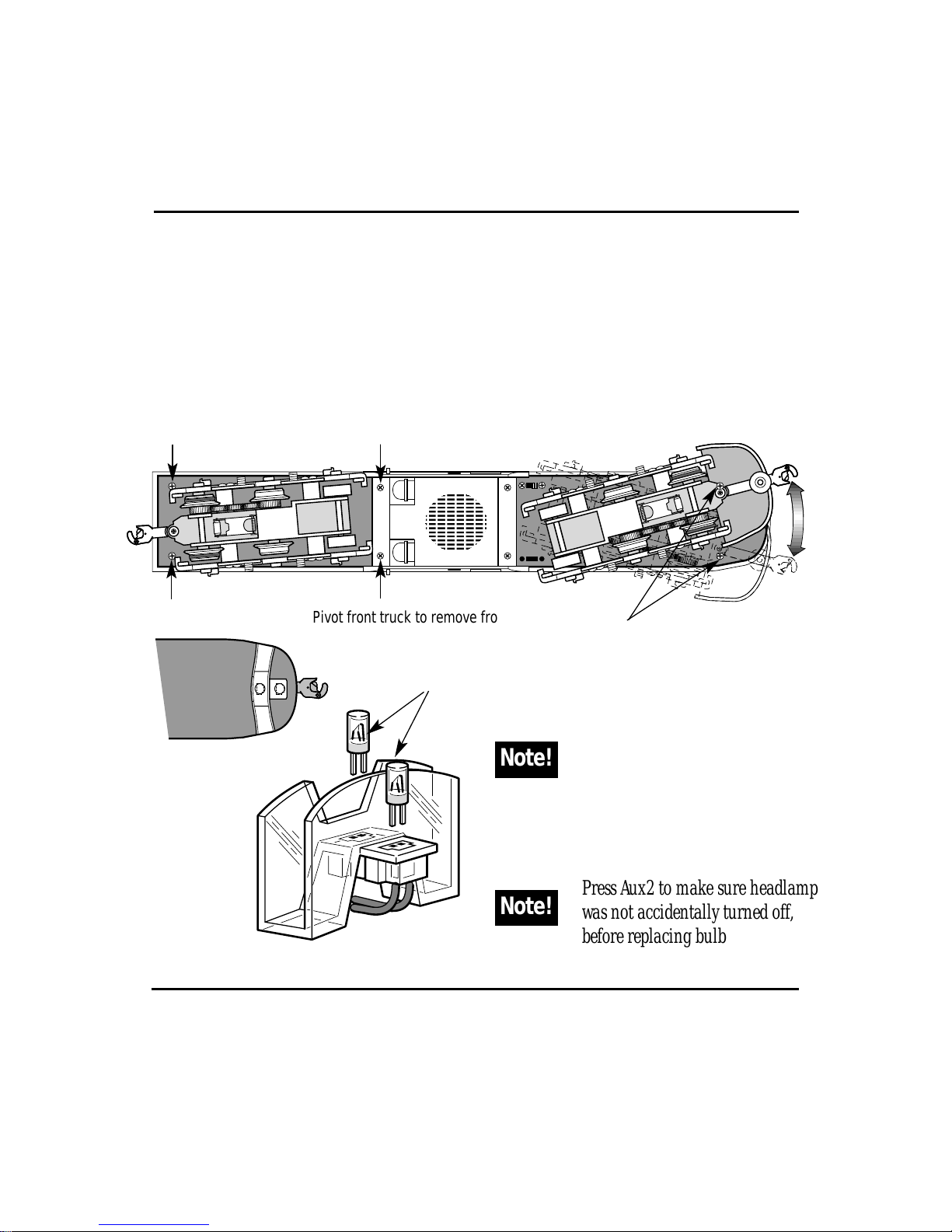

Replacing your Alco PA-1’s lamps

Your Alco PA-1 is illuminated by two 14-

volt lamps. During the course of normal

operation, they may require replacement.

Begin by removing the Alco PA-1’s shell;

start by removing only those screws at the

arrow locations in the illustration below. The

cab can now be separated from the frame, tak-

ing care not to pull on the connecting wires.

Locate the assembly containing the expired

lamp (.see illustrations below). It’s located in

front of the cab; gently pull the expired lamp

from the socket. Replace it with Lionel part

no. 10-8049-300, available from your autho-

rized Lionel Service Center or Lionel Service.

See the Lionel Service section on page 12 for

more information. Reinstall the shell.

;;;

@@@



ÀÀÀ

;;;

@@@



ÀÀÀ

;;;

@@@



ÀÀÀ

;;;

yyy

Note!

Press Aux2 to make sure headlamp

was not accidentally turned off,

before replacing bulb

Pivot front truck to remove front body screws

Lionel part no.10-8049-300

Lamp bracket in

nose of locomotive

The Lionel DCDR Command reverse

unit and Signalsounds sound sys-

tem are sophisticated electronic

devices and are extremely sensitive

to static electricity. Please avoid all

physical contact with Signalsounds

and the DCDR.

Tire-Traction™

Your locomotive is equipped with Tire-

Traction. This means that two of the drive

wheels on each truck are fitted with rubber

traction tires to enhance tractive effort so your

locomotive can pull many cars at once.

Lionel locomotives with Tire-Traction grip

the track, enabling them to pull heavy loads

at higher speeds.

Autres manuels pour Alco PA-1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Lionel Jouet

Lionel

Lionel 71-8340-250 Manuel utilisateur

Lionel

Lionel Alco PA-1 diesel locomotive Manuel utilisateur

Lionel

Lionel 2343c F-3 A-A Manuel utilisateur

Lionel

Lionel Satellite Launch Car Manuel utilisateur

Lionel

Lionel Summer Vacation Manuel utilisateur

Lionel

Lionel Holiday Special Train Set Manuel utilisateur

Lionel

Lionel Searchlight Caboose Manuel utilisateur

Lionel

Lionel Budd Rail Car Manuel utilisateur

Lionel

Lionel Empire State Express Hudson Manuel utilisateur

Lionel

Lionel American Flyer U-Boat Manuel utilisateur

Lionel

Lionel Crane Car American Flyer Manuel utilisateur

Lionel

Lionel ALCo S-4 Manuel utilisateur

Lionel

Lionel Whirlpool 0-27 Manuel utilisateur

Lionel

Lionel 73-6002-250 Manuel utilisateur

Lionel

Lionel Gingerbread Junction Docksider Manuel utilisateur

Lionel

Lionel TMCC Tie-Jector Manuel utilisateur

Lionel

Lionel F3 A-B-A Diesel Manuel utilisateur

Lionel

Lionel Mervyn's Bring Home the Holidays Manuel utilisateur

Lionel

Lionel FM TrainMaster Manuel utilisateur

Lionel

Lionel Three Rivers Fast Freight Manuel utilisateur

Lionel

Lionel American Flyer SD-9 Freight Set Manuel utilisateur

Lionel

Lionel Trolley Manuel utilisateur

Lionel

Lionel 4-8-4 GS-4 Northern Manuel utilisateur

Lionel

Lionel Santa Fe Super Freight Manuel utilisateur

Manuels Jouet populaires d'autres marques

marklin

marklin 37321 Manuel utilisateur

Canon

Canon PAPER CRAFT Manuel utilisateur

GREAT PLANES

GREAT PLANES Pitts M-12S Manuel utilisateur

NOCH

NOCH 14261 Manuel utilisateur

Hausler

Hausler 450 SE V2 Manuel utilisateur

Dynaflite

Dynaflite Daydream Manuel utilisateur

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuel

Kenner

Kenner Batman 63651 Manuel utilisateur

LEGO

LEGO 8527 Manuel utilisateur

iKarus

iKarus ECO 8 Manuel utilisateur

Multiplex

Multiplex EasyStar II Mode d’emploi

Walkera

Walkera 38 Mode d’emploi

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuel utilisateur

MD MXION SWD Manuel utilisateur

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuel utilisateur

marklin

marklin 39671 Manuel utilisateur

Meccano

Meccano 15103 Manuel utilisateur

LEGO

LEGO TECHNIC 8735 Manuel utilisateur
