Lionel 4850TM TRACKMOBILE Manuel utilisateur

72-8447-250

2/11

featuring

Lionel

4850TM TRACKMOBILE ®

Owner’s Manual

Lionel

4850TM TRACKMOBILE ®

Owner’s Manual

Meijer.com

Congratulations on your purchase of the Lionel 4850TM TRACKMOBILE! This motorized

vehicle features a powerful maintenance-free motor and ElectroCouplers at both the front and

rear. You can operate it TMCC or conventional mode. With plenty of scale details like handrails

and mirrors your TRACKMOBILE will look great moving rolling stock around your yard!

Congratulations!

Features of this vehicle

• TrainMaster Command Control equipped

• Directional lighting

• Both axles driven

• Die-cast metal body

• Front and rear ElectroCouplers (in Command)

• Interior lighting

• Two Roof mounted flashing strobe lights

• 1:48 Scale

• Accurate warning and operation markings provided by TRACKMOBILE®

• Driver figure

• Window inserts

Your TRACKMOBILE® is equipped with an antenna for TMCC operation. It

is located in the exhaust pipe at the rear of the cab. PLEASE do not rest

your vehicle on its roof as this may damage the antenna.

The following Lionel marks are used throughout this catalog and are protected under law. All rights

reserved.

Lionel®, LEGACY™, FasTrack™, TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™,

DynaChuff™, StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1® Remote

Controller, American Flyer®, Lionel ZW®, ZW®, MagniVision®, TMCC®, Lionelville®, Wireless

Tether™, Powerhouse™, LionMaster®, Conventional Classics™, Postwar Celebration Series™,

TruRail™, PH-1 Powerhouse®, Powermaster®, Powerstation-Powerhouse®, Accessory Motor

Controller™, AMC™, Accessory Switch Controller™, ASC™, Action Recorder Controller™, ARC™,

Track Power Controller 300™, TPC 300™, Track Power Controller 400™, TPC 400™, Block Power

Controller™, BPC™, Operating Track Controller™, OTC™, FatBoy™, Lionel Lines®, Joshua Lionel

Cowen Series™, Lockon®, TrainSounds™, MultiHorn™, MultiWhistle™, Choo-Choo™

Caution!

Meijer.com

Table of contents

TrainMaster Command operations

The Command Control environment 4

Running your vehicle in the TrainMaster Command environment 5

CAB-1 commands for your vehicle 5

Assigning your vehicle a new ID# 6

Reprogramming the Command reverse unit to restore features 6

Transformer operations

Running your vehicle with a Lionel transformer 7

Command Reverse Unit switch 8

Using your vehicle’s ElectroCoupler in the non-Command environment 9

Maintaining and servicing your vehicle

Lubricating your vehicle 10

Replacing your vehicle’s lamps 11

Limited Warranty/Lionel Service 12

Meijer.com

Command Control operations

The Command Control environment

Command Control is the advanced model railroad control system from Lionel. Command

Control gives you the power to operate multiple Command-equipped vehicles on the same

track, at the same time.

To operate in Command mode, you need a Command Base and a CAB

Remote Controller. Find them both at your authorized Lionel retailer.

Place your vehicle on Lionel or

Lionel-compatible O gauge track.

2Address your vehicle using CAB-1.

• Press ENG and 1 on the numeric keypad of your CAB-1. This command

is sent by the CAB-1 to the Command Base, which then translates your

command into digital code. That code is sent around your railroad’s

outside rails in the form of a digital “halo.” All Command-equipped Lionel

engines listen to this digital communication, but they do not respond until

they hear their individual ID number—in this case, “1.”

• The digital language of TrainMaster Command—and not track

power—controls the actions of Command-equipped Lionel

engines. Track power is simply like gasoline in the tank of your car—it

gives you the power to go places, but it doesn’t tell you where to go or how

fast to get there.

• All Command-equipped vehicles come factory-programmed

with an ID# of “1.” To change the ID# of your vehicle, see page 14.

3Move ‘em out!

• Throttle up or press any command button on the CAB. Your vehicle will

respond to your every command. Read on.

• Make sure track power is OFF before placing your vehicle on

the track.

• Make sure your Lionel Command Base is plugged-in and its

communications wire is connected to the COMMON post on your Lionel

transformer or the U terminal on any of your installed PowerMasters.

• Once positioned on the track, increase track voltage to FULL (no

more than 20 volts). On PowerMasters, slide the CMD/CONV switch to CMD.

Meijer.com

Running your vehicle in the TrainMaster Command environment

Command Control operations

Your Command-equipped vehicle comes factory-programmed with an ID# of “1.” To

get your vehicle in action, set PowerMasters to CMD or set all power supplies on full

(no more than 19 volts). Press ENG and “1” on your CAB. Turn the throttle or press any

command button; your vehicle is ready for Command operations.

CAB commands for your vehicle

The CAB commands for the vehicle are outlined below.

Throttle

Turn the THROTTLE to the right to accelerate, left to decelerate.

AUX1, 0

Stops and resets the vehicle to the idle position; ready to start in the forward direction.

AUX1, 8

Turns the strobe light off.

AUX1, 9

Turns the strobe light on.

AUX2

Toggles the headlights on and off.

DIR

The DIR key is used to change the directional state of your vehicle. Use the DIR button to decelerate to a

complete stop; turn the throttle up, and the vehicle will accelerate in the opposite direction. There is no

neutral state.

BRAKE AND BOOST

The BOOST and BRAKE command buttons give you incremental control of speed and are the superior

way to handle grades, gradual stops-and-starts, and more.

In the TrainMaster Command Control environment, the Boost and Brake keys will increase and decrease

the speed of your vehicle only as long as the keys are held down.

In the LEGACY environment, the Boost and Brake keys can be set to maintain the speed without

reverting back to the previous set speed.

These settings will be lost when you assign a new engine ID number.

HALT

Press HALT to shut down all PowerMaster electrical output on your railroad. Stops all Command-

equipped Lionel locomotives in operation.

Use HALT only in emergency situations.

Note!

Meijer.com

Reprogramming the Command reverse unit to restore features

Due to the inevitable derailments and static, it is possible that your Command reverse

unit could someday lose its setup program. The symptom of this condition would be

unresponsiveness in Command mode. This can be easily remedied by “reprogramming” your

Command reverse unit using the following steps.

STEP 1: Move the Command Reverse Unit switch on your vehicle to the PRG position.

STEP 2: Plug in your Command Base.

STEP 3: Place the vehicle on track, then turn on power to your track.

STEP 4: Press ENG then input the vehicle’s ID#. Press SET.

STEP 5: Turn off power to your track and wait ten seconds.

STEP 6: Remove the vehicle from your track, and move the Command Reverse Unit switch to

the RUN position.

STEP 7: Place the vehicle back on track, then turn power on to the track.

STEP 8: Press ENG and the ID#, then operate as normal.

Command Control operations

Assigning your vehicle a new ID#

We recommend that you choose an easy to remember ID# for your engine. You may choose a

part of the engine road number or any two-digit number that is not used by another engine.

Write the number on a small piece of tape and put this on the bottom of the fuel tank to aid in

remembering.

s your fleet of Command-equipped Lionel vehicles grows, you’ll want to give your vehicle

a more individualized number. Choose from any between 1 and 99. To make things easy,

use a portion of your vehicle’s cab number.

Set the vehicle’s Command reverse unit switch to PRG (see Figure 1 on

page 9). Plug in the Command Base and place the vehicle on track, then power up. Using

CAB, press ENG, the vehicle ID# that you select and then press the SET button on the CAB

remote. See the headlight flicker; that’s the Command reverse unit confirming the new ID#.

Set the Command reverse unit switch to RUN. Your vehicle is ready for operations with its all-

new ID#.

Meijer.com

3Move ‘em out!

Get your vehicle moving. Press the DIRECTION button on your Lionel

transformer. This sequences the Command reverse unit to the next operating state.

Adjust track voltage until your vehicle moves at your desired speed. To increase

speed, increase track voltage. To decrease speed, reduce voltage. To stop the vehicle,

turn-off track power, or cycle it to neutral.

Place your vehicle on Lionel or Lionel-compatible

O gauge track.

2Power up your vehicle with your transformer.

Your vehicle is designed to operate on 7-18 volts alternating current

(AC). Virtually all Lionel and Lionel-compatible alternating-current

transformers are suitable.

Do not power your vehicle with direct current (DC). Damage to

sensitive electronic components may occur.

When you first power up your track, the vehicle will wait between

three and eight seconds as it “listens” for digital language from the

TrainMaster Command Base (available separately). When it has determined that it’s

on a conventional (non-Command) railroad, the vehicle’s headlight will illuminate

and RailSounds will fire up. At this point, the vehicle is in neutral. (This occurs

when placing the vehicle on your railroad for the first time. Thereafter, it will start

in forward following every three-second power

interruption.)

Running your vehicle with a Lionel transformer

Transformer operations

Caution!

Note!

Meijer.com

Transformer operations

Switch overview

Use the Command Reverse Unit Switch to “lock” your locomotive in a single direction, or

neutral, in the Conventional environment when the switch is placed in the PGM position.

See Figure 1 below.

Also, the switch is used to assign an ID# and reprogram the locomotive in Command

operation when the switch is in the PGM position.

RUNPRG

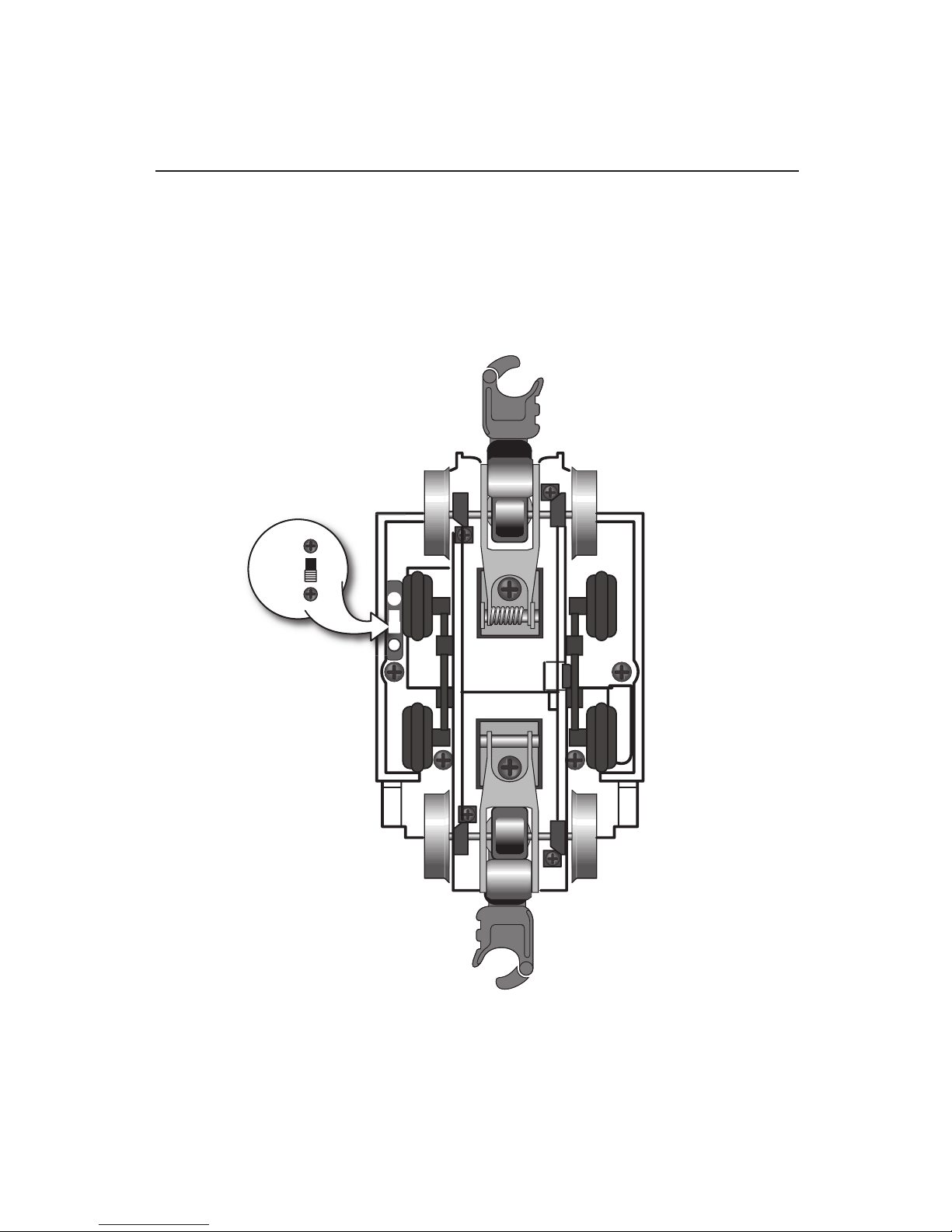

Figure 1. Command Reverse Unit switch

Meijer.com

Transformer operations

Using your vehicle’s ElectroCouplers in the non-Command

environment

To uncouple rolling stock from your vehicle’s rear ElectroCoupler in the non-Command

environment, you must rely on a piece of rolling stock equipped with Lionel magnetic couplers

coupled directly to your vehicle’s ElectroCouplers. The magnetic coupler on the rolling stock will

then react to the magnetic field generated by a Lionel Remote-Control or Uncoupling Track section

(available separately, 6-65530 for O gauge, 6-65149 or 6-12746 for O-27 gauge, and 6-12020 or

6-12054 for FasTrack layouts). Place your rolling stock’s coupler “trigger disc” over the central

coil of a Remote-Control or Uncoupling Track section and press UNCOUPLE on the controller. The

magnetic field pulls the disc downward, and the coupler opens.

Your vehicle’s ElectroCoupler will NOT open manually or by using a Remote-Control

Track section.

Magnetic coupler on the rolling stock

coupled to your vehicle

Note!

Remote-Control

Track section

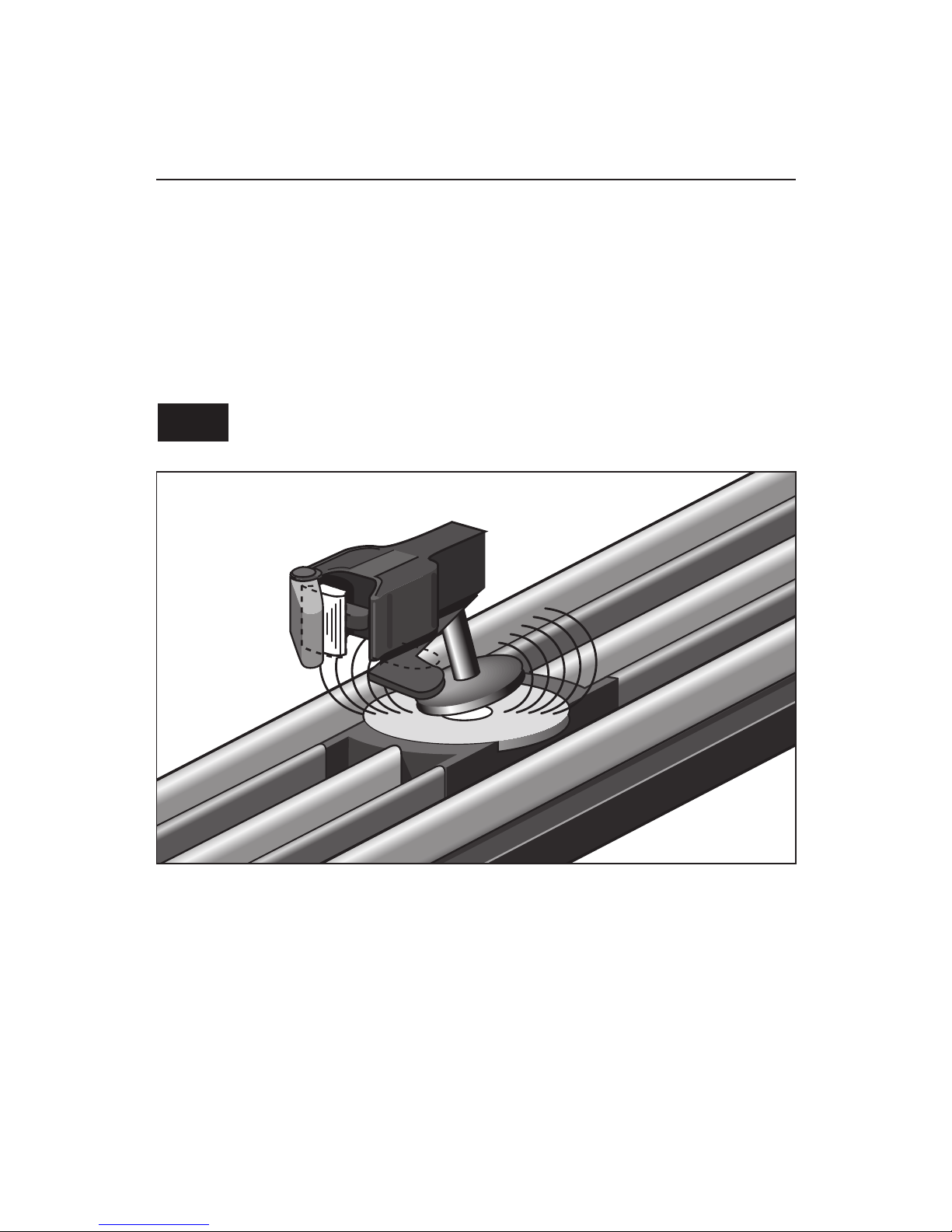

Figure 2. Trigger disc operation

Meijer.com

RUNPRG

Maintaining and servicing your vehicle

Lubricating your vehicle

elp your Lionel vehicle lead a long and productive life on your railroad by maintaining it

properly.

We recommend that you purchase a Lionel Lubrication and Maintenance Kit (no. 6-62927),

available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small

amount will do), and avoid getting grease or oil on the vehicle’s wheels or your track. You’ll know

your vehicle requires lubrication when visual inspection reveals dryness on the parts indicated in

Figure 3 below. Remove accumulated dirt and dust before lubricating, and always lubricate any

vehicle emerging from prolonged storage.

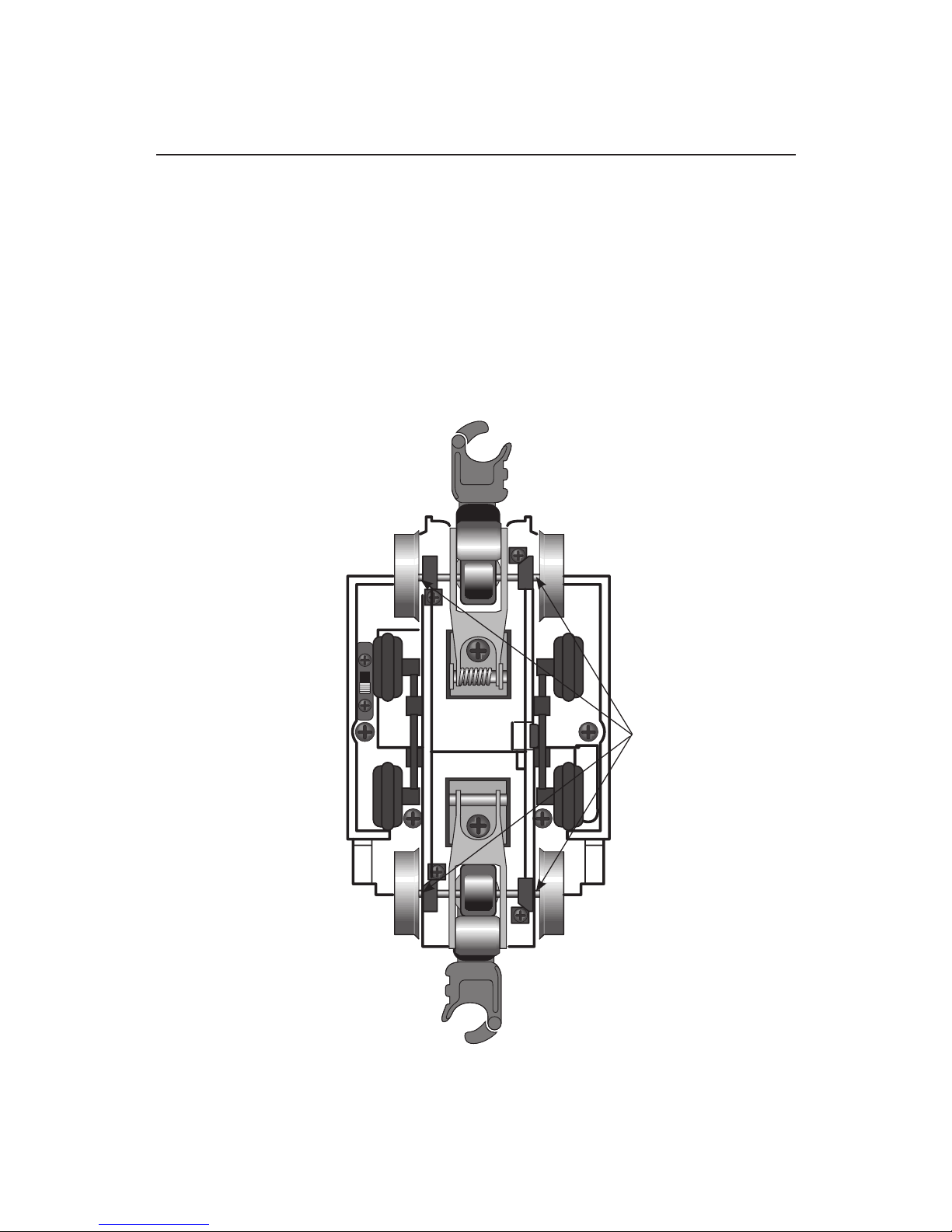

Figure 3. Underside details and lubrication points

Lubricate with Lionel oil

sparingly

Meijer.com

Table des matières

Autres manuels Lionel Jouet

Lionel

Lionel 4-6-9 Camelback Manuel utilisateur

Lionel

Lionel 2-8-0 Consolidation Manuel utilisateur

Lionel

Lionel SD80MAC Manuel utilisateur

Lionel

Lionel LionChief Plus 2-8-2 Mikado Manuel utilisateur

Lionel

Lionel Glacier Route Freight Ready-To-Run Train Set Manuel utilisateur

Lionel

Lionel G-Gauge Manuel utilisateur

Lionel

Lionel 4-8-4 Niagara Manuel utilisateur

Lionel

Lionel VISION 4-6-6-4 Challenger Manuel utilisateur

Lionel

Lionel American Flyer Manuel utilisateur

Lionel

Lionel Satellite Launch Car Manuel utilisateur

Lionel

Lionel Hallows Eve4-6-0 Steam Locomotive Manuel utilisateur

Lionel

Lionel Santa Flyer Manuel utilisateur

Lionel

Lionel American Flyer GP-7 Manuel utilisateur

Lionel

Lionel Christmas Hudson Jr.Steam Locomotive Manuel utilisateur

Lionel

Lionel LL Bean Ready-To-Run O-27 Set Manuel utilisateur

Lionel

Lionel Heavyweight Passenger Cars Manuel utilisateur

Lionel

Lionel Non-Powered LEGACY RailSounds Super Bass F3... Manuel utilisateur

Lionel

Lionel Missile Manuel utilisateur

Lionel

Lionel Thomas & Friends Manuel utilisateur

Lionel

Lionel F3B Manuel utilisateur

Lionel

Lionel ES44AC Manuel utilisateur

Lionel

Lionel Auto Crossing Gate Manuel utilisateur

Lionel

Lionel Budd Rail Car Manuel utilisateur

Lionel

Lionel Westside Lumber Shay Manuel utilisateur

Manuels Jouet populaires d'autres marques

marklin

marklin 37321 Manuel utilisateur

Canon

Canon PAPER CRAFT Manuel utilisateur

GREAT PLANES

GREAT PLANES Pitts M-12S Manuel utilisateur

NOCH

NOCH 14261 Manuel utilisateur

Hausler

Hausler 450 SE V2 Manuel utilisateur

Dynaflite

Dynaflite Daydream Manuel utilisateur

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuel

Kenner

Kenner Batman 63651 Manuel utilisateur

LEGO

LEGO 8527 Manuel utilisateur

iKarus

iKarus ECO 8 Manuel utilisateur

Multiplex

Multiplex EasyStar II Mode d’emploi

Walkera

Walkera 38 Mode d’emploi

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuel utilisateur

MD MXION SWD Manuel utilisateur

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuel utilisateur

marklin

marklin 39671 Manuel utilisateur

Meccano

Meccano 15103 Manuel utilisateur

LEGO

LEGO TECHNIC 8735 Manuel utilisateur
