Linsar LS75UHDSM20 Manuel utilisateur

75"

ULTRA HD

SMART TV

User Manual

MODEL: LS75UHDSM20

Welcome

Welcome to Linsar!

This user manual tells you all you need to know about setting up your newTV.

Please take special note of any important safety and usage information presented with the symbol.

All products brought to you by Linsar are manufactured to the highest standards of performance and safety

and, as part of our philosophy of customer service and satisfaction, are backed by a comprehensive

1Year Warranty.

Contents

Welcome 2

Unpack and Prepare 4

What's in the box 4

ImportantTips 5

Attaching the stand 6

Wall-mounting the TV 7

Connect to power 8

Connect your antenna 8

Controls and Connections 9

Get to know yourTV 9

Buttons on theTV 9

Ports on the TV 10

Remote Control 12

Setup 12

Using the Remote Control 13

Standard Remote 14

On-Screen Set Up 16

TV Setting Menus 17

TV 19

Picture 20

Sound 22

Network 24

System 26

Time 28

Lock 29

PVR

(Personal Video Recording) 30

About 31

QMenu 32

High Dynamic Range (HDR) 33

Smart TV 34

SmartTV Applications 34

Screencast 35

App Portals 35

Web Browser 36

TV Guide 37

Recording 38

Recording LiveTV 39

Scheduled recording 39

Playback 39

Pause LiveTV (Time-shift) 40

USB Mode 41

Set up 41

Troubleshooting 43

Specications 46

Compliance and

Responsible Disposal 47

4 | UNPACK AND PREPARE

Unpack and Prepare

See the flap of the box

for how to handle theTV

without damaging it!

What's in the box

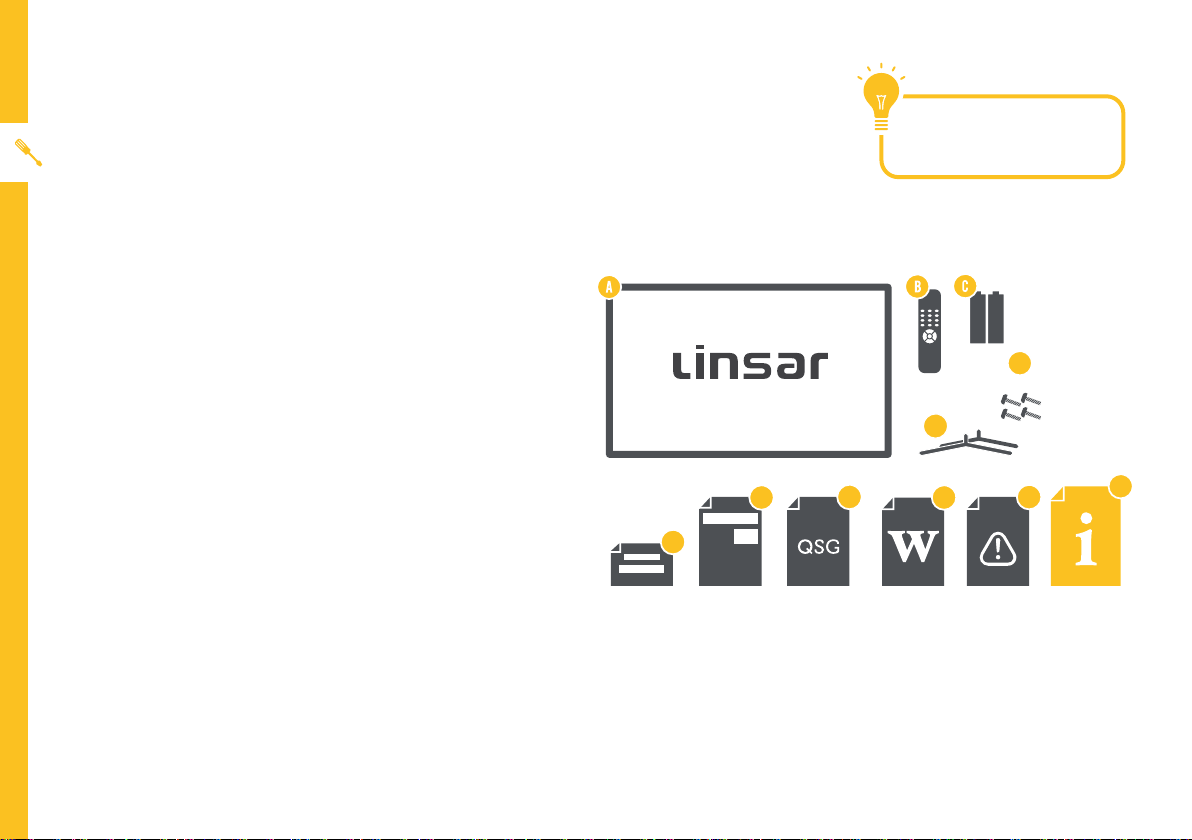

In the box you will find:

A. 75" Ultra HD SmartTV

B. Remote Control

C. AAA Batteries

D. Screws forTV Stands

E. TV Stands

F. Warning Sheet

G. TVToppling Safety Message

H. Quick Start Guide

I. Warranty Certificate

J. General Safety Warnings

K. User Manual

You will need:

• Phillips-head screwdriver (for stand installation)

• Someone to help you lift and install yourTV

• Antenna cable (to watch liveTV)

• Broadband internet connection (to use smart apps)

Before installing your newTV, check you have everything needed.

GHIJK

UNPACK AND PREPARE | 5

Important Tips

• Place theTV on a level surface.

• Place theTV away from any source that may generate heat or vibrations.

• Make sure there is enough space around vents for airflow.

• The remote control works up to 5 metres away from theTV.

• Unplug theTV before cleaning it.

• Clean using a dry cloth only - do not use water or chemicals.

• Use only the power supply provided.

• It is highly recommended to use safety straps for securing theTV in place.

• Keep liquid, children and pets away from theTV at all times.

6 | UNPACK AND PREPARE

Attaching the stand

• ThisTV is heavy! We recommend asking

someone to help you lift it.

• Unplug theTV from the power outlet before

installing or removing the stand.

• DO NOT place theTV standing upright without

its stand attached; it could damage the remote

sensor at the bottom of theTV.

• Only touch the frame, not the screen.

• It is highly recommended to use safety straps

for securing theTV.

CAUTION!

Do not apply

excessive force as

you might damage

the screw holes.

Unless you are wall-mounting theTV, you will need to

attach its stand/legs.

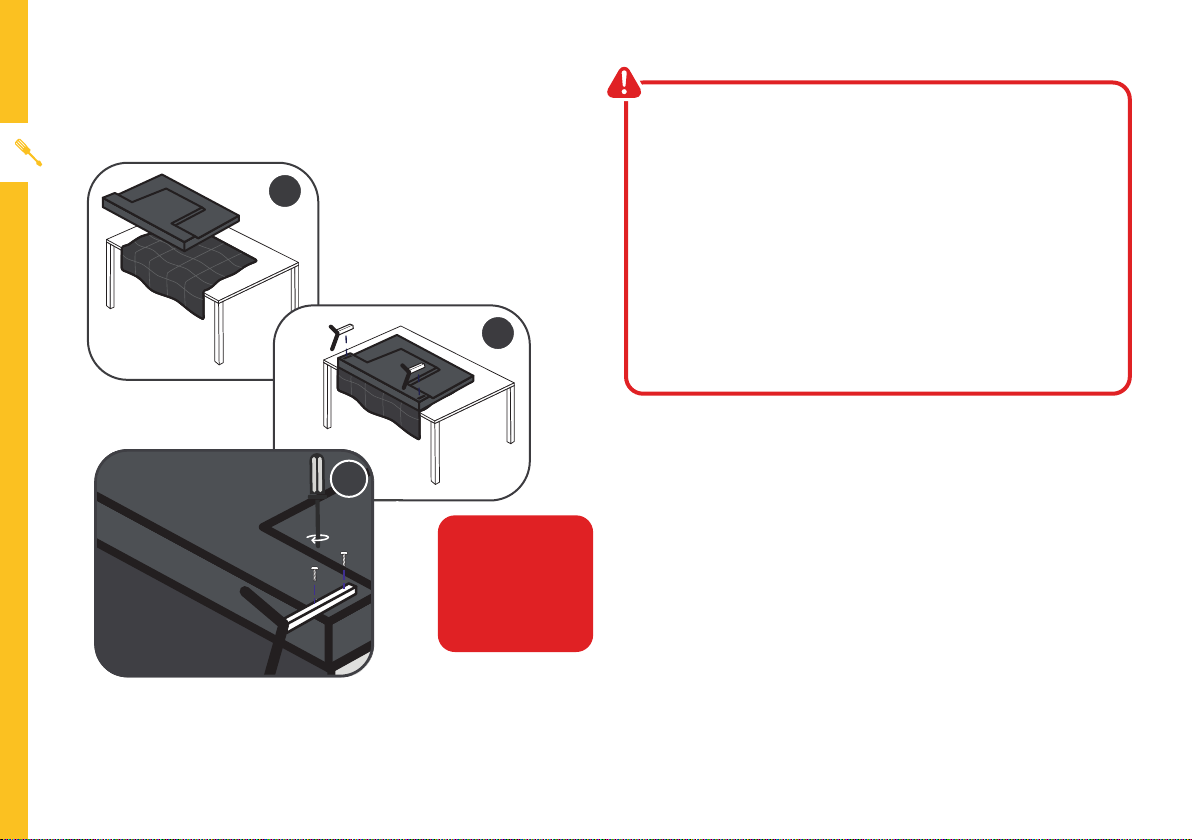

1. Lay theTV face-down on a soft, flat surface (like

the sofa, or a towel on a table) larger than theTV

itself.

2. Match stands to the installation points on the

underside of theTV.

3. Attach the stands to theTV at the installation

points using the screws provided. (Grab a

screwdriver for this bit). Make sure the legs

are facing away from each other (not leaning

inwards).

UNPACK AND PREPARE | 7

600mm

Back of theTV

300mm

Wall-mounting the TV

TheTV comes with holes on the back panel for use

with wall-mounting brackets (bracket not included).

Use four standard M8*16mm screws (or longer,

depending on the mounting bracket) to wall-mount

thisTV (screws are not included).

• Unplug theTV from the power outlet

before wall-mounting.

• Contact a professional for assistance with

wall-mounting theTV.

Required

• VESA Mounting

Bracket

• 4 x M8*16mm

screws (or

longer as

required)

The screws in the package are for securing theTV

stand only. If you are wall-mounting theTV, consult a

qualified installer for advice on bracket support and

wall support.

8 | UNPACK AND PREPARE

Free-to-airTVinHD(HighDenition)

High Definition (HD) channels

provide the best viewing quality

and are available with a digital

antenna connection.

TV channels in Ultra HD resolution are

not currently available in Australia.

Therefore when you watch HD

broadcast signals on an Ultra HDTV,

the picture can appear 'soft' and lacks

the detail you see when watching the

same content on an HDTV.

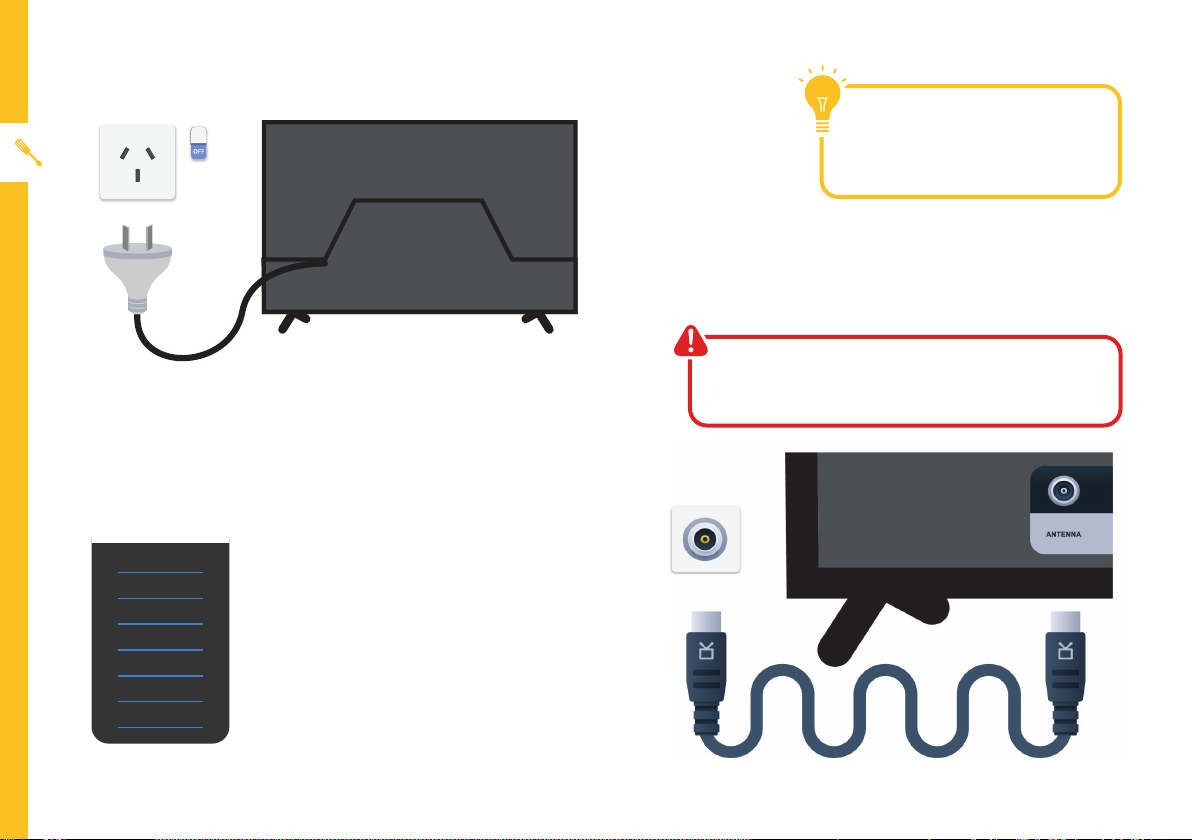

Connect to power

Make sure theTV is switched off at the power outlet

until you have finished connecting your cables.

Connect your antenna

Antenna cable not included.

ABC HD

SBS ONE HD

7HD

9HD

10 HD

PRIME7 HD

WIN HD

Example

HD Channels

Don't forget to plug in theTV to

the power outlet. Leave the power

switched off until installation is

finished.

CONTROLS AND CONNECTIONS | 9

See next page for more info on the connections.

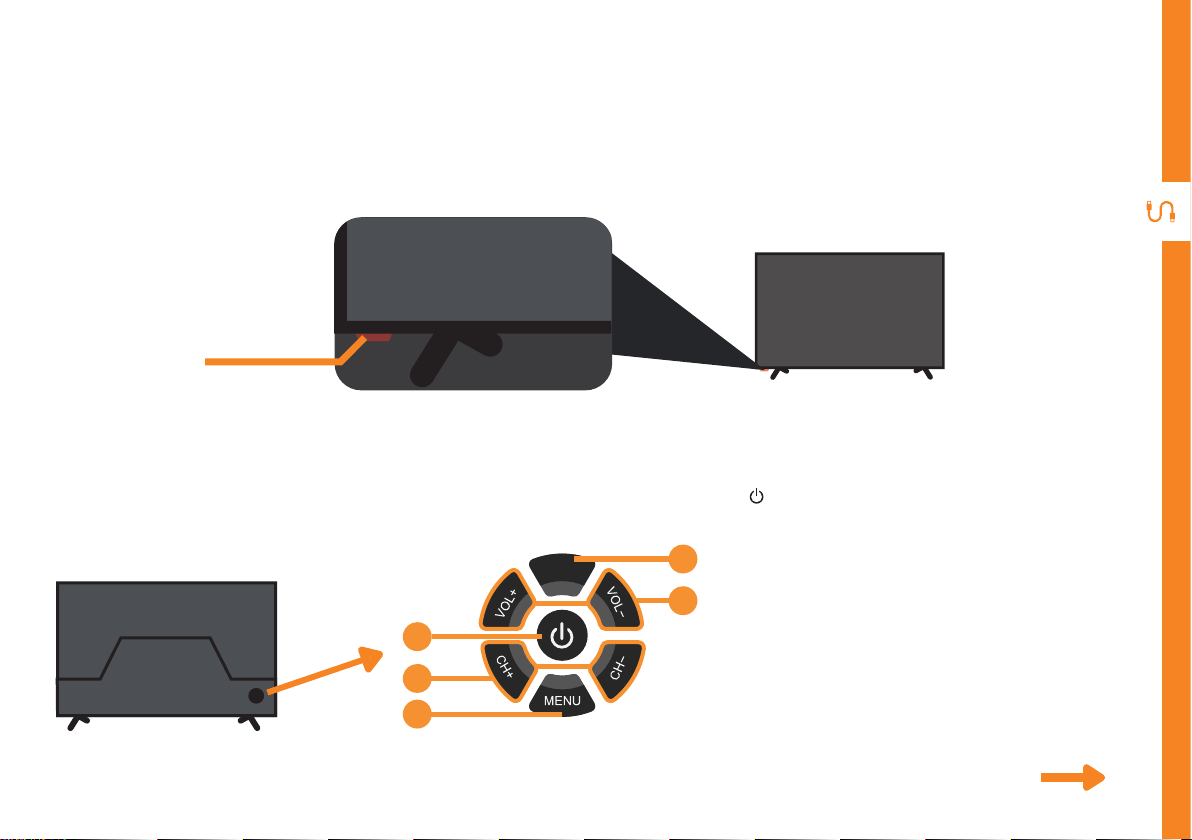

1. (ON/OFF): Switch theTV to On or

Standby.

2. CH + / CH - : Select the next or

previous channel.

3. Menu: Enter the settings menu.

4. VOL + / VOL - : Increase/decrease the

volume level.

5. SOURCE: Select the input source.

Controls and Connections

Buttons on the TV

Get to know your TV

Rear view

Front view

On/Standby indicator and

Remote sensor

SOURCE

10 | CONTROLS AND CONNECTIONS

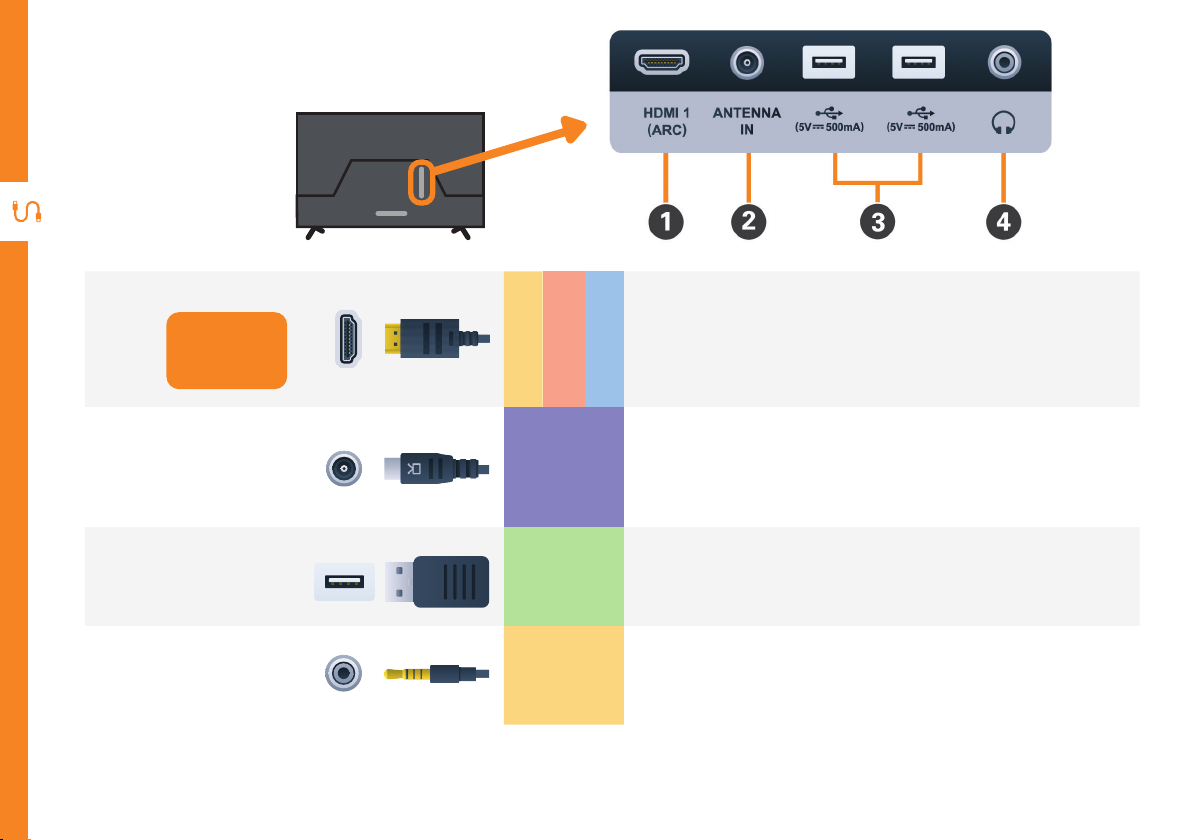

Ports on the TV

HDMI

Use a high-speed

HDMI cable for

best picture and

sound quality.

SOUND


COMPUTER

All-digital connection between theTV and any HDMI device.

Supports Ultra HD. Requires a HDMI cable (not included).

2Antenna

FREE-TO-AIR

Connect your antenna for liveTV. (Antenna cable not included.)

3USB

STORAGE

Plug in a USB stick/drive to PVR record and pause live TV. Play

media files stored on your USB storage device (supported file

codecs and extensions may vary). Update theTV software via

USB.

Headphone

Jack

SOUND

Connect to your headphones, amplifier or audio device, using an

AUX cable (not included).
