Linksys PAP2 Manuel utilisateur

Smart Member Services Linksys PAP2 Installation Guide

1 Adapter Description

The sections below briefly describe the PAP2 device.

1.1 PAP2 Overview

The PAP2 is a 2-port FXS phone adapter, which allows you to connect two (2) analog

phones.

PAP2 2-Port FXS Phone Adapter

1.2 Connectors and Pinouts

The image below displays the Ethernet (RJ-45) and analog (RJ-11) line pin-outs.

Ethernet (RJ-45) and Analog (RJ-11) Line Pin-Outs

1.3 Accessing the PAP2

1. Connect an analog phone to the RJ-45 connector on the PAP2.

2. Using the telephone keypad, press the star key (*) four (4) times: ****.

You will be prompted to enter a code.

3. Enter the appropriate code, followed by the pound (#) key. Refer to the PAP2

Menu Options table on the following page for codes.

PAP2 MENU OPTIONS

Action Code User Input Behavior Notes

Enter IVR Menu **** None Do not press any other keys

until you hear, “Configuration

menu. Please enter option

followed by the pound (#)

key, or hang up to exit.”

Check DHCP 100 None The system announces if

DHCP is enabled or disabled.

Set DHCP 101 Enter 1 to enable.

Enter 0 to disable. Enter the option, followed by

the pound (#) key.

Check IP

address 110 None

Set IP Address 111 Enter value using the

numbers on the

telephone keypad. Use

the star (*) key when

entering a decimal point.

Enter the value, followed by

the pound (#) key. DHCP

must be “Disabled,”

otherwise you will hear the

announcement, “Invalid

Option” if you try to set this

value.

Check Net Mask 120 None

Set Net Mask 121 Enter value using the

numbers on the

telephone keypad. Use

the star (*) key when

entering a decimal point.

Enter the value, followed by

the pound (#) key. DHCP

must be “Disabled,”

otherwise you will hear the

announcement, “Invalid

Option” if you try to set this

value.

Check Gateway 130 None

Set Gateway 131 Enter the value using the

numbers on the

telephone keypad. Use

the star (*) key when

entering a decimal point.

Enter the value, followed by

the pound (#) key. DHCP

must be “Disabled,”

otherwise you will hear the

announcement, “Invalid

Option” if you try to set this

value.

Check MAC

Address 140 None You will hear the phone

adapter’s MAC address.

Check Firmware

Version 150 None You will hear the phone

adapter’s firmware version.

Manual Reboot 7326668 None After you hear, “Option

successful,” hang up the

phone. The phone adapter

will automatically reboot.

PAP2 Menu Options

Smart Member Services Linksys PAP2 Installation Guide

2. Provisioning

2.1 General Configuration for Outbound Calling

To configure the PAP2 for outbound calling:

1. Connect to the PAP2 by entering the device’s IP address in the Web browser’s

Address bar. For instructions on obtaining the IP address, refer to section 2.3

Accessing the PAP2 on page 2 in this Guide.

2. Click on the Admin Login link in the upper right corner of the page, and then

click the advanced configuration link.

PAP2 Web Interface – Main Window

3. Click the System tab, and in the Internet Connection Type section, click the

DHCP drop-down menu, and select yes or no.

System Tab

4. If you set DHCP to no, enter the Static IP, NetMask, and Gateway information.

If you set DHCP to yes, continue to step 5.

5. Click the Submit All Changes button at the bottom of the page to save the

settings.

Smart Member Services Linksys PAP2 Installation Guide

2.2 Line-Specific Configuration

1. Click the Line1 or Line2 tab at the top of the page, and in the NAT Settings

section, change the following setting:

Field Value

NAT Keep Alive Enable no

2. In the Proxy and Registration section (see the screen on the following page),

change the following settings:

Field Value

Proxy byod1.net2phone.com

Use Outbound Proxy no

Use OB Proxy In Dialog no

Make Call Without Reg yes

Ans Call Without Reg yes

DNS SRV Auto Prefix no

3. In the Subscriber Information section (as shown in the Line1/2 Window screen on

the following page), enter a Display Name. This value can be any alphanumeric

string. Enter the following values for outbound only service:

Service Type Field Display Name

Value

Display Name (Line 1) NO_DID1

OUTBOUND SERVICE ONLY Display Name (Line 2) NO_DID2

4. Enter the User ID (account) and Password (PIN).

IMPORTANT You must have a different account and PIN for Line 1 and Line 2.

5. Click the Use Auth ID drop-down menu, and click no.

Smart Member Services Linksys PAP2 Installation Guide

Proxy and Registration and Subscriber Information Sections

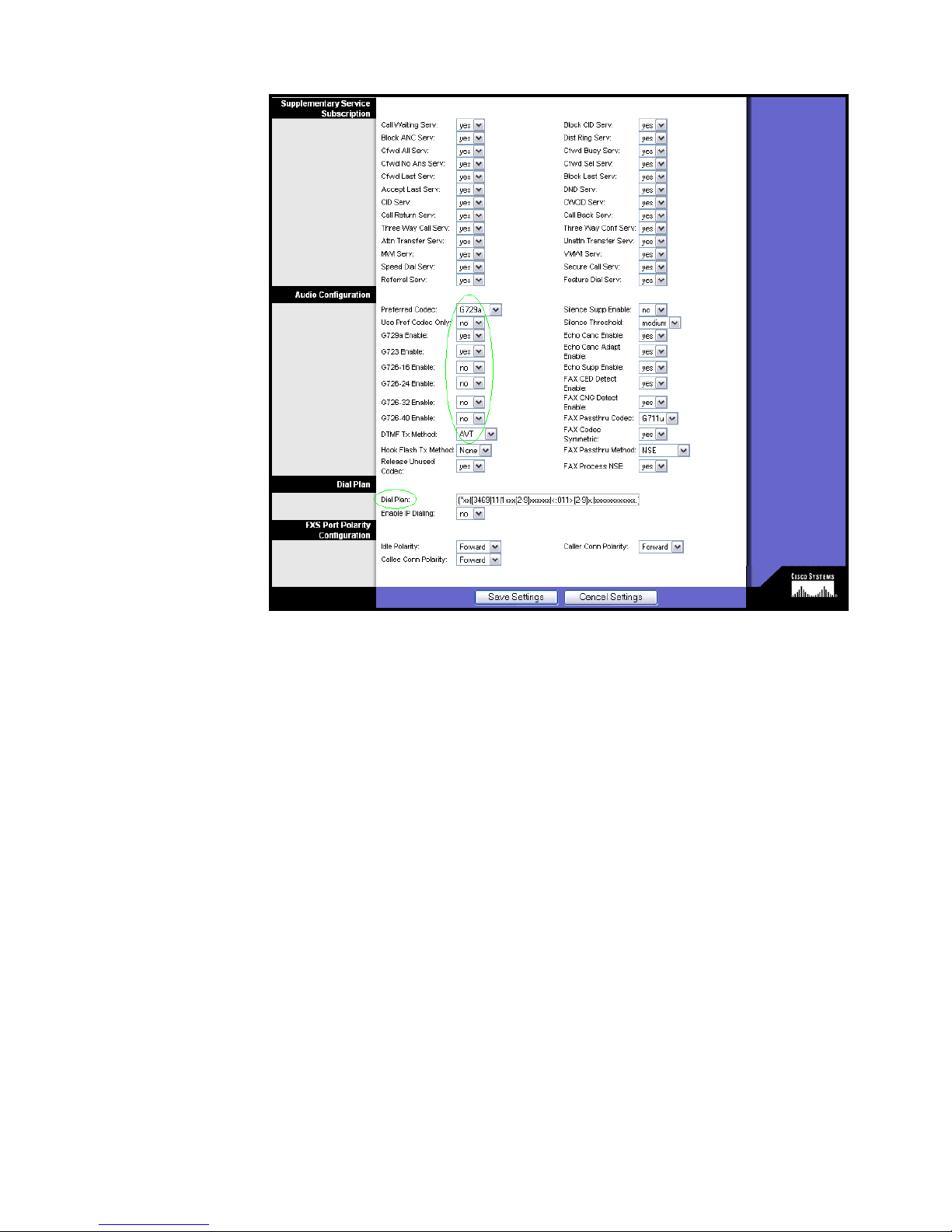

6. Scroll to the Audio Configuration section (as shown in the Audio Configurations

and Dial Plan Sections screen on the following page), and change the following

settings:

Field Value

Preferred Codec G729a

Use Pref Codec Only no

G729a Enable yes

G723 Enable yes

G726-16 Enable no

G726-24 Enable no

G726-32 Enable no

G726-40 Enable no

DTMF Tx Method AVT

Smart Member Services Linksys PAP2 Installation Guide

Audio Configuration and Dial Plan Sections

7. In the Dial Plan section, change the Dial Plan to fit the dialing pattern in your

country. The dialed number must start with ‘1’ for US calls and ‘011’ for non-US

calls. Please read the PAP2 manual to customize your dial plan.

8. Click the Submit All Changes button to save the settings.

Smart Member Services Linksys PAP2 Installation Guide
