VoiceDirector Device Configuration Guide

Linksys PAP2

Disclaimer

The content of this manual is subject to change without notice and should not be

construed as a commitment by the manufacturer, distributor, or service

provider. This manual is furnished for informational use only and the

manufacturer, distributor, or service provider assumes no responsibility for any

errors or inaccuracies that may appear herein.

Any services provided through this equipment are not intended to replace or be

a substitute for primary line voice services or Plain Old Telephone Service

("POTS") and are not meant to provide guaranteed Automatic Number

Identification or Automatic Location Information capabilities associated with 911

or E911 services or to permit access to 411 directory assistance services. The

manufacturer, distributor, or service provider will not be liable for any damages,

expenses, liabilities, risks, or harms arising out of or related to the services

provided through this equipment.

04.24.2006

Page ii

All manuals and user guides at all-guides.com

VoiceDirector Device Configuration Guide Linksys PAP2

Table of Contents

1. Linksys PAP2 ........................................................................ 1

STEP 1 – SETUP ACCOUNT................................................................ 1

STEP 2 – ACCESSING THE PAP2 ....................................................... 1

STEP 3 - LOGGING INTO THE WEB CONFIGURATION INTERFACE.... 1

STEP 4 – CONFIGURING THE PAP2 FOR OUTBOUND CALLING......... 2

STEP 5 – LINE-SPECIFIC CONFIGURATION...................................... 3

Page iii

All manuals and user guides at all-guides.com

VoiceDirector Device Configuration Guide Linksys PAP2

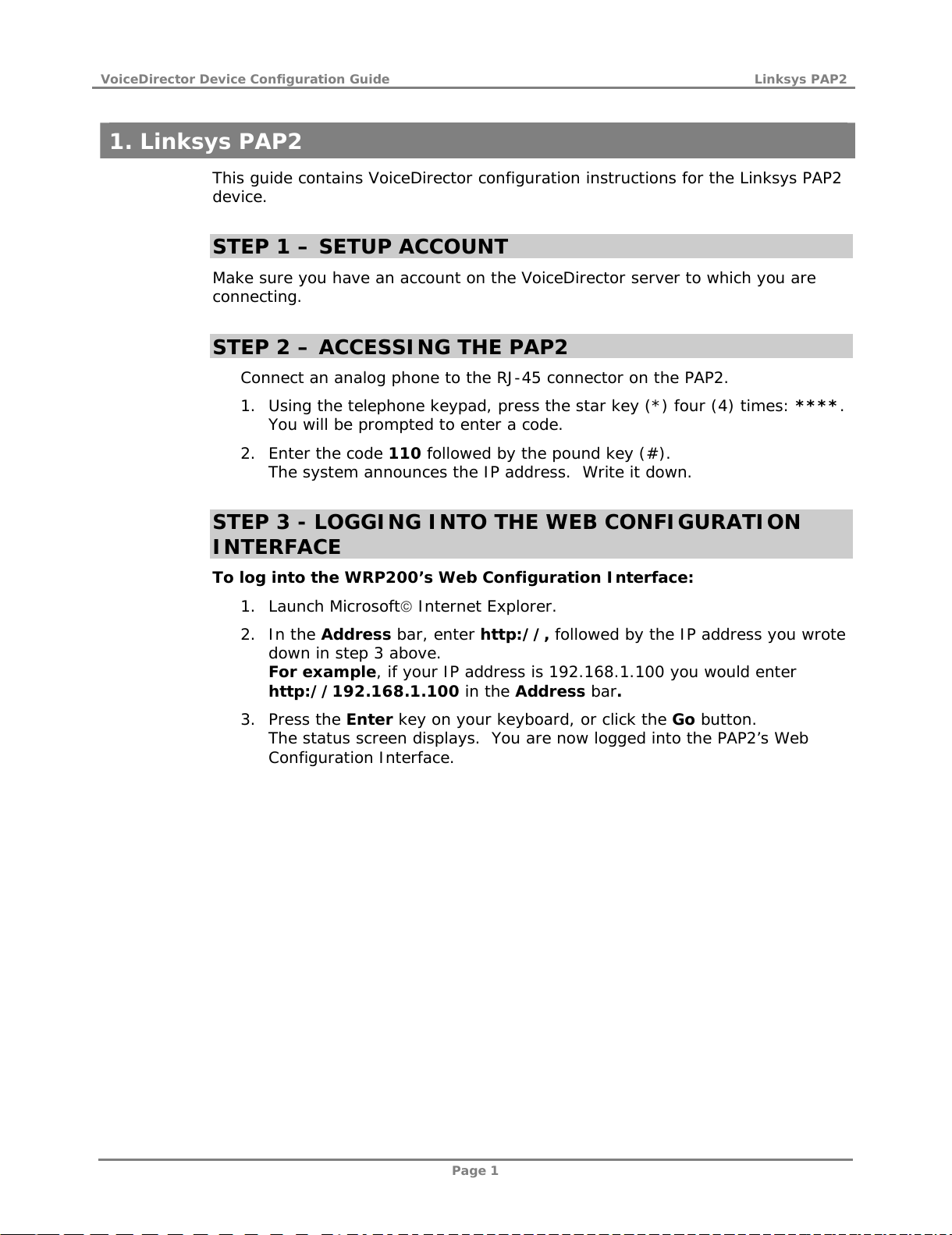

1. Linksys PAP2

This guide contains VoiceDirector configuration instructions for the Linksys PAP2

device.

STEP 1 – SETUP ACCOUNT

Make sure you have an account on the VoiceDirector server to which you are

connecting.

STEP 2 – ACCESSING THE PAP2

Connect an analog phone to the RJ-45 connector on the PAP2.

1. Using the telephone keypad, press the star key (*) four (4) times: ****.

You will be prompted to enter a code.

2. Enter the code 110 followed by the pound key (#).

The system announces the IP address. Write it down.

STEP 3 - LOGGING INTO THE WEB CONFIGURATION

INTERFACE

To log into the WRP200’s Web Configuration Interface:

1. Launch Microsoft©Internet Explorer.

2. In the Address bar, enter http://, followed by the IP address you wrote

down in step 3 above.

For example, if your IP address is 192.168.1.100 you would enter

http://192.168.1.100 in the Address bar.

3. Press the Enter key on your keyboard, or click the Go button.

The status screen displays. You are now logged into the PAP2’s Web

Configuration Interface.

Page 1

All manuals and user guides at all-guides.com

VoiceDirector Device Configuration Guide Linksys PAP2

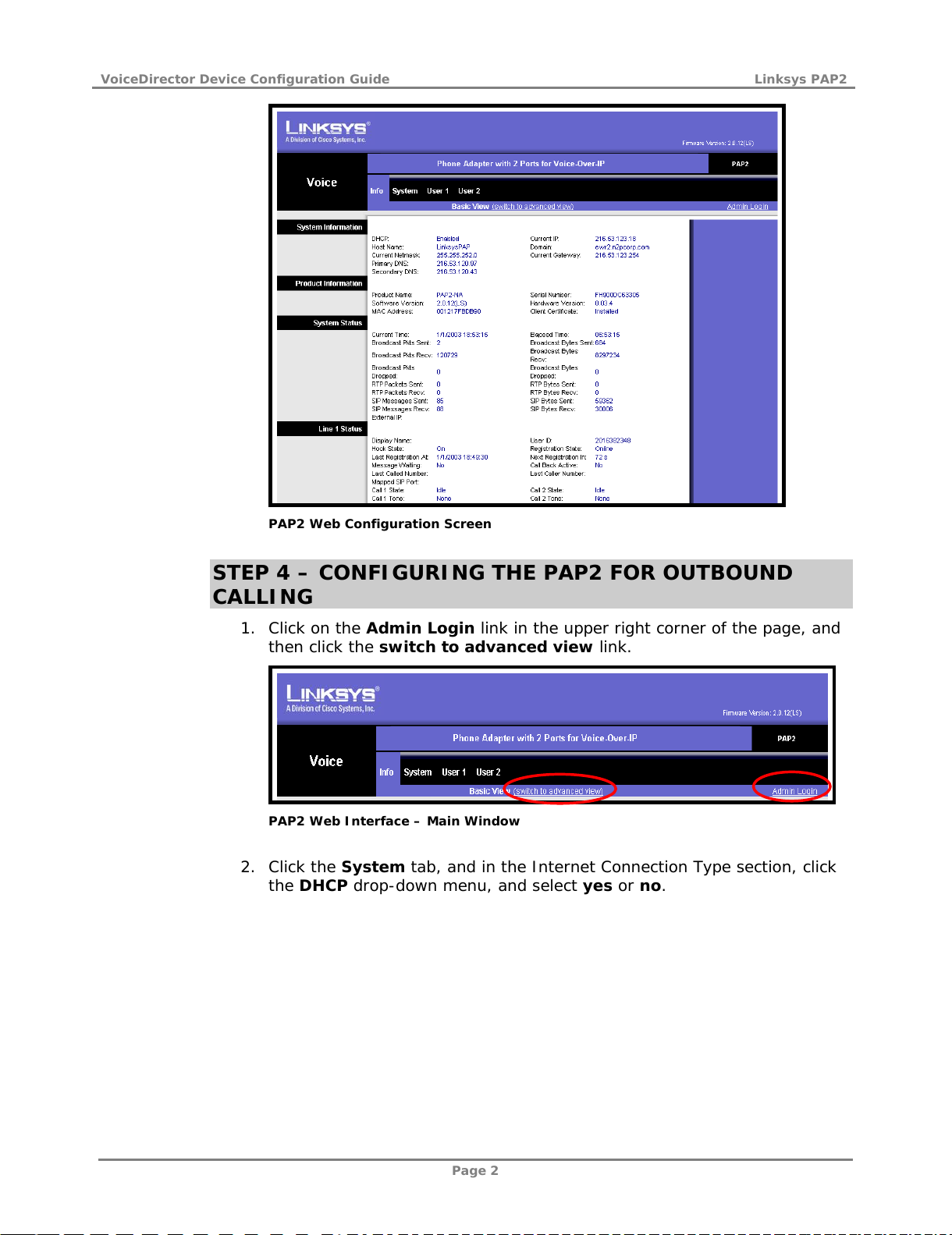

PAP2 Web Configuration Screen

STEP 4 – CONFIGURING THE PAP2 FOR OUTBOUND

CALLING

1. Click on the Admin Login link in the upper right corner of the page, and

then click the switch to advanced view link.

PAP2 Web Interface – Main Window

2. Click the System tab, and in the Internet Connection Type section, click

the DHCP drop-down menu, and select yes or no.

Page 2

All manuals and user guides at all-guides.com

VoiceDirector Device Configuration Guide Linksys PAP2

System Tab

3. If you set DHCP to no, enter the Static IP, NetMask, and Gateway

information.

If you set DHCP to yes, continue to step 5.

4. Click the Save Settings button at the bottom of the page to save the

settings.

STEP 5 – LINE-SPECIFIC CONFIGURATION

1. Click the Line1 or Line2 tab at the top of the page, and in the NAT

Settings section, change the following setting:

Field Value

NAT Keep Alive Enable no

2. In the Proxy and Registration section (see the screen on the following

page), change the following settings:

Field Value

Proxy

NOTE: If using a DNS, do not

include “http://” in the Proxy

name. For example, if the DNS

name is 000.00.000.00, enter

000.00.000.00 as the Proxy.

Enter the

VoiceDirector

IP address or

DNS name.

Page 3

All manuals and user guides at all-guides.com

all-guides.com

VoiceDirector Device Configuration Guide Linksys PAP2

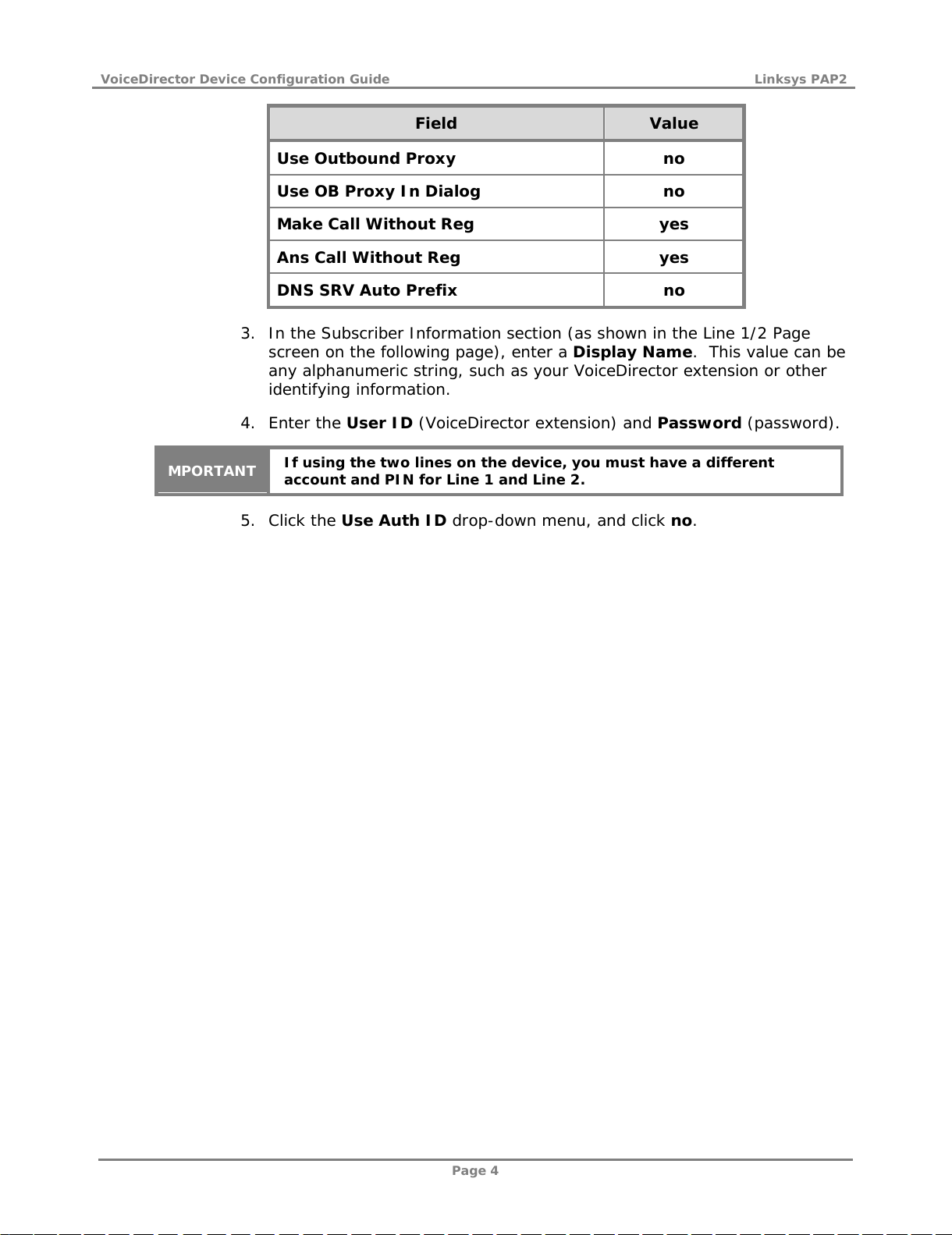

Field Value

Use Outbound Proxy no

Use OB Proxy In Dialog no

Make Call Without Reg yes

Ans Call Without Reg yes

DNS SRV Auto Prefix no

3. In the Subscriber Information section (as shown in the Line 1/2 Page

screen on the following page), enter a Display Name. This value can be

any alphanumeric string, such as your VoiceDirector extension or other

identifying information.

4. Enter the User ID (VoiceDirector extension) and Password (password).

IMPORTANT If using the two lines on the device, you must have a different

account and PIN for Line 1 and Line 2.

5. Click the Use Auth ID drop-down menu, and click no.

Page 4

All manuals and user guides at all-guides.com

VoiceDirector Device Configuration Guide Linksys PAP2

Line1/2 Page

Page 5

All manuals and user guides at all-guides.com

VoiceDirector Device Configuration Guide Linksys PAP2

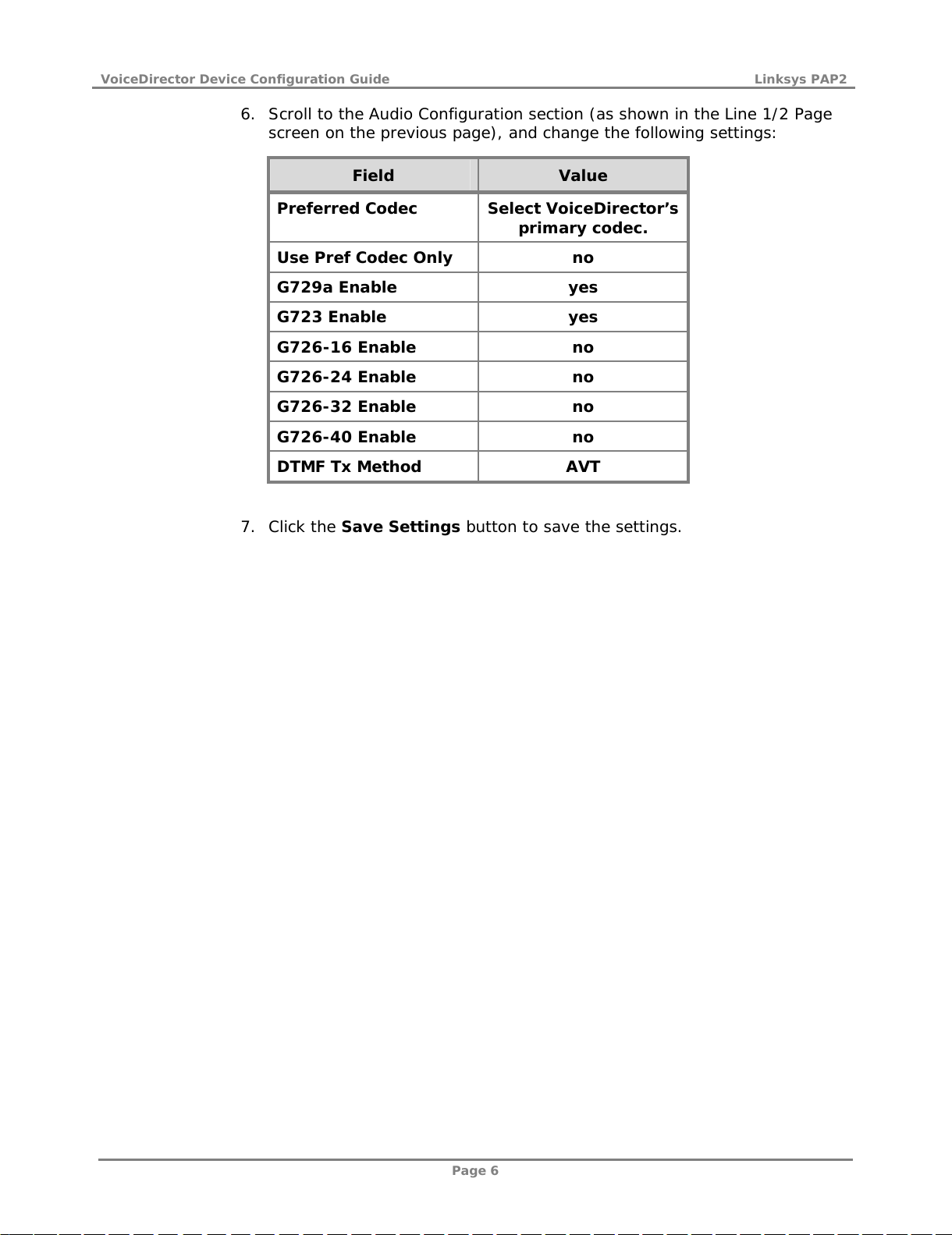

6. Scroll to the Audio Configuration section (as shown in the Line 1/2 Page

screen on the previous page), and change the following settings:

Field Value

Preferred Codec Select VoiceDirector’s

primary codec.

Use Pref Codec Only no

G729a Enable yes

G723 Enable yes

G726-16 Enable no

G726-24 Enable no

G726-32 Enable no

G726-40 Enable no

DTMF Tx Method AVT

7. Click the Save Settings button to save the settings.
